WT 2M
Item No.:
T0053443599

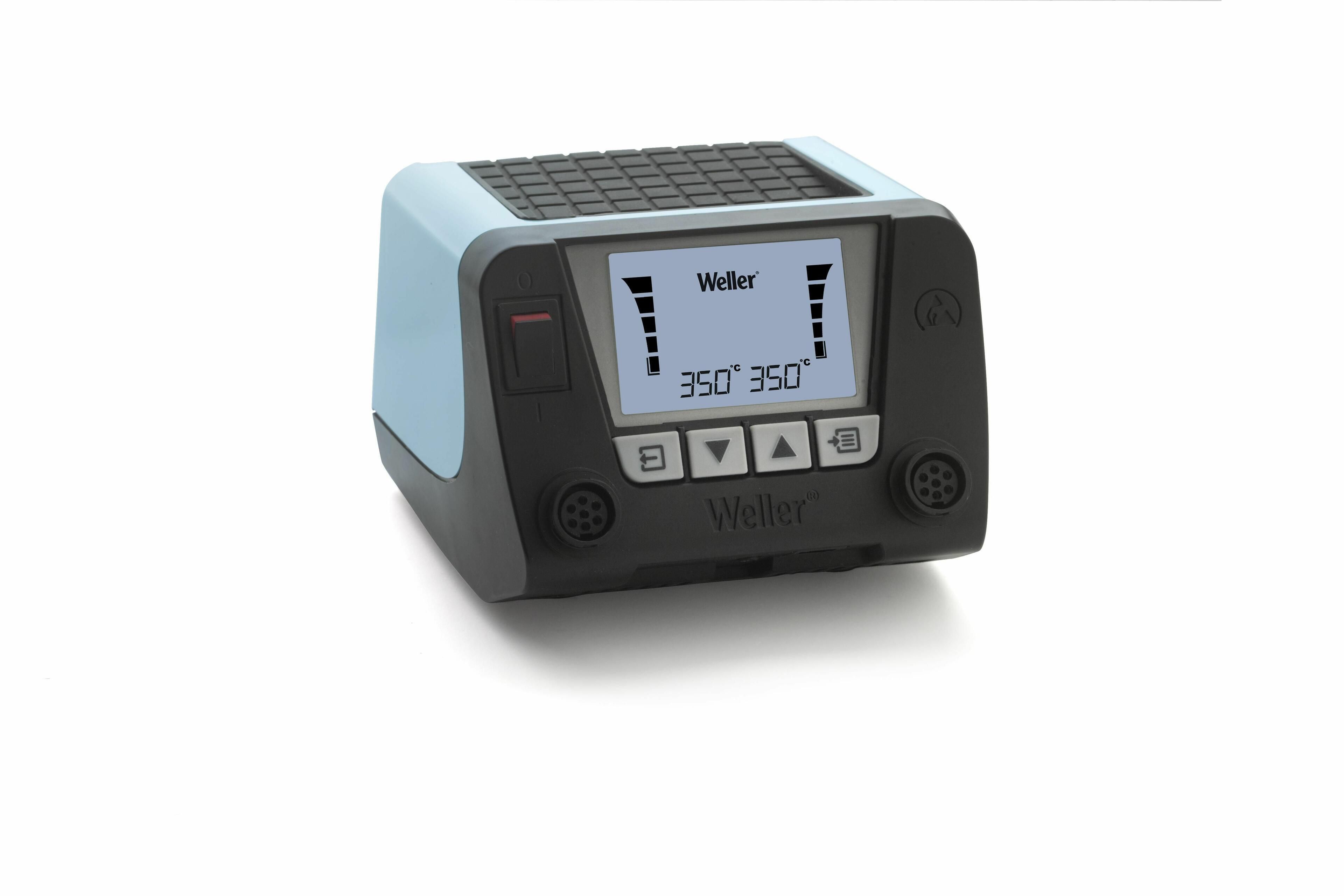

2-Channel Soldering Station digital 150 W
High flexibility for versatile applications - Weller WT2M soldering stations
High flexibility for versatile applications - Weller WT2M soldering stations
Product features
-
High productivity (Power unit with 2 channel ,150 W)
-
High performance and functionality - Compatible with Weller’s microsoldering cartridge tip tools, plus many existing passive tip tools
-
Serving 2 users at once (with intelligent power sharing)
-
Intuitive use thanks to clear menu structure
-
Automatic standby of tool thanks to integrated acceleration sensor in the tool
-
OFF time, Prozess window, Lock function, Offset
-
Housing cover useable as storage
-
Reduced footprint thanks to stackability
Downloads
pdf
Technical data
| Height | 101mm |
| Length | 149mm |
| Dimensions L x W x H | 149.0 x 138.0 x 101.0mm |
| Equipotential Bonding | Yes |
| ESD Safe | Yes |
| Fuse | T 0,8 A |
| Number of Channels | 2 |
| Overcurrent Release | T40/B |
| Power | 150 W |
| Temperature Accuracy °C | ± 9°C |
| Temperature Accuracy °F | ± 17°F |
| Temperature Range °C | 50 - 450 (550) |
| Temperature Range °F | 150 - 850 (950) |
| Temperature Stability °C | ± 2°C |
| Temperature Stability °F | ± 4°F |
| UPC | 4003019441310 |
| Voltage | 230V, 23V |
| Weight (Catalog) | 3.10 kg |
| Product Family | WT Line Soldering Stations |
