522N
Item No.:
522N

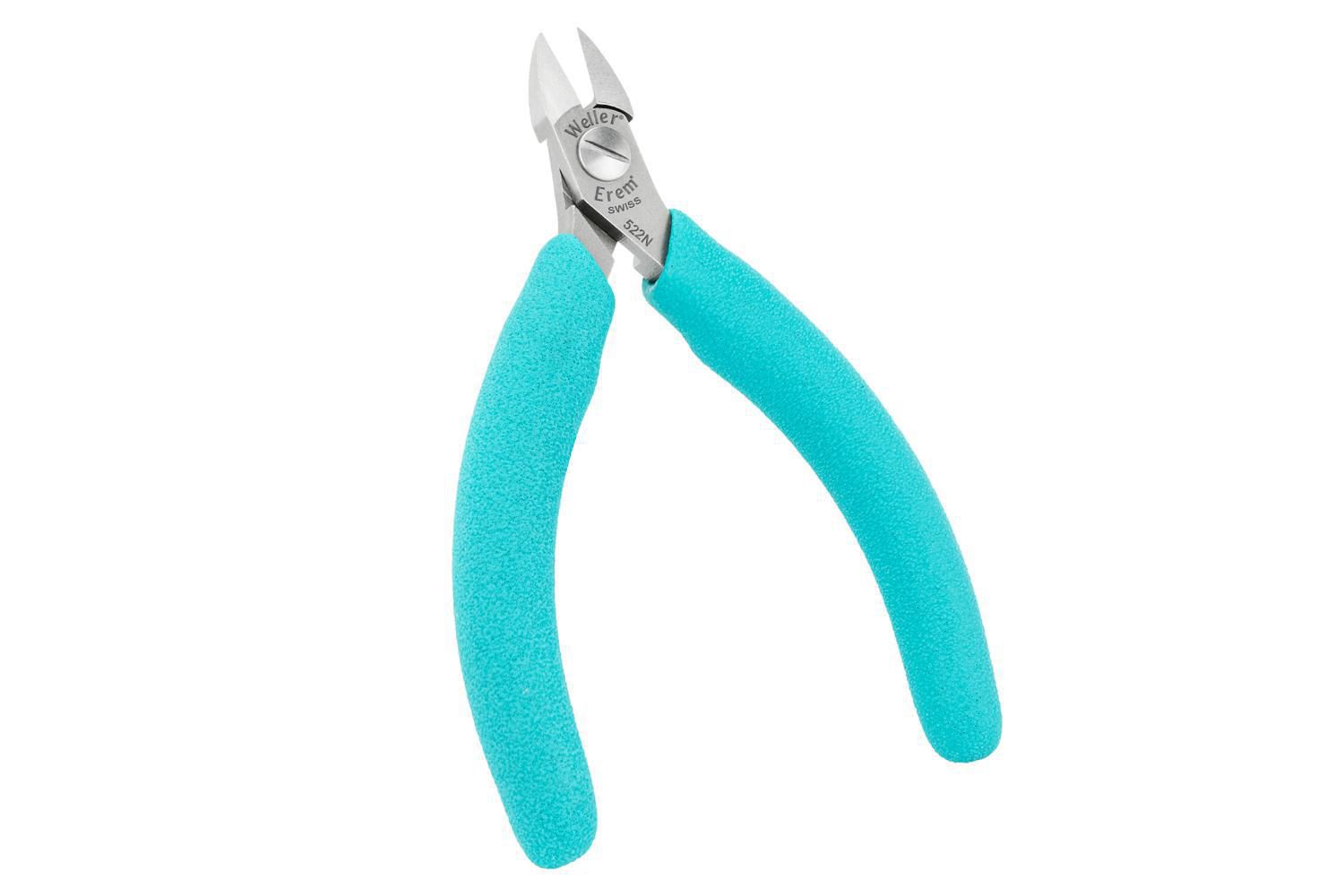

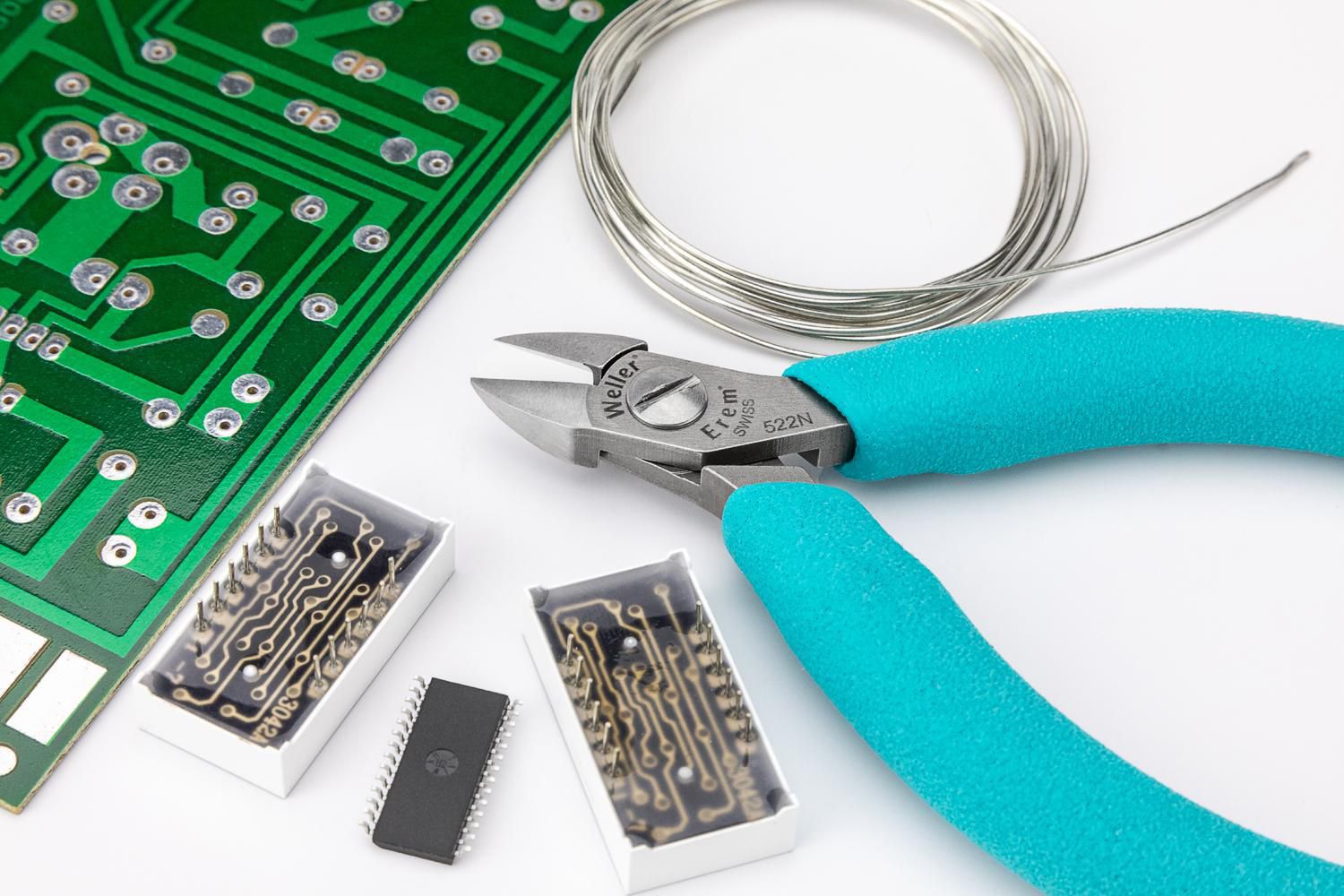

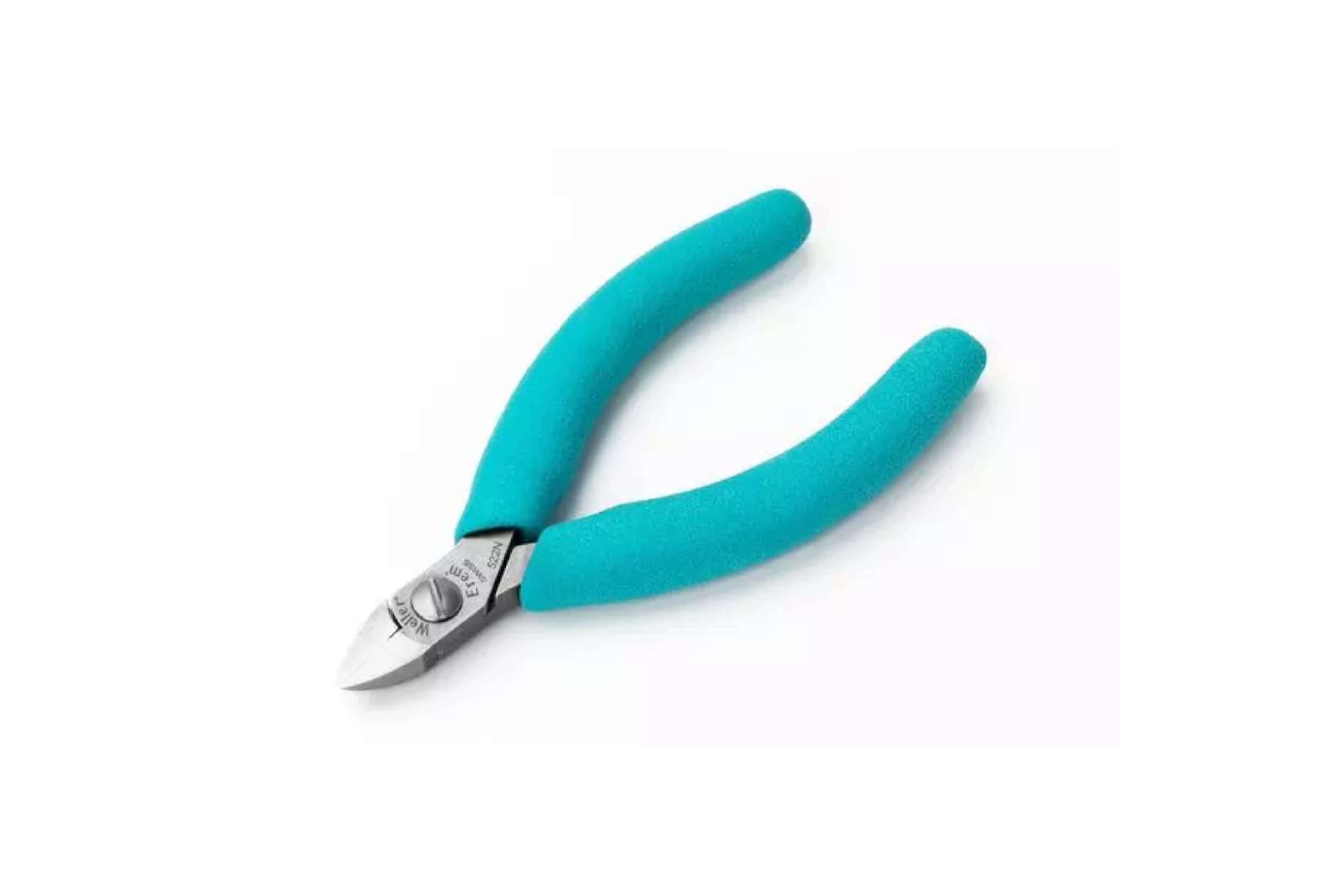

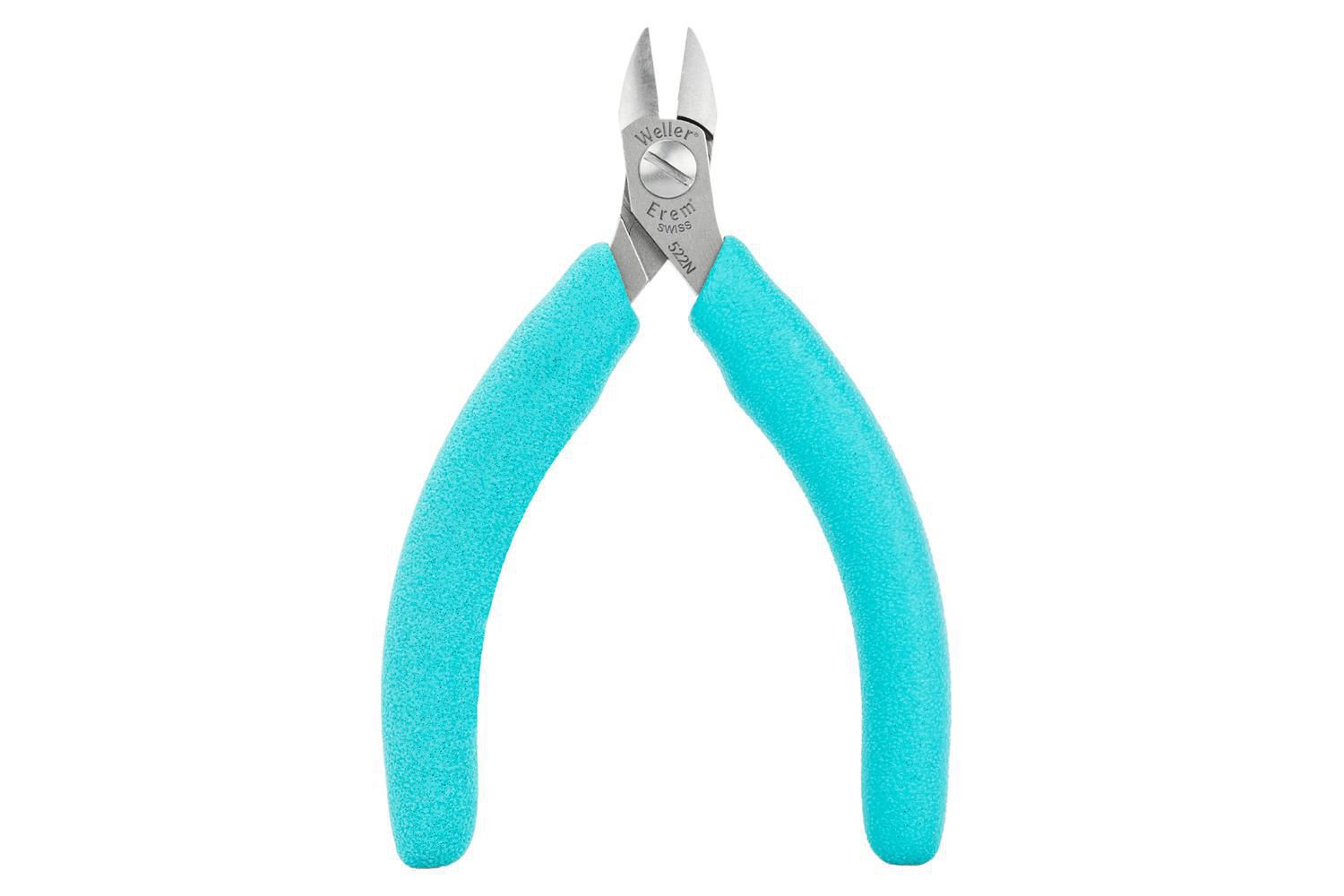

4-1/2" ESD Safe Flush Oval Head Side Cutter
The Weller Erem Series 500 Micro is a full range of medium sized, robust, precision cutters with a wide range of head shapes. The cutters are made from high grade tool steel wi...
The Weller Erem Series 500 Micro is a full range of medium sized, robust, precision cutters with a wide range of head shapes. The cutters are made from high grade tool steel with tungsten carbide inserts along the cutting edges (over 80HRc).The precision cutters have a nonreflecting surface, are ESD safe and resharpenable.
Product features
-
This is the most widely used head shape.
-
Fits for all cutting applications where easy access is given
-
It is robust and size for size offers the highest cutting capacity.
-
Same as 522E
Downloads
pdf
Technical data
| Length | 115mm |
| Application | Microelectronic |
| Cut Type | Flush |
| Cutting Capacity - Copper | 1.57mm |
| Cutting Capacity - Medium Wire | 0.99mm |
| Cutting Edge Length | 10.16mm |
| ESD Safe | Yes |
| Head Length | 19mm |
| Head Thickness | 6mm |
| Head Width | 11mm |
| UPC | 043127132032 |
| Weight (Catalog) | 0.065 kg |
| Case Pack Qty. | 25 |
