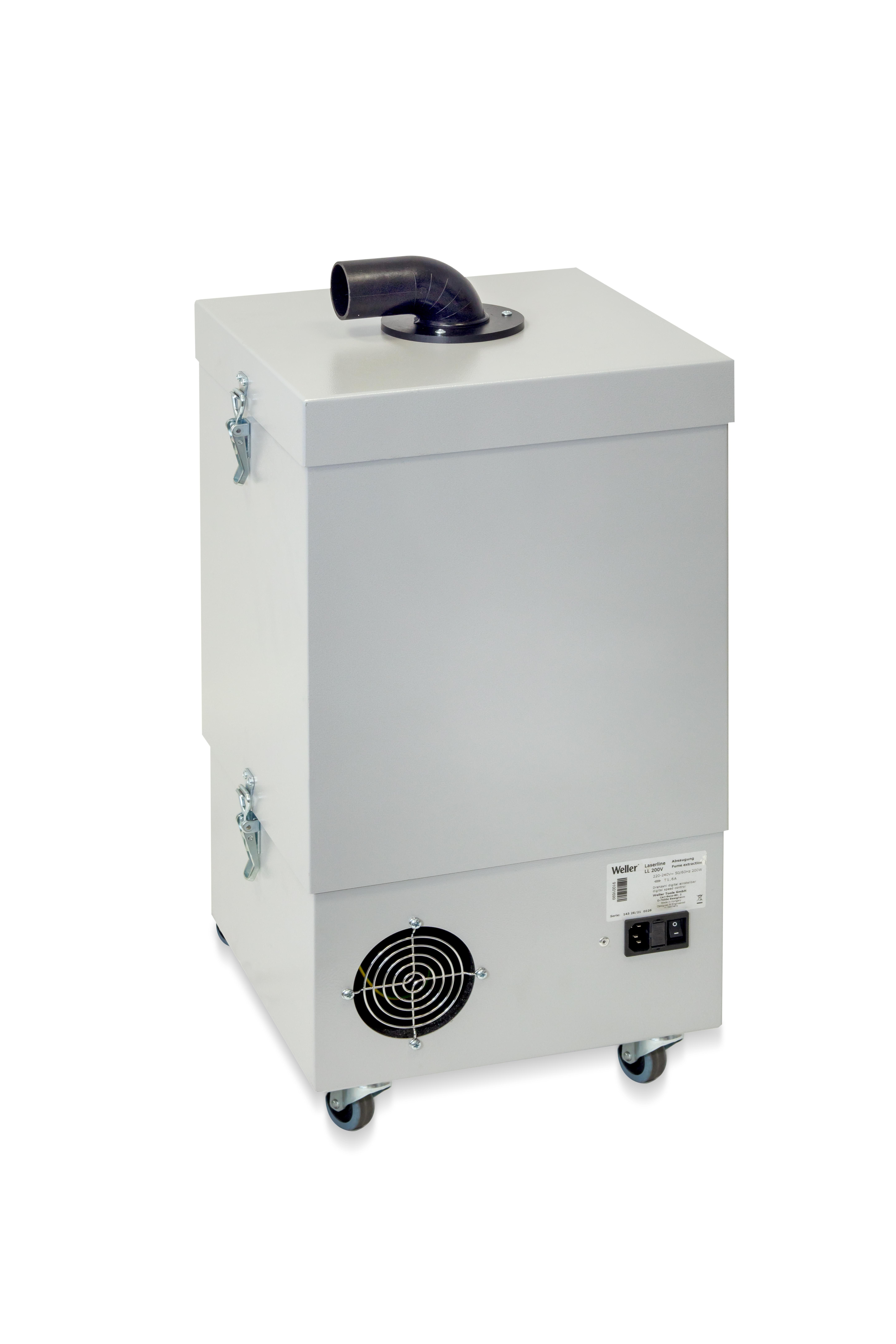

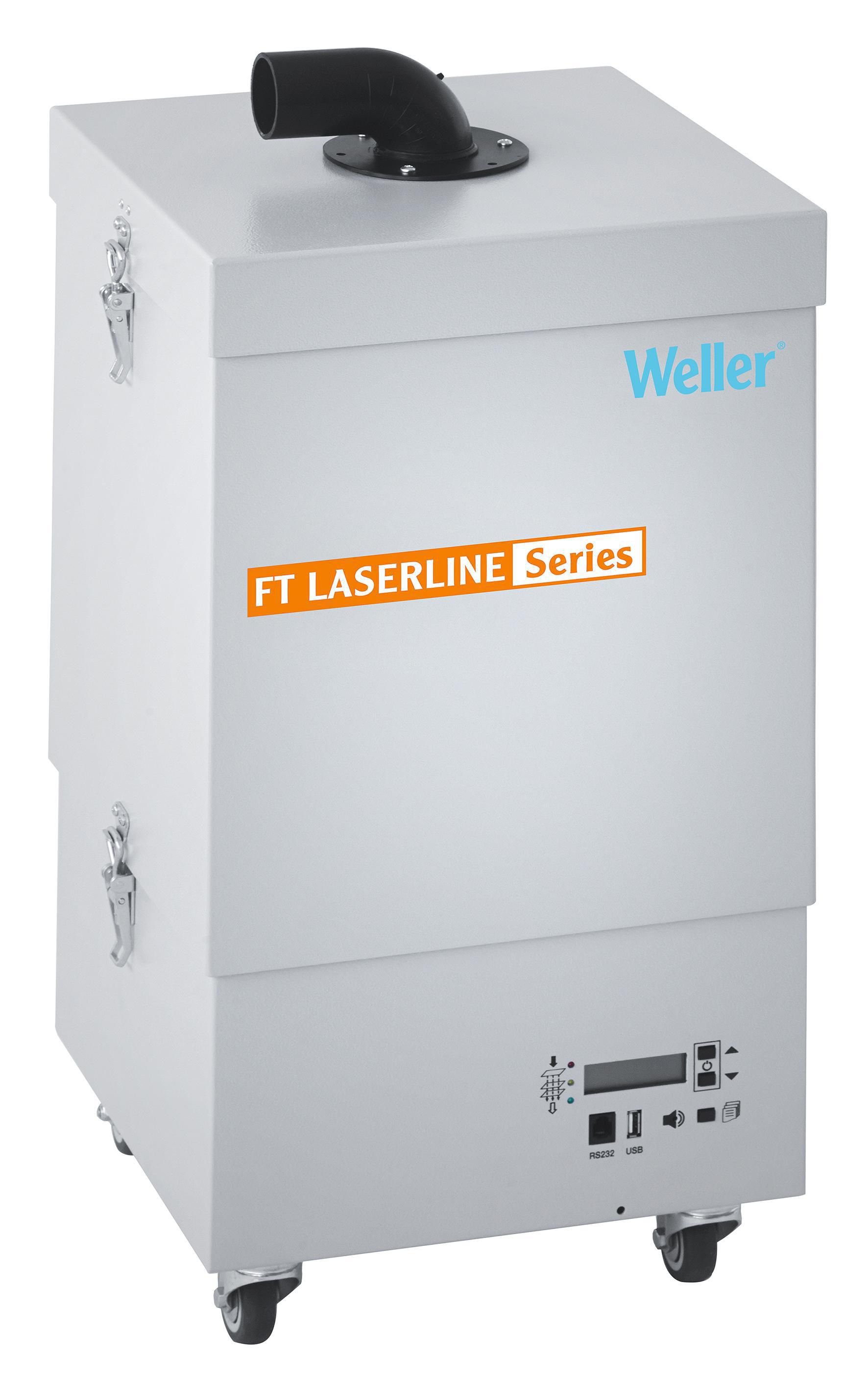

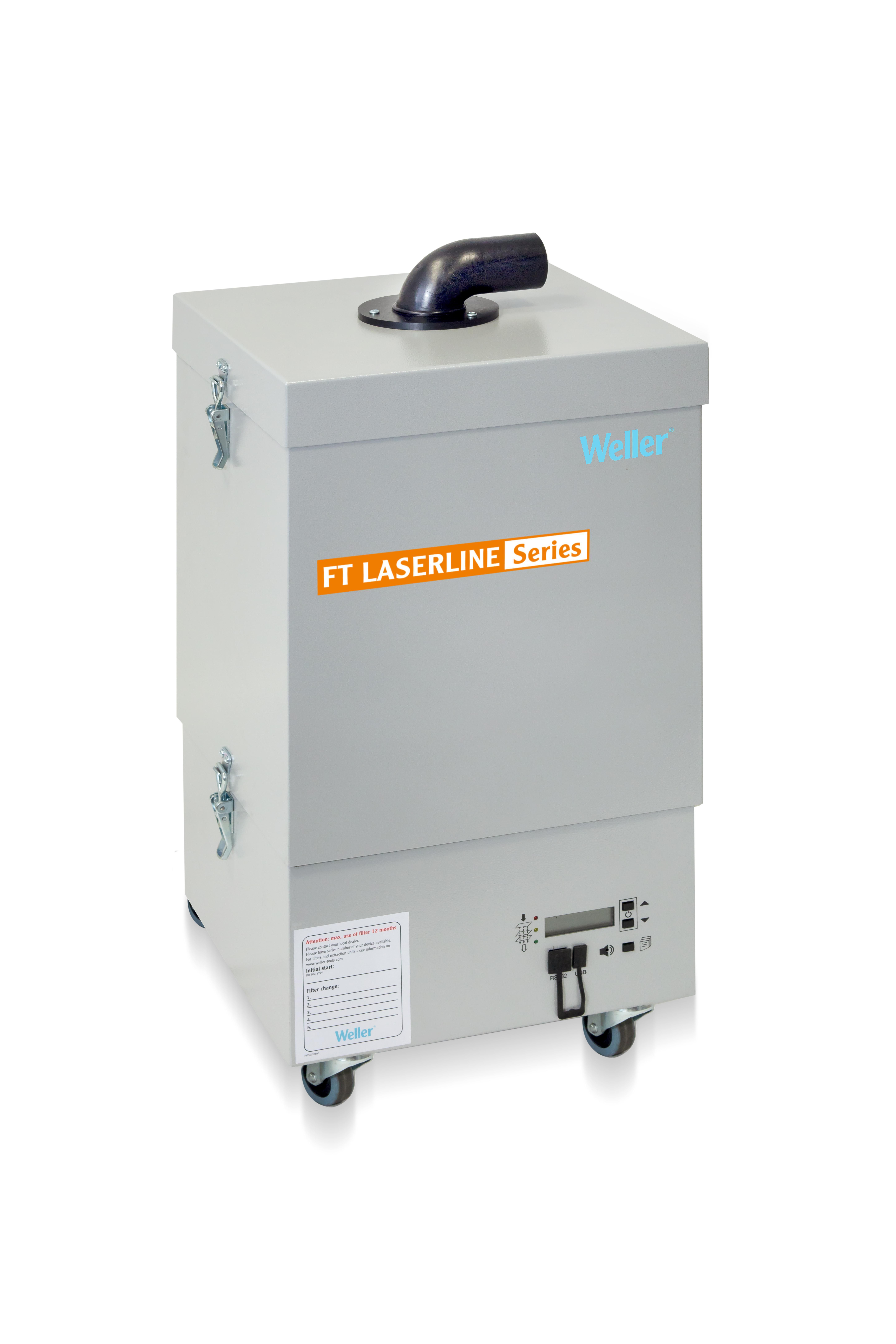

Laser Line LL 200V

Downloads
pdf
pdf
(7.91 MB)
Laser Line LL 200V
Item No.:
FT91001699N
Laser extraction unit for laser marking, grinding, cutting , welding and 3D printing
Product features
-
For Laser marking, engraving, and welding applications with low up to mid dust volumes.
-
The Constant flow control (CFC) guarantees a automatic air flow regulation independent of the filter pollution rate.
-
Efficiency test via USB port
-
Acoustical and optical filter alarm
-
Low noise level
-
Pre-filter 0,5 -2,5 m²
-

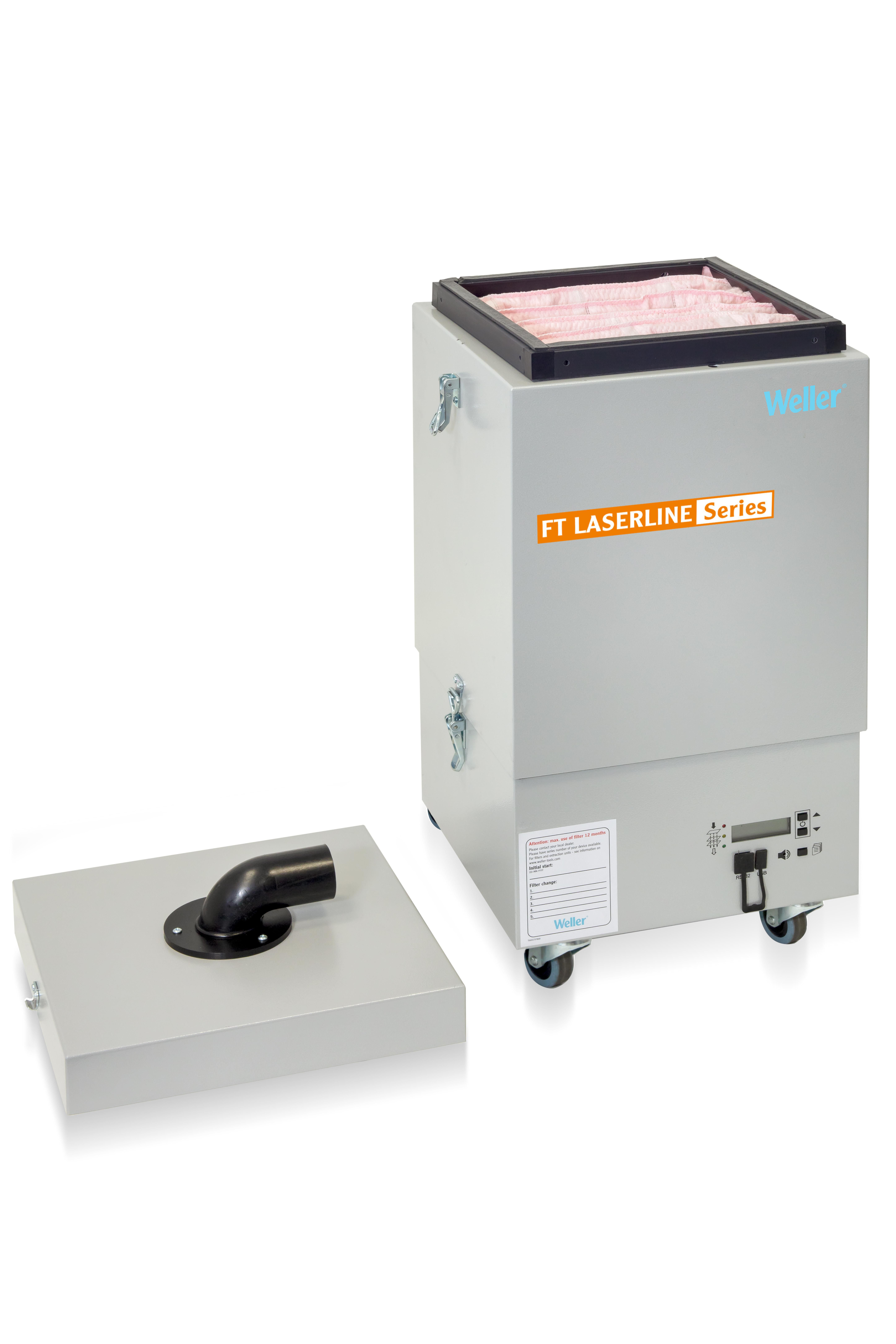

Includes main filter - FT91000008N
Downloads
pdf
pdf
(7.91 MB)
Technical data
Height | 700mm |
Length | 320mm |
Dimensions L x W x H | 320.0 x 320.0 x 700.0mm |
Capacity (m³/h) | 230 m³/h |
ESD Safe | Yes |
Maximum Vacuum | 3,800 Pa |
Power | 200 VA |
UPC | 4003019431267 |
