WFE

Item No.: T0053640299N

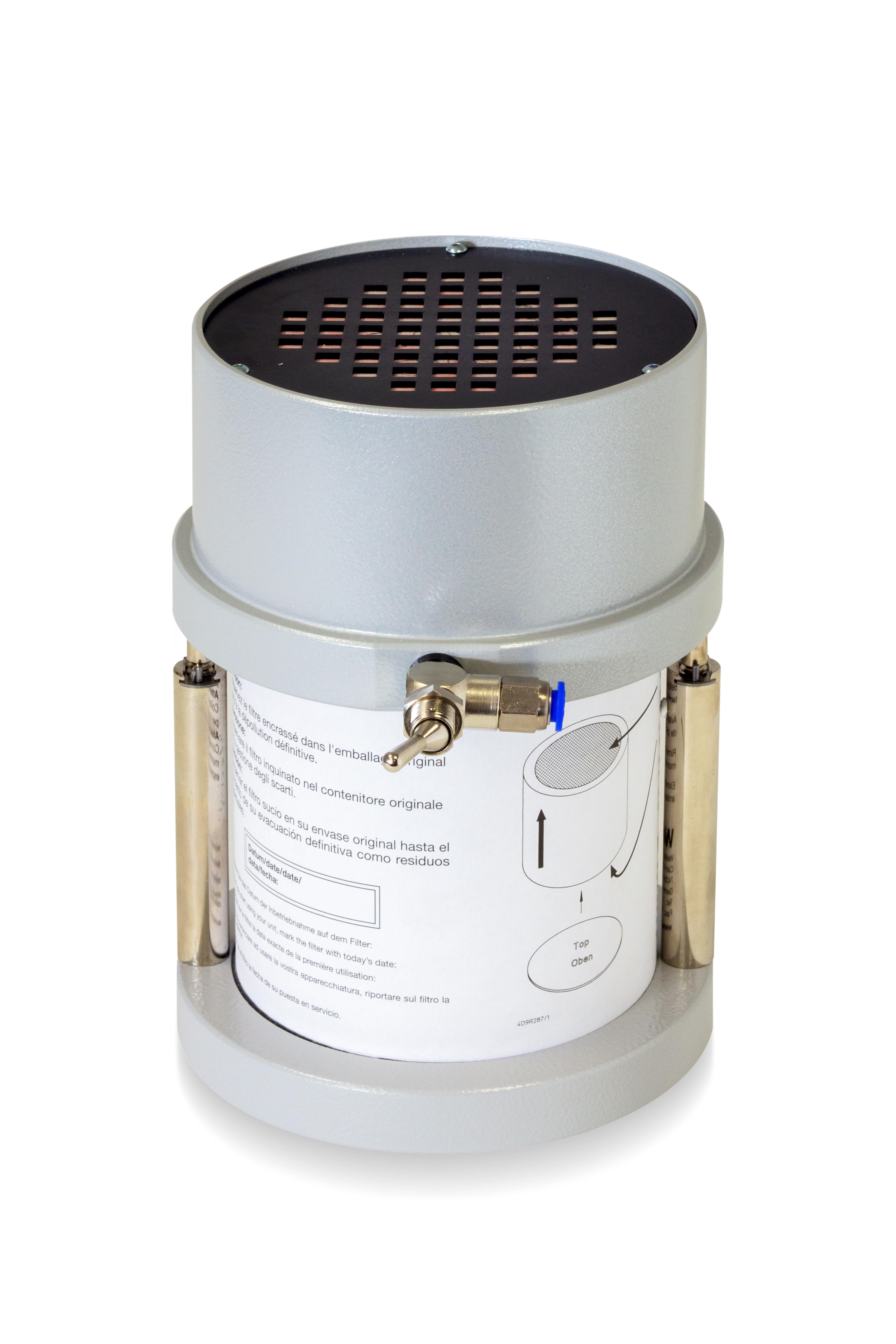

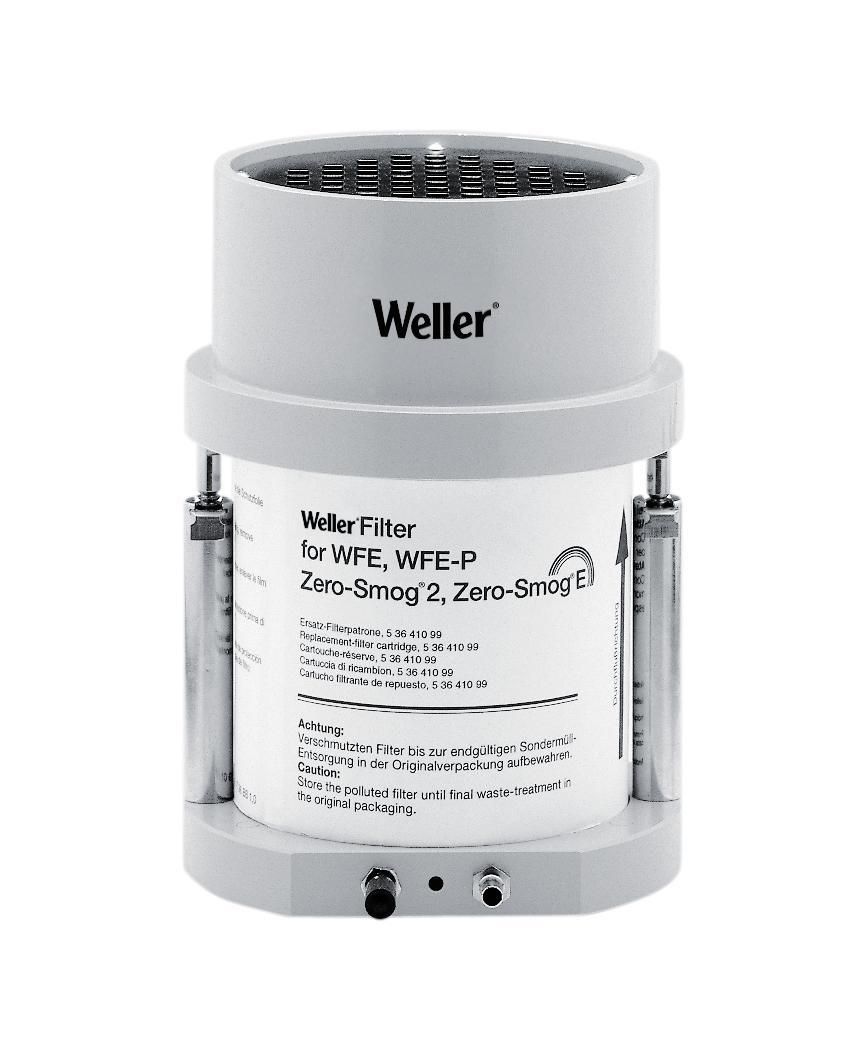

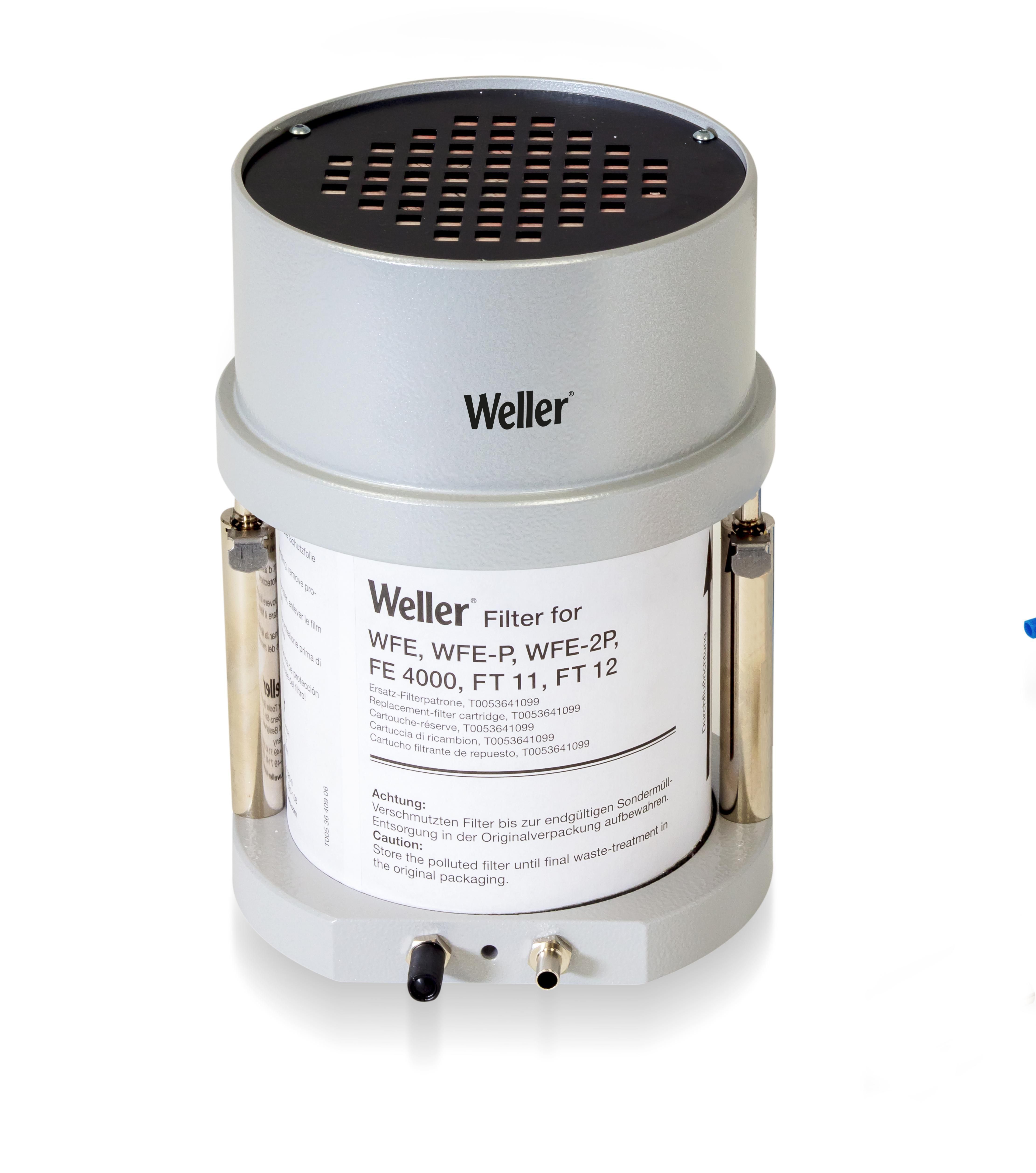

WFE fume extraction unit

€ 715.00

Ex tax.

Shop Locator

Add to wishlist

Product features

Maintenance free compressed air converter
For industrial long term use

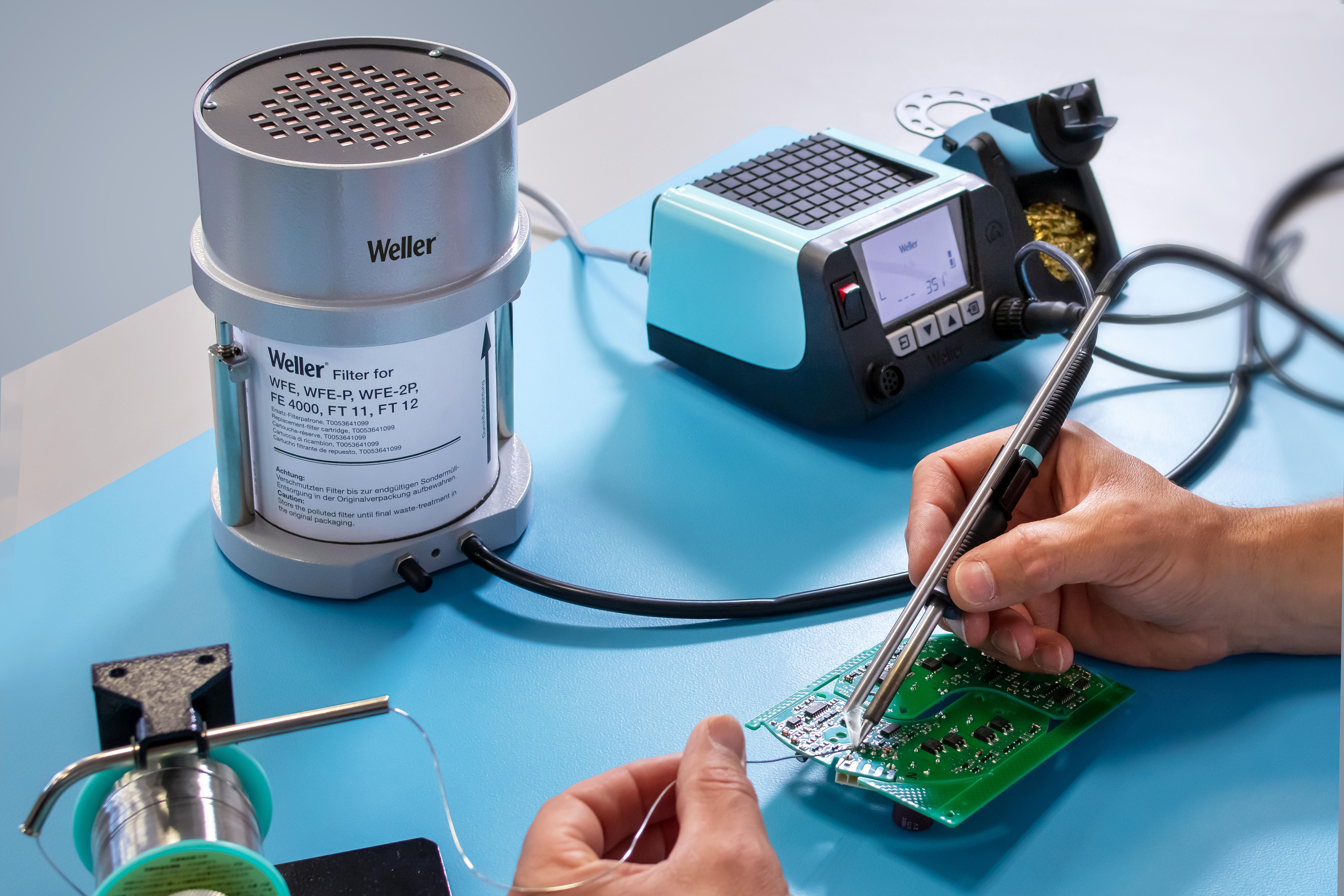

Up to 2 FE soldering irons can be connected
High stability against overturning
A compressed air cleaning filter removes additional odors caused by the compressed air.
For industrial long term use

Show more product features

Downloads

Datasheet

pdf

WEL_FT12_WFE_Manual_T0055611214_web

pdf

(8.32 MB)

Technical data

Height	200mm
Length	140mm
Dimensions L x W x H	140.0 x 140.0 x 200.0mm
Air Consumption	30 l/min
Capacity (m³/h)	30 m³/h
Compact Filter	Particle filter H13, broadband gas filter (50% activated carbon + 50% Chemisorb)
ESD Safe	Yes
Maximum Blower Vacuum (Pa)	20,000 Pa
Maximum Capacity	2 Workstations
Power	6 Bar
UPC	037103258267
Weight (Catalog)	2.70 kg

Accessory

FE 75 Set

Soldering iron FE 75 with safety rest

New

Filter

Main filter - WFE, WFE P, WFE 2P, FT 12, FT 11, FE 4000

Compact filter - WFE, WFE P, WFE 2P, FT 12, FT11, FE 4000

New

Exhaust Filter WFE

Compressed air cleaning filter for WFE

New

Fine dust pre-filter (class F7) for WFE, WFE P, WFE 2P, FT 12 (also fits FT 11, FE 3000/4000)

Fine dust filter F7

New

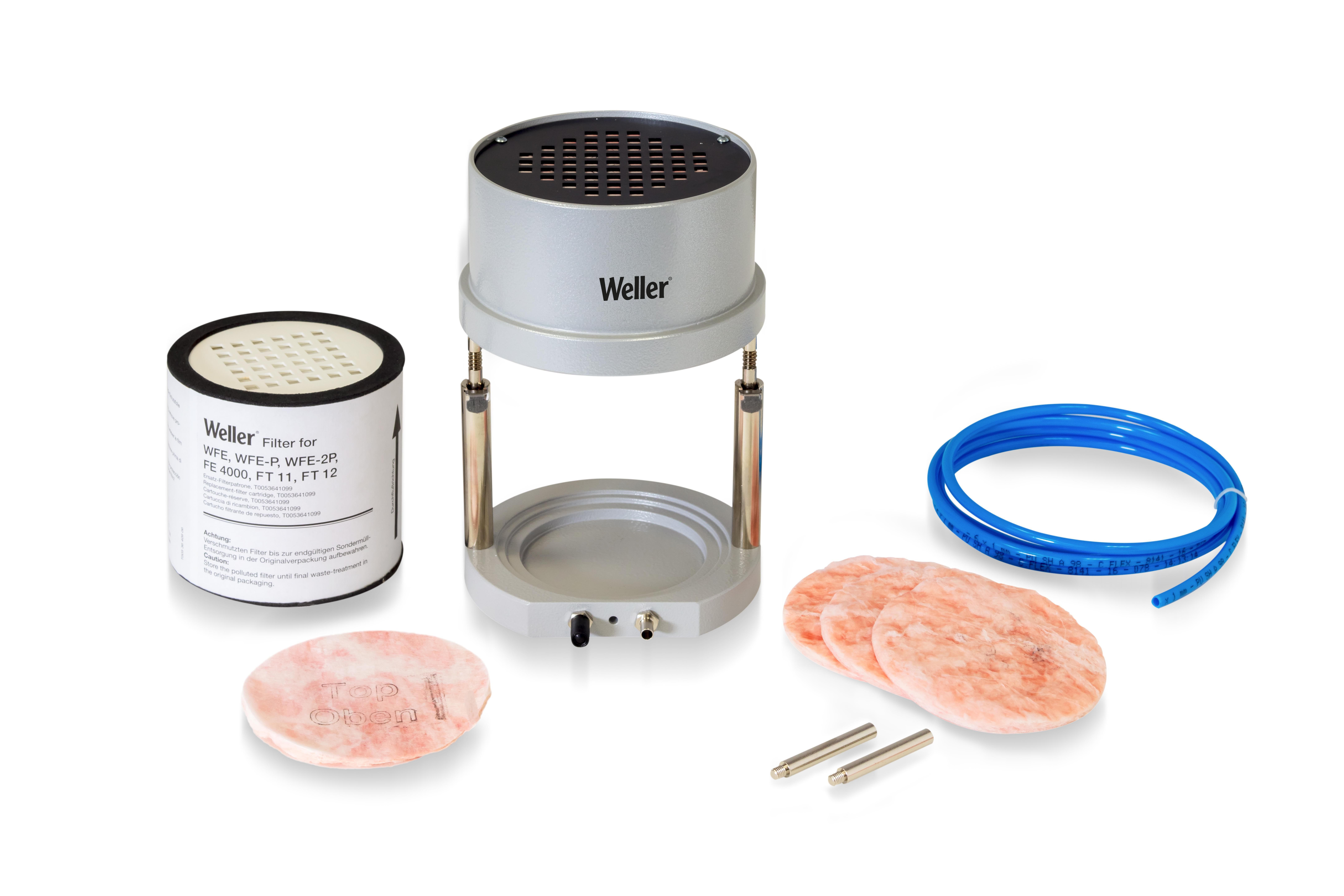

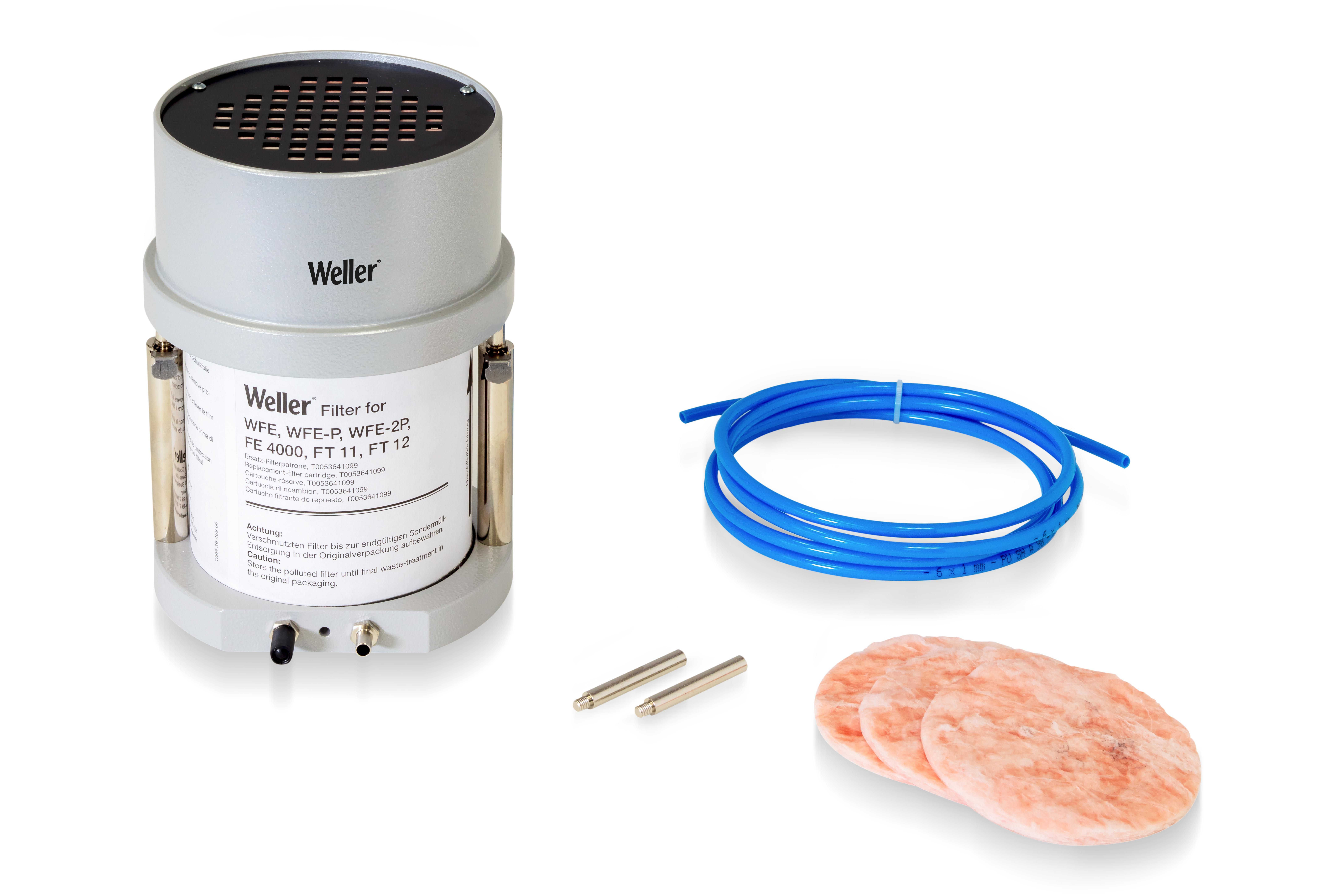

Items in the Box

Fine dust pre-filter (class F7) for WFE, WFE P, WFE 2P, FT 12 (also fits FT 11, FE 3000/4000)

Fine dust filter F7

New

Main filter - WFE, WFE P, WFE 2P, FT 12, FT 11, FE 4000

Compact filter - WFE, WFE P, WFE 2P, FT 12, FT11, FE 4000

New

Exhaust Filter WFE

Compressed air cleaning filter for WFE

New
