Zero Smog 6V

Zero Smog 6V

Item No.: T0053666699N
Fume extraction Zero Smog 6V

Breathe clean air without dangerous fumes and particles. Weller filtration systems are specially designed for continuous use in industrial work environments. The high quality HEPA H13 filters clean the air from hazardous vapors, particles and viruses. Therefore, recirculating the clean air back into the workplace ensuring a safe work environment. The small footprint design fits under the bench to free up the operator workspace.

Breathe clean air without dangerous fumes and particles. Weller filtration systems are specially designed for continuous use in industrial work environments. The high quality HEPA H13 filters clean the air from hazardous vapors, particles and viruses. Therefore, recirculating the clean air back into the workplace ensuring a safe work environment. The small footprint design fits under the bench to free up the operator workspace.

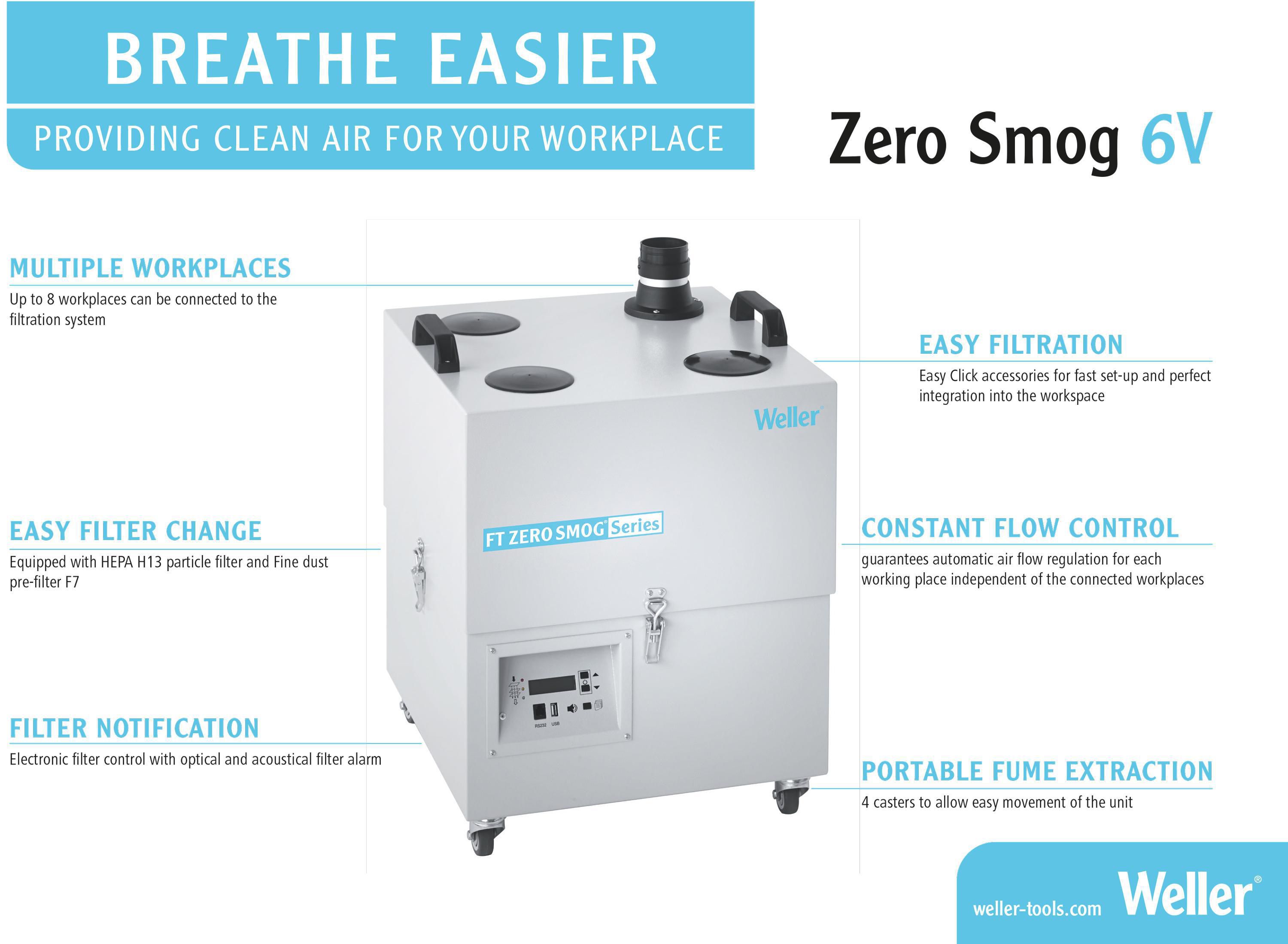

Product features
  • Powerful fume extraction unit purifies air at up to 8 workplaces

  • Equipped with HEPA H13 particle filter and Fine dust pre-filter F7

  • The Constant Flow Control (CFC) guarantees optimal air flow regulation for each working place independent of the connected workplaces

  • 3 operating modes:

    Standard Speed Control: Selected by the user irrespective of the load on the system,

    Speed Limiting Control: The speed is automatically varied to match the load on the system,

    Economy Control: The rate of fume absorption is maintained at a constant value

  • Electronic filter control with optical and acoustical filter alarm

  • Low noise emission levels for a quiet workspace

  • RS232 port, can be remotely controlled via remote control (optional accessory) or by a PC with RS232 connection

  • Max. blower capacity 615 m³/h

  • Efficiency test via USB port

Technical data
Width 460.0 mm
Height 665mm
Length 460.0 mm
Dimensions L x W x H 460.0 x 460.0 x 665.0mm
Compact Filter Particle filter H13, broadband gas filter (50% activated carbon + 50% Chemisorb)
Compatible Nozzle WX WT
ESD Safe Yes
Maximum Blower Vacuum (Pa) 3,000 Pa
Maximum Capacity 1–8 Workstations
Power 460 VA
UPC 4003019428762
USB The USB port can be used to load firmware updates, run efficiency tests and log data. Do not leave the USB medium inserted for longer than 2 minutes. After this time expires, the USB module will switch off automatically.
