1522NA
Item No.:
1522NA

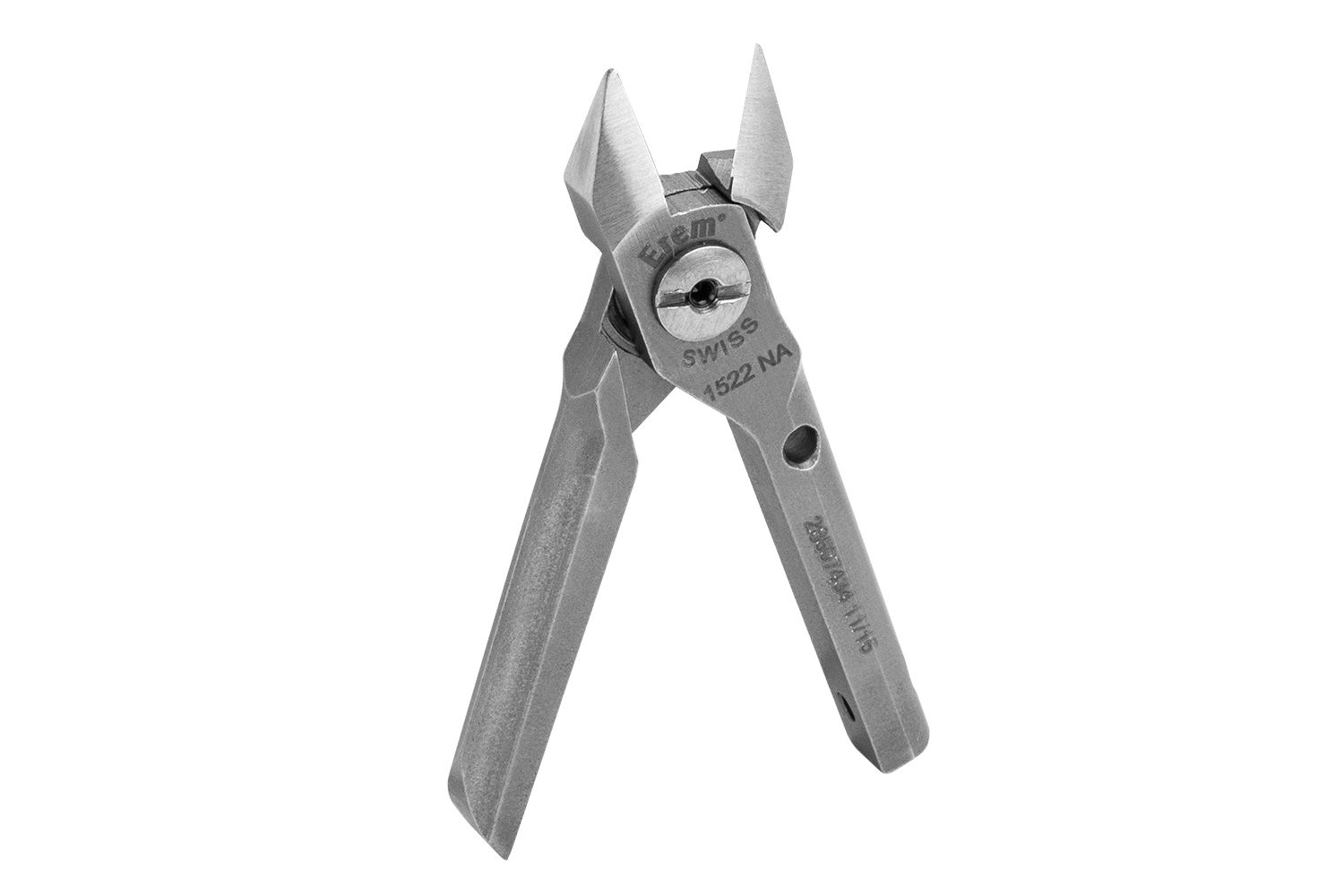

ESD Safe Flush Side Cutter Tapered Head for 1500BSF Cutter
1500 Weller Erem pneumatic side cutters are light and precise. Thanks to a selection of different cutting heads they can operate extremely versatile. The cutters are suitable for cutting conventional components, soft metals or small plastic parts. The cutting heads can be interchanged easily.
1500 Weller Erem pneumatic side cutters are light and precise. Thanks to a selection of different cutting heads they can operate extremely versatile. The cutters are suitable for cutting conventional components, soft metals or small plastic parts. The cutting heads can be interchanged easily.
Product features
-
The edges of the cutter head are straight and taper to a point, allowing access to hard to reach area.
Downloads
pdf
Technical data
| Application | Microelectronic |
| Cut Type | Flush |
| Cutting Capacity - Copper | 1.39mm |
| Cutting Edge Length | 7.62mm |
| ESD Safe | Yes |
| Head Length | 19mm |
| Head Thickness | 6mm |
| Head Width | 11mm |
| UPC | 037103204479 |
| Weight (Catalog) | 0.032 kg |
