WFE P
Item No.:
T0053638699N

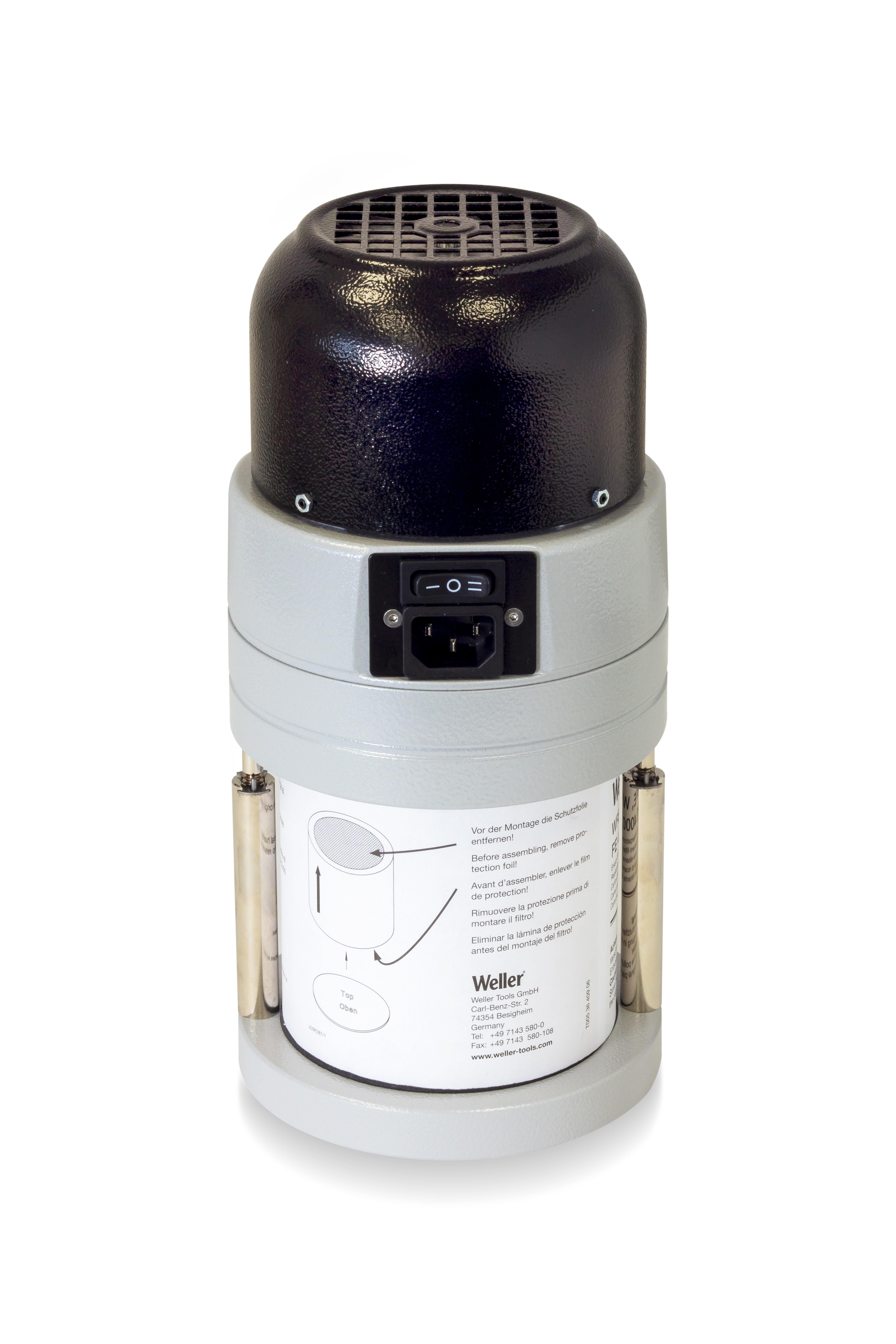

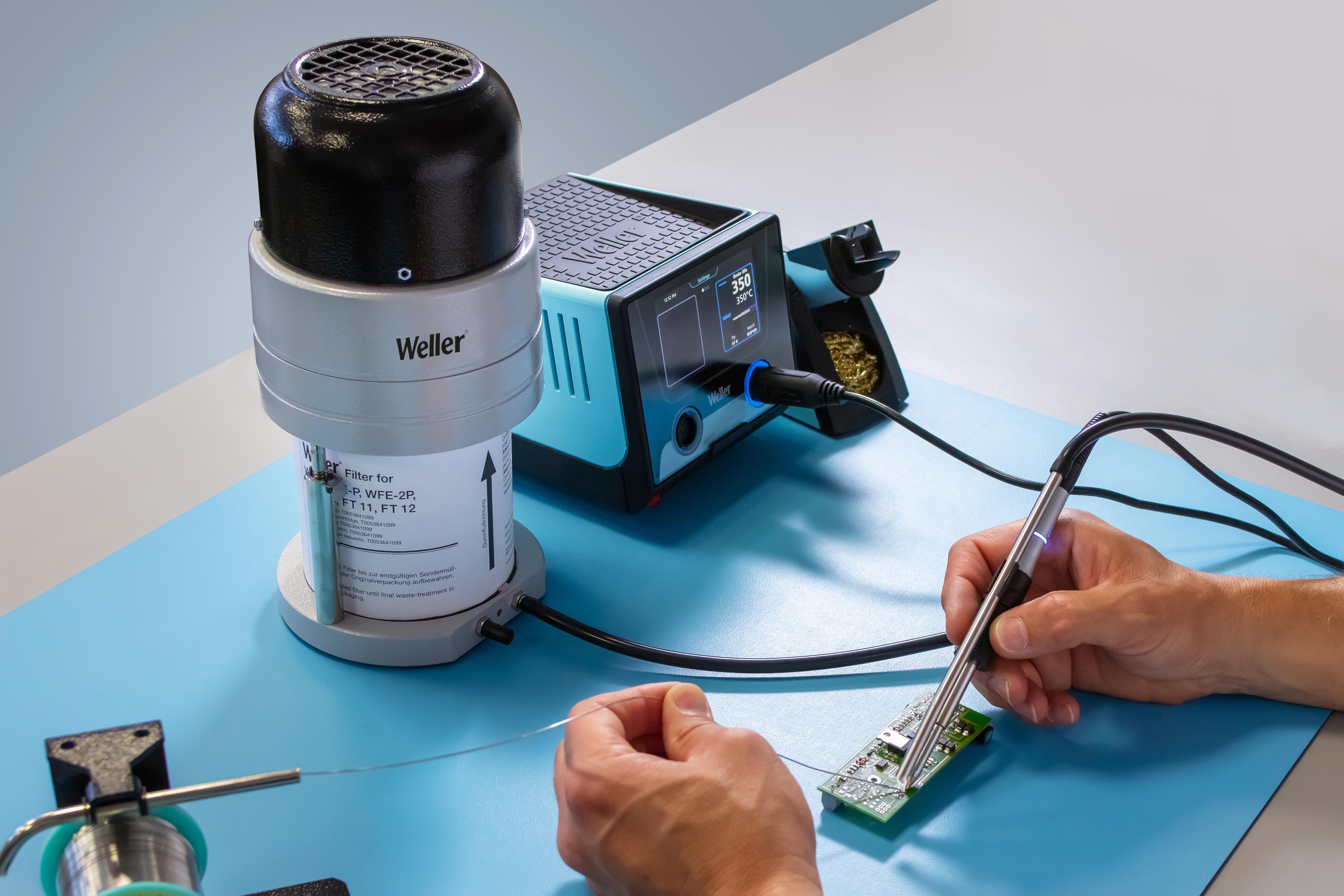

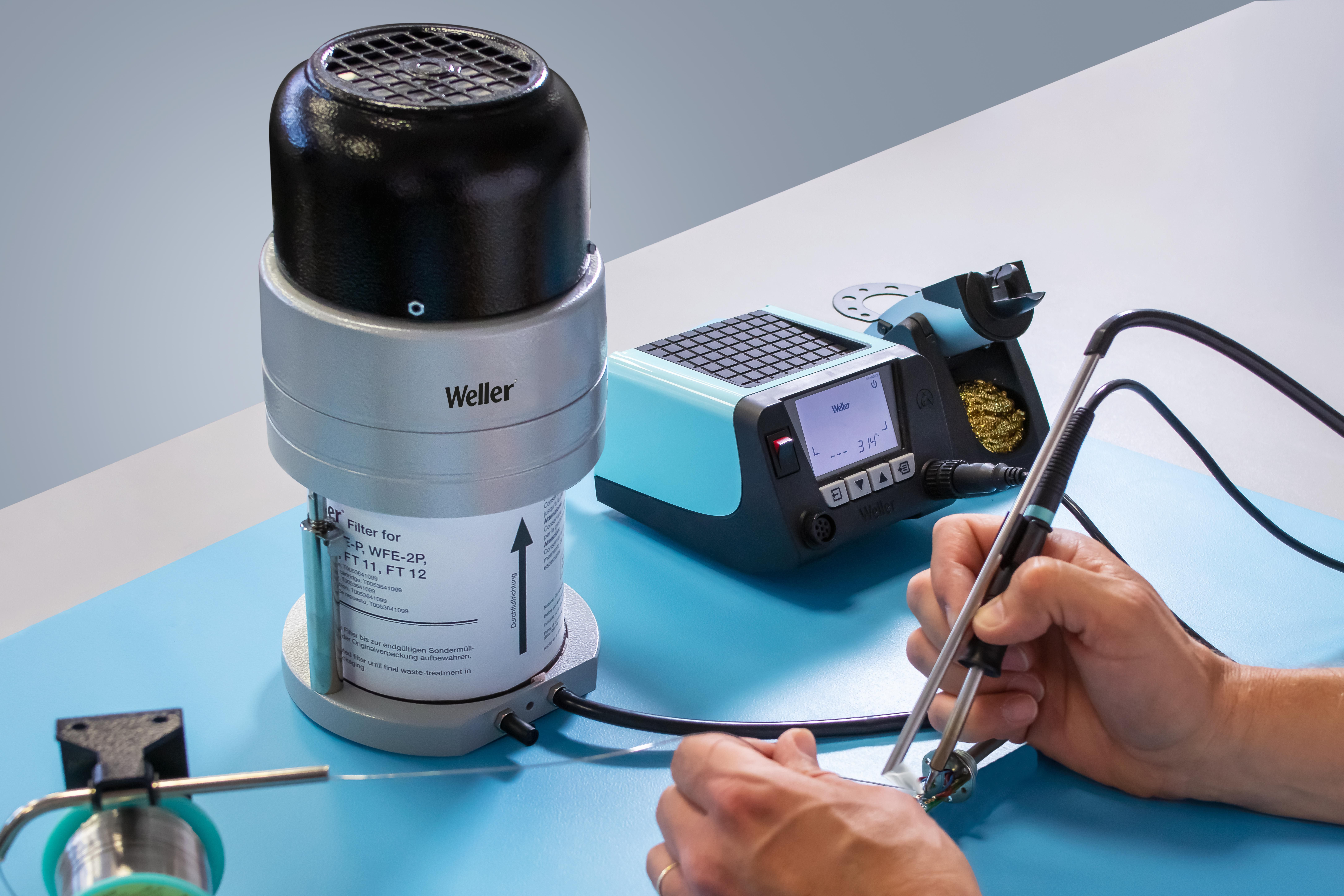

WFE P fume extraction unit 230 V / 50 Hz
Product features
-

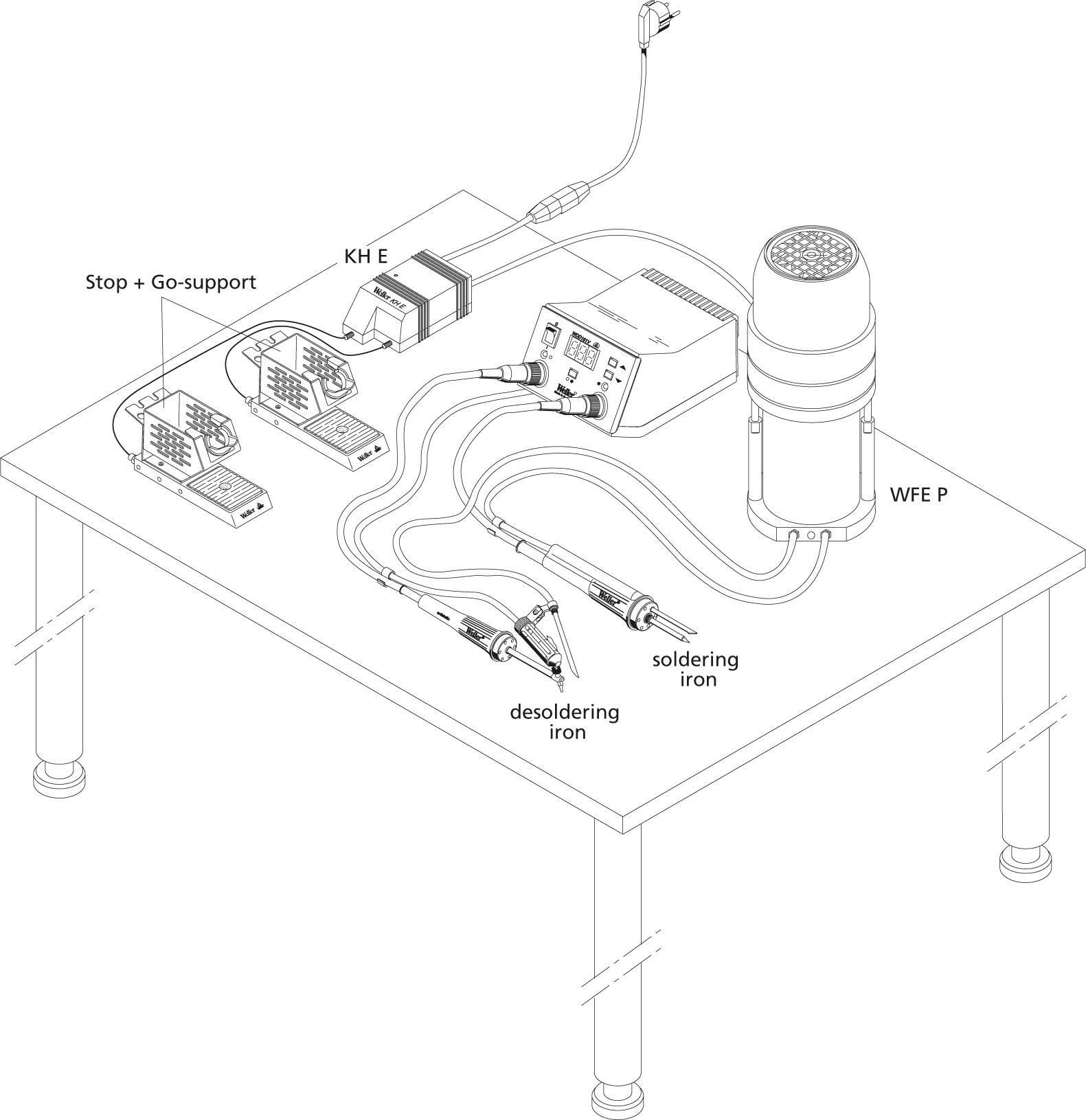

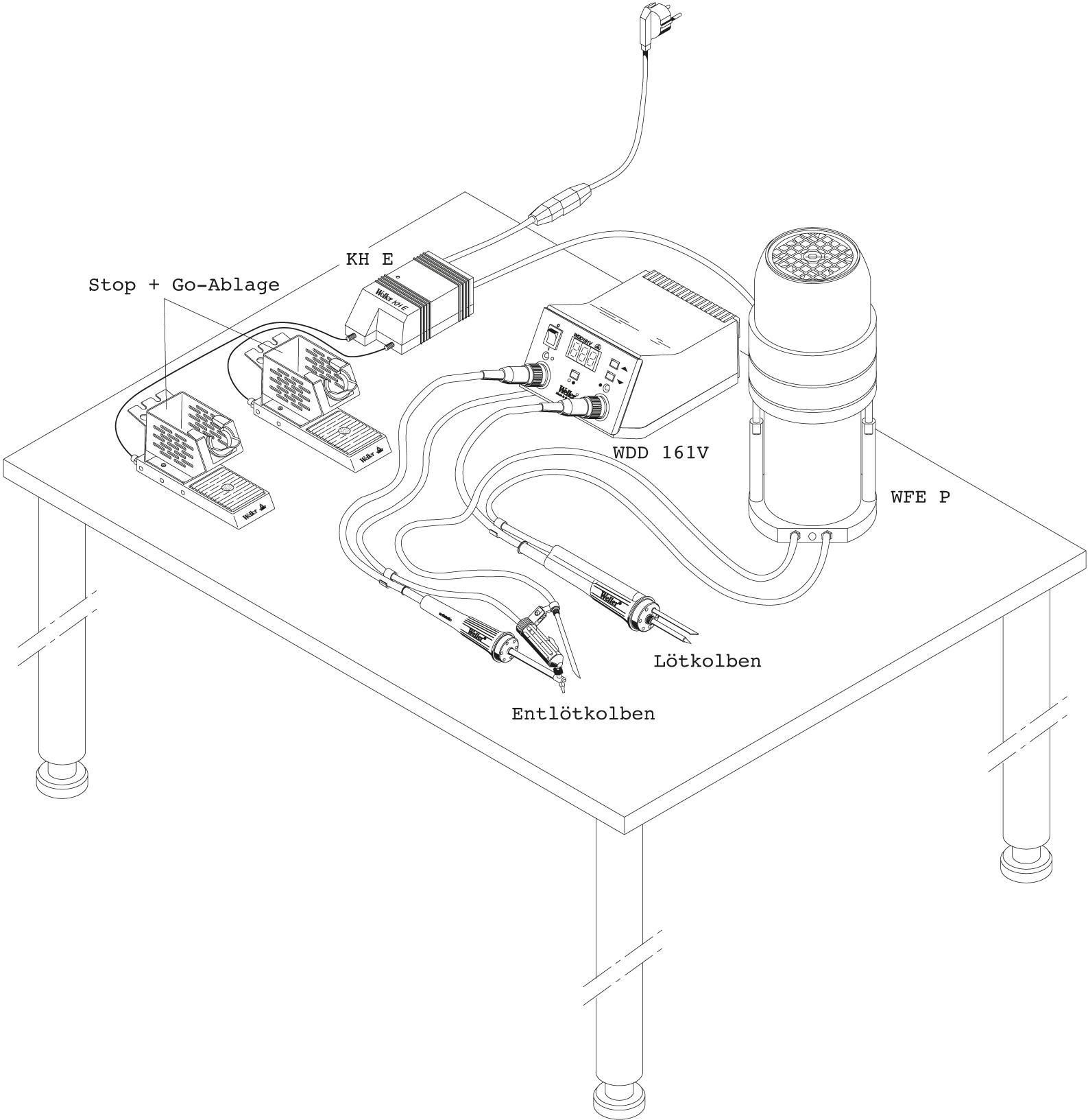

Up to 2 FE soldering irons can be connected
-
Electric vacuum pump to produce the required vacuum
-
2 power stages for higher extraction performance with 2 FE soldering irons
-
Portable unit for stand alone applications (Not useable for 24 hours long term use)
-
The motor is maintenance-free and has a thermal over load to protect the unit.
Downloads
pdf
pdf
(7.47 MB)
Technical data
| Width | 140.0 mm |
| Height | 295.0 mm |
| Length | 140.0 mm |
| Dimensions L x W x H | 140.0 x 140.0 x 295.0mm |
| Capacity (m³/h) | 50 m³/h |

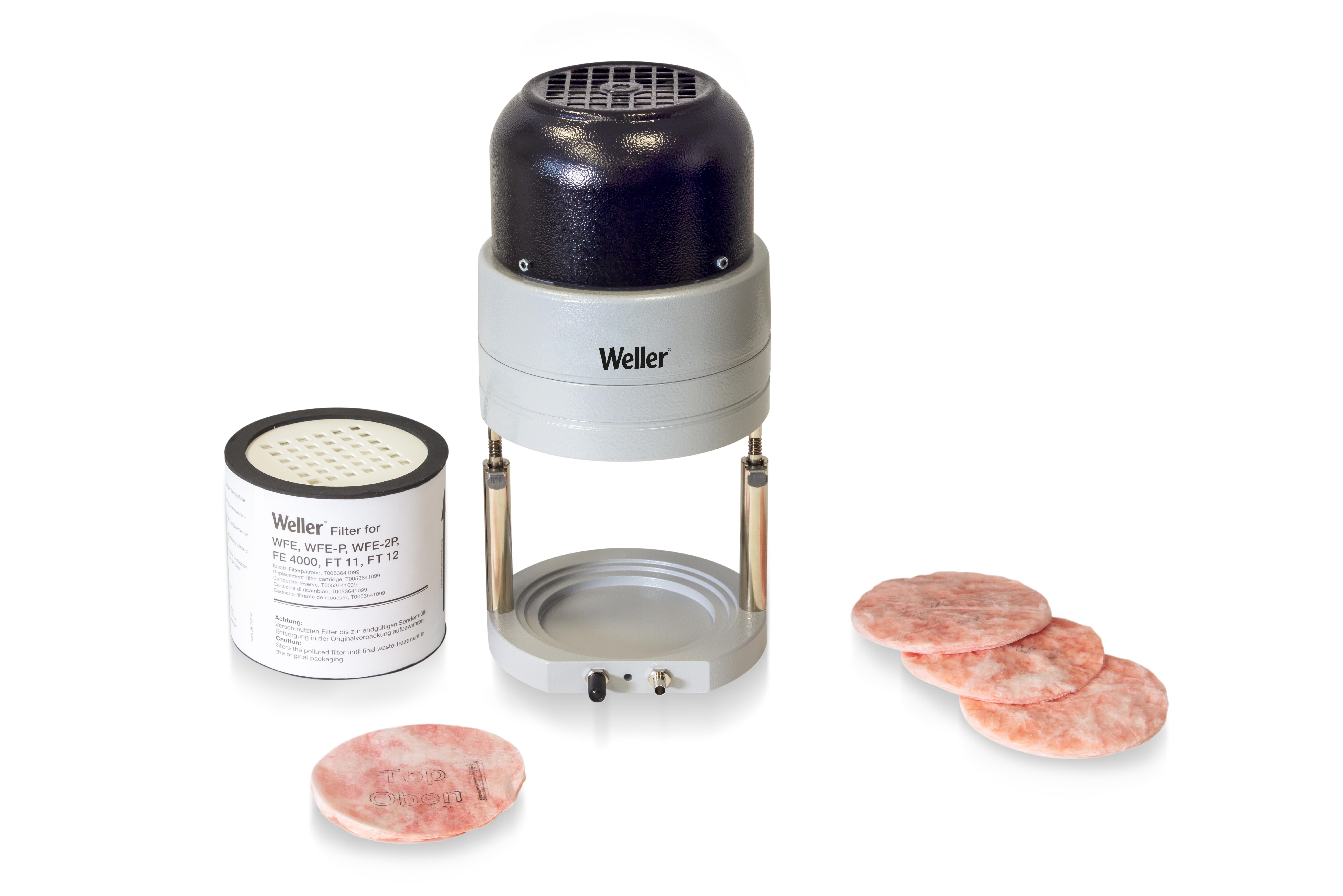

| Compact Filter | Particle filter H13, broadband gas filter (50% activated carbon + 50% Chemisorb) |
| ESD Safe | Yes |
| Maximum Blower Vacuum (Pa) | 30,000 Pa |
| Power | 70 W |
| UPC | 037103258250 |
