WFE P
Item No.:
T0053638699N

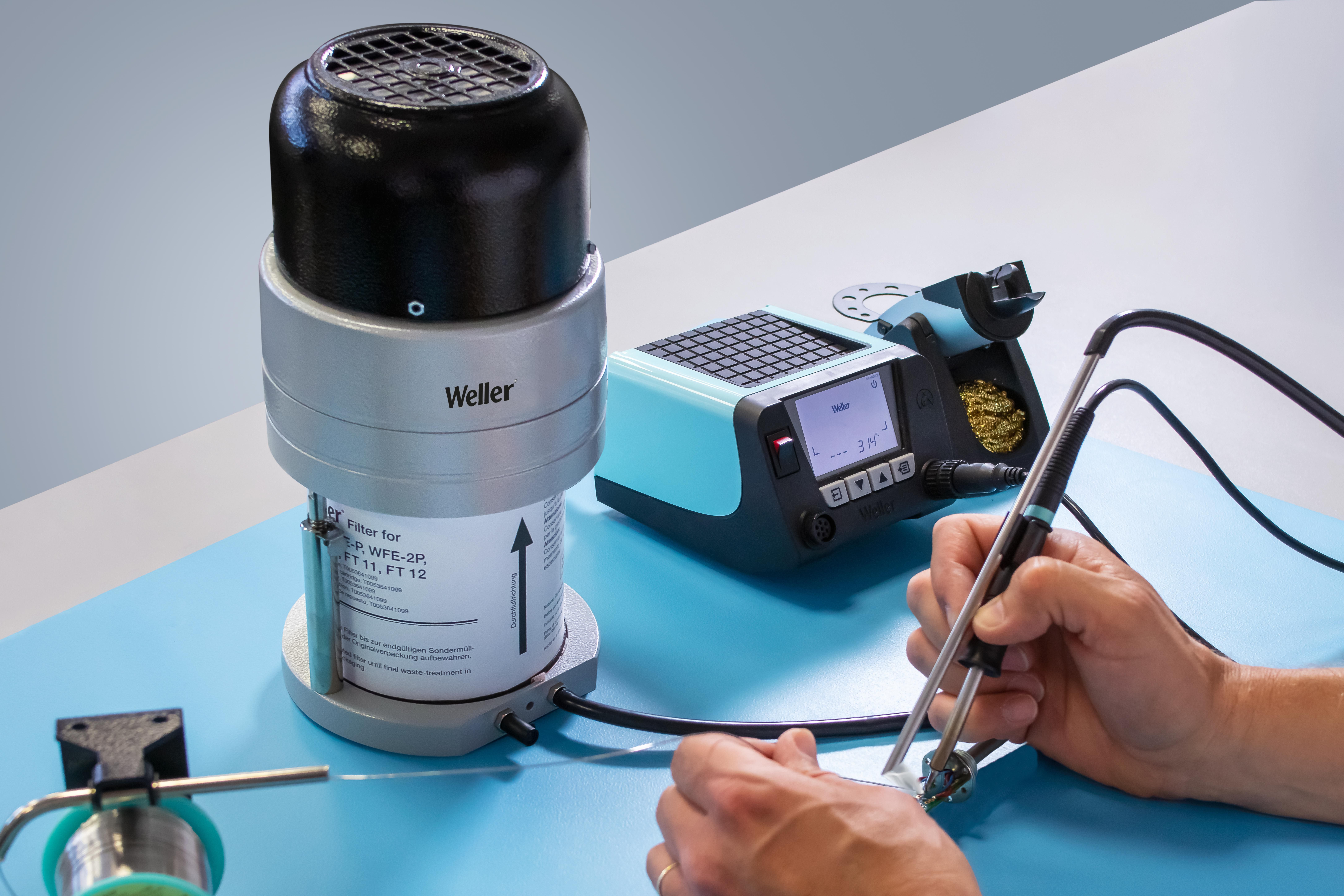

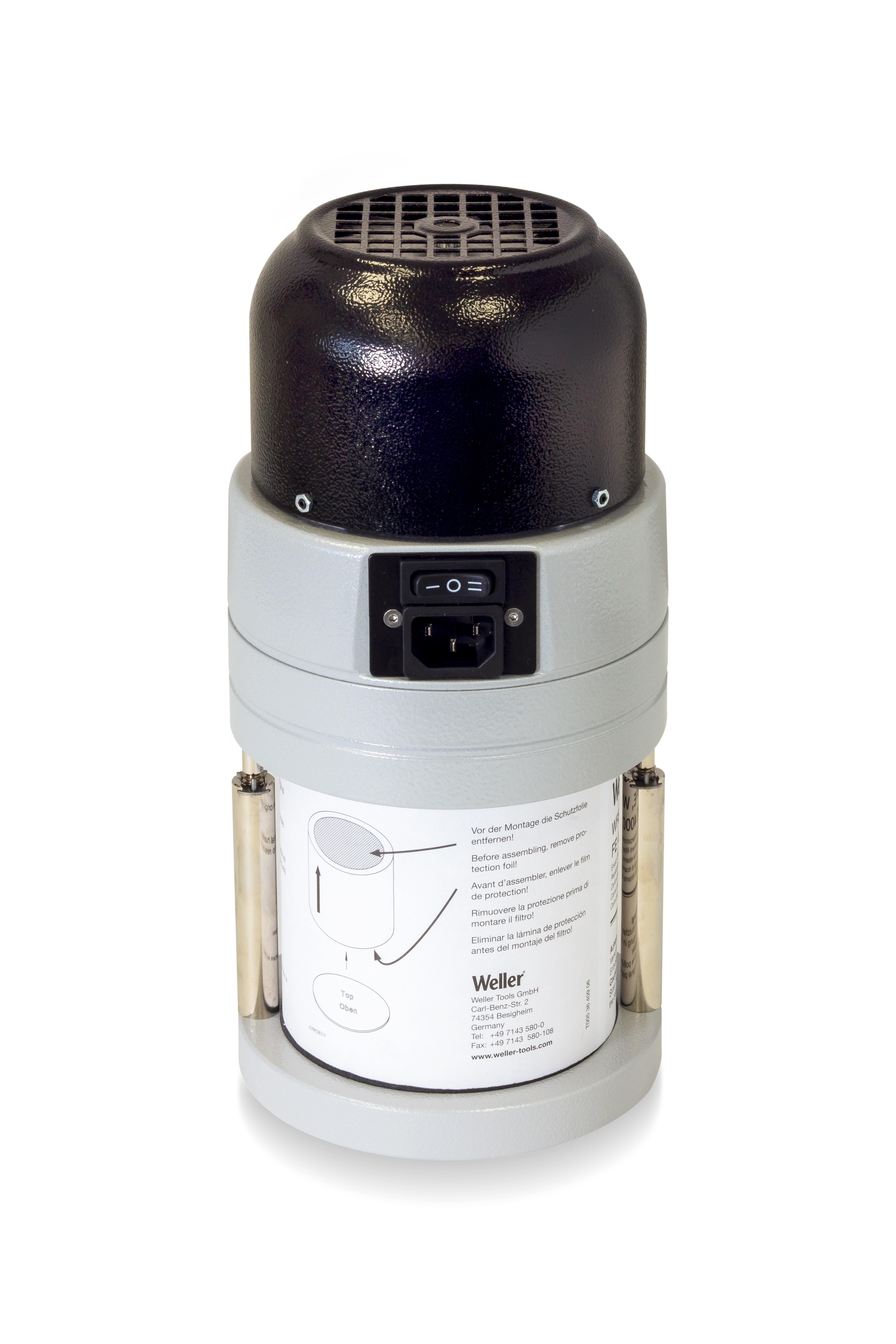

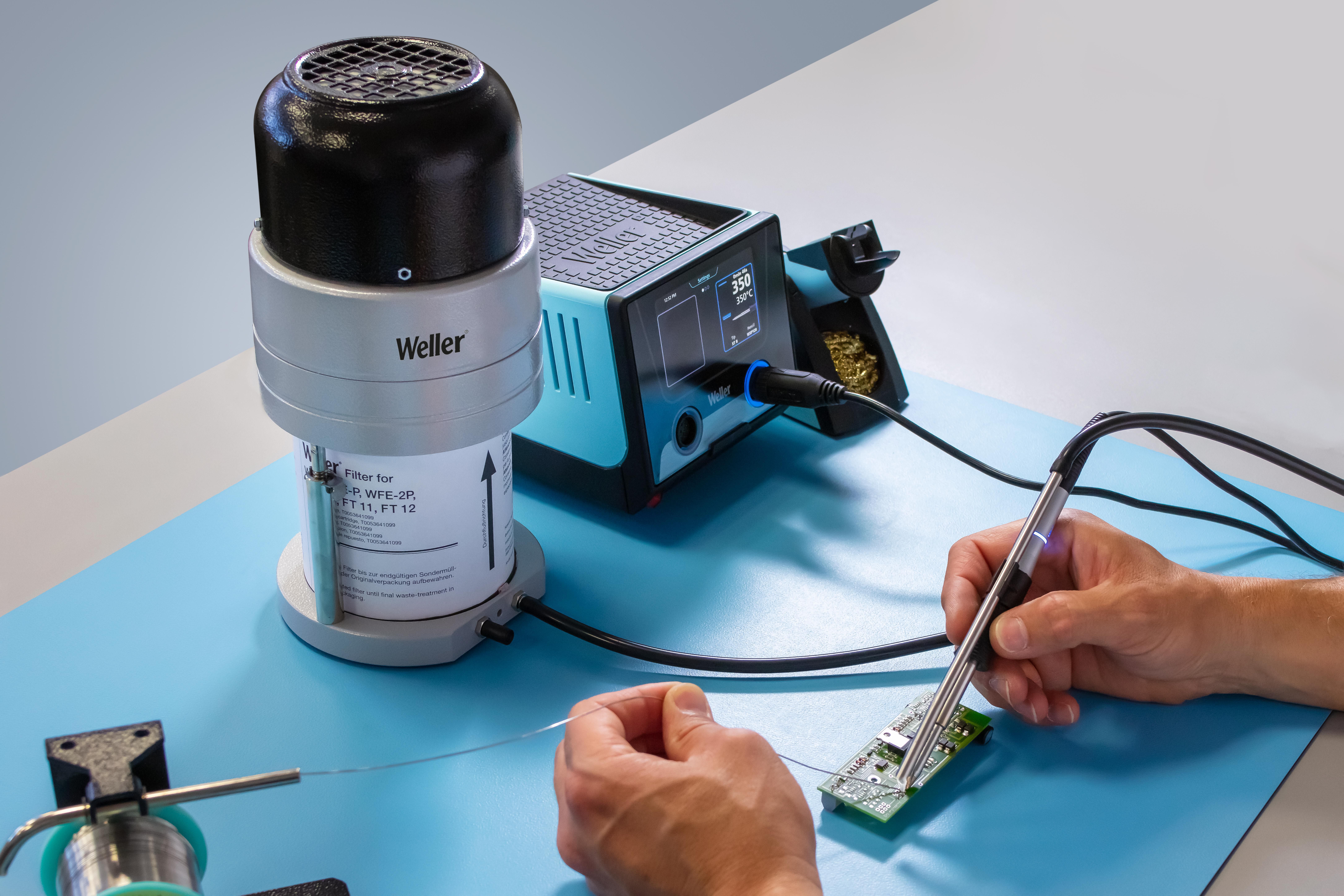

WFE P fume extraction unit 230 V / 50 Hz
Product features
-

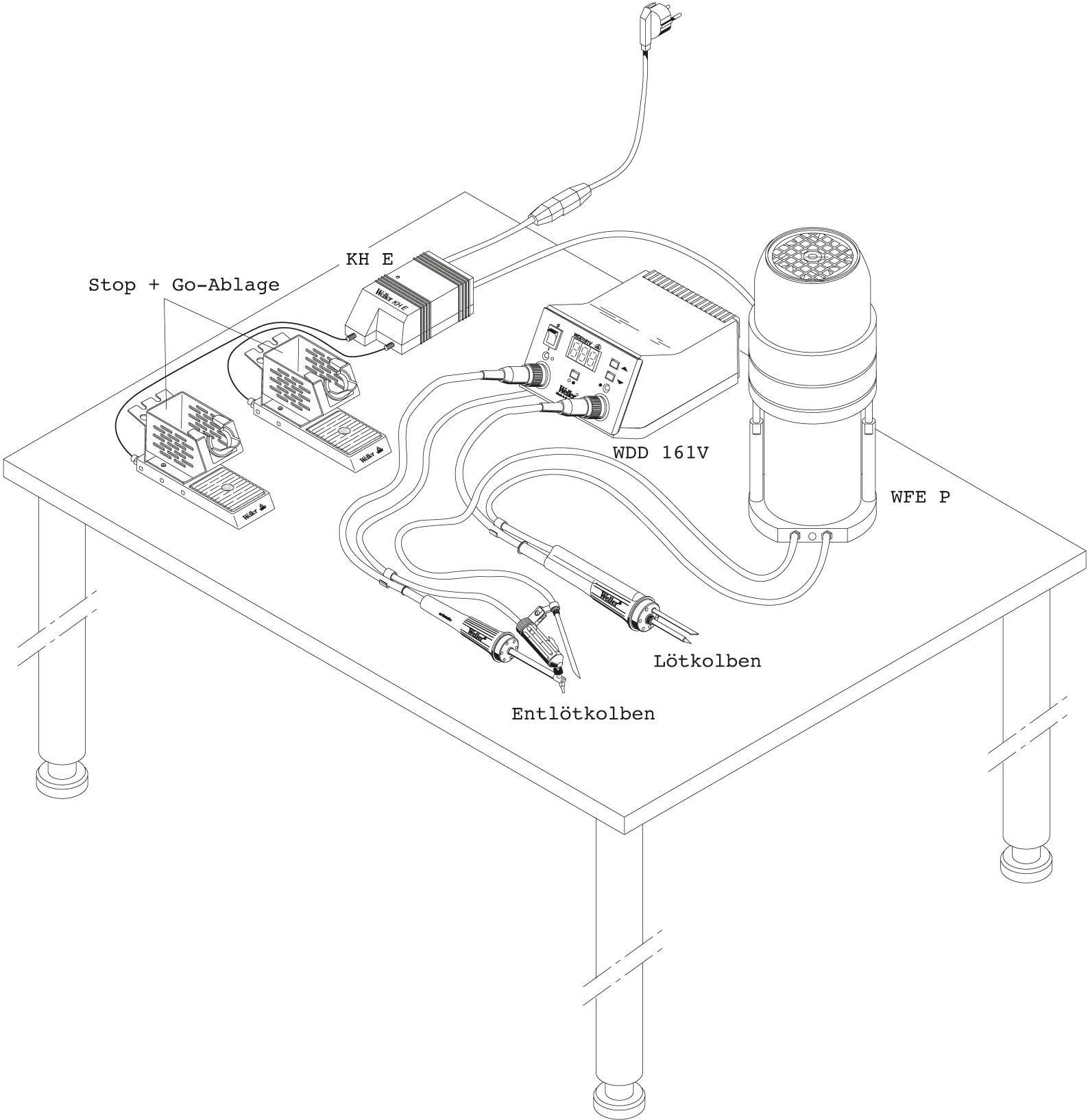

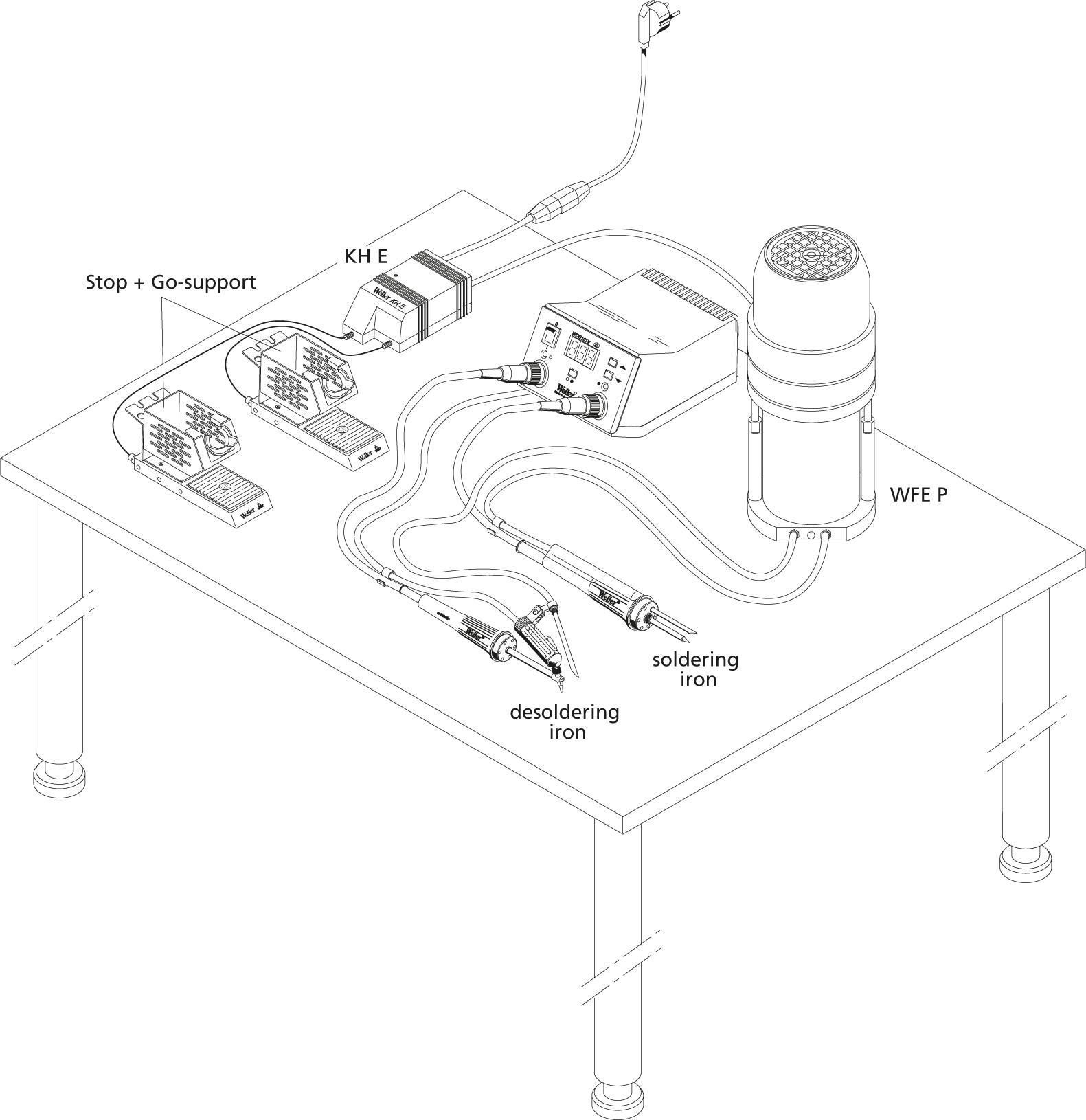

Up to 2 FE soldering irons can be connected
-
Electric vacuum pump to produce the required vacuum
-
2 power stages for higher extraction performance with 2 FE soldering irons
-
Portable unit for stand alone applications (Not useable for 24 hours long term use)
-
The motor is maintenance-free and has a thermal over load to protect the unit.
Downloads
pdf
pdf
(8.44 MB)
Technical data
| Height | 295mm |
| Length | 140mm |
| Dimensions L x W x H | 140.0 x 140.0 x 295.0mm |
| Capacity (m³/h) | 50 m³/h |

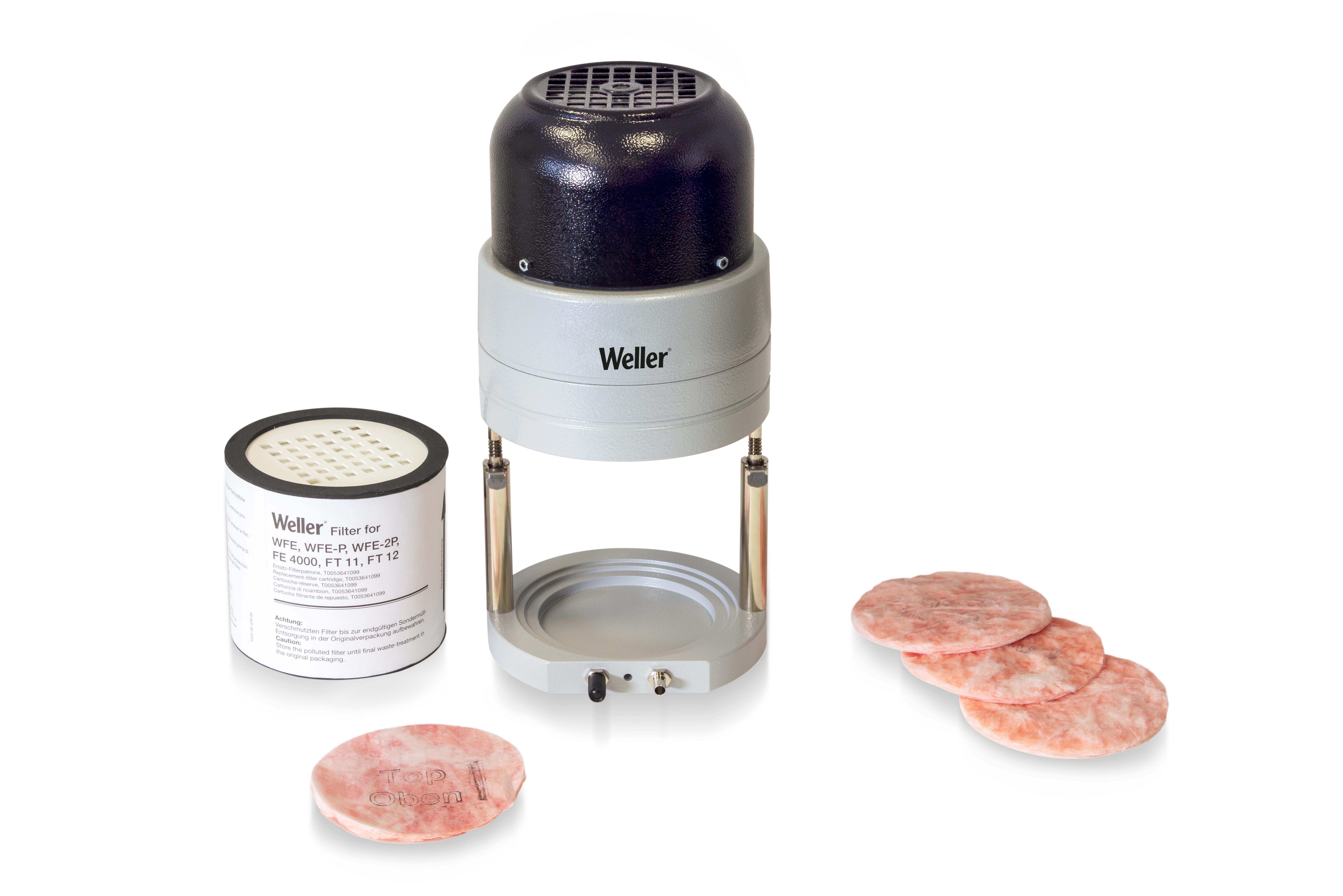

| Compact Filter | Particle filter H13, broadband gas filter (50% activated carbon + 50% Chemisorb) |
| ESD Safe | Yes |
| Maximum Blower Vacuum (Pa) | 30,000 Pa |
| Power | 70 W |
| UPC | 037103258250 |
| Weight (Catalog) | 4.00 kg |
| Product Family | Solder Fumes Direct Extraction 1-2 Workstations |
Downloads
-
Download jpg jpg (1.54 MB) jpg (1.54 MB)
Download jpg jpg (175.48 KB) jpg (175.48 KB)
Download jpg jpg (174.53 KB) jpg (174.53 KB)
Download jpg jpg (1001.12 KB) jpg (1001.12 KB)
Download jpg jpg (2.63 MB) jpg (2.63 MB)
Download jpg jpg (3.49 MB) jpg (3.49 MB)
Download jpg jpg (1.25 MB) jpg (1.25 MB)
Download jpg jpg (1.35 MB) jpg (1.35 MB)
Download jpg jpg (1.54 MB) jpg (1.54 MB)
Are you searching
something specific?
something specific?
Frequently Asked Questions
-
When would I use tip extraction over more common volume extraction?Some people just prefer it.
Its generally a physically smaller solution.
It is often quieter so lends itself well to say training rooms.The unit using compressed air offers a good alternative.
It is also prefered for lower volume soldering as the tubes and pipes need cleaning from time to time and the high pressure pumps sometimes need more frequent maintenance.
