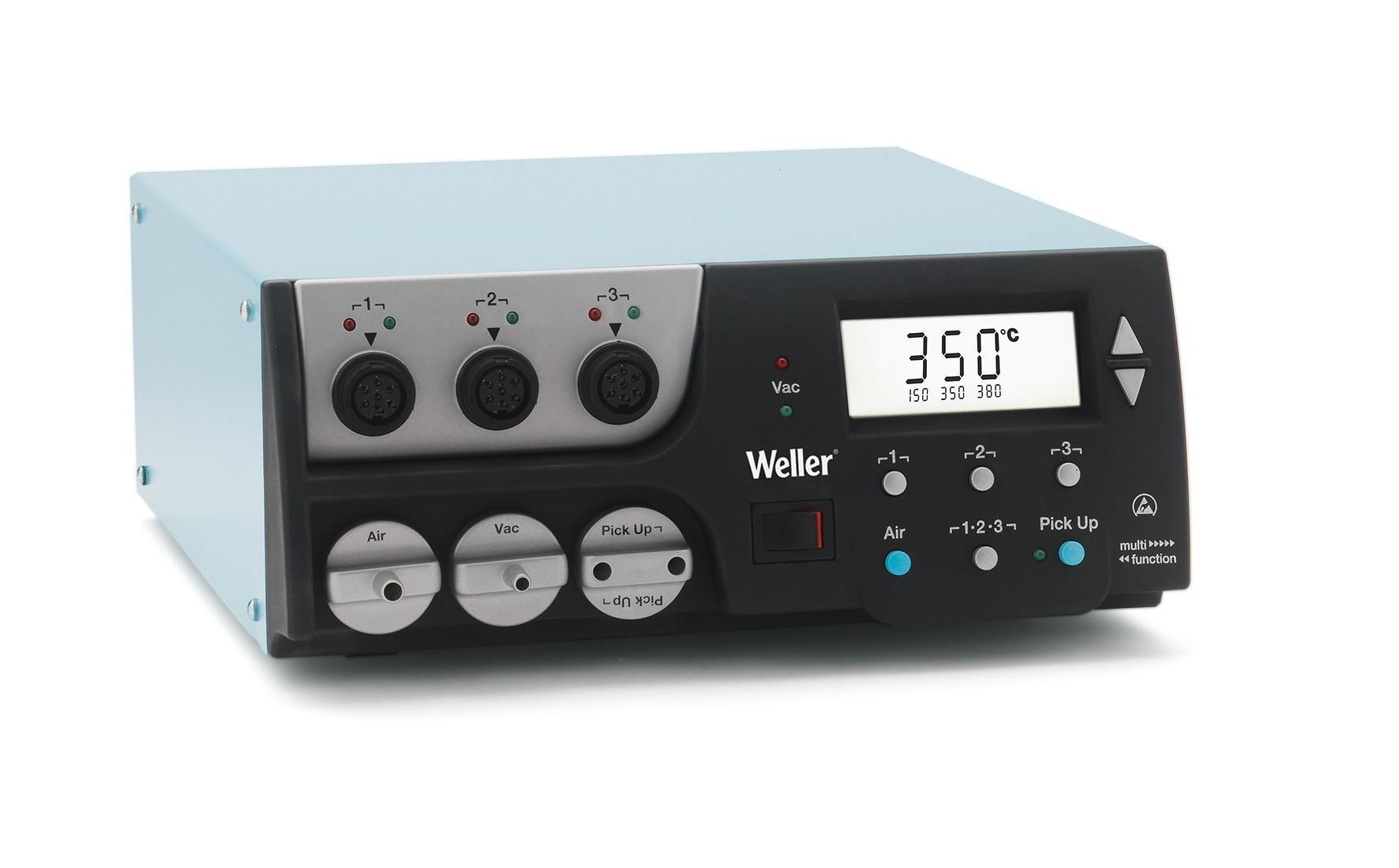

WR3M 230V
Item No.:
T0053366699N
3-Channel Power Unit, 360 W (400 W)
Product features
-
3 independent tool channels
-
Simultaneous operation of up to 3 soldering tools
-
Automatic tool detection
-
Own vacuum channel for pick-up
Downloads
pdf
pdf
(8.7 MB)
Technical data
| Height | 103mm |
| Length | 280mm |
| Dimensions L x W x H | 280.0 x 240.0 x 103.0mm |
| Capacity (l/min) | 18 l/min |
| Desoldering | Yes |
| Equipotential Bonding Socket | Via 3.5mm pawl socket on back of device (hard-grounded) |
| ESD Safe | Yes |
| Hot Air (picto) | Yes |
| IPC Compliant | (Tip to Ground) Corresponds to IPC-J-001 |
| Maximum Hot Air Flow Rate l/min (Depends on Tool) | 15 l/min |
| Noise level (distance 1 m) dB(A) | 0.7 bar |
| Number of Channels | 3 |
| Overcurrent Release | 2 A |
| Power | 360 W (400 W) |
| Temperature Accuracy °C | ± 9°C |
| Temperature Accuracy °F | ± 17°F |
| Temperature Range (Depends on Tool) | Temperature control of channels Soldering and desoldering iron stepless 50 °C – 550 °C (150 °F – 999 °F) Controllable temperature range depends on the tool |
| Temperature Range °C | 93 - 454 °C |
| Temperature Range °F | 200 - 850 °F |
| Temperature Stability °C | ± 2°C |
| Temperature Stability °F | ± 4°F |
| Tip Type | WT |
| UPC | 037103305473 |
| USB | Yes |
| Voltage | 230V |
| Weight (Catalog) | 7.30 kg |
| Product Family | Rework, Hot Air, Desoldering Stations |
