WX1 230V
WX1 230V
Item No.:
T0053417399N
1-Channel Power Unit, 200 W
Product features
-
Innovative operation concept
-
Robust touch screen with ESD safe glass
-
Intuitive use with turn-click-wheel with enter key and finger guide
-
Blue LED backlighting
-
Multilingual menu navigation
-
High functionality
-
No safety rest with Stop & Go function needed thanks to integrated acceleration sensor
-
Optimized precision, better stability by sensor in the soldering iron
-
Specific parameterization of tool by storage medium in hand piece
Technical data
| Height | 135mm |
| Length | 174mm |
| Dimensions L x W x H | 174.0 x 154.0 x 135.0 mm |
| Automatic Tool Identification | Yes |
| Benchtop Controller | Yes |
| Equipotential Bonding | Yes |
| Equipotential Bonding Socket | Via 3.5mm pawl socket on back of device |
| ESD Safe | Yes |
| Fuse | T2A |
| Interface | 1x USB, 2x RS232, 1x Switching Output |
| Multilingual Display | Yes |
| Number of Channels | 1 |
| Power | 200 W |
| Temperature Accuracy °C | ± 9°C |
| Temperature Accuracy °F | ± 17°F |
| Temperature Range (Depends on Tool) | Adjustable from 50°C - 550°C (150°F - 999°C) Adjustable temperature range varies among tools |
| Temperature Range °C | 100 - 550 °C |
| Temperature Range °F | 150 - 999 °F |
| Temperature Stability °C | ± 2°C |
| Temperature Stability °F | ± 4°F |
| Traceability | Yes |
| USB | USB interface of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types |
| Voltage | 230V (50 Hz) |
| Weight (Catalog) | 3.42 kg |
| Product Family | WX Line Soldering Stations |
Downloads
-
Download jpg jpg (155.34 KB) jpg (155.34 KB)
Download jpg jpg (277.67 KB) jpg (277.67 KB)
Download jpg jpg (277.67 KB) jpg (277.67 KB)
Download jpg jpg (12.86 KB) jpg (12.86 KB) -
WE_WX_Units_Manual_T0055730406Download pdf pdf (5.94 MB) pdf (5.94 MB)

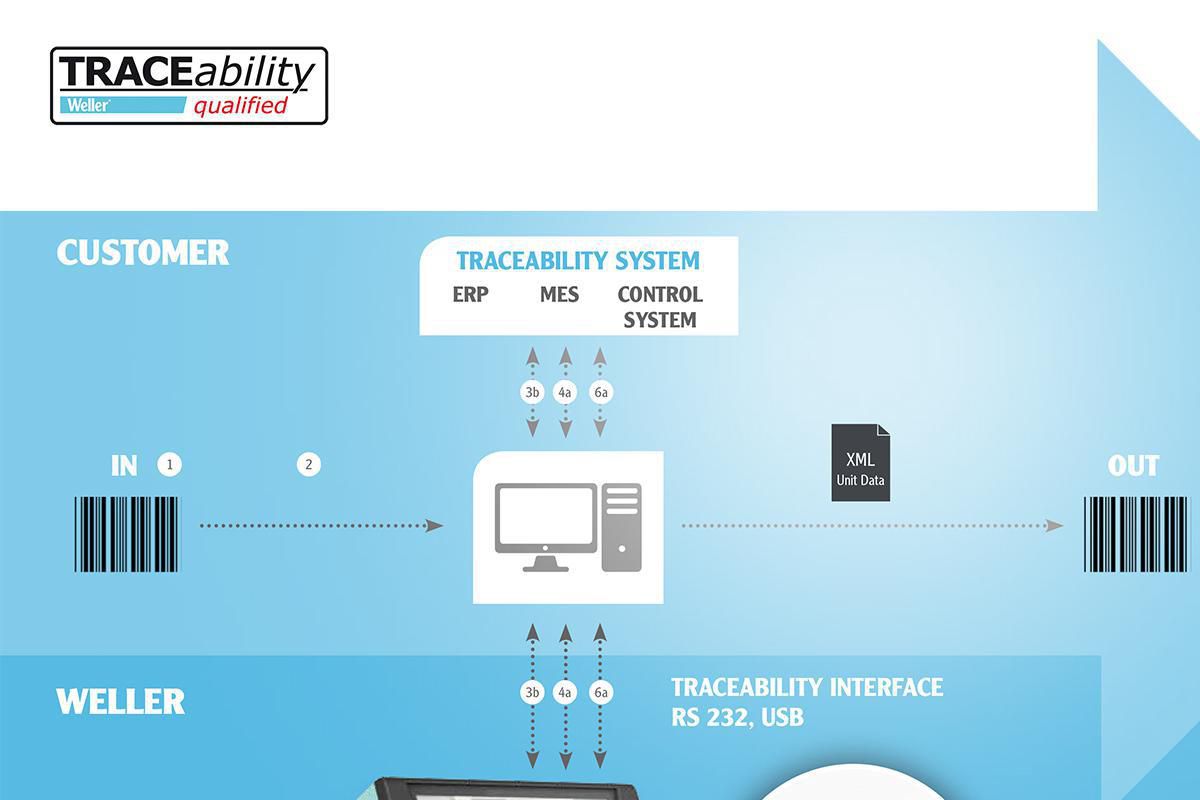

traceability_teaserDownload jpg jpg (56.64 KB) jpg (56.64 KB)
