Weller Tools GmbH

CBC A Connection 160.0mm 230V

Downloads
pdf

CBC A Connection 160.0mm 230V

Item No.: CBCA112G02G65I2N
CBCA 160 mm hose connector for central ventilation
€ 4,391.00
Ex tax.
Shop Locator
Product features
  • 80 % low running cost against conventional extraction cabins. CBC-A needs only 200 m³/h. Conventional 1000 m³/h

  • Mobile System for flexible use on a work bench or trolly.

  • Large open front working area with no glass screen.

  • Low noise level

  • Cabinet interior fittings: Tube lighting (2 x 39 W), 230 V. 4 pcs. mains connector 230 V

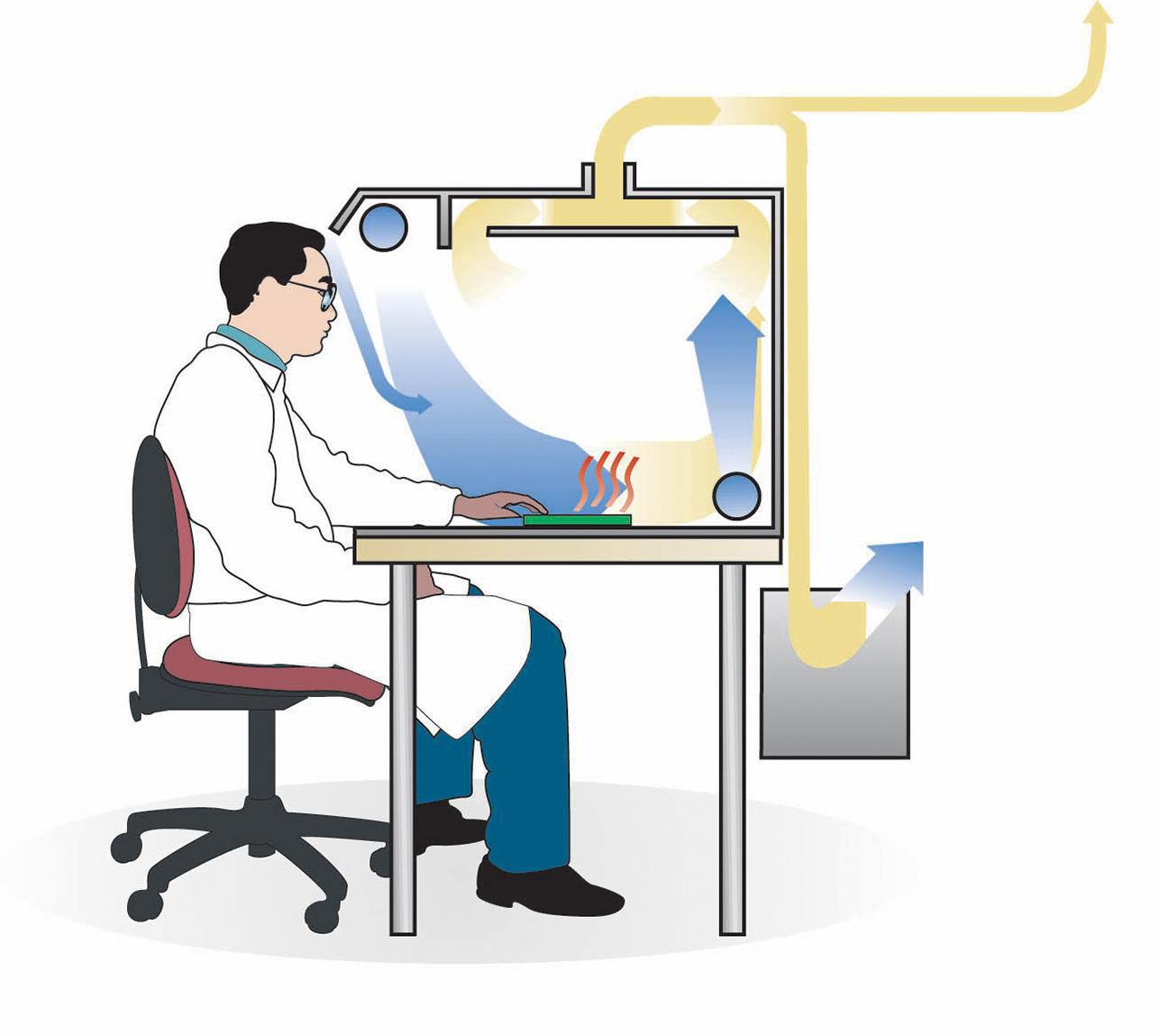

  • The air curtain cabinet CBC-A has a unique ventilation concept that separates the operator from the process by a dual air curtain system, giving unlimited accessibility on the workbench. It stands directly on the workbench and is easily connected via den 160 mm connector to central ventilation system. Minimum extraction volume: 180 m³/h. Maximum extraction volume: 230 m³/h.

  • Available as 120 V Version: CBCA112G02G65I2115

Downloads
pdf
Technical data
Width 1275.0 mm
Height 625.0 mm
Length 760.0 mm
Dimensions L x W x H 760.0 x 1275.0 x 625.0mm
ESD Safe Yes
Power 65 W
UPC 4003019067787
