Weller Tools GmbH

WP 120

Downloads
Datasheet
pdf
WE_RTP_RTM_RTU_Tip_Overview_FLY
pdf
(253.92 KB)

WP 120

Item No.: T0052919399N
Soldering iron 120 W, 24 V with Power-Response Heating Technology
read more
read less
Price on request
Add to wishlist
Product features

  • Soldering Iron 120 W, 24 V

  • For small and large components (High Mass) with high energy demand

  • Allrounder for WT stations and WR rework stations

  • Interchangeable XT soldering tips at low cost prices

  • Power Response heating technology with improved sensor position

  • Fast reaction time

Show more product features
Downloads
Datasheet
pdf
WE_RTP_RTM_RTU_Tip_Overview_FLY
pdf
(253.92 KB)
Technical data
Approximate Heating Time (50–350 °C/120–660 °F) 14 sec
Barrel T0058763709 T0058765802
ESD Safe Yes
Power 120 W
Supply Unit PUD121 PUWAD101IG WD1M WR2 WR3M WR3ME WT1H WT2M
Temperature Range (Depends on Tool) 65 - 454°C
Tip Type XT
UPC 037103303035

Items in the Box

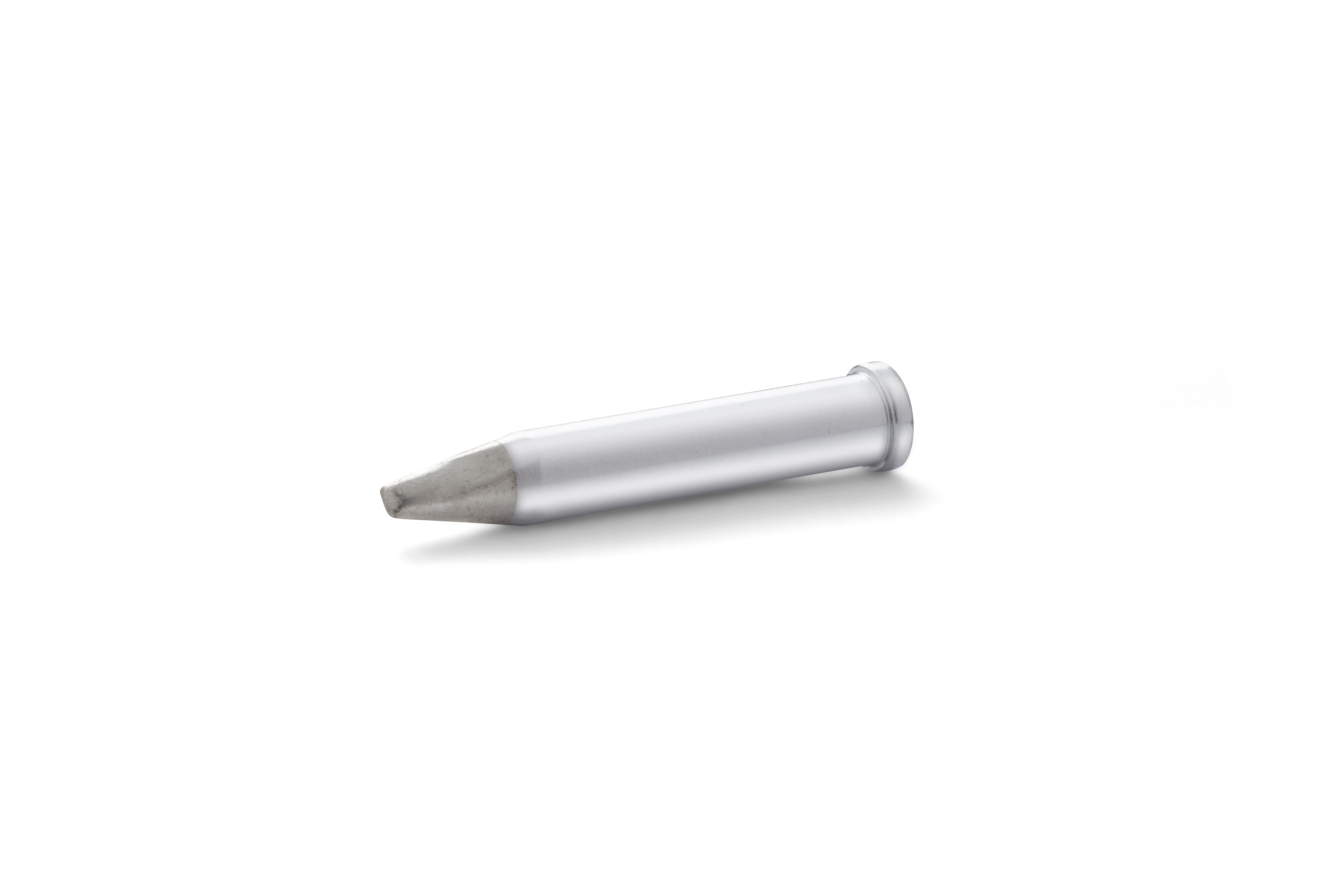

XT B
Soldering tip chisel Ø 2,4 mm
Show article
New

Tips/Nozzles

XT AL
Soldering tip chisel Ø 1,6 mm
Show article
New
XT M
Soldering tip chisel Ø 3,2 mm
Show article
New
XT A
Soldering tip chisel Ø1,6 mm
Show article
New
XT B
Soldering tip chisel Ø 2,4 mm
Show article
New
XT C
Soldering tip, chisel, Ø 3,2 mm
Show article
New
XT D
Soldering tips, Chisel, Ø 4,6 mm
Show article
New
XT E
Soldering tip, chisel, Ø 5,9 mm
Show article
New
XT AA 60°
Soldering tip, sloped 60° , Ø 1,6 mm
Show article
New
XT BB 45°
Soldering tip, sloped 45° , Ø 2,4 mm
Show article
New
XT CC 45°
Soldering tip, sloped 45° , Ø 3,2 mm
Show article
New
XT KN
Soldering tip, knife 60°, Ø 2,0 mm
Show article
New
XT GW1
Soldering tip, gull wing, Ø 2,3 mm
Show article
New
XT H
Soldering tip chisel Ø 0,8 mm
Show article
New
XT O
Soldering tip, conical, Ø 1,0 mm
Show article
New
XT BS
Soldering tip, round, Ø 2,4 mm
Show article
New
XT CS
Soldering Tip, round, Ø 3,2 mm
Show article
New
XT DS
Soldering Tip, round, Ø 5,0 mm
Show article
New
XT F 30°
Soldering tip, round sloped tip 30°, Ø 1,2 mm
Show article
New
XT External Thread, Refined
XT Adapter M4
Show article
New
XT D 45°
45° Solar tip, Width A : 5 mm
Show article
New
XT Measuring Tip
XT Measuring tip
Show article
New
XT DDH45
Soldering tip, sloped 45°, Ø 4 mm
Show article
New
XT Soldering Head 10.0 x 4.0mm with Adapter
XT Measuring tip
Show article
New
XT Soldering Head 20.0 x 4.0mm and Soldering Head Adapter
XT Measuring tip
Show article
New
XT Soldering Head 33.0 x 4.0mm with Soldering Head Adapter
XT Measuring tip
Show article
New
XT SOLDERING HEAD ADAPTER
Show article
New
XT GW2
Soldering tip, gull wing, Ø 3,5 mm
Show article
New
XT DL
Soldering tip, chisel tip long, Ø 4,6 mm
Show article
New
XT HX
Soldering tip, bent conical, Ø 0,8 mm
Show article
New
XT BSC
Soldering tip, chisel tip flat, Ø 2,5 mm
Show article
New
XT GW3, 0.8/0.9MM
Show article
New
XT ASL
Soldering tip, chisel tip flat Ø 1,6 mm
Show article
New
XT BSL
Soldering tip, chisel tip flat Ø 2,4 mm
Show article
New
XT CSL
Soldering tip, chisel tip flat, Ø 3,2 mm
Show article
New
XT AX 30°
Soldering tip, chisel tip flat, Ø 1,6 mm, 30°
Show article
New
XT BX 30°
Soldering tip, chisel form, Ø 2,4 mm, 30°
Show article
New
XT MX
Soldering tip, chisel form, Ø 3,2 mm
Show article
New

Stations/Systems

WT 1H
1-Channel Power Unit, 150 W
Show article
New
WR 3M
3-Channel Power Unit, 360 W (400 W)
Show article
New
WR 2
2-Channel Power Unit, 200 W (300 W)
Show article
New

Accessory

Barrel for Bent Soldering Tips for WP 120
Barrel for bent for WP 120
Show article
New
Barrel for WP 120
Barrel for WP 120
Show article
New

Safety Rest

WDH 10
Safety rest with dry cleaner
Show article
New
WDH 10T
Safety rest with Stop+Go function and dry cleaner for WP 65, WP 80 and WP 120 soldering iron
Show article
New
WDH 10T OPTO Safety Tray
WDH 10T OPTO Second safety rest for KHE / KHP with fiber optic sensor for extending to 2 workplaces
Show article
New
