WE 1010
WE 1010
Item No.:
T0053298699

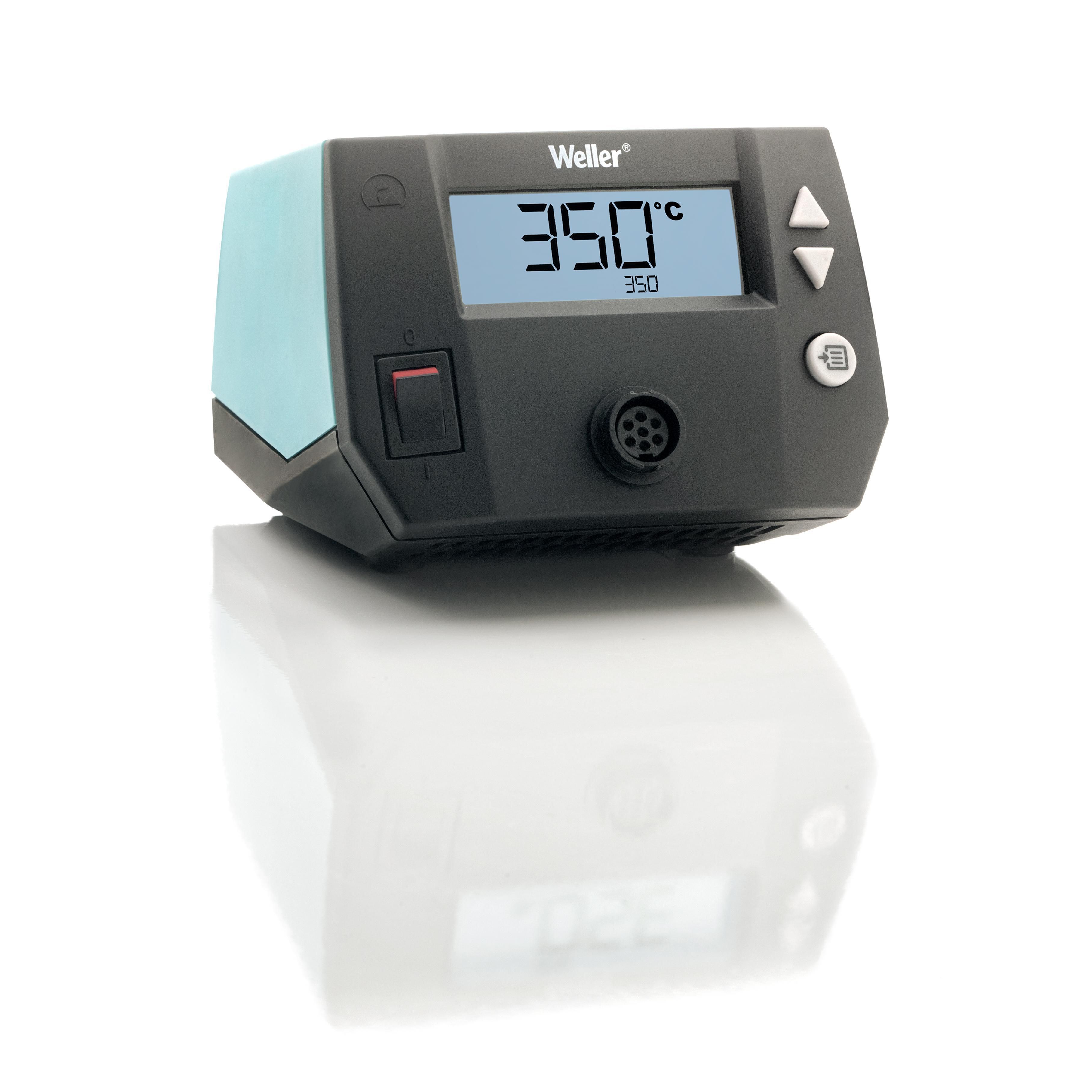

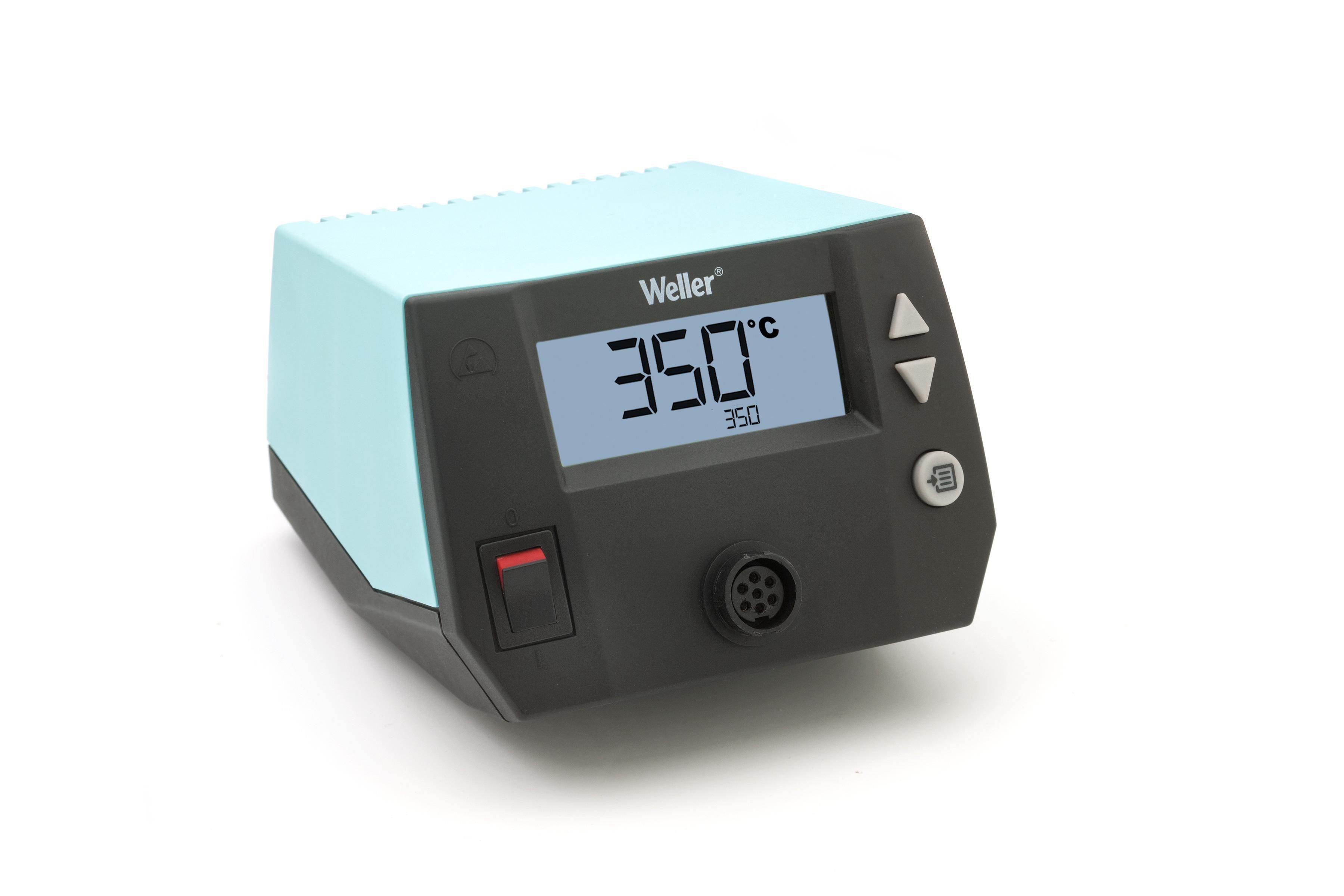

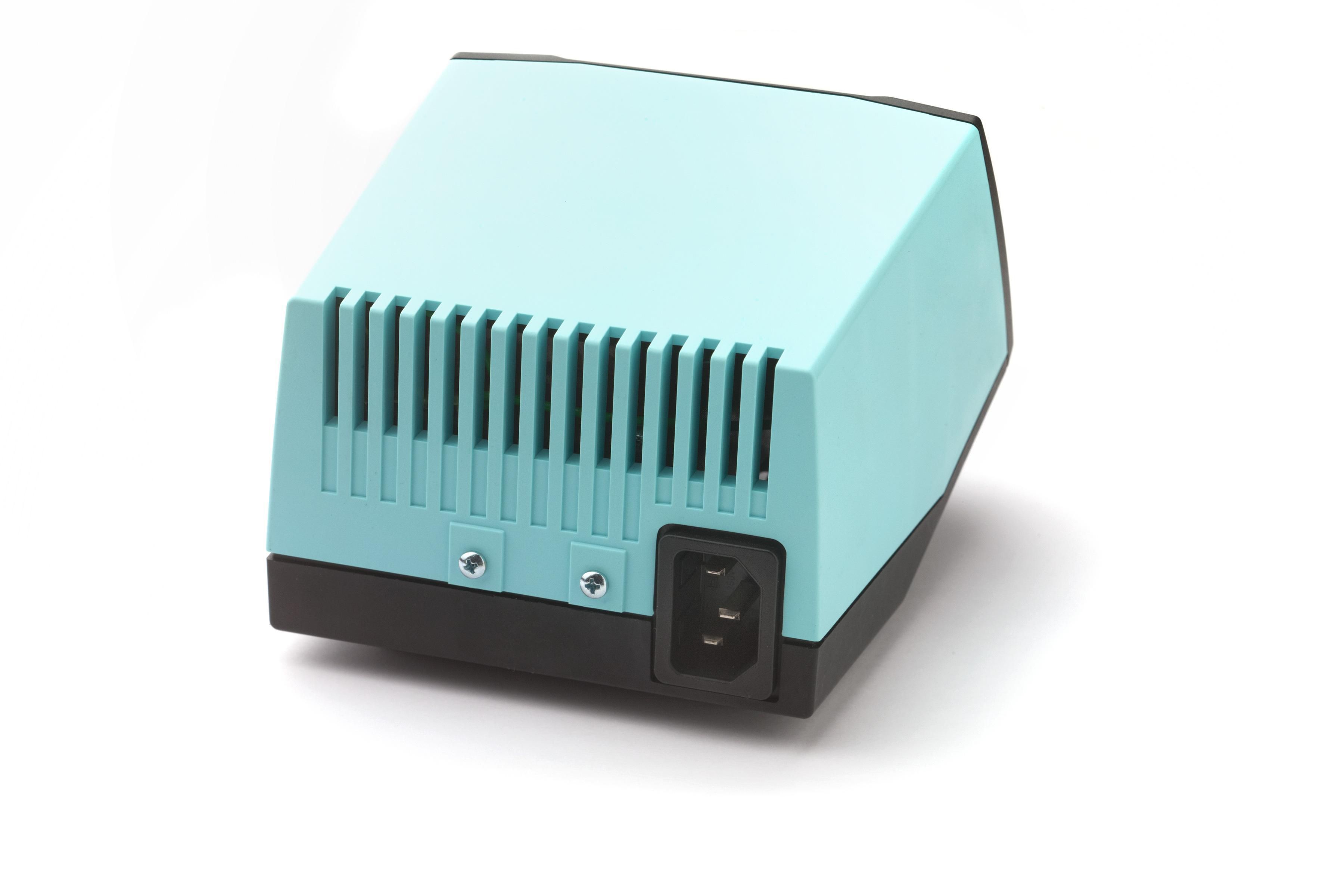

1-Channel Power Unit, digital, 70 W
Product features
-

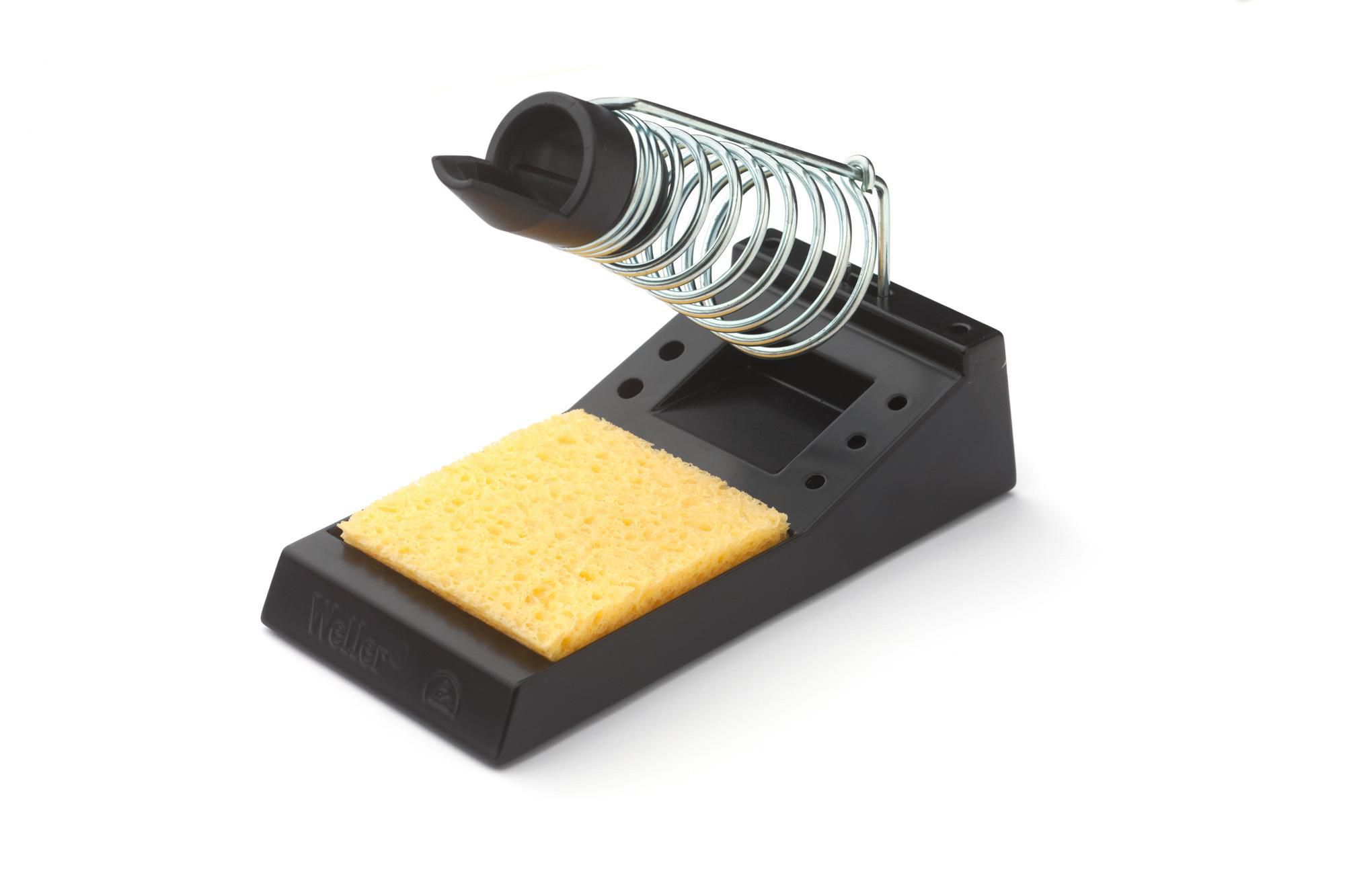

Power unit, 1 channel with soldering iron WEP 70 and safety rest PH 70
-

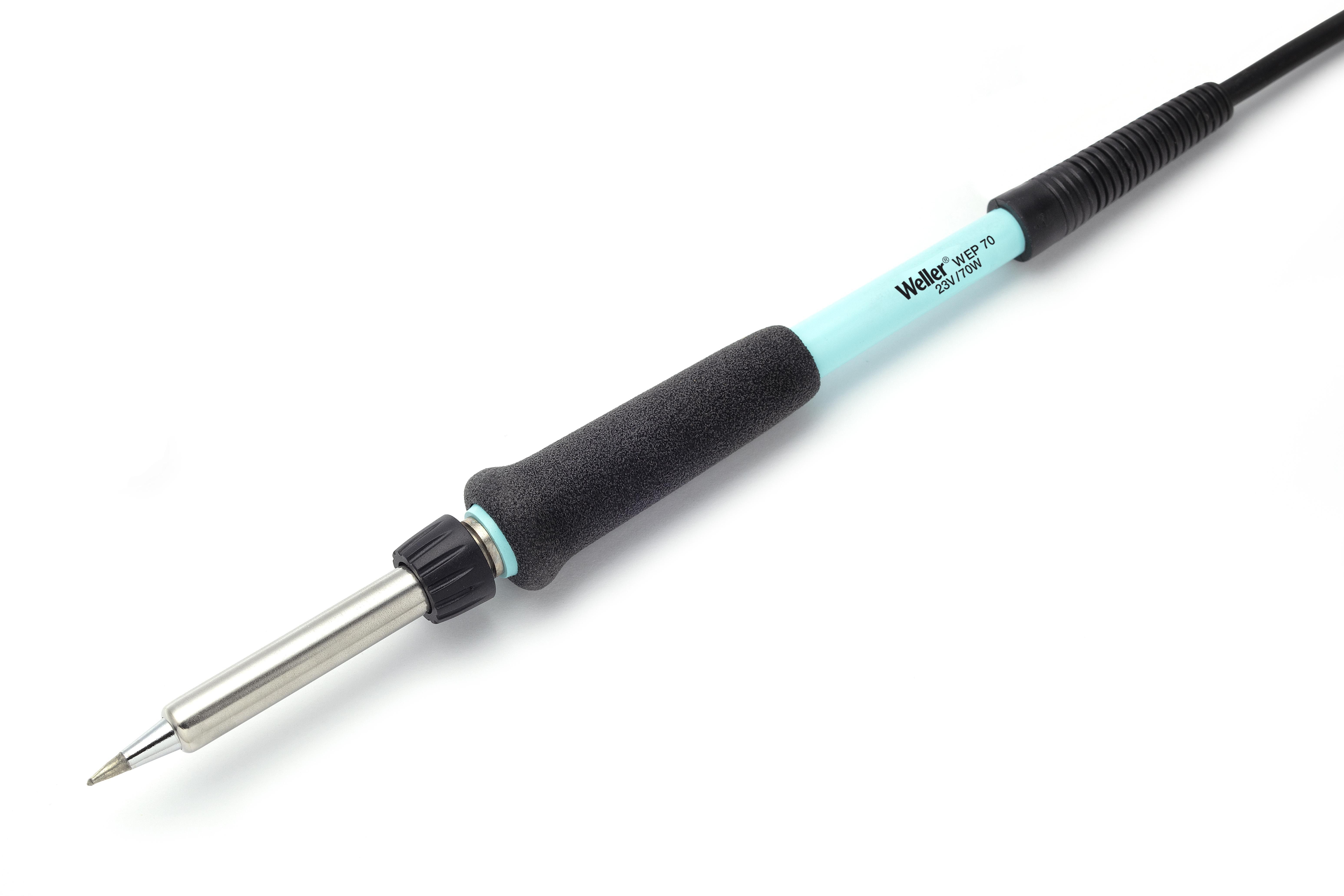

70 W solder iron with ergonomic handle and providing toolless tip change
-
ESD safe station, iron and heat-resistant silicon cable for safe handling
-
Using ET soldering tips
-
Standby mode and auto setback conserves energy, protects equipment
-
Password-protected to preserve settings
-
Replacement for 4ETH, 4ETK, 4ETO, 4ETS necessary. For WEP 70 4ETHL, 4ETKL, 4EKOL and 4ETSL must be used.
-
Change hot tips out by hand by twisting the plastic knurled nut on the soldering pencil without an additional tool.
Technical data
| Height | 98mm |
| Length | 150mm |
| Dimensions L x W x H | 150.0 x 120.0 x 98.0mm |
| Approximate Heating Time (50–350 °C/120–660 °F) | 28 sec |
| ESD Safe | Yes |
| Number of Channels | 1 |
| Power | 85 W |
| Temperature Accuracy °C | ± 5 °C |
| Temperature Accuracy °F | ±9 °F |
| Temperature Range (Depends on Tool) | Adjustable from 100°C - 450°C (200°F - 850°F) |
| Temperature Range °C | 100 - 450 °C |
| Temperature Range °F | 200 - 850 °F |
| Temperature Stability °C | ±6 °C |
| Temperature Stability °F | ±10 °F |
| Tip Type | ET |
| UPC | 4003019439973 |
| Voltage | 230 V |
Downloads
-
Download jpg jpg (300.74 KB) jpg (300.74 KB)
Download jpg jpg (221.23 KB) jpg (221.23 KB)
Download jpg jpg (239.47 KB) jpg (239.47 KB)
Download jpg jpg (97.77 KB) jpg (97.77 KB)
Download jpg jpg (57.69 KB) jpg (57.69 KB)
Download jpg jpg (558.4 KB) jpg (558.4 KB) -
WEL_WE1_Manual_T0055745804_webDownload pdf pdf (6.22 MB) pdf (6.22 MB)
T0058768155_WE_Tip_flyerDownload pdf pdf (873.3 KB) pdf (873.3 KB) -
Menu navigation tutorial | Weller WE1010 soldering station
Short overview of WE1010 soldering station by WellerTools
Tip change without tools | Weller ET Tips
