WR 3000M
WR 3000M
Item No.:
T0053368399N
3-Channel Rework Station Set, 360 W (400 W) for vertical applications
Product features
-

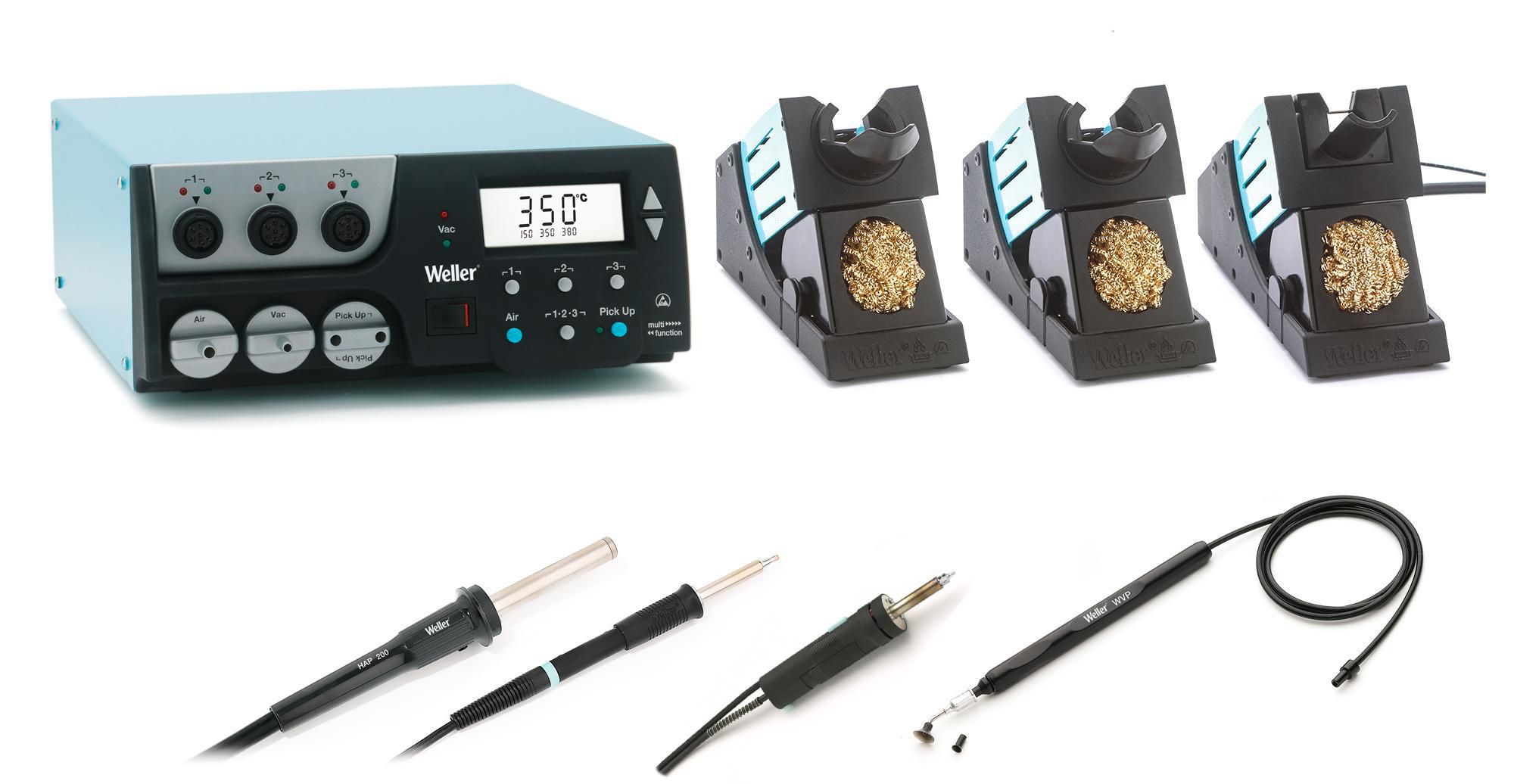

Power unit WR 3M, 3 channels with soldering iron WP 80, desoldering iron DXV 80 and hot air iron HAP 200
-
Large all round set for all repair jobs
-
Desoldering iron DXV 80 for vertical applications
-
Simultaneous operation of hot air and desoldering
Technical data
| Width | 240.0 mm |
| Height | 103.0 mm |
| Length | 280.0 mm |
| Dimensions L x W x H | 280.0 x 240.0 x 103.0mm |
| Capacity (l/min) | 18 l/min |
| Desoldering | Yes |
| Equipotential Bonding Socket | Via 3.5mm Pawl Socket on Back of Device (Hard-Grounded) |
| ESD Safe | Yes |
| Hot Air (picto) | Yes |
| IPC Compliant | (Tip to Ground) Corresponds to IPC-J-001 |
| Maximum Hot Air Flow Rate l/min (Depends on Tool) | 15 l/min |
| Maximum Volume | 0.7 bar |
| Number of Channels | 3 |
| Power | 360 W (400 W) |
| Temperature Accuracy °C | ± 9 °C |
| Temperature Accuracy °F | ±17 °F |
| Temperature Range (Depends on Tool) | Temperature control of channels Soldering and desoldering iron stepless 50 °C – 550 °C (150 °F – 999 °F) Controllable temperature range depends on the tool. |
| Temperature Range °C | 50 - 550 °C |
| Temperature Range °F | 150 - 950 °F |
| Temperature Stability °C | ±2 °C |
| Temperature Stability °F | ±4 °F |
| Tip Type | WT |
| UPC | 4003019417643 |
| USB | Yes |
| Vacuum | 0,7 bar |
| Voltage | 230 V |
Downloads
-
Download jpg jpg (144.47 KB) jpg (144.47 KB)
Download jpg jpg (34.41 KB) jpg (34.41 KB)
Download jpg jpg (32.83 KB) jpg (32.83 KB) -
Manual_HAP_200_DE_GB_FRDownload pdf pdf (690.99 KB) pdf (690.99 KB)
Manual_WP80Download pdf pdf (438.4 KB) pdf (438.4 KB)
OI_WVPDownload pdf pdf (185.38 KB) pdf (185.38 KB)
WEL_DXV80_Manual_T0055687209_webDownload pdf pdf (1.63 MB) pdf (1.63 MB)
WEL_WR2_WR3M_Manual_T0055705511_webDownload pdf pdf (7.79 MB) pdf (7.79 MB)
