WT 1
Item No.:
T0053434699N

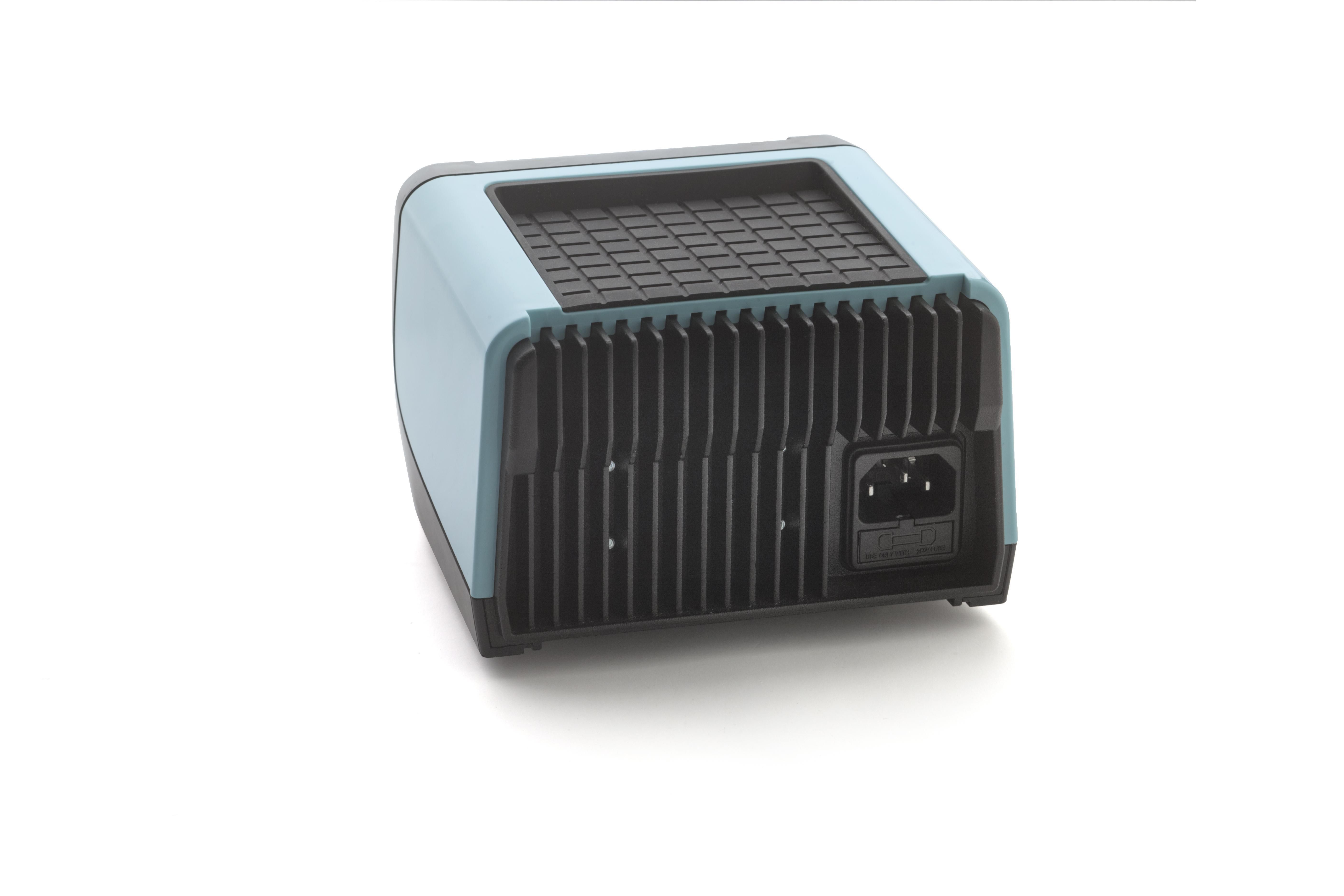

1-Channel Power Unit, 95 W
Product features
-
High productivity (Power unit with 1 channel, 95 W)
-
Intuitive use thanks to clear menu structure
-
Reduced footprint thanks to stackability
-
Graphical backlit LC-Display
-
High performance and functionality - many connectable tools
-
Housing cover useable as storage
-
OFF time, Process window, Lock function, Offset
Downloads
pdf
pdf
(7.98 MB)

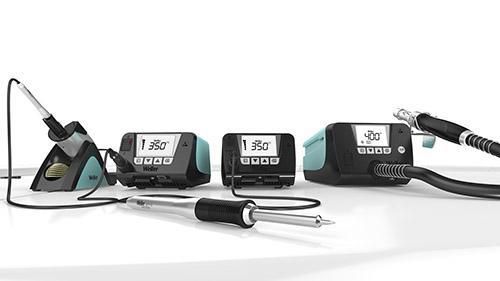

Compact. Powerful. Versatile
Technical data
| Height | 101mm |
| Length | 149mm |
| Dimensions L x W x H | 149.0 x 138.0 x 101.0mm |
| Equipotential Bonding Socket | Via 3.5mm Pawl Socket on Front of Device |
| ESD Safe | Yes |
| Interface | One Switching Output |
| Number of Channels | 1 |
| Power | 95 W |
| Temperature Accuracy °C | ± 9 °C |
| Temperature Accuracy °F | ±17 °F |
| Temperature Range °C | 50 - 450 °C |
| Temperature Range °F | 150 - 850 °F |
| Temperature Stability °C | ±2 °C |
| Temperature Stability °F | ±4 °F |
| Tip Type | WT |
| UPC | 4003019438129 |
| Voltage | 230 V, 50/60 Hz |
| Weight (Catalog) | 1.90 kg |
