WT 1010

Downloads
Datasheet
pdf
Manuals

WT 1010

Item No.: T0053436699N

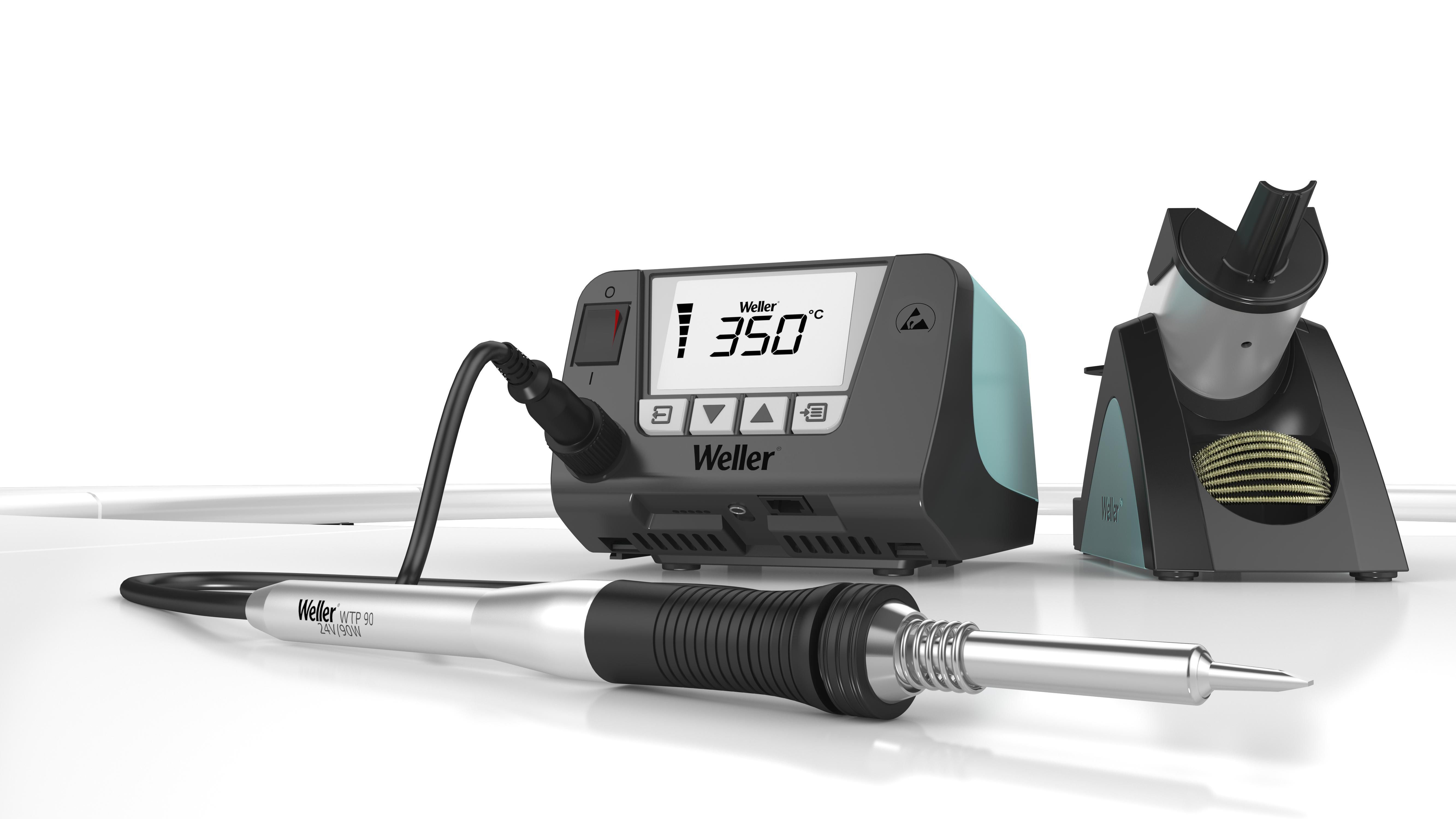

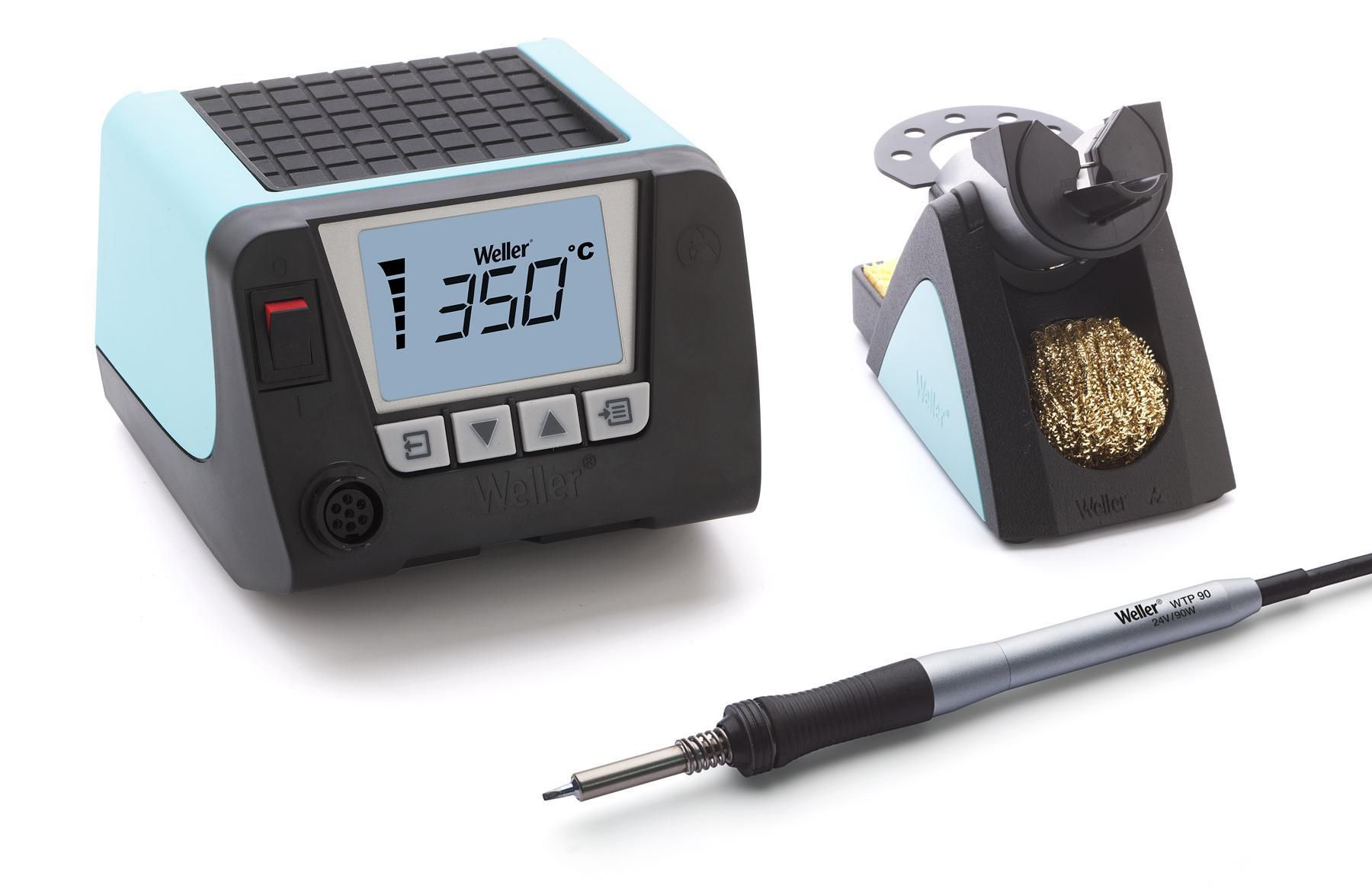

1-Channel Soldering Station set, 95 W with soldering iron WTP 90
read more
read less
€ 499.00
Ex tax.
Dealer Locater
Add to wishlist
Product features

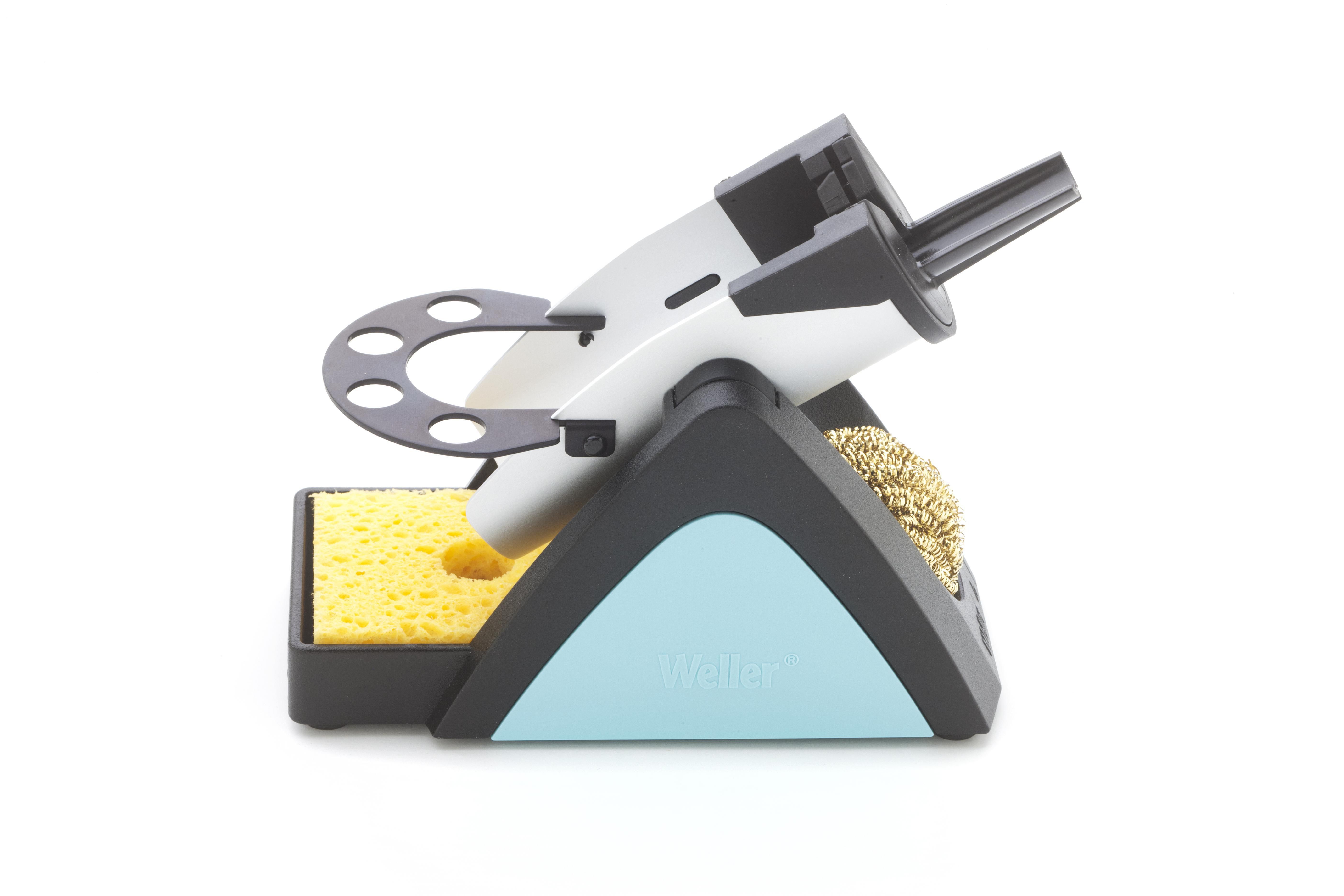

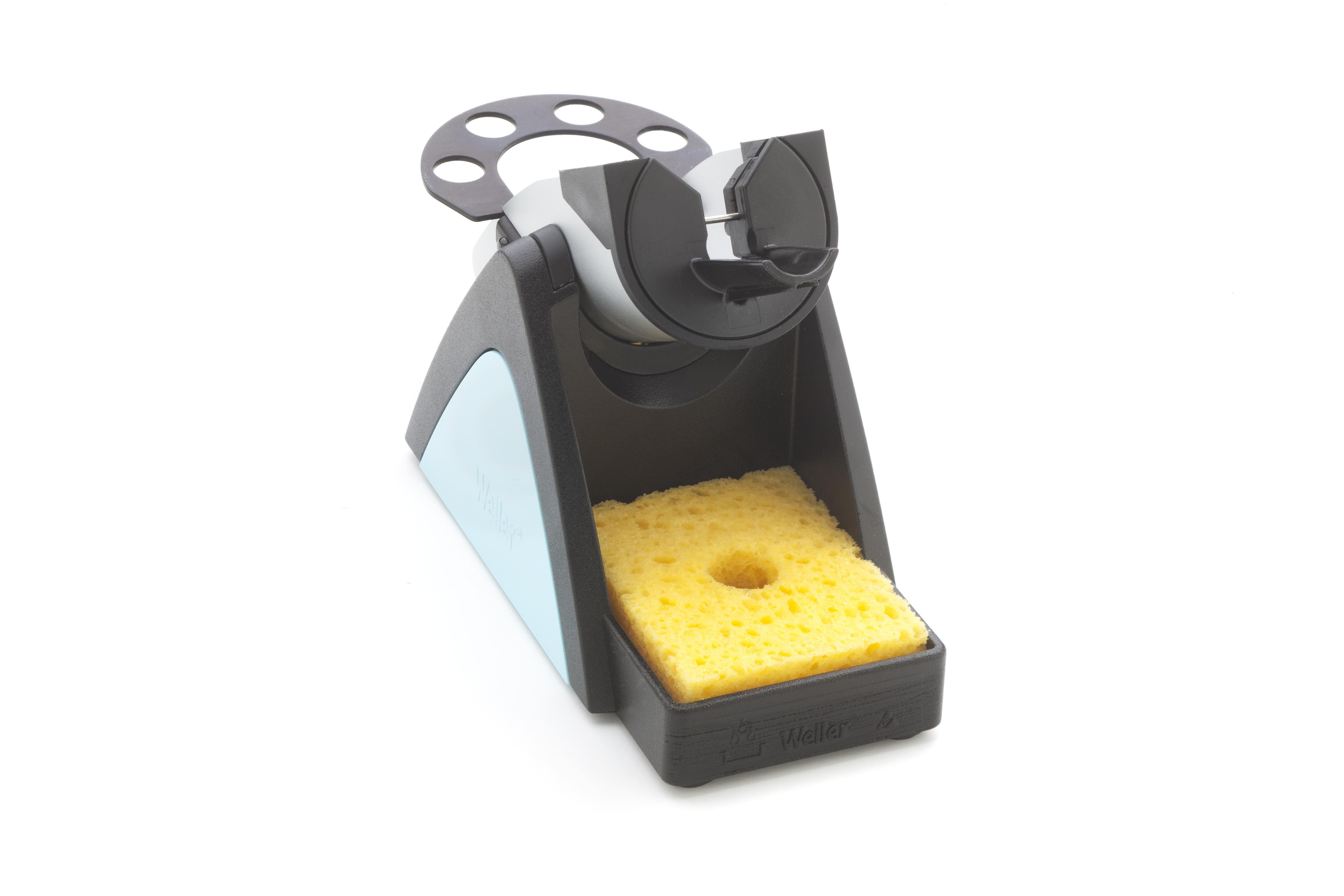

  • Power unit WT 1, 1 channel with soldering iron WTP 90 and safety rest WSR 200

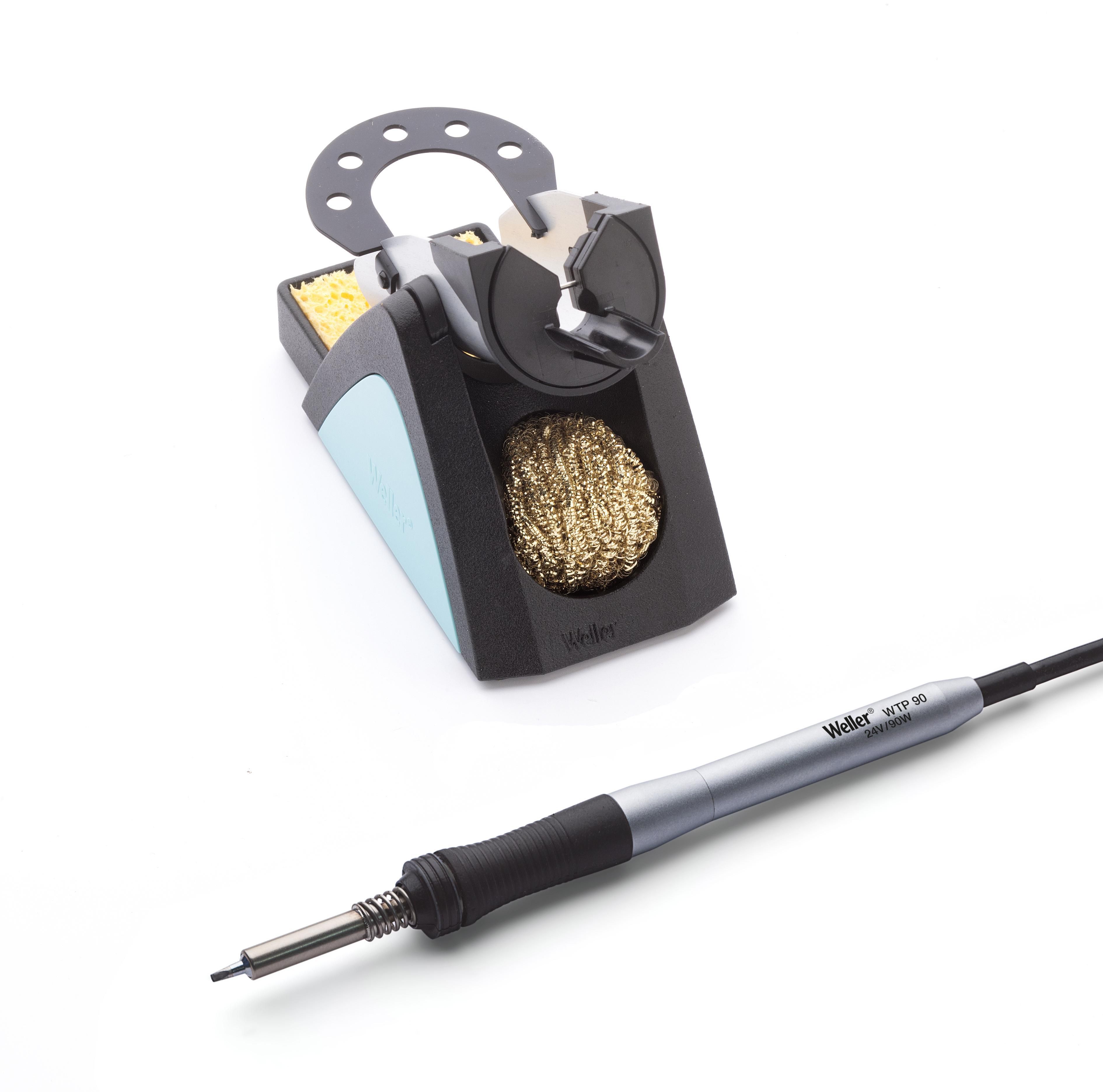

  • WTP 90: The soldering iron (90 W) for universal use with power response tips. Tip family XNT & XH (high mass tips)

  • High productivity (Power unit with 1 channel, 95 W)

  • Intuitive use thanks to clear menu structure

  • Reduced footprint thanks to stackability

  • Graphical backlit LC-Display

  • High performance and functionality - many connectable tools

  • Automatic standby of tool thanks to integrated acceleration sensor in the tool

  • Housing cover useable as storage

  • OFF time, Process window, Lock function, Offset

Show more product features
Downloads
Datasheet
pdf
Manuals

Scope of delivery

WT 1
Show article
New
WTP 90
Show article
New
WSR 200
Show article
New
XNT A
Show article
New
Technical data
Width 138.0 mm
Height 101.0 mm
Length 149.0 mm
Dimensions L x W x H 149.0 x 138.0 x 101.0mm
Equipotential Bonding Yes
Equipotential Bonding Socket Via 3.5mm Pawl Socket on Front of Device
ESD Safe Yes
Fuse 0,5A
Interface One Switching Output
Number of Channels 1
Power 95 W
Temperature Accuracy °C ± 9 °C
Temperature Accuracy °F ±17 °F
Temperature Range (Depends on Tool) Adjustable from 50°C - 450°C (150°F - 850°F) Adjustable temperature range varies among tools
Temperature Range °C 100 - 450 °C
Temperature Range °F 150 - 850 °F
Temperature Stability °C ±2 °C
Temperature Stability °F ±4 °F
Tip Type WT
UPC 4003019438341
Voltage 230 V, 50/60 Hz
