WXA 2
WXA 2
Item No.:
T0053425699N

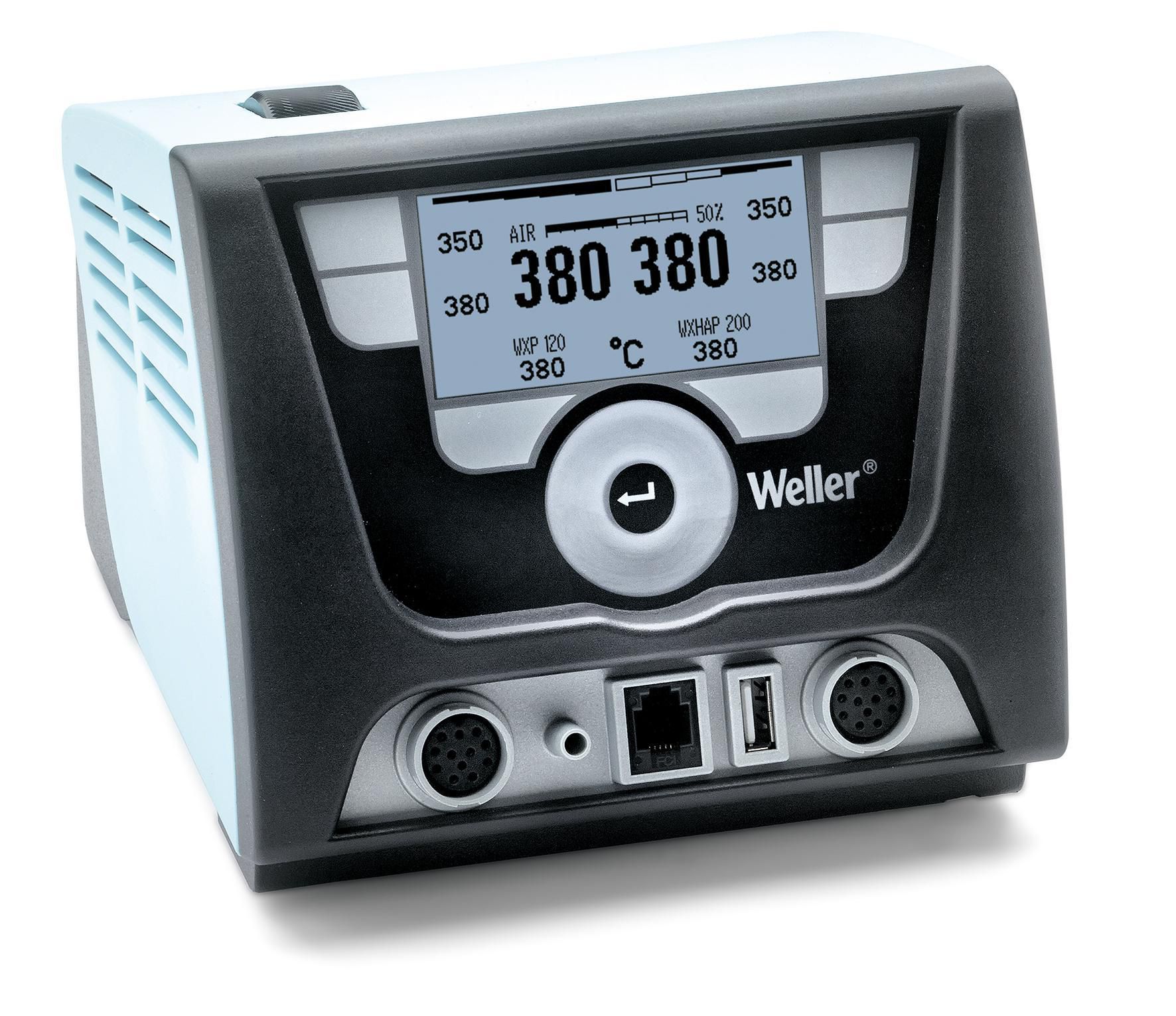

2-Channel Power Unit, 200 W (255 W)
Product features
-
Power unit, 2 channels
-
For operation with external compressed air
-
Simultaneous operation of 2 soldering tools
Technical data
Width | 154.0 mm |
Height | 135.0 mm |
Length | 174.0 mm |
Dimensions L x W x H | 174.0 x 154.0 x 135.0mm |
Air Consumption | 20 l/min |
Automatic Tool Identification | Yes |
Benchtop Controller | Yes |
Capacity (l/min) | 20 l/min |
Compressed Air Connection (Outer Diameter) | 6.0mm |
Compressed Air Connection Accessory | Oil free, dry compressed air |
Equipotential Bonding | Yes |
Equipotential Bonding Socket | Via 3.5mm Pawl Socket on Back of Device |
ESD Safe | Yes |
Fuse | T2A |
Hot Air (picto) | Yes |

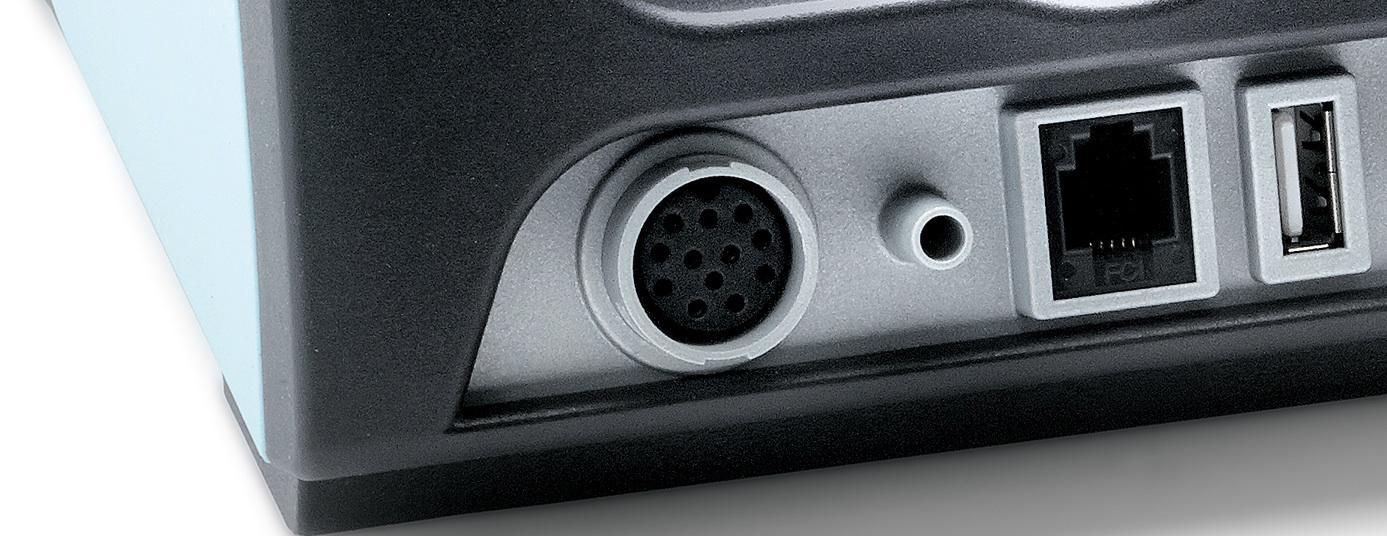

Interface | 1x USB, 2x RS232, 1x Switching Output |

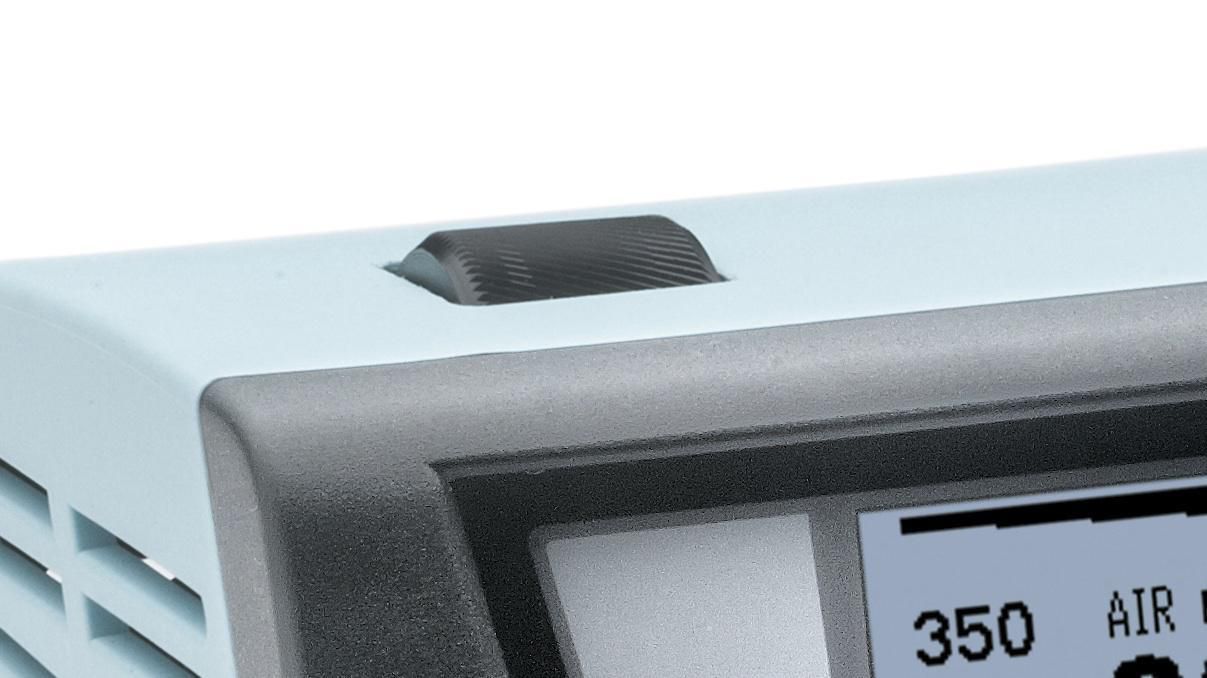

Maximum Hot Air Flow Rate l/min (Depends on Tool) | 15 l/min |

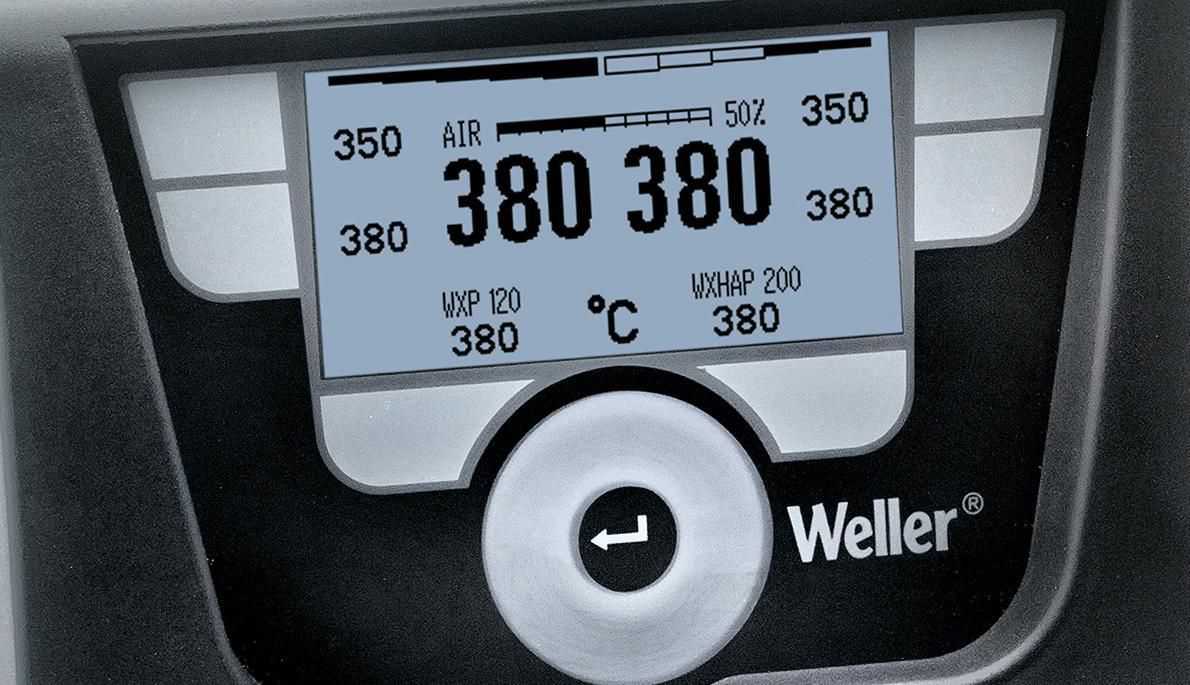

Multilingual Display | Yes |
Number of Channels | 2 |
Operating Pressure | 4 - 6 bar 54 - 87 psi |
Power | 200 W (255 W) |
Temperature Accuracy °C | ± 9 °C |
Temperature Accuracy °F | ±9 °C |
Temperature Accuracy for Hot Air | ±30 °C |
Temperature Range °C | 100 - 550 °C |
Temperature Range °F | 212 - 1022 °F |
Temperature Stability °C | ±2 °C |
Temperature Stability °F | ±2 °C |
Traceability | Yes |

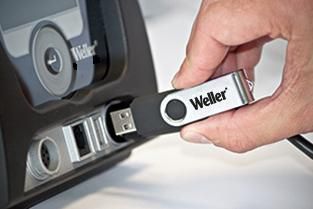

USB | USB interface of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types |
