622NA
622NA
The Weller Erem Series 600 Micro is a range of miniature precision cutters that offers a wide variety of head shapes for access in difficult to reach areas. These micro cutters are suitable for SMD and leads (670EP, 670EPF). The cutters are made from high grade tool steel with cutting edges hardened to over 60HRc. The precision cutters have a nonreflecting surface, are ESD safe and resharpenable.
The Weller Erem Series 600 Micro is a range of miniature precision cutters that offers a wide variety of head shapes for access in difficult to reach areas. These micro cutters are suitable for SMD and leads (670EP, 670EPF). The cutters are made from high grade tool steel with cutting edges hardened to over 60HRc. The precision cutters have a nonreflecting surface, are ESD safe and resharpenable.
-

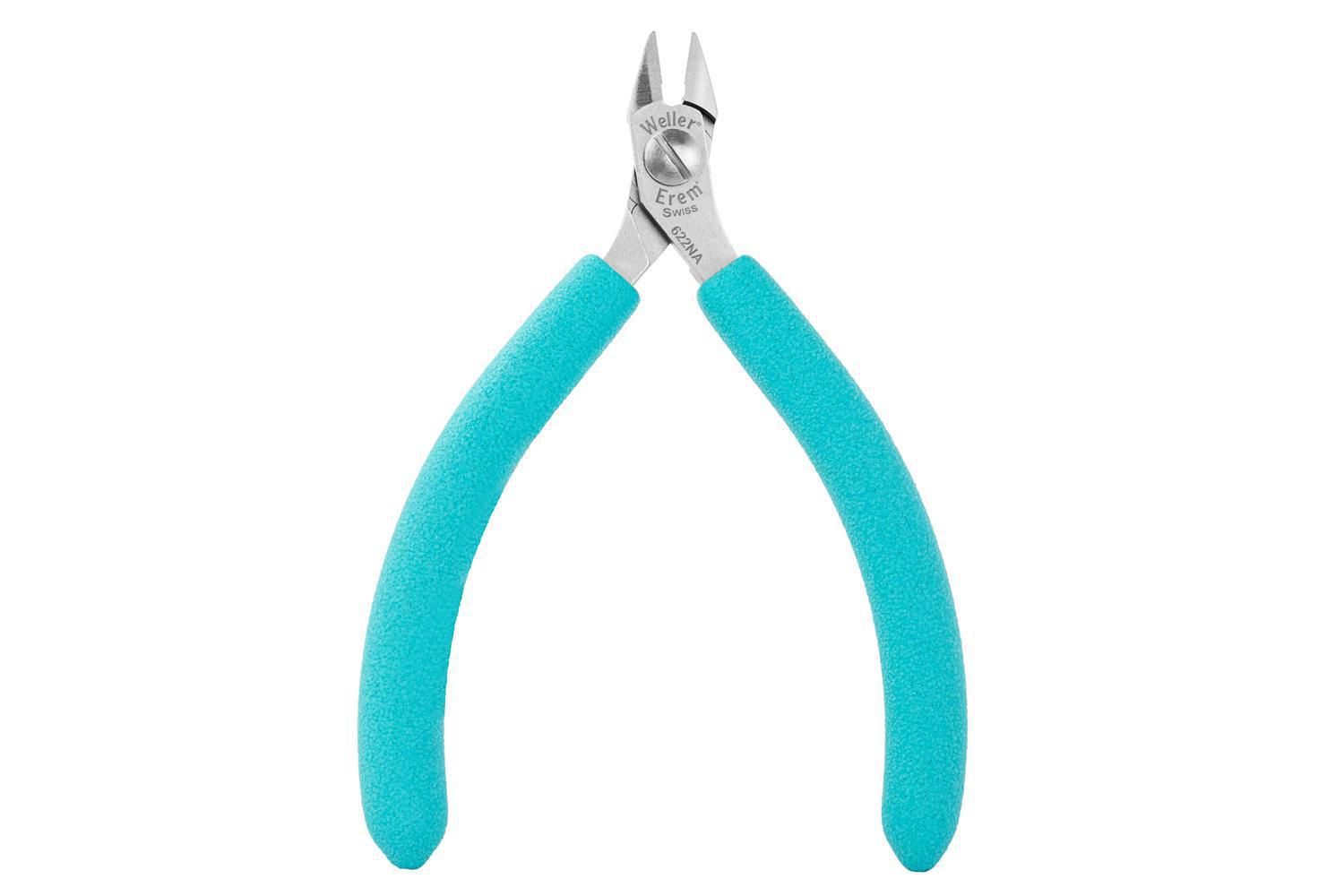

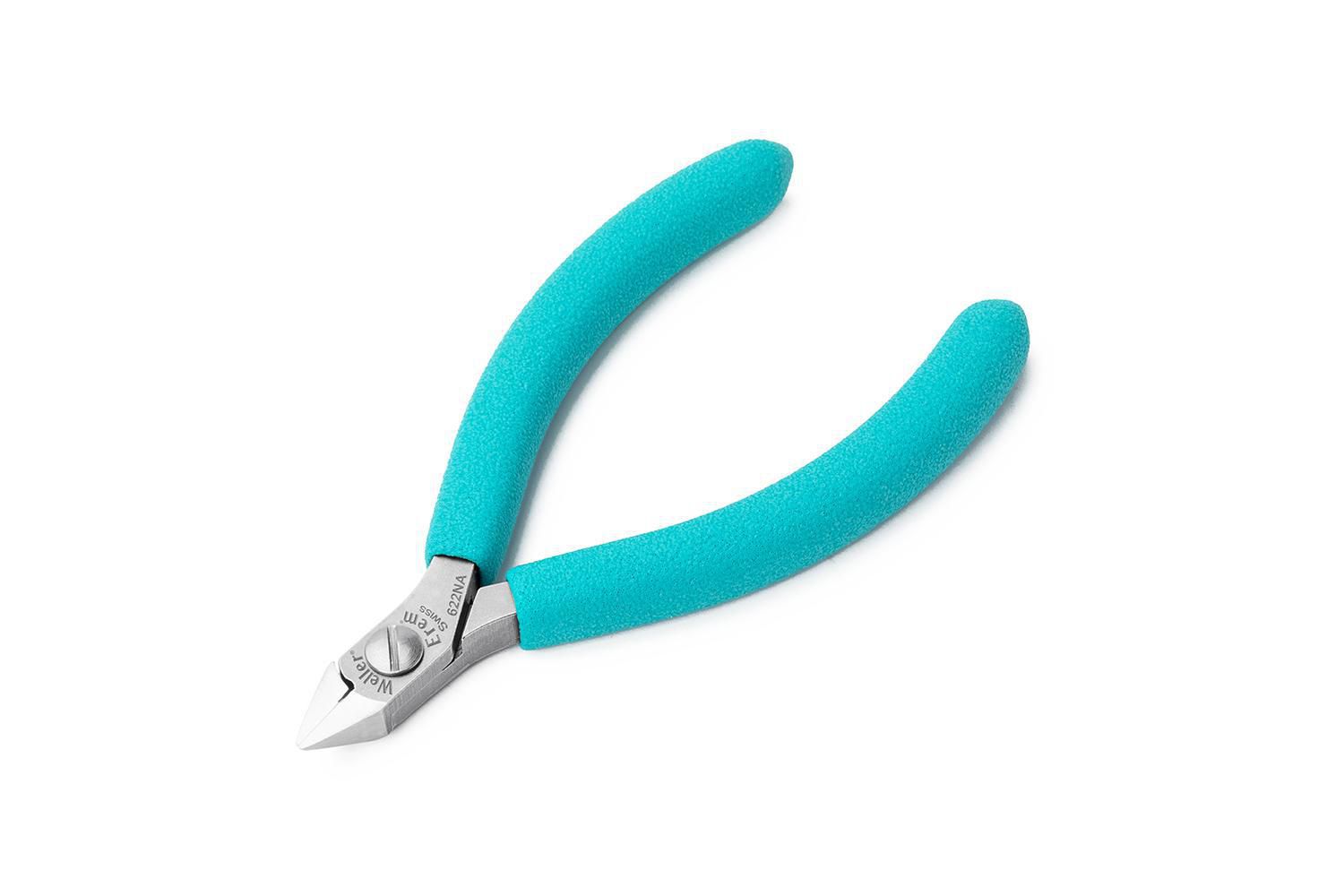

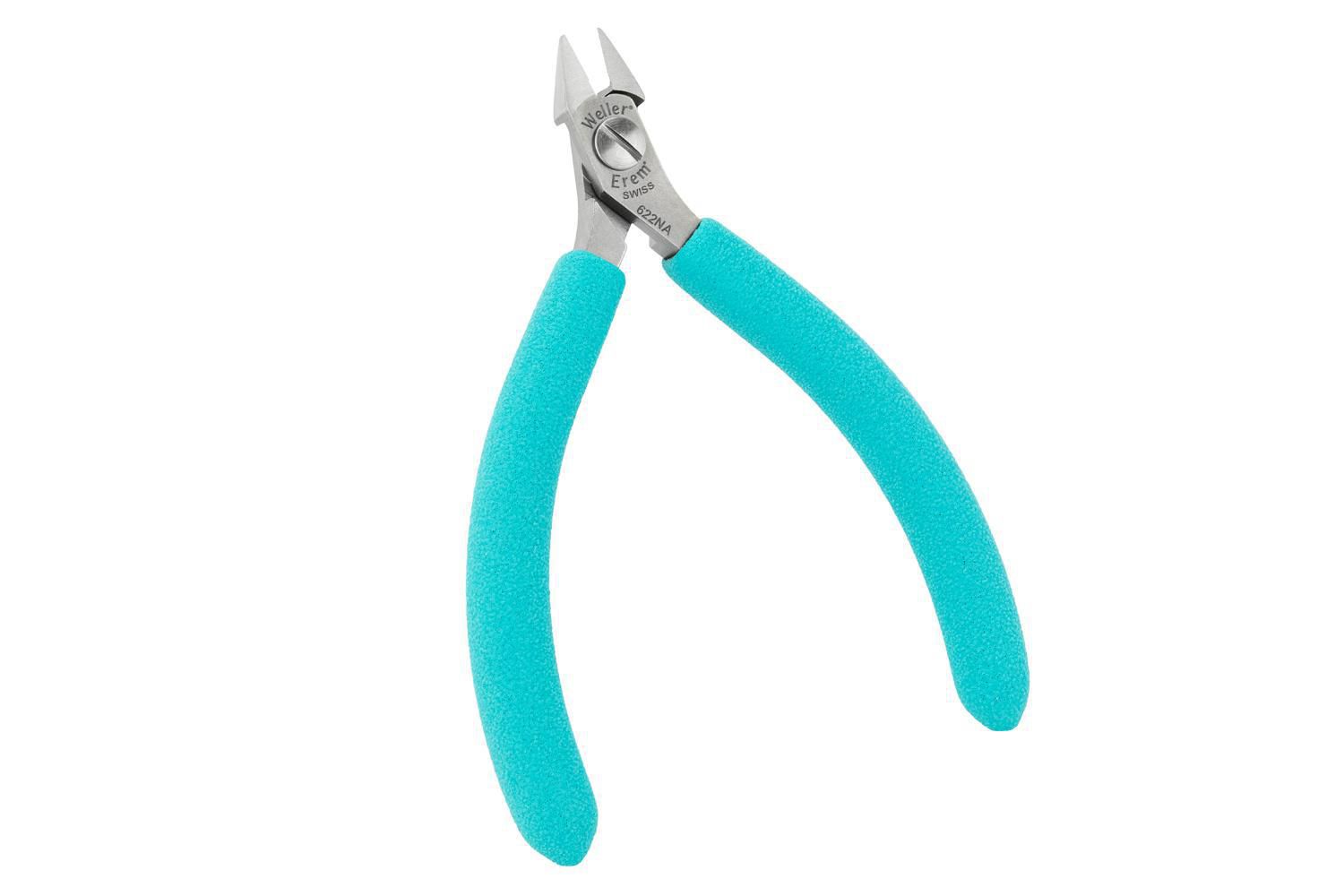

The jaws of the cutter have straight edges and taper to a point. This head shape allows access to difficult to reach areas but reduces the cutting capacity in comparison to the same size oval head cutter.
| Length | 110mm |
| Application | Microelectronic |
| Cut Type | Flush |
| Cutting Capacity - Copper | 0.99mm |
| Cutting Capacity - Medium Wire | 0.68mm |
| Cutting Edge Length | 7.62mm |
| ESD Safe | Yes |
| Head Length | 16mm |
| Head Thickness | 6mm |
| Head Width | 9mm |
| UPC | 037103155320 |
| Weight (Catalog) | 0.050 kg |
-
