MG 100S
Item No.:
100-1000-ESDN

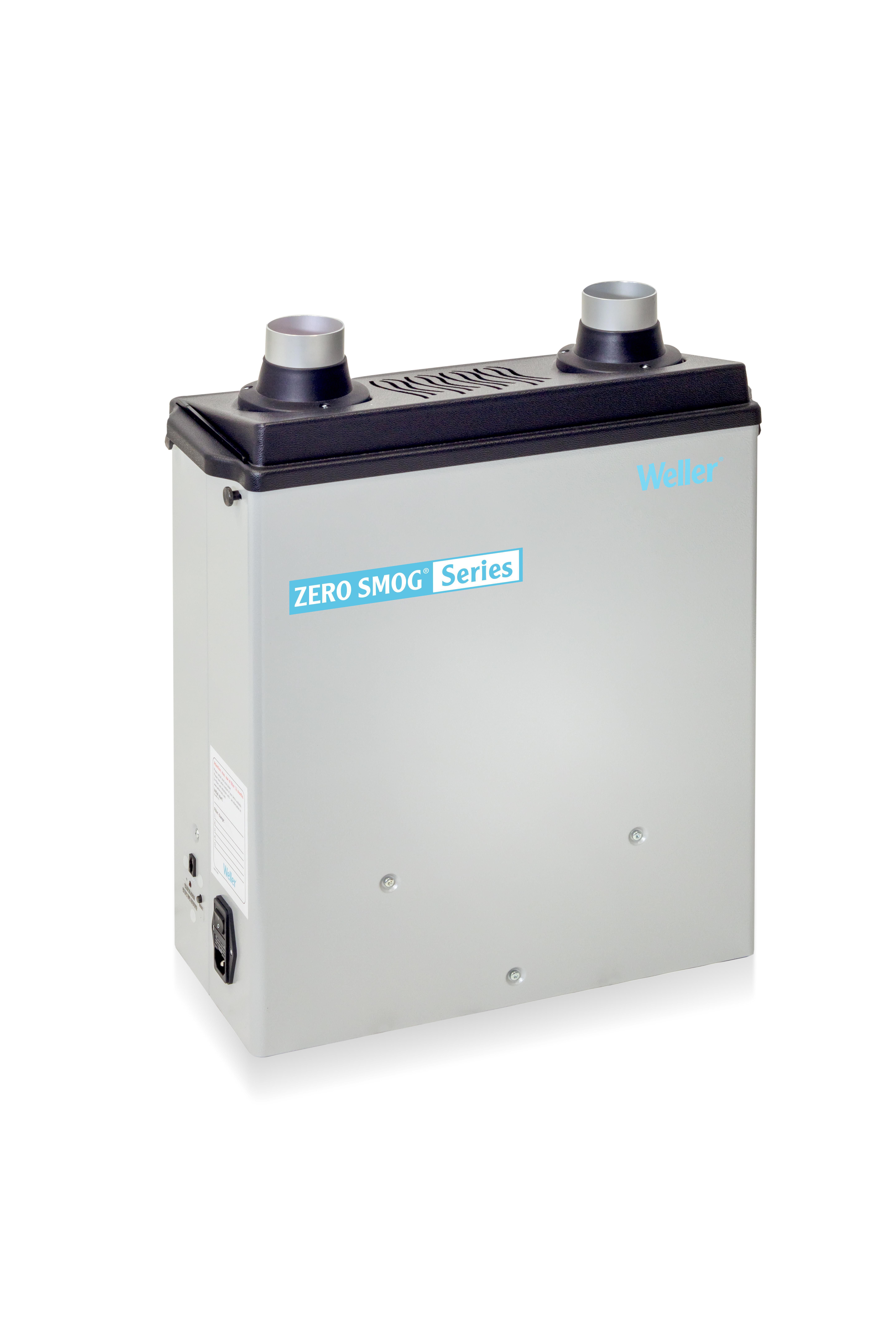

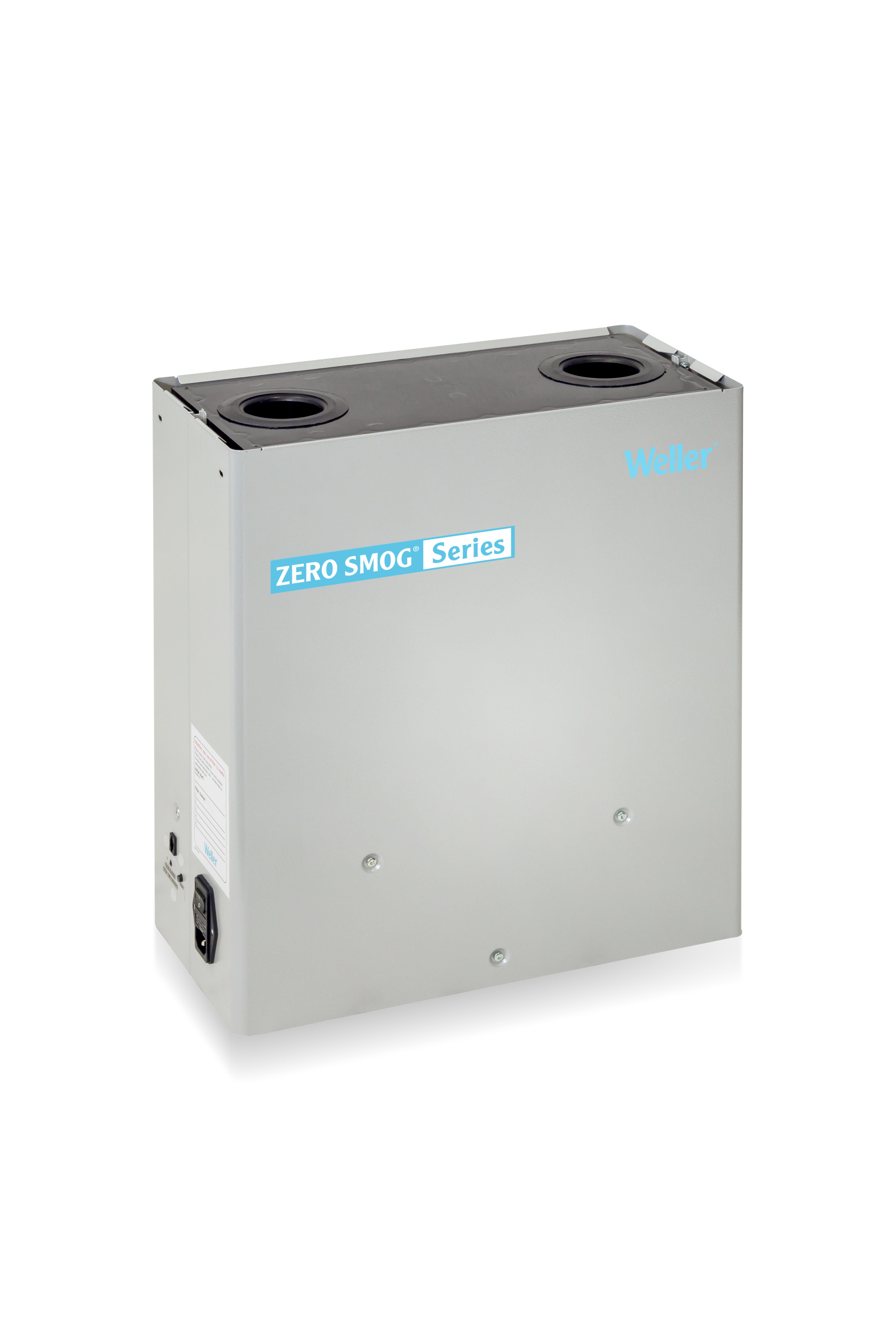

Fume extraction unit MG 100S
Product features
-
Unit purifies air at up to 2 workplaces
-
High Gas filter volume
-
Electronic filter control with filter alarm
-
Variable speed setting
-
Minimized foot print
-
Switching power supply 100 – 240 V
-
Optimized filter lifetime
-
The MG 100S fume extraction unit is suitable for applications with a high demand of gases. Variable speed and alarm function for filter exchange can be set via the remote control. To make installation easier, the MG 100S can be suspended at the work table with special table mounting set (780-3001-ESD).
-
Blower speed can also be changed and filter status checked via the optional extra remote display (p/n 700-3057).
Downloads
pdf
pdf
(7.73 MB)
Technical data
Height | 610mm |
Length | 460mm |
Dimensions L x W x H | 460.0 x 210.0 x 610.0mm |
Compact Filter | Particle filter HEPA H13, broadband gas filter (50% activated carbon + 50% Potassium Permanganate) |
ESD Safe | Yes |
Maximum Blower Vacuum (Pa) | 2,300 Pa |
Power | 100 W |
UPC | 037103288516 |
Weight (Catalog) | 15.00 kg |
