ZeroSmog Shield Pro

Downloads
Datasheet
pdf
WEL_ZeroSmogShield_Manual_web
pdf
(6.46 MB)

ZeroSmog Shield Pro

Item No.: FT91019299

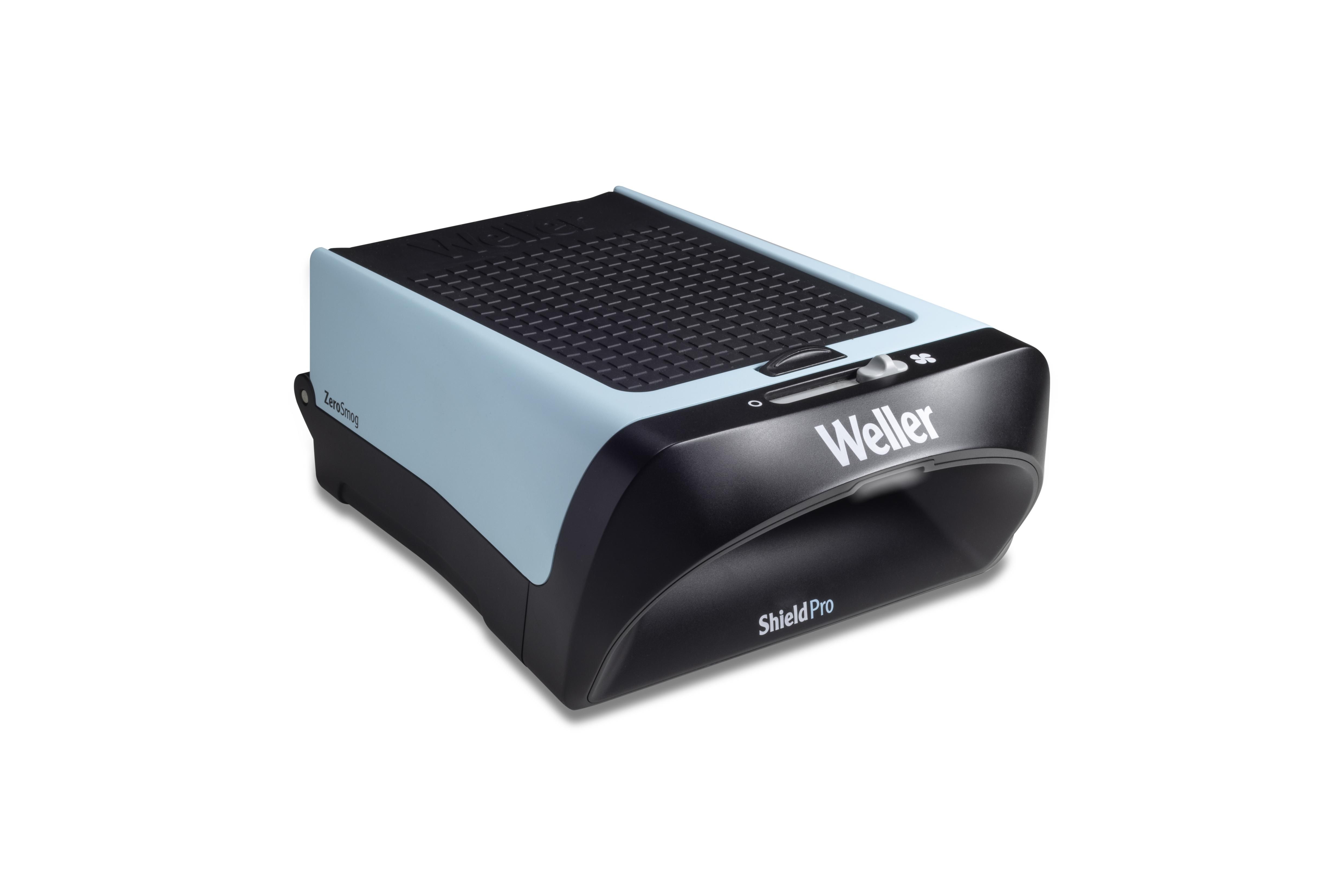

ZeroSmog Shield Pro Fume Extraction

Welcome to a new era in electronics manufacturing, where clean air is not just a perk, it's a necessity. It's the driving force behind increased productivity, healthier workers, and a better bottom line. The state-of-the-art ZeroSmog Shield Pro solder fume extraction system is designed to revolutionize your individual workstation. Breathe clean air at your workbench while you work on your next soldering task with the Weller ZeroSmog Shield Pro, a true filtration unit that keeps your work environment clean and fresh. Its compact design, which can be stacked with soldering stations, helps maximize your workspace. With the ZeroSmog Shield Pro, you can breathe easy and focus on your soldering.

Welcome to a new era in electronics manufacturing, where clean air is not just a perk, it's a necessity. It's the driving force behind increased productivity, healthier workers, and a better bottom line. The state-of-the-art ZeroSmog Shield Pro solder fume extraction system is designed to revolutionize your individual workstation. Breathe clean air at your workbench while you work on your next soldering task with the Weller ZeroSmog Shield Pro, a true filtration unit that keeps your work environment clean and fresh. Its compact design, which can be stacked with soldering stations, helps maximize your workspace. With the ZeroSmog Shield Pro, you can breathe easy and focus on your soldering.

read more
read less
€ 266.00
Ex tax.
Dealer Locater
Add to wishlist
Product features

  • Efficient particle and gas filtration, odour removal for single workbench

  • Powerful blower with adjustable extraction power

  • Stackable with soldering stations of all brands (max. footprint 13 cm x 18 cm)

  • Connectable to various Weller soldering stations

  • Easy to move around

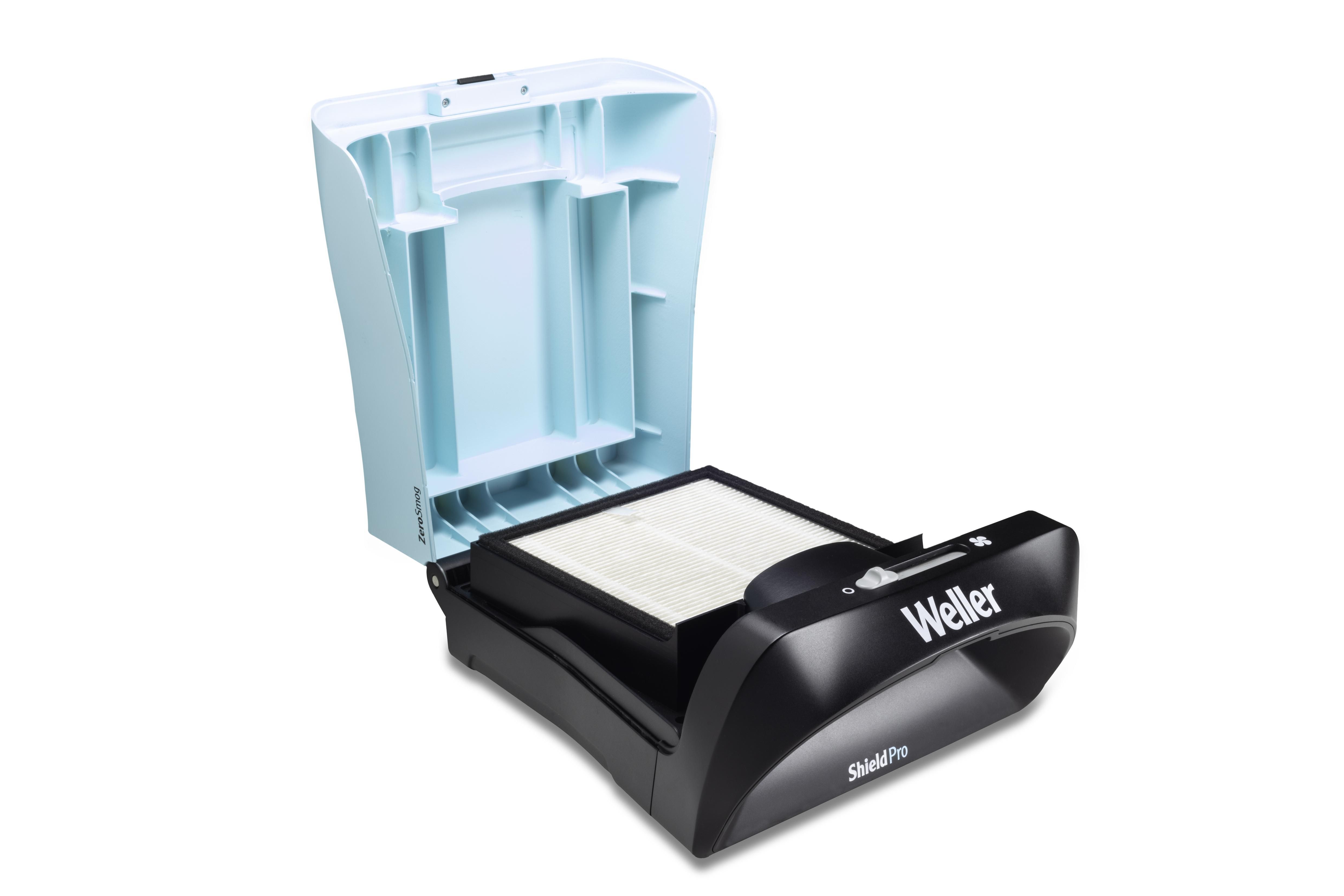

  • Easy filter change

  • Filter status indication (green/red light)

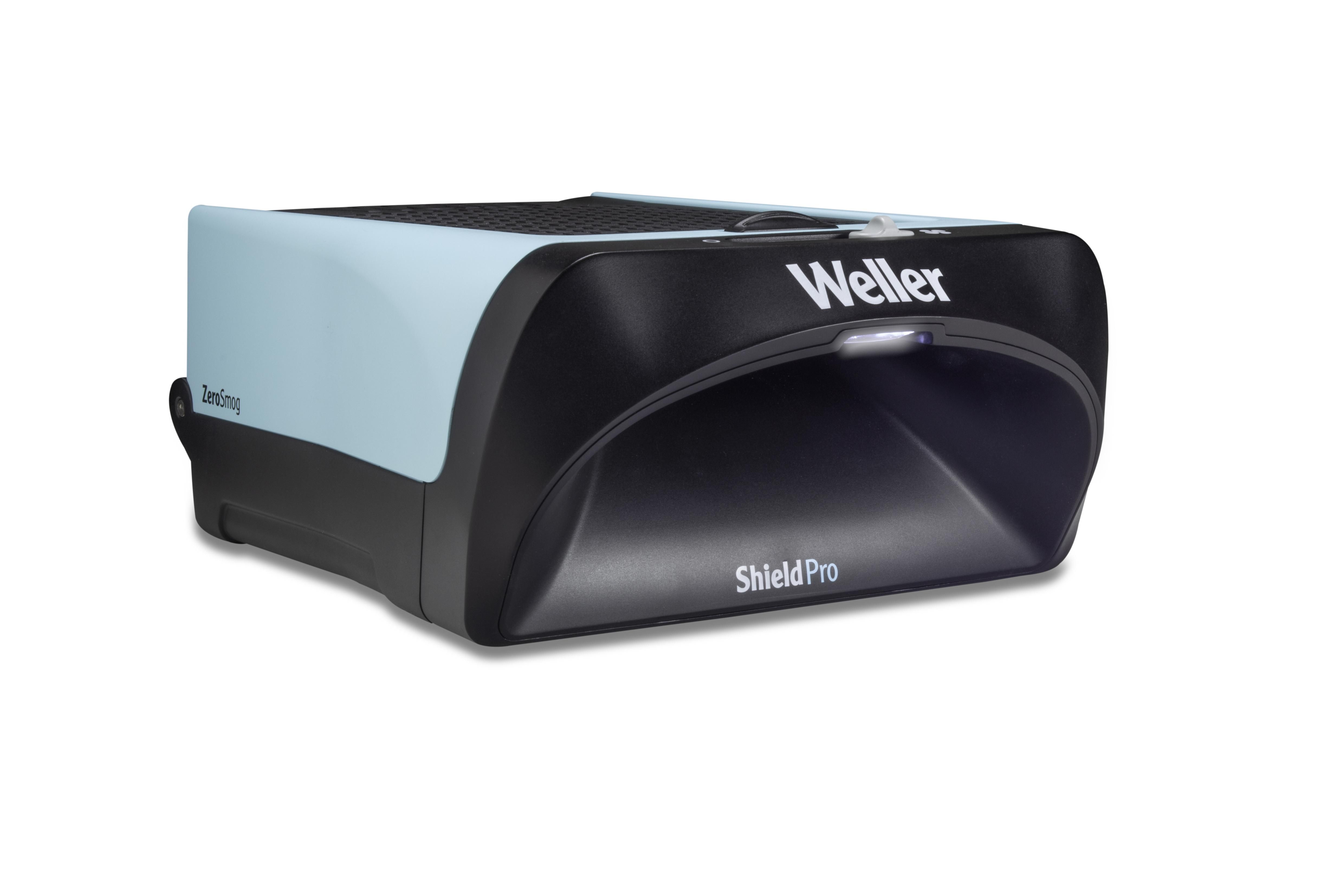

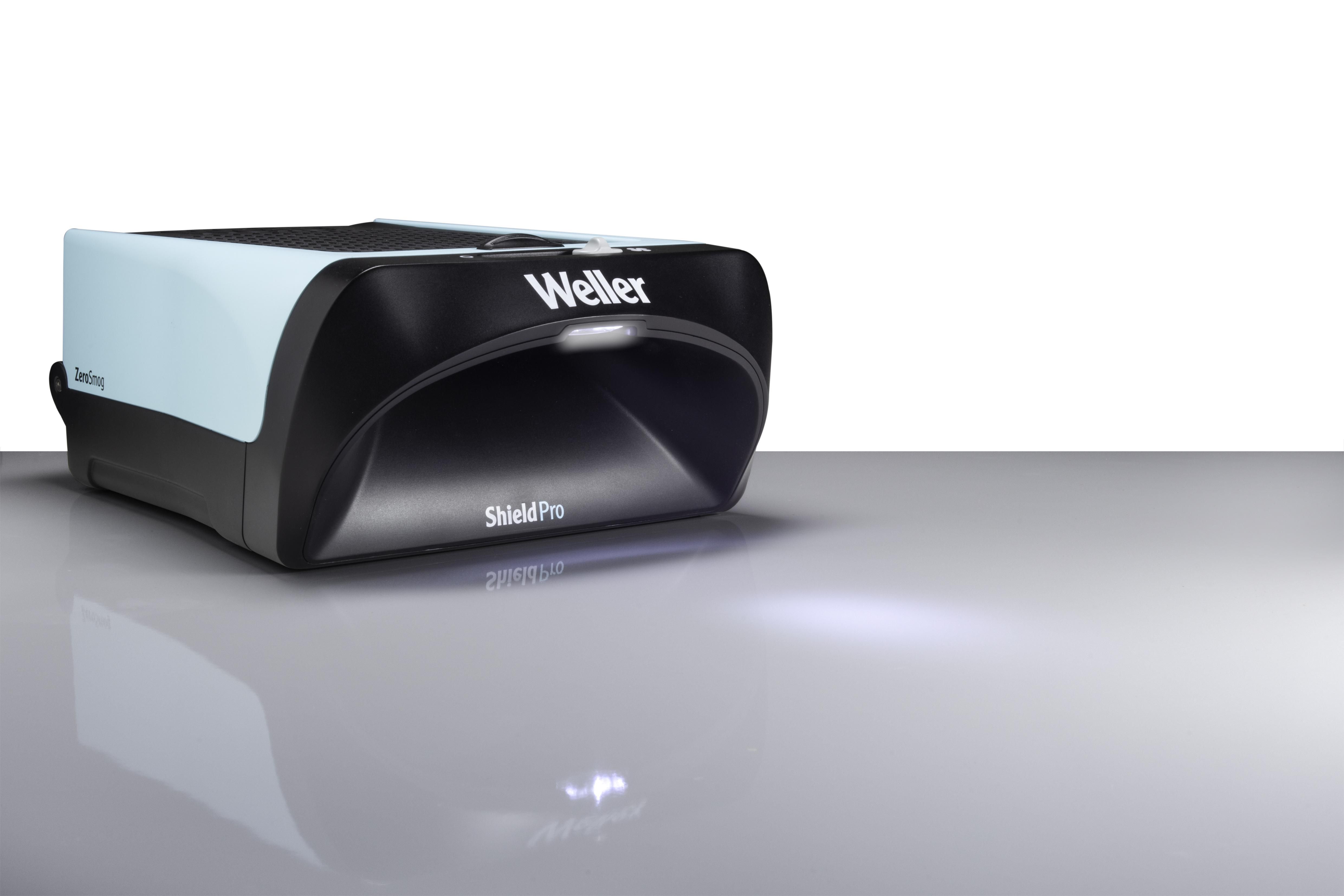

  • Illuminated work area

  • Low noise level of 50dB (59dB at full speed)

  • Antistatic housing (ESD safe)

Show more product features
Downloads
Datasheet
pdf
WEL_ZeroSmogShield_Manual_web
pdf
(6.46 MB)

ZeroSmog Shield Pro

learn more
Clean air is a worker's right
Clean air is a worker's right
Technical data
Dimensions L x W x H 270 x 212 x 110 mm 10.6 x 8.3 x 4.3 In
Capacity (m³/h) 32
ESD Safe Yes
Maximum Vacuum 490 Pa
Power 20 W
UPC 037103375964
Voltage 110-240V (50/60 Hz)
Product Family Solder Fumes Volume Extraction 1-2 Workstations

Accessory

WX2 230V
2-Channel Power Unit, 200 W (255 W)
Show article
New
WT2M 230V
2-Channel Soldering Station digital 150 W
Show article
New
WXsmart 230V
2-Channel Power Unit, 300 W
Show article
New
6-Pin WX Connecting Cable
Connecting cable, 2 m
Show article
New
Power Supply for WATC, 24VDC
Power Supply for WATC, Zero Smog Shield, Zero Smog Shield Pro 24VDC
Show article
New
WATC100F
Automatic Tip Cleaner, Fiber Brushes
Show article
New
WATC100M
Automatic Tip Cleaner, Metal Brushes
Show article
New

Filter

Particle Filter EPA E10 and AC granules for gases for ZeroSmog Shield Pro
Show article
New
Downloads
#SolderJoint No.2
#Configurator
Are you searching
something specific?
Frequently Asked Questions
  1. How does extraction work when soldering?
    Extraction systems for soldering work via a blower which, through appropriate suction pressure, ensures that smoke, fumes, dirt, and fine dust particles are drawn in. A special filter system then purifies the air of harmful substances. This way, you can significantly improve air quality at the workplace and protect your health.
  2. Why is extraction necessary when soldering?
    A professional solder fume extraction system is an important factor for a safe and clean workplace. It ensures that smoke, vapour, and tiny particles that could pose a health risk are effectively removed and filtered. This way, you avoid any health risks and can concentrate fully on your soldering work.
  3. Is solder smoke dangerous?
    Yes, solder smoke can pose a health hazard if inhaled. This is because soldering releases various substances such as lead or formaldehyde, and tiny particles can be released into the air. For this reason, it's important to remove and filter smoke and dirt during soldering using a high-quality and effective solder fume extraction system.
  4. How often does the filter in an extraction system need to be changed?
    How often the filter needs to be changed depends on the specific unit and its usage. Whilst in some cases it's sufficient to change the filter once a year, in other cases, particularly with a HEPA filter, a change may be necessary after just a few months. What matters most is the condition of the filter, which can be checked via the filter status indicator on your unit.
