WXD2 230V
Item No.:
T0053426399N

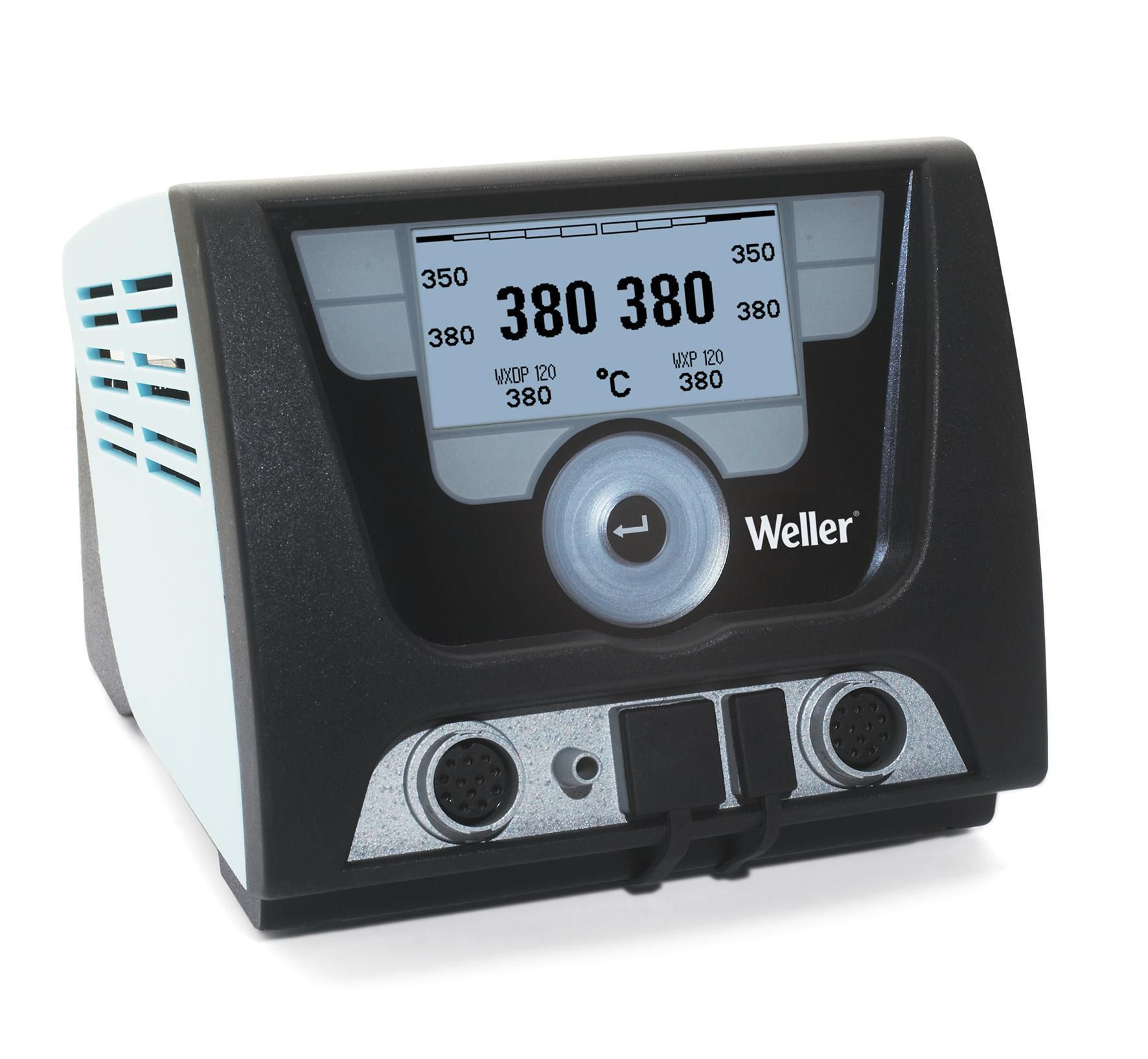

2-Channel Power Unit, 200 W (255 W)
Product features
-
Cost effective because only one station is needed
-
Less rework by optimal use of tools and the correct working temperature. Reduction of running costs by longer tip lifetime.
-
Desoldering iron with stand-by mode
-
ESD safe
-
For operation with external compressed air
Downloads
pdf
pdf
(5.96 MB)
Technical data
| Height | 135mm |
| Length | 174mm |
| Dimensions L x W x H | 174.0 x 154.0 x 135.0mm |
| Air Consumption | 35 l/min |
| Air Pressure | 58 - 87 psi |
| Automatic Tool Identification | Yes |
| Benchtop Controller | Yes |

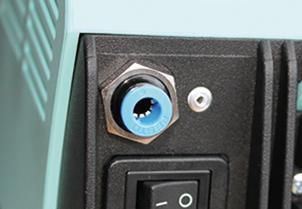

| Compressed Air Connection (Outer Diameter) | 6.0mm |
| Compressed Air Connection Accessory | Oil free, dry compressed air |
| Desoldering | Yes |
| Equipotential Bonding | Yes |
| Equipotential Bonding Socket | Via 3.5mm pawl socket on back of device |
| ESD Safe | Yes |
| Fuse | T2A |

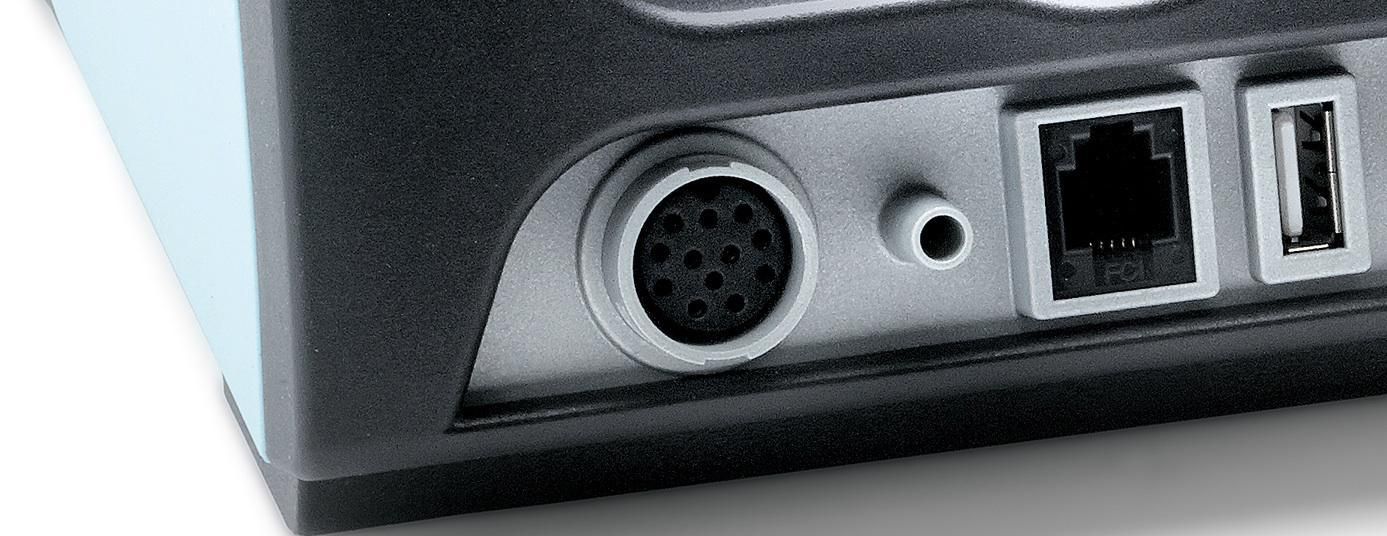

| Interface | 1x USB, 2x RS232, 1x Switching Output |
| IPC Compliant | Yes |
| Noise level (distance 1 m) dB(A) | 0.7 bar |
| Multilingual Display | Yes |
| Number of Channels | 2 |
| Operating Pressure | 4 - 6 bar 54 - 87 psi |
| Power | 200 W (255 W |
| Temperature Accuracy °C | ± 9°C |
| Temperature Accuracy °F | ± 17°F |
| Temperature Range (Depends on Tool) | Adjustable from 50°C - 550°C (150°F - 999°C)Adjustable temperature range varies among tools |
| Temperature Range °C | 50 - 550 °C |
| Temperature Range °F | 150 - 999 °F |
| Temperature Stability °C | ± 2°C |
| Temperature Stability °F | ± 4°F |
| Traceability | Yes |
| USB | USB interface of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types |
| Vacuum | 0.5 bar (55 kPA) (8 psi) |
| Voltage | 230V |
| Weight (Catalog) | 3.80 kg |
| Product Family | Rework, Hot Air, Desoldering Stations |
