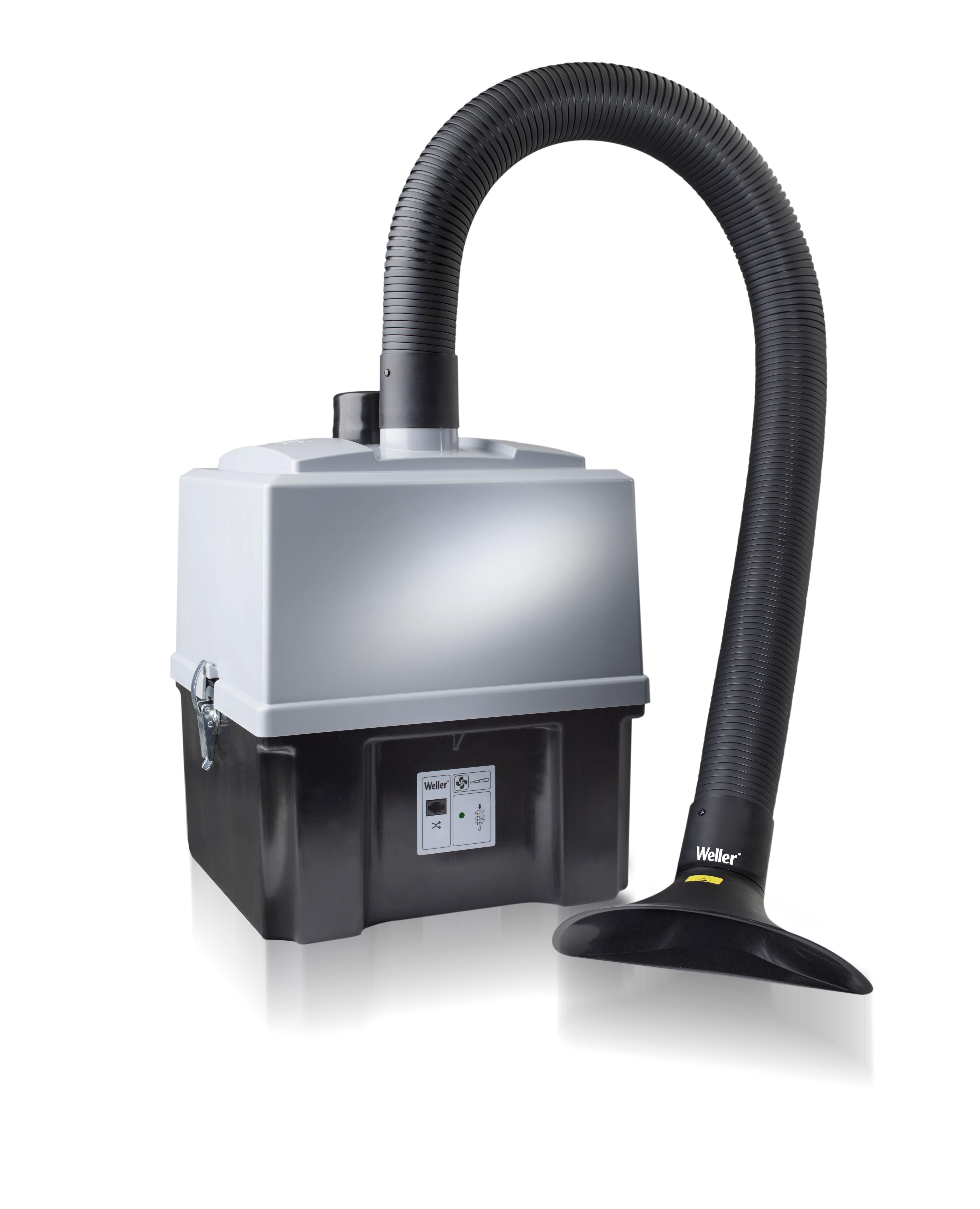

Zero Smog EL Kit 1
Zero Smog EL Kit 1
Breathe clean air without dangerous fumes and particles. Weller filtration systems are specially designed for continuous use in industrial work environments. The high quality HEPA H13 filters clean the air from hazardous vapors, particles and viruses. Therefore, recirculating the clean air back into the workplace ensuring a safe work environment. The small footprint design fits under the bench to free up the operator workspace.
Breathe clean air without dangerous fumes and particles. Weller filtration systems are specially designed for continuous use in industrial work environments. The high quality HEPA H13 filters clean the air from hazardous vapors, particles and viruses. Therefore, recirculating the clean air back into the workplace ensuring a safe work environment. The small footprint design fits under the bench to free up the operator workspace.
-
Fume extraction system for 1 to 2 workplaces, included funnel nozzle for applications where a larger area needs to be covered and the funnel nozzle can be placed directly on the work bench
-
Medium dust pre-filter M5 that can be separately changed, without having to change main filter
-
Exceptionally large HEPA H13 filter surface - 2.4m² for longer filter lifetime
-
Granular activated carbon filter for effective gas filtering
-
Portable fume extraction unit, for placement under or next to the bench-top
-
Easy filter change
-
4-speed setting and power regulation
-
Filter monitoring and filter alarm ensure timely filter change
-
Exceptionally long service life due to maintenance free brushless EC turbine
| Height | 445mm |
| Length | 335mm |
| Dimensions L x W x H | 335.0 x 360.0 x 445.0mm |
| Compact Filter | Particulate filter H13, activated carbon filter |
| Compatible Nozzle | WX WT |
| Maximum Blower Vacuum (Pa) | 2,500 Pa |
| Maximum Capacity | 1–2 Workstations |
| Power | 120 VA |
| UPC | 4003019437610 |
| Weight (Catalog) | 8.60 kg |
| Product Family | Solder Fumes Volume Extraction 1-2 Workstations |
-
Download jpg jpg (664.3 KB) jpg (664.3 KB)
Download jpg jpg (380.47 KB) jpg (380.47 KB)
something specific?
-
Which filter should I use for my EL or TL?The part numbers for compatible filter sets are FT91000042 (best - F7 prefilters and a wideband main filter comprising activated carbon and potassium permanganate).
T0058762858 (better -F7 prefilters and main filter has activated carbon) and T0058762701(good- M5 prefilters and main filter has activated carbon).
T0058762858 and T0058762701 are likely to be obsoleted at some stage in the future. -
What should I choose between a Zero Smog EL Zero Smog TL or a ZeroSmog Guard?The Guard is the newest and latest offering from Weller. It will remain in the portfolio for many years to come. The Guard is ESD Safe, has the on/off switch at the top in the front of the unit, has a much larger status light indicator, is compacter, allows for much easier filter changes and is quieter when compared to the EL and TL. The very slight price increase is far outweighed by the benefits.
