CBC-A Extraction Cabinet 4 x Easy Click 60 120 Volt
Item No.:
CBCA112G04G65I2115

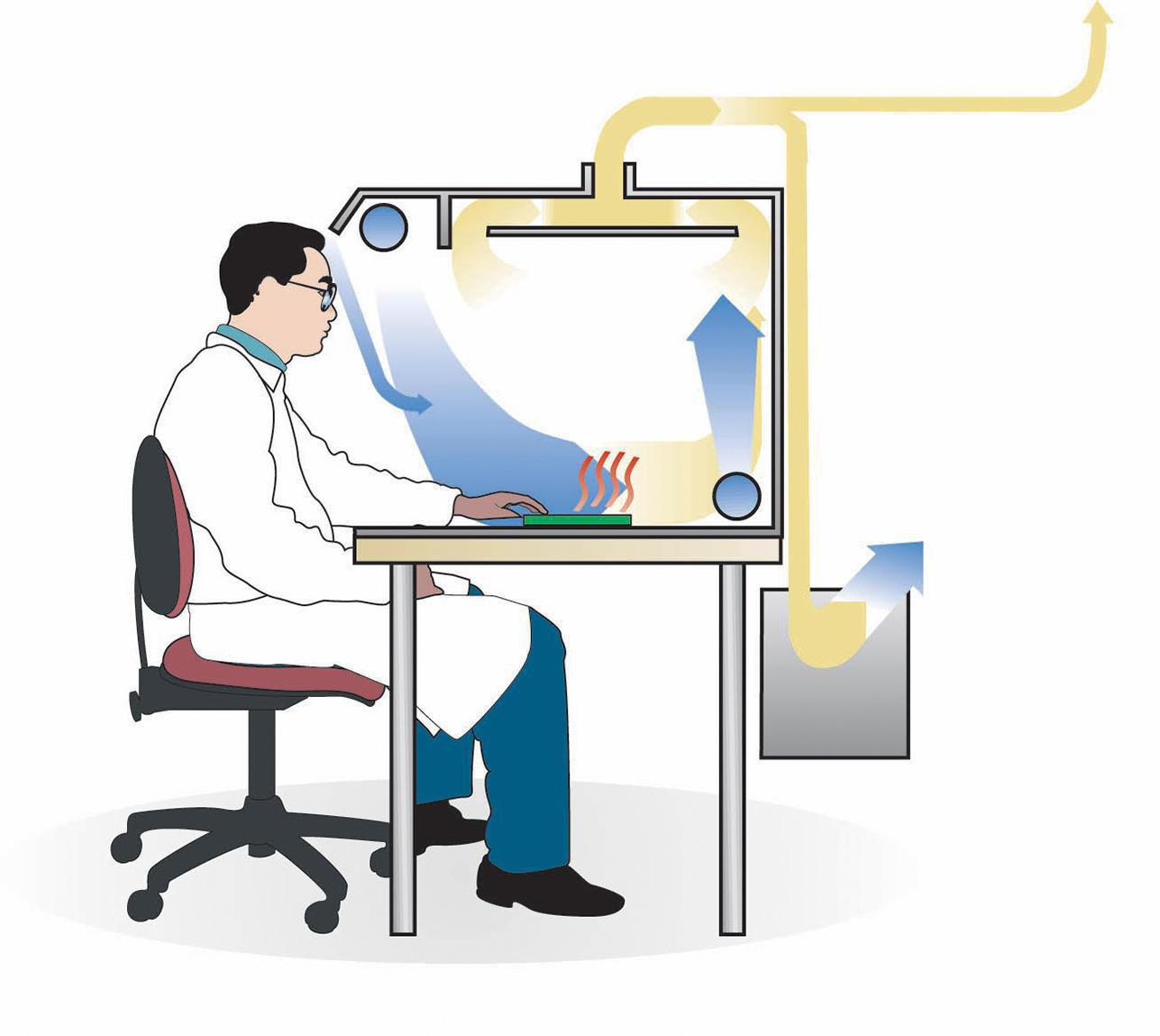

The air curtain cabinet CBC-A works with a unique air ventilation concept that separates the operator from the process by a dual air curtain system. This prevents fumes from entering the large front opening. The fumes get extracted through a central ventilation or a mobile filter system. A min. extraction volume from 180-230 m3/h is needed. The connection of 2 pcs. MG 100 extraction units is recommended, or the Zero Smog 6V
Product features
-
Lower running costs compared to conventional extraction systems: the CBC-A needs only 200 m3/h, conventional systems with the same opening need 1000 m3/h
-
Mobile System for flexible use on a work bench or trolly.
-
Compatible with the Weller Easy-Click system
-
Quiet operation
-
ESD Safe
-
Large open front working area with no glass screen.
Downloads
pdf
Technical data
Dimensions L x W x H | 760.0 x 1275.0 x 625.0mm |
ESD Safe | Yes |
Power | 65 W |
UPC | 037103295743 |
Weight (Catalog) | 53.00 kg |
