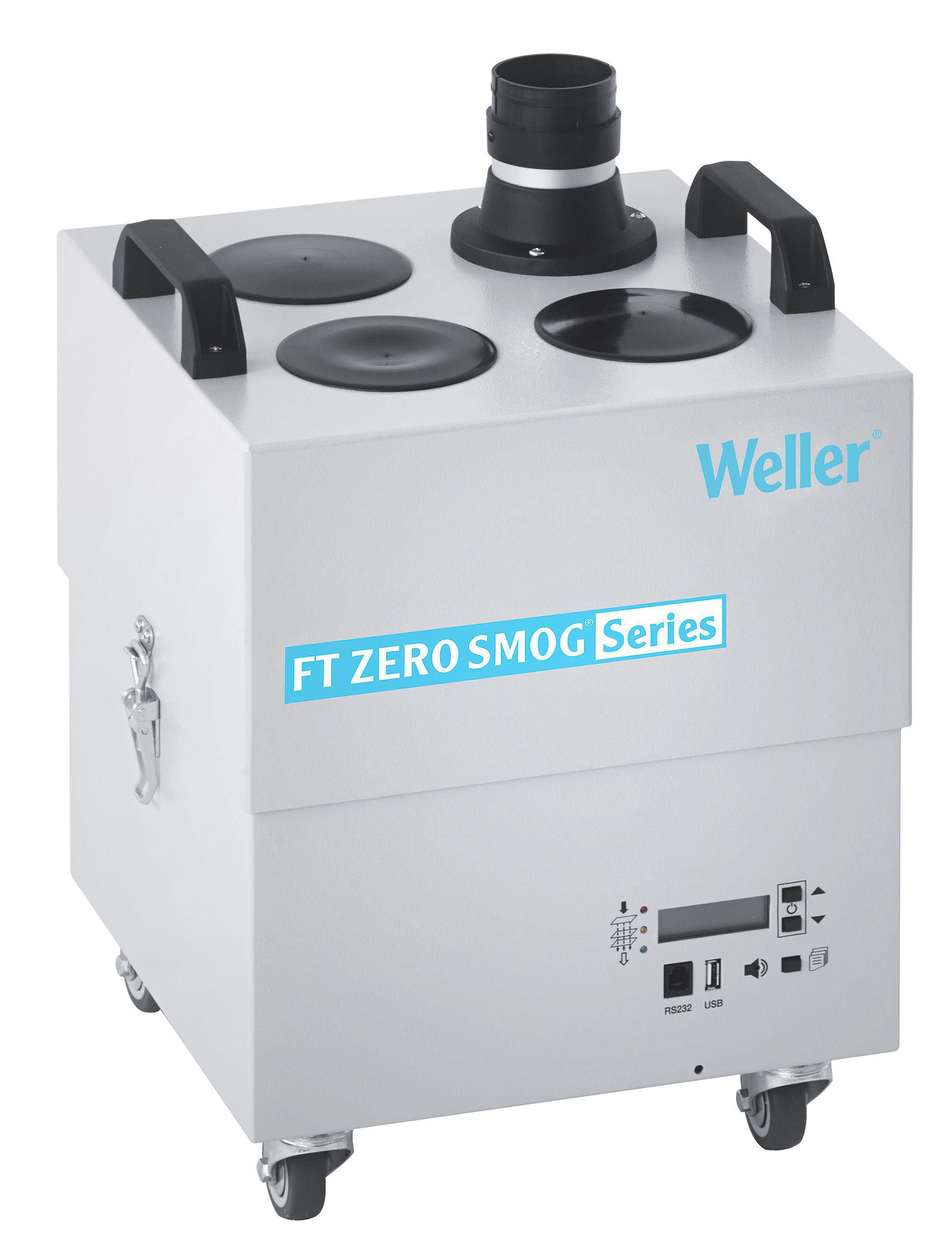

Zero Smog 4V Adhesive fume filter
The Zero Smog 4V fume extraction unit is easy to install and operate. It is designed for use as a small central system. A powerful, maintenance-free turbine provides continuous fume extraction at a maximum air extraction rate of 230 m3/h. With constant flow control the turbine speed is automatically adjusted to demand, avoiding unnecessary waste of suction power resulting in energy savings.
The Zero Smog 4V fume extraction unit is easy to install and operate. It is designed for use as a small central system. A powerful, maintenance-free turbine provides continuous fume extraction at a maximum air extraction rate of 230 m3/h. With constant flow control the turbine speed is automatically adjusted to demand, avoiding unnecessary waste of suction power resulting in energy savings.
-
Fume Extraction Unit with a special Gas Filter suitable for applications such as hand soldering, heavy duty and general soldering, gluing, cleaning, filling, fine dust, MEK and VOC
-

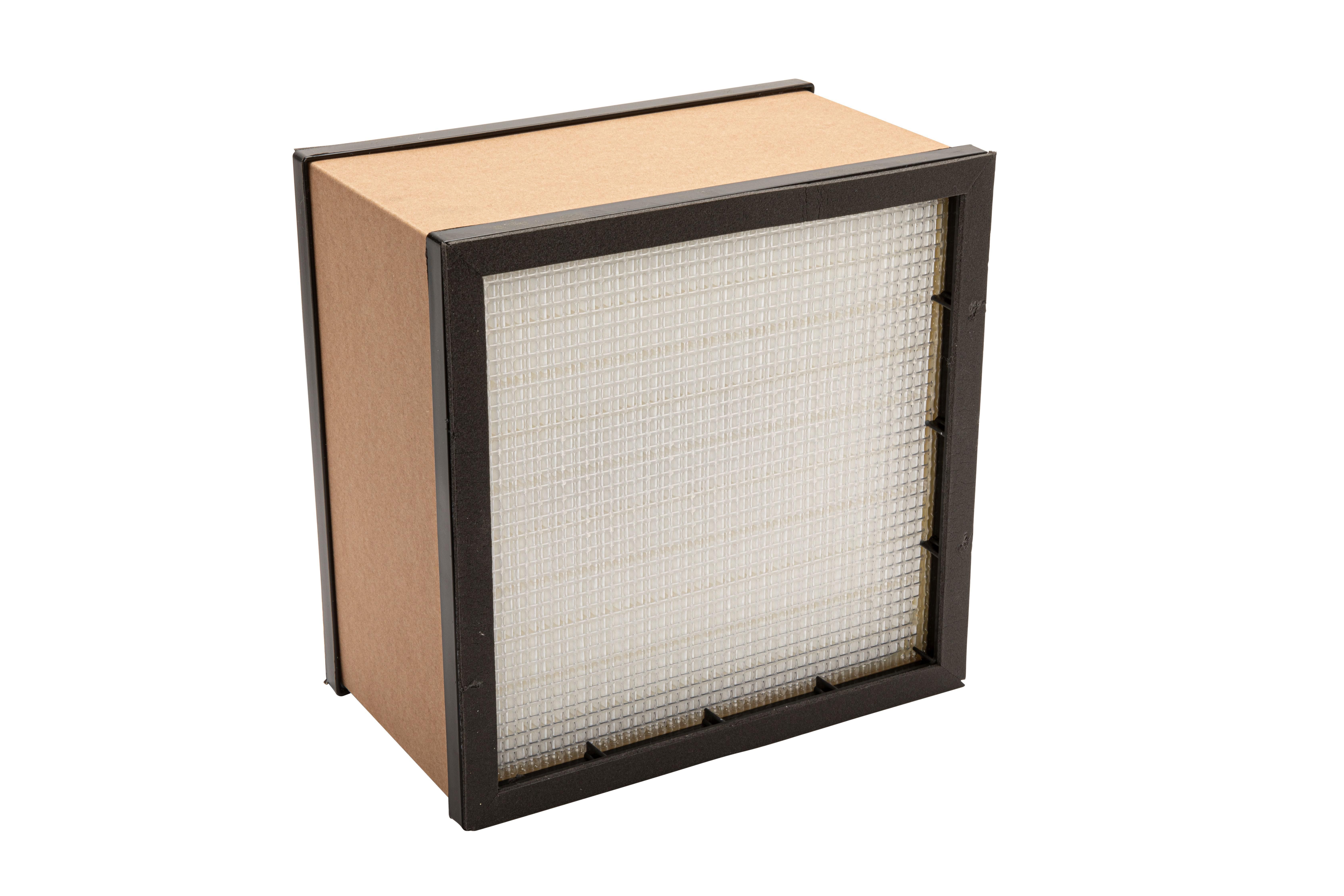

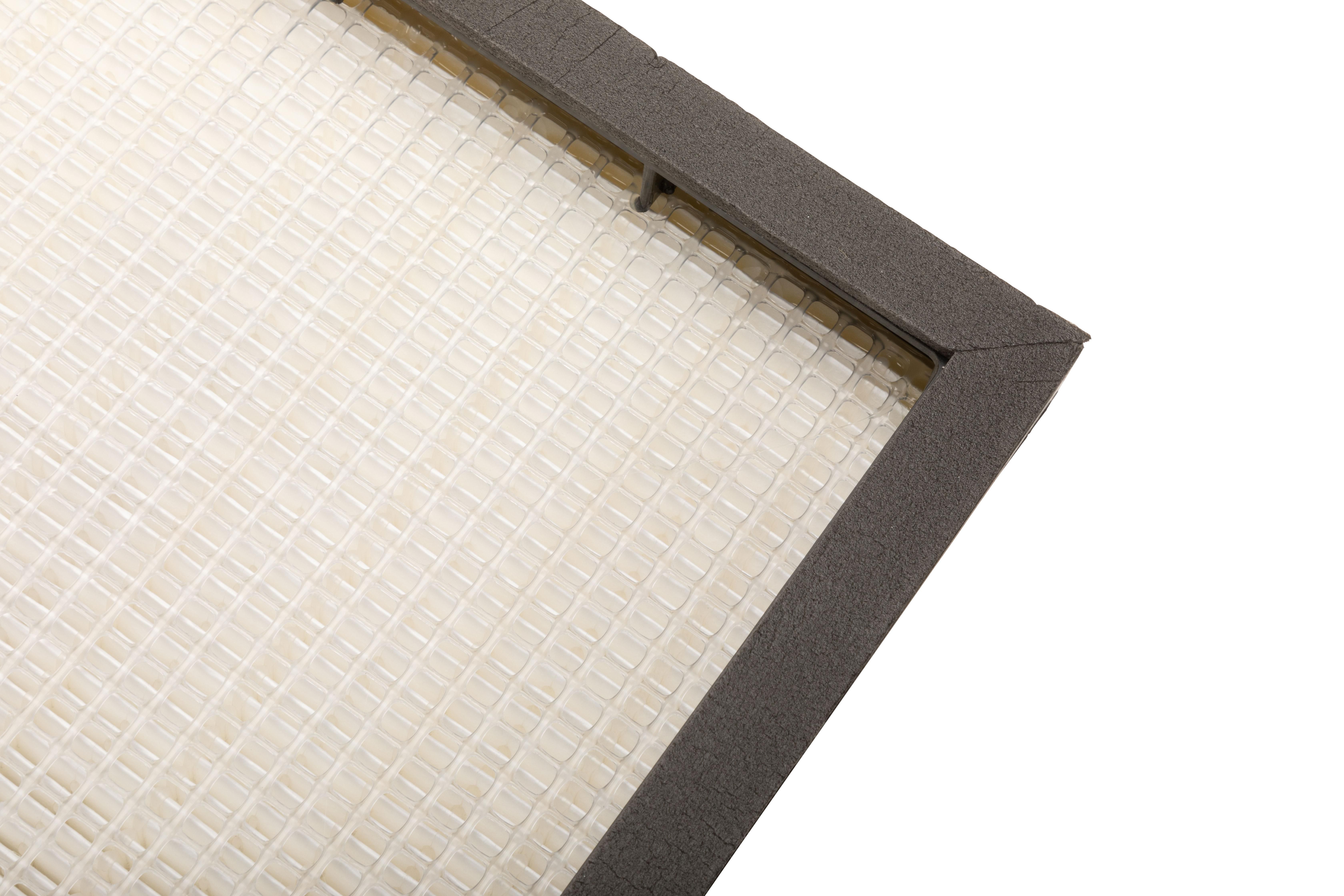

"Equipped with a F7 fine dust pre-filter and a main filter consisting of: HEPA Particle filter H13 and wide band gas filter
(50 % active carbon / 50 % Chemisorb)" -
Constant Flow Control (CFC) guarantees automatic air flow regulation for each working place independent of the connected workplaces, at the same time avoiding unnecessary waste of suction power and saving energy
-
Includes F7 fine dust pre-filter and wide band gas filter (50 % active carbon / 50 % KMnO4)
-
Quiet operation
-
A powerful, maintenance-free turbine provides continuous fume extraction
-
Can be remotely controlled with 1. remote control (optional accessory), 2. via a PC with RS232 connection or 3. with a WX / WT soldering station (requires the WT Hub - T0058768767)
-
Portable fume extraction unit with caster wheels allow easy movement, and placement under or next to the bench
-
Efficiency test via USB port
