MG 130

Item No.: 130-1000-ESDN

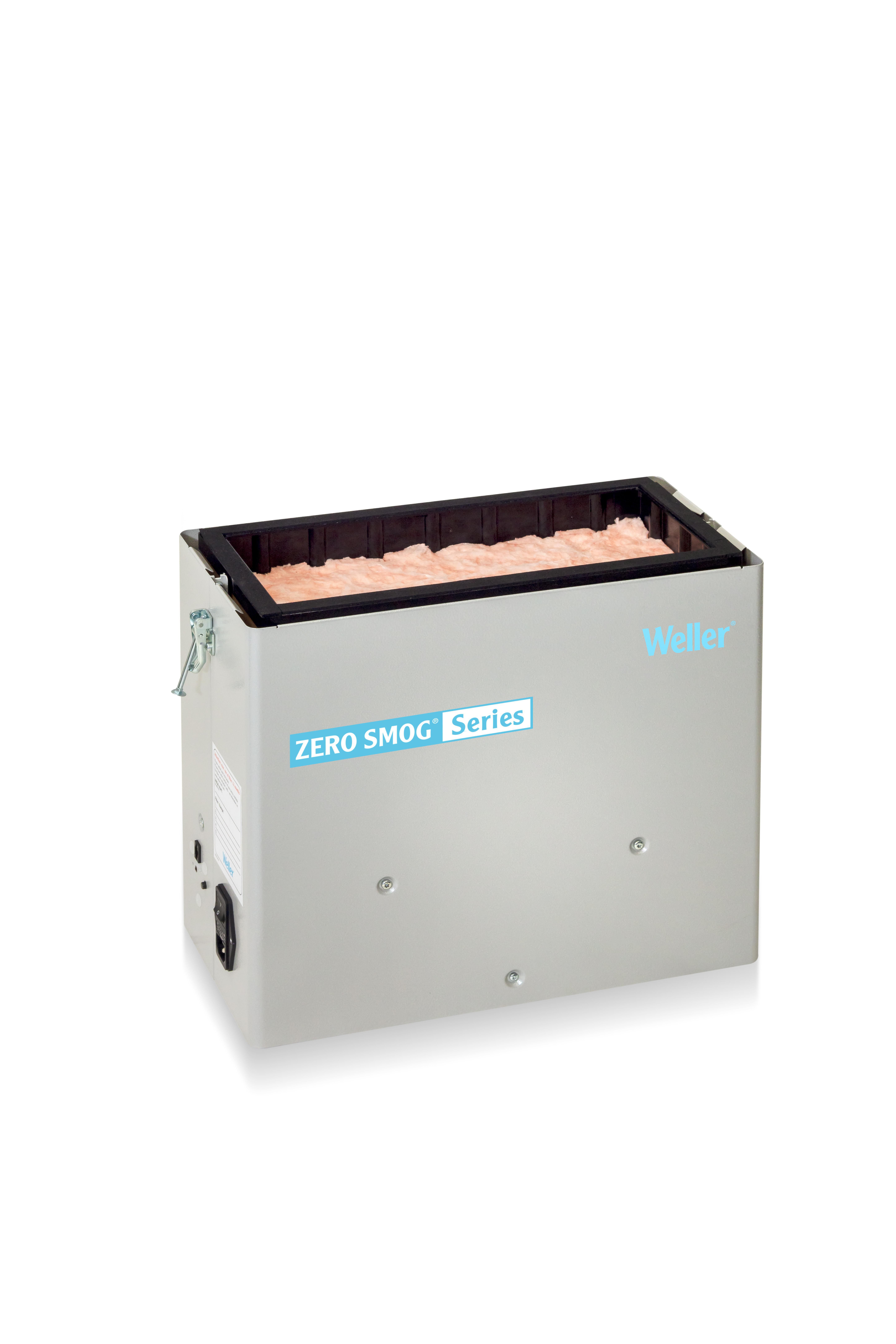

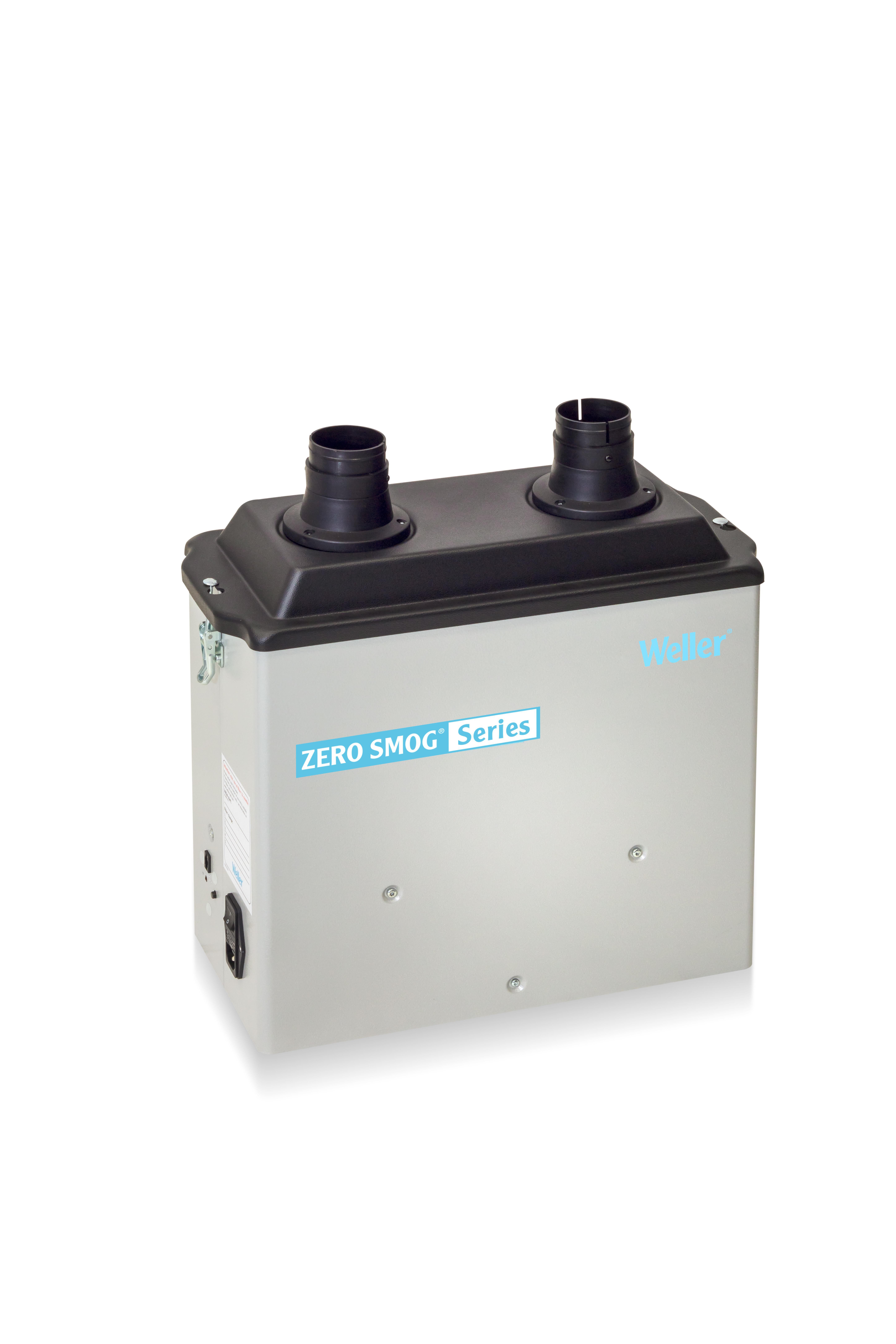

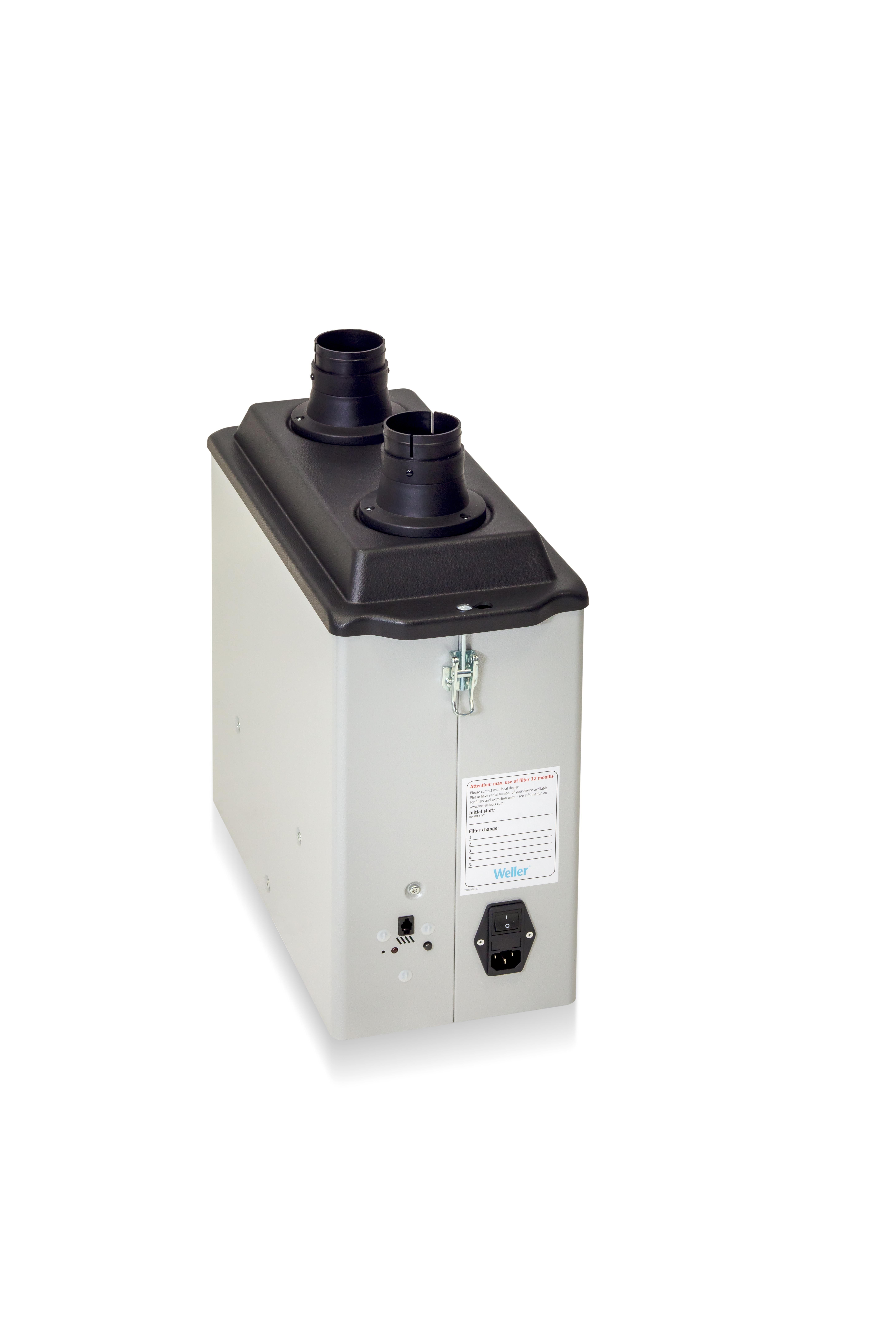

Fume extraction unit MG 130
read more
read less
$ 1,470.00
Ex tax.
Dealer Locater Book a demo
Add to wishlist
Product features

  • We believe the MG100S and MG130 models are likely the quietest units available on the market.

  • Prefilter, HEPA H13 filter and granulated gas filter - Perfect for soldering and other applications

  • Visual and audible filter-full alarm

  • Is supplied with Main filter (p/n 130-2000-ESDN) and prefilter type F7

  • Push buttons for easy flow adjustment

  • Switching power supply 100 – 240 V for global use

  • Unit purifies air up to 2 workplaces

  • The fume extraction unit MG 130 is easy to install and operate.

  • Blower speed can also be changed and filter status checked via the optional extra remote display (p/n 700-3057).

Show more product features
Downloads
Datasheet
pdf
WEL_MG100S_MG130_Manual_T0055736703_web
pdf
(7.73 MB)
Technical data
Dimensions L x W x H 460.0 x 210.0 x 500.0mm
Compact Filter Particle filter H13, broadband gas filter (50% activated carbon + 50% Chemisorb)
ESD Safe Yes
Maximum Blower Vacuum (Pa) 2,300 Pa
Maximum Capacity 1–2 Workstations
Power 100 W
UPC 037103310521
