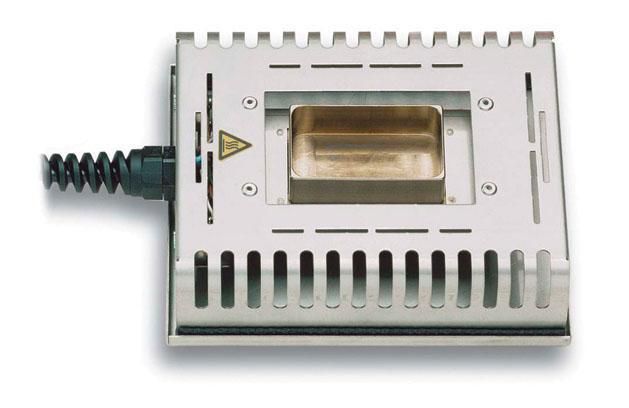

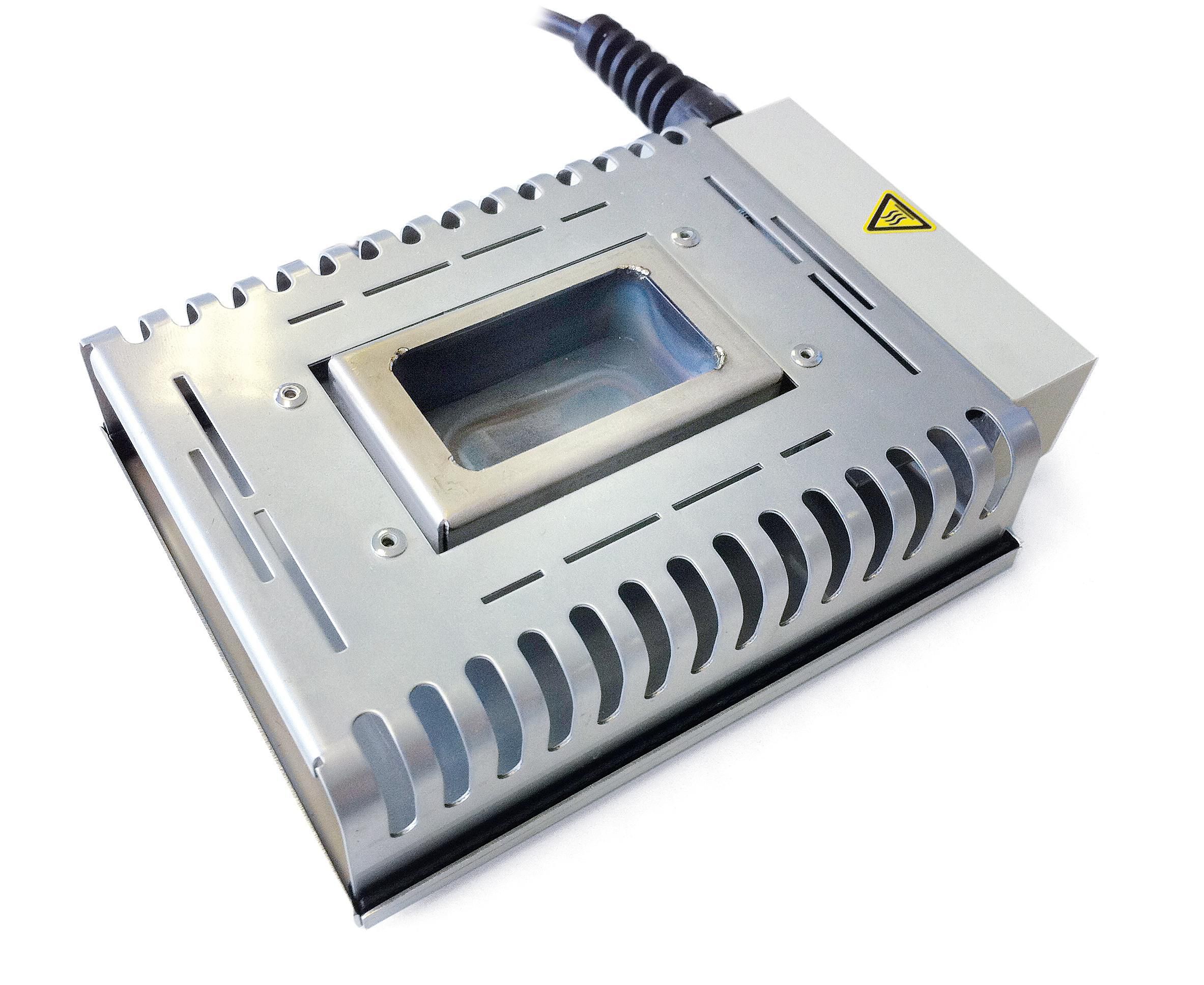

WSB 150 Soldering Bath
Downloads
pdf
pdf
(574.62 KB)
WSB 150 Soldering Bath
Item No.:
T0052704299N
Soldering bath 150 W, 24 V
Product features
-
WSB 150 Soldering Bath 150 W, 24 V
-
Connectable to all Weller 150 W digital stations and WR3M
-
For tin coating and preparation of electronics components and leads
-
Precision temperature control / 150° F - 850° F / 50º C - 454º C
-
Heated surface - 150 W: Soldering bath - 2.3"; x 1.2"; x 0.75"; / 58 mm x 30 mm x 19 mm
-
For lead free solder
-
Heat-up time ~ 10 min ( 50°C - 350°C)
-
For lead free solder
Downloads
pdf
pdf
(574.62 KB)
Technical data
| Dimensions L x W x H | 175.0 x 120.0 x 54.0mm |
| Approximate Heating Time (50–350 °C/120–660 °F) | 660 sec |
| ESD Safe | Yes |
| Power | 150 W |
| Soldering Bath Dimensions (L x W x H) | 57.9 x 33.0 x 19.0mm |
| Temperature Range (Depends on Tool) | 65 - 454°C |
| Temperature Range °C | 66 - 454 °C |
| Temperature Range °F | 150 - 850 °F |
| Tip Type | WT |
| UPC | 037103304728 |
| Voltage | 24 V |
