WHA3000PN
Item No.:
WHA3000PN

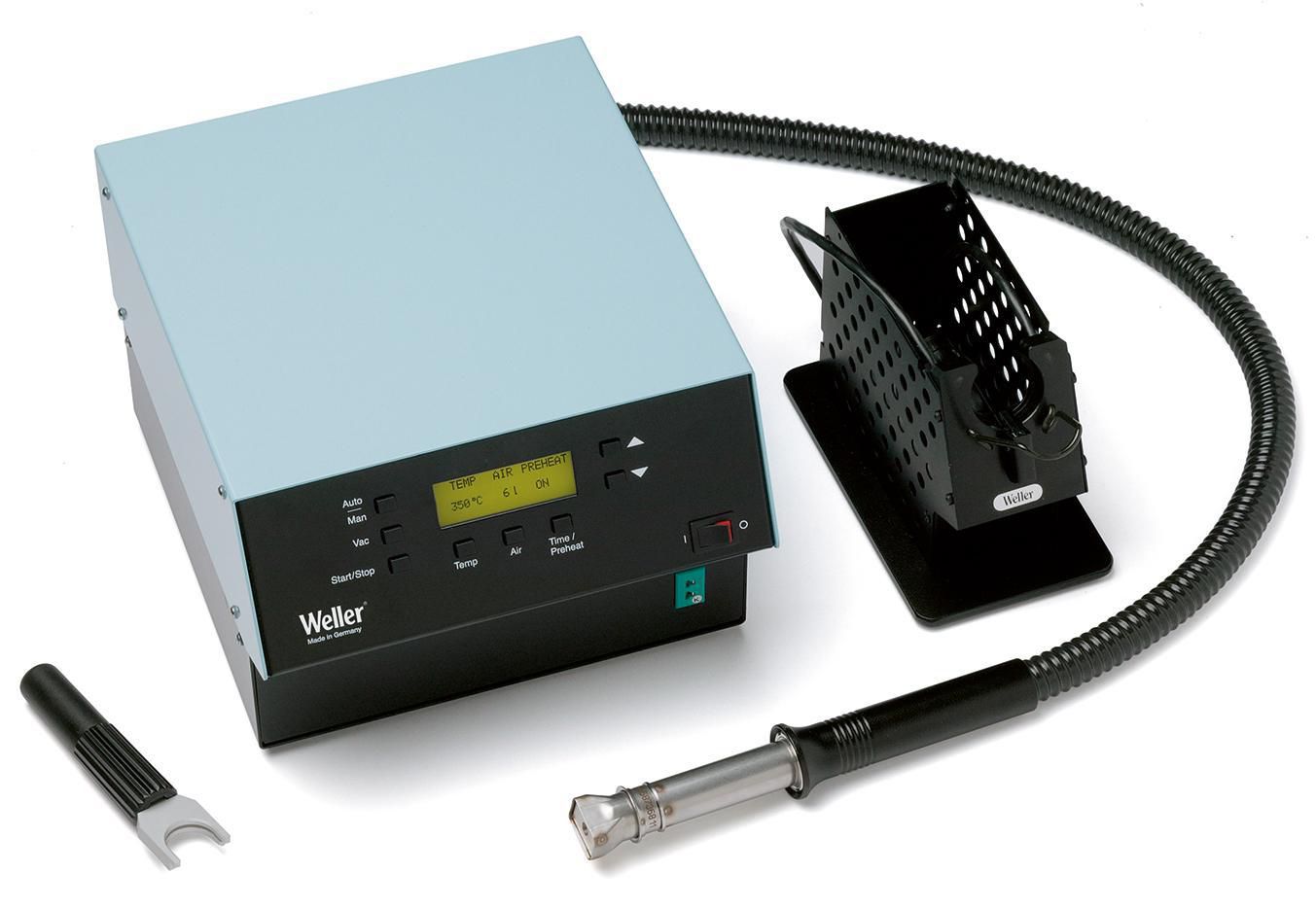

Hot air station 700 W / 230 V
Product features
-
700 W Hot air station
-
With integrated vacuum
-
With integrated turbine
-
The vacuum pickup feature is activated automatically during the process
-
Temperature and air flow are controlled independently
-
Controlled output maintains set temp regardless of air flow setting
Downloads
pdf
Technical data
| Dimensions L x W x H | 240.0 x 270.0 x 170.0mm |
| Air Consumption | 5 - 50 l/min |
| Compressed Air Supply (kPa/bar) | 400 - 600 kPA / 4 - 6 bar |
| Hot Air (picto) | Yes |
| Maximum Hot Air Flow Rate l/min (Depends on Tool) | 50 l/min |
| Power | 600 W |
| Temperature Accuracy °C | ± 30 °C (± 54 °C) |
| Temperature Accuracy °F | ± 30 °C (± 54 °C) |
| Temperature Range °C | 50 - 550 °C |
| Temperature Range °F | 122 - 1022 °F |
| UPC | 037103309495 |
| Vacuum | 0.6 bar (60 kPA) (8.7 psi) |
