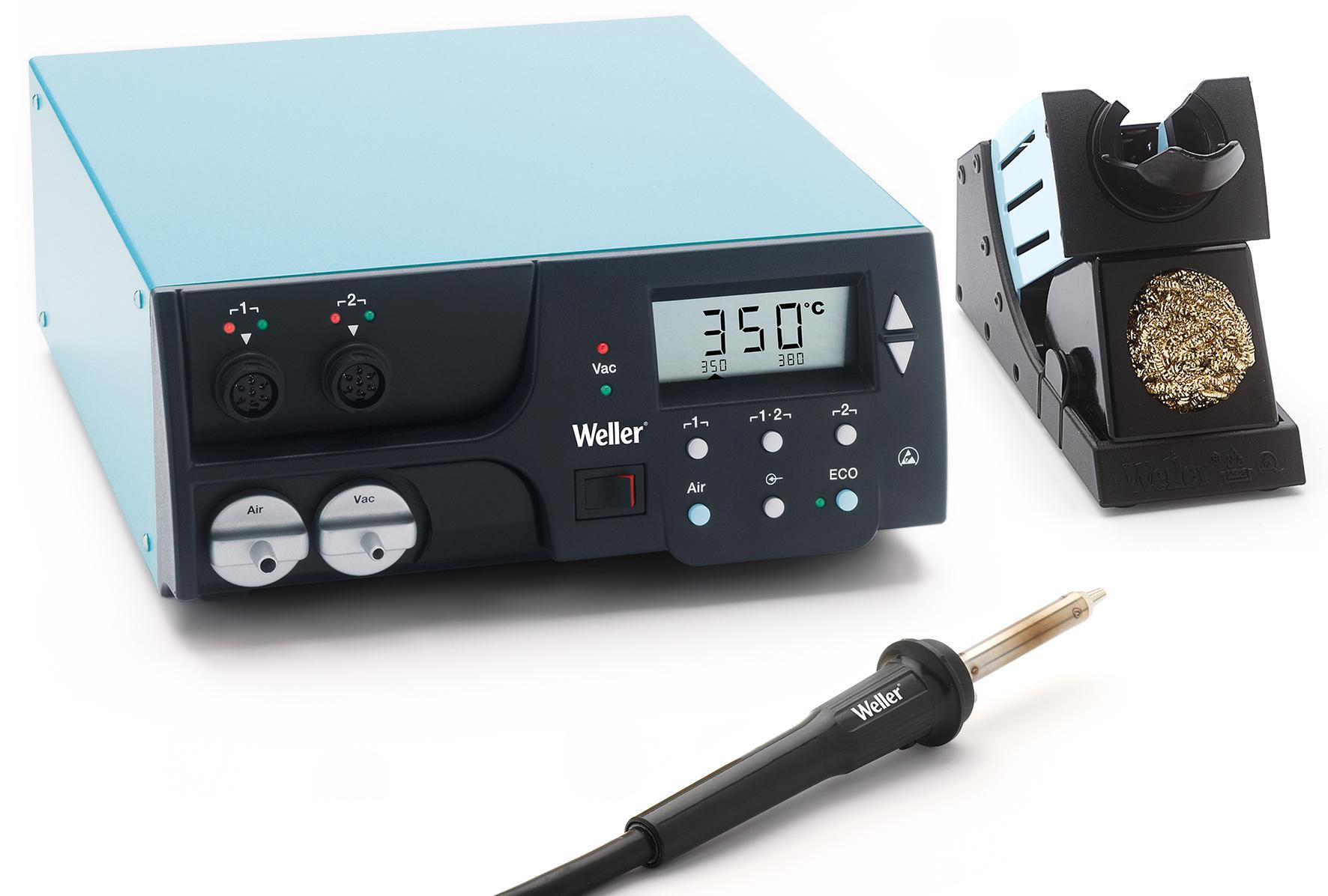

WR2000A Set 230V
Downloads
pdf
pdf
(4.04 MB)
WR2000A Set 230V
Item No.:
T0053378699N
2-Channel Rework Station Set, 200 W (300 W)
Product features
-
Hot air station WR 2, 2 channels with hot air iron HAP 1
-
Small hot air set
-
Simultaneous operation of 2 soldering tools
-
All soldering tools up to 200 W connectable
Downloads
pdf
pdf
(4.04 MB)
Technical data
| Length | 11 in |
| Dimensions L x W x H | 280.0 x 240.0 x 103.0mm |
| Automatic Tool Identification | Yes |
| Capacity (l/min) | 18 l/min |
| Equipotential Bonding Socket | Via 3.5mm jack bush (initial state-hard-grounded) |
| ESD Safe | Yes |
| Hot Air (picto) | Yes |
| IPC Compliant | (Tip to Ground) Corresponds to IPC-J-001 |
| Maximum Hot Air Flow Rate l/min (Depends on Tool) | 10 l/min |
| Noise level (distance 1 m) dB(A) | 0.7 bar |
| Number of Channels | 2 |
| Overcurrent Release | 1,6 A |
| Power | 250 W (300 W) |
| Temperature Accuracy °C | ± 9°C |
| Temperature Accuracy °F | ± 17°F |
| Temperature Accuracy for Hot Air | ± 30°C, ± 54°F |
| Temperature Range (Depends on Tool) | Temperature control of channels Soldering and desoldering iron stepless 50 °C – 550 °C (150 °F – 999 °F) Controllable temperature range depends on the tool. |
| Temperature Range °C | 50 - 550 °C |
| Temperature Range °F | 150 - 950 °F |
| Temperature Stability °C | ± 2°C |
| Temperature Stability °F | ± 4°F |
| Tip Type | WT |
| UPC | 037103305503 |
| Vacuum | 0,7 bar |
| Voltage | 230V |
| Weight (Catalog) | 5.60 kg |
| Product Family | Rework, Hot Air, Desoldering Stations |
