Item No.:
WR2N

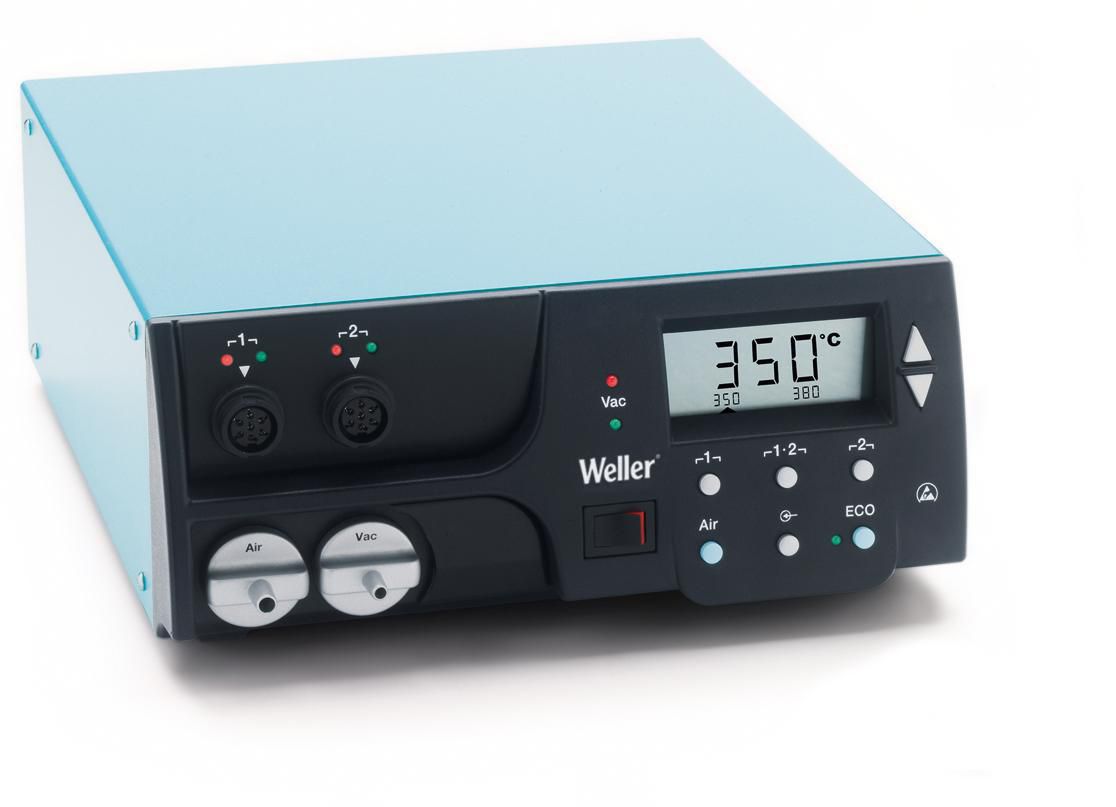

2-Channel Power Unit, 200 W (300 W)
Product features
-
Digital Self-Contained Multi-Channel Rework Station - 120 V / 300 W
-
2 Independent tool channels with automatic tool recognition
Downloads
pdf
pdf
(8.7 MB)
Technical data
| Dimensions L x W x H | 280.0 x 240.0 x 103.0mm |
| Automatic Tool Identification | Yes |
| Capacity (l/min) | 18 l/min |
| Desoldering | Yes |
| Equipotential Bonding Socket | Via 3.5mm Jack Bush (Initial State-Hard-Grounded) |
| ESD Safe | Yes |
| Hot Air (picto) | Yes |
| IPC Compliant | (Tip to Ground) Corresponds to IPC-J-001 |
| Maximum Hot Air Flow Rate l/min (Depends on Tool) | 10 l/min |
| Noise level (distance 1 m) dB(A) | 0.7 bar |
| Number of Channels | 2 |
| Overcurrent Release | 1.6 A |
| Power | 250 W (300 W) |
| Temperature Accuracy °C | ± 9 °C |
| Temperature Accuracy °F | ±17 °F |
| Temperature Accuracy for Hot Air | ± 30 °C |
| Temperature Range (Depends on Tool) | Temperature control of channelsSoldering and desoldering iron stepless 50 °C – 550 °C (150 °F – 999 °F)Controllable temperature range depends on the tool |
| Temperature Range °C | 50 - 550 °C |
| Temperature Range °F | 150 - 999 °F |
| Temperature Stability °C | ±2 °C |
| Temperature Stability °F | ±4 °F |
| Tip Type | WT |
| UPC | 037103312365 |
| USB | Yes |
| Vacuum | 0,7 bar |
| Voltage | 120 V |
| Weight (Catalog) | 5.60 kg |
