WTHA1
Item No.:
WTHA1N

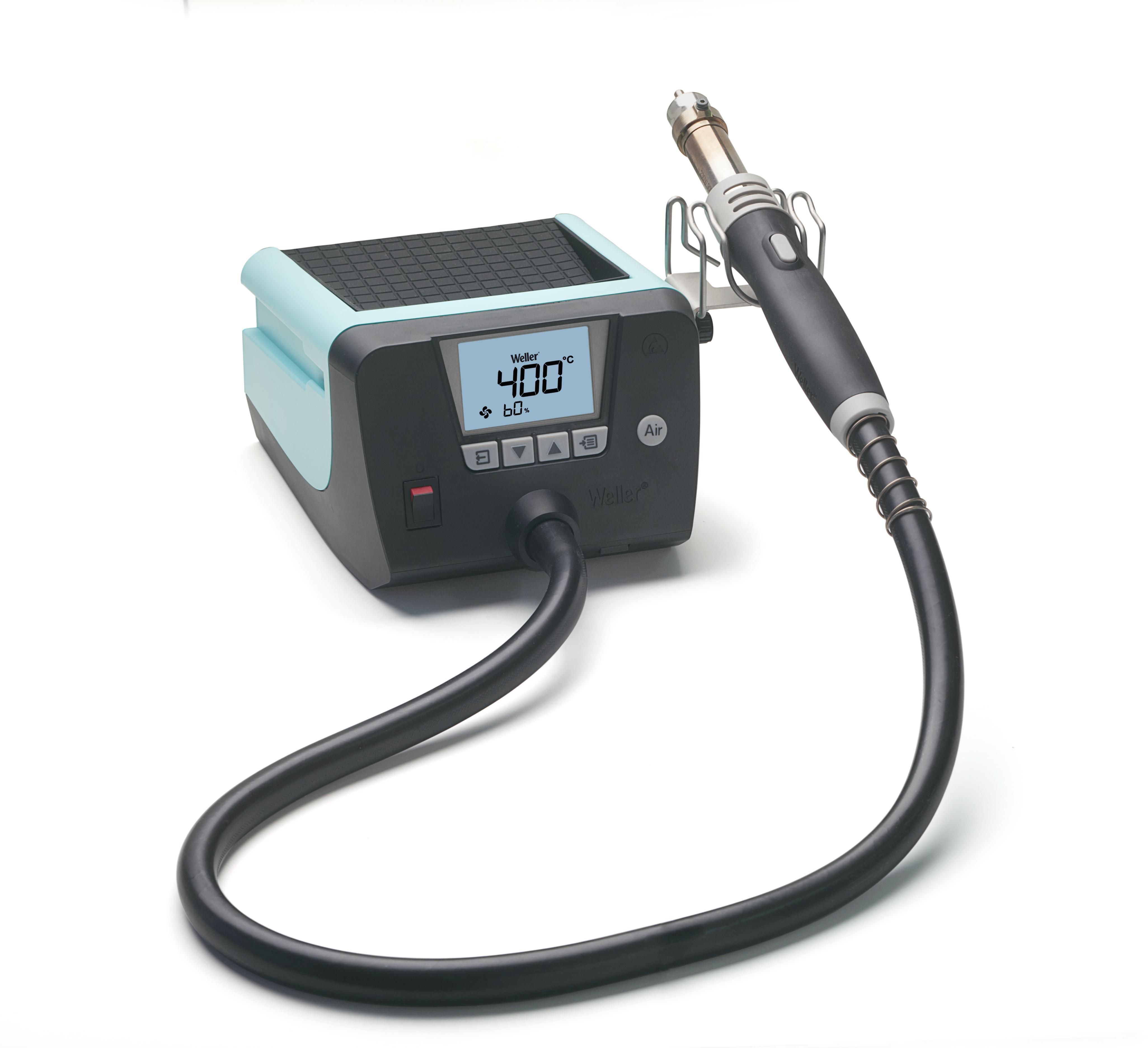

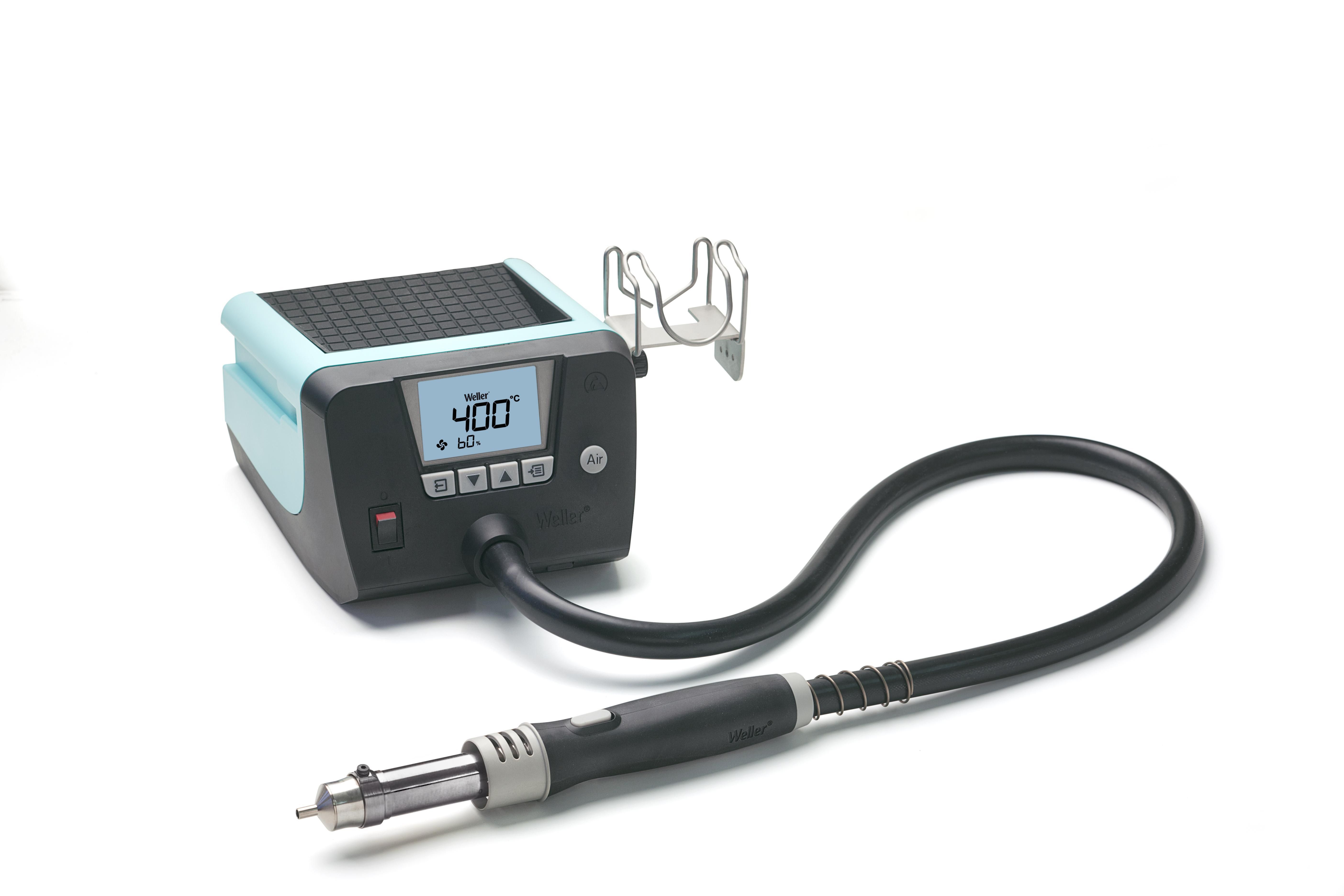

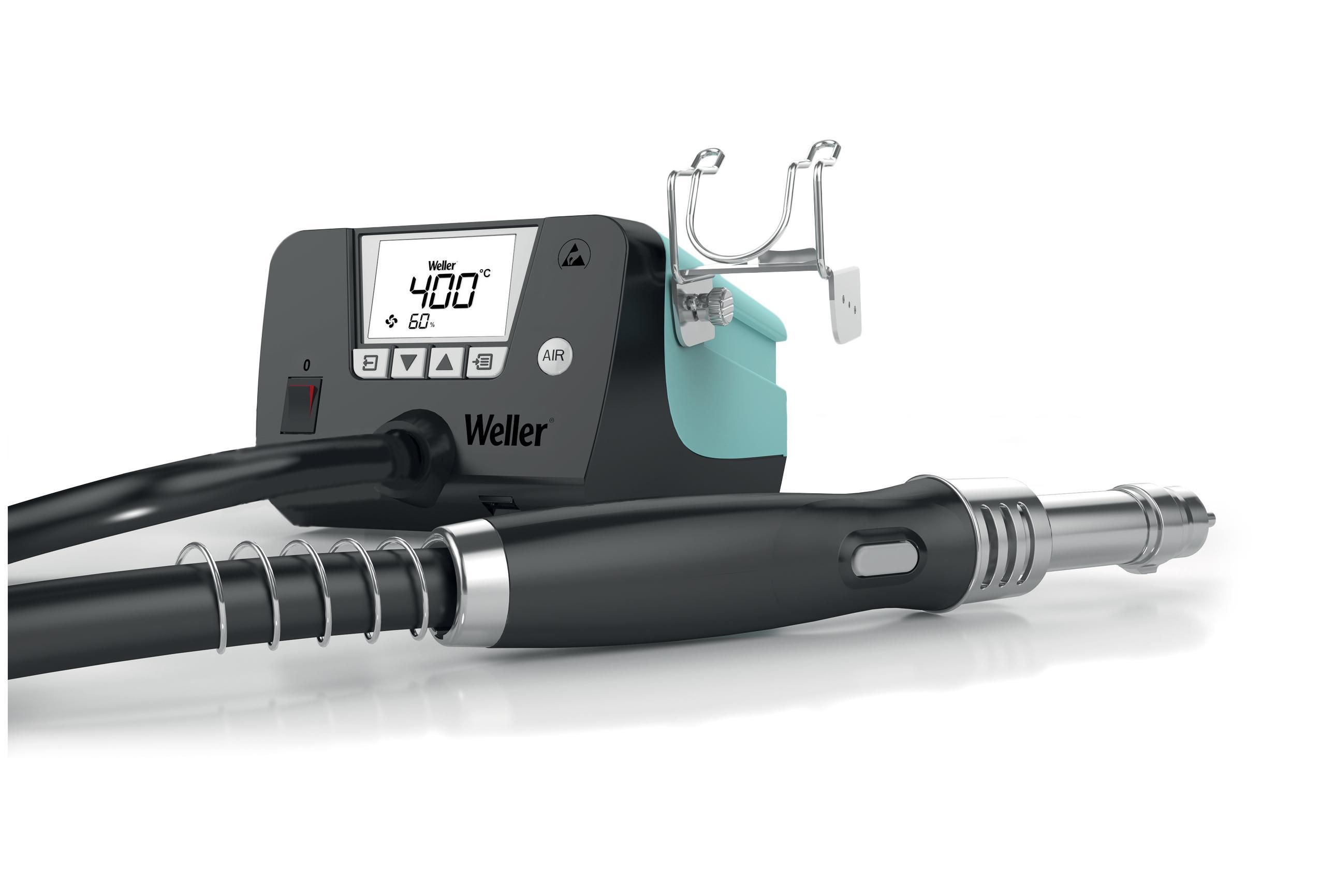

Hot Air Station 900 W
Product features
-
900 W Hot air station for simple repair and heating tasks
-
Modern and intuitive operational concept thanks to clear menu structure
-
Reduced footprint thanks to stackability
-
Electronical controlled temperature
-
Accurate adjustment of hot air through brushless turbine
-
Up to 5 pre-sets which can be automatically run in a profile
-

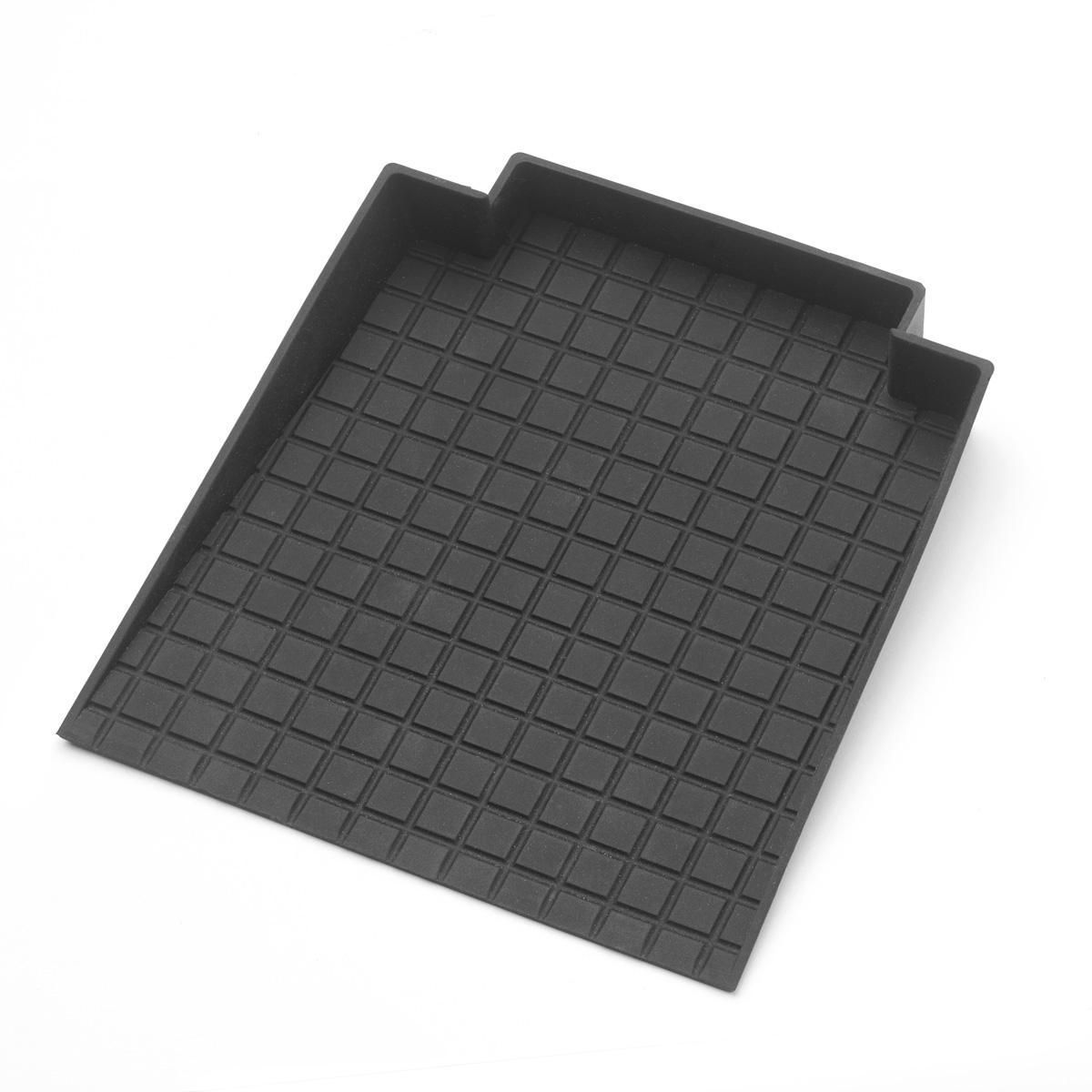

Housing cover useable as storage
-
Lock function
-
Unit includes. safety rest and fixed hot air iron
Downloads
pdf
pdf
(5.32 MB)
Compact. Powerful. Versatile.
Technical data
| Dimensions L x W x H | 212.0 x 172.0 x 122.0mm |
| Capacity (l/min) | 5 - 60 l/min (20°C) 5 - 110 l/min (300°C) |
| Equipotential Bonding | Yes |
| Equipotential Bonding Socket | Via 3.5mm Pawl Socket on Front of Device |
| ESD Safe | Yes |
| Fuse | T8A |
| Maximum Hot Air Flow Rate l/min (Depends on Tool) | 50 l/min |
| Number of Channels | 1 |
| Power | 900 W |
| Temperature Accuracy °C | ±30 °C |
| Temperature Accuracy °F | ±54 °F |
| Temperature Accuracy for Hot Air | ± 30 °C |
| Temperature Range °C | 50 - 600 °C |
| Temperature Range °F | 100 - 1000 °F |
| Tip Type | WT |
| UPC | 037103308641 |
| Voltage | 120 V |
| Weight (Catalog) | 1.90 kg |
