Weller Tools GmbH

WX1011

Downloads
Datasheet
pdf
Manuals

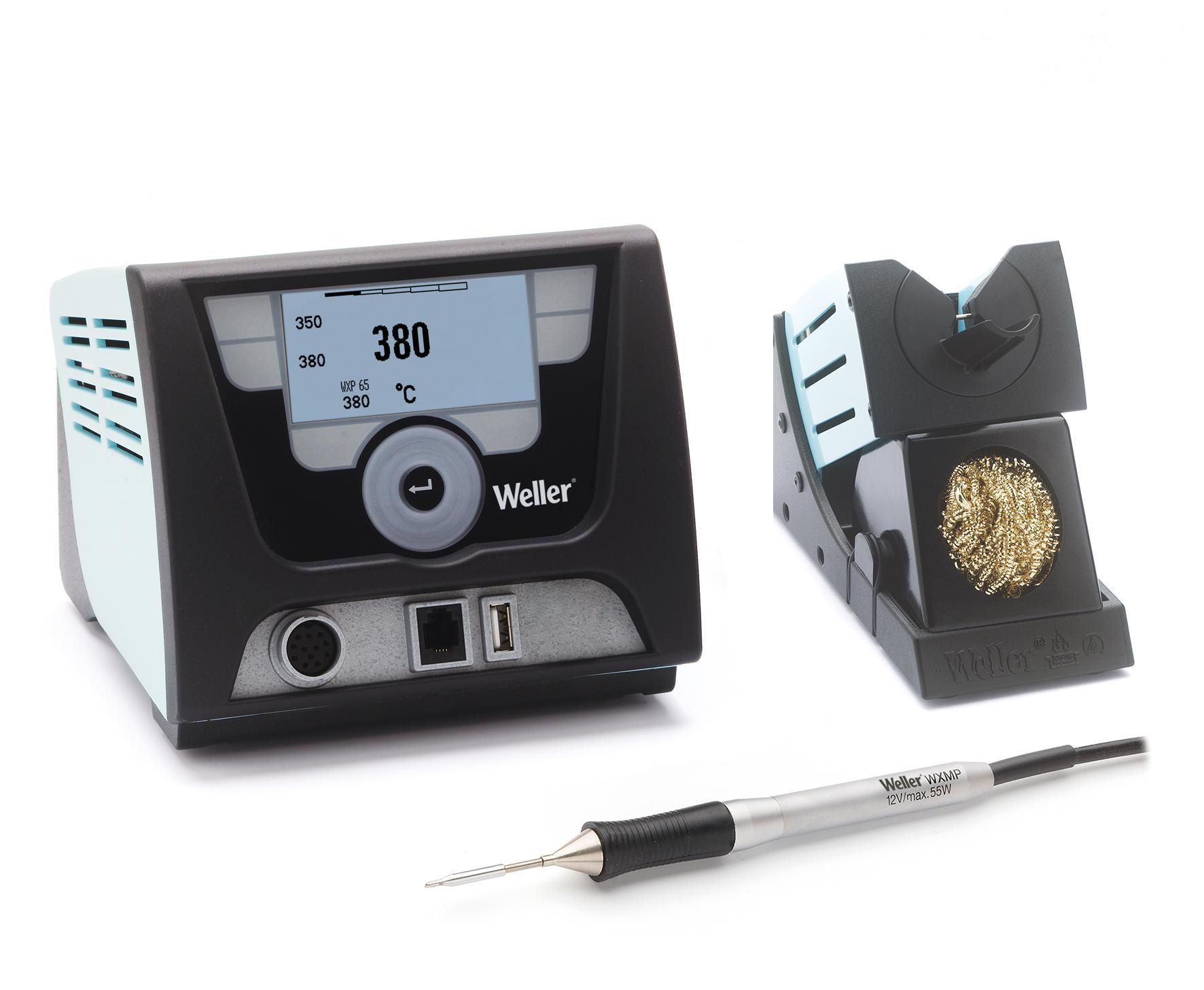

WX1011

Item No.: WX1011N
1-Channel Soldering Station, 200 W
read more
read less
$ 830.00
Ex tax.
Book a demo
Add to wishlist
Product features

  • High Powered Digital Soldering Stations WX 1

  • Capacitive glass touch screen is chemical and temperature resistant

  • Turn and click wheel with enter key and finger guide is intuitive to use

  • Multi-language menu , ready for automation using RS232 Serial I/O commands

  • Large graphic LCD display can be viewed from all angles

  • Acts as a benchtop controller for the WHP 1000 / WHP 3000 hot plates

  • Acts as a benchtop controller for the Zero Smog 4V / 6V Filtration units

  • Multi-purpose USB port for parameter configuration and DATA LOGGING

  • Compatible with all WX series soldering pencils

Show more product features
Downloads
Datasheet
pdf
Manuals

Scope of delivery

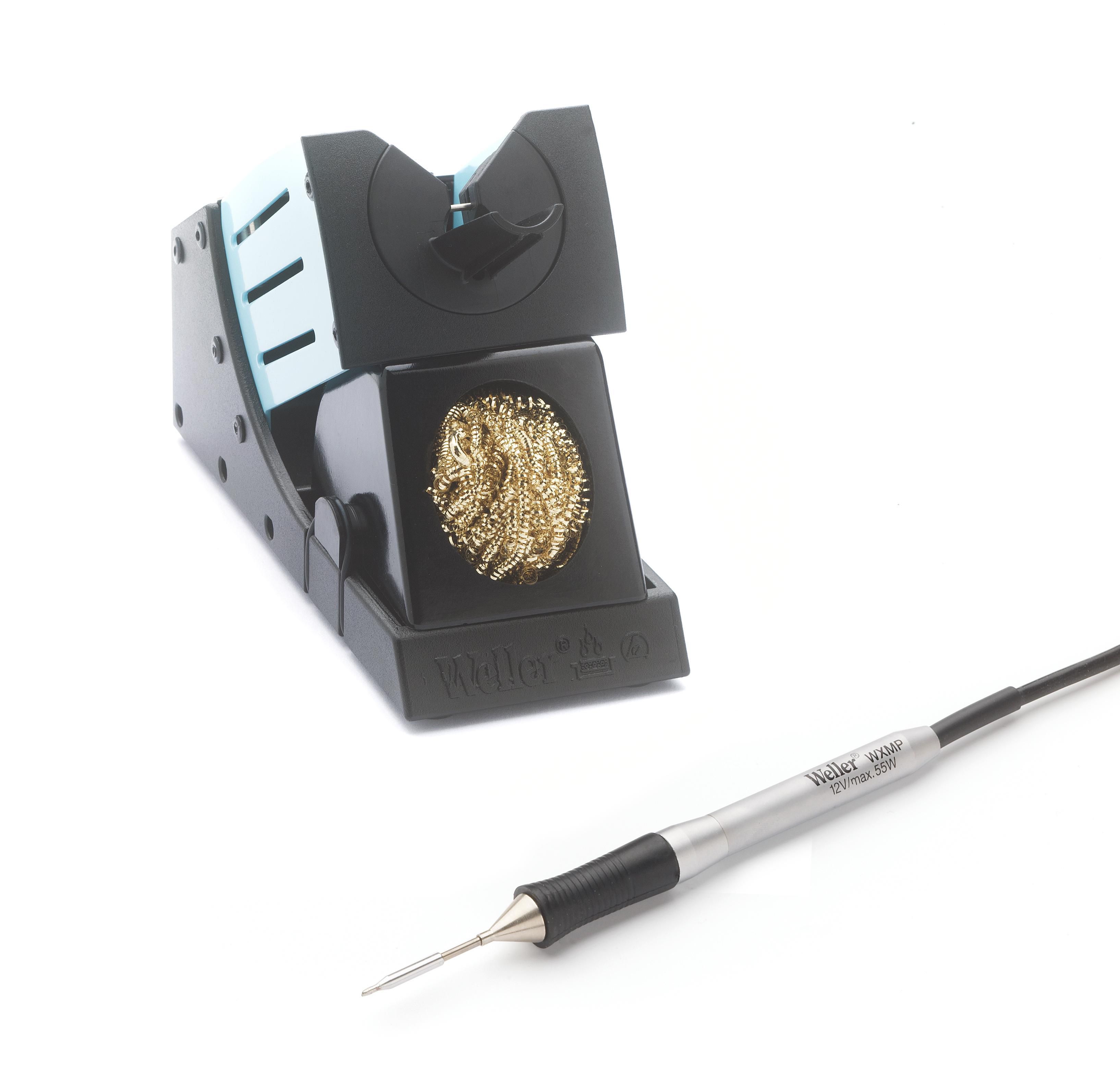

WDH 51
Safety rest with dry cleaner for WXMP Micro soldering iron
Show article
New
WX1
1-Channel Power Unit, 200 W
Show article
New
WXMP MS
Micro soldering iron WXMP MS 40 W, 12 V (hand piece without tips) for Active-Tip Heating Technology
Show article
New
RTM 013 S MS
RT Micro Soldering tip, chisel Ø 1,3 x 0,4 mm, MIL-SPEC
Show article
New
Technical data
Dimensions L x W x H 170.0 x 151.0 x 130.0mm
Automatic Tool Identification Yes
Benchtop Controller Yes
Equipotential Bonding Socket Via 3.5mm Pawl Socket on Back of Device
ESD Safe Yes
Interface 1x USB, 2x RS232, 1x Switching Output
Multilingual Display Yes
Number of Channels 1
Power 200 W
Temperature Accuracy °C ± 9 °C
Temperature Accuracy °F ±17 °F
Temperature Range (Depends on Tool) 199 - 998°F
Temperature Range °C 100 - 550 °C
Temperature Range °F 200 - 999 °F
Temperature Stability °C ±2 °C
Temperature Stability °F ±4 °F
Tip Range RT3MS (T0054461699)
Tip Type RT3MS WX
Traceability Yes
UPC 037103304780
USB USB interface of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types
Voltage 120 V

Tips/Nozzles

RTM 013 S
RT Micro Standard soldering tip, chisel Ø 1,3 x 0,4 mm
Show article
New
RTM 015 S
RT Micro Soldering tip chisel Ø 1,5 x 0,4 mm
Show article
New
RTM 030 K
RT Micro Knife tip 45° sloped 2,2 mm
Show article
New
RTM 004 B
RT Micro Soldering tip, bevel cut Ø 0.4 mm
Show article
New
RTM 010 S
RT Micro Soldering tip, chisel Ø 1.0 x 0.3 mm
Show article
New
RTM 018 S
RT Micro Soldering tip, chisel Ø 1.8 x 0.4 mm
Show article
New
RTM 032 S
RT Micro Soldering tip, chisel Ø 3.2 x 0.9 mm
Show article
New
RTM 025 K
RT Micro Soldering tip, knife 2.5 mm
Show article
New
RTM 002 C
RT Micro Soldering tip conical Ø 0,2 mm
Show article
New
RTM 008 C
RT Micro Soldering tip conical Ø 0.8 mm
Show article
New
RTM 008 S X
RT Micro Soldering tip chisel 30° bent 0,8 x 0,4 mm
Show article
New
RTM 012 B
RT Micro Soldering tip round form 45° sloped, Ø 1,2 mm
Show article
New
RTM 022 S
RT Micro Soldering tip, chisel Ø 2,2 x 0,4 mm
Show article
New
RTM 008 S
RT Micro Soldering tip, chisel Ø 0,8 x 0,4 mm
Show article
New
RTM 020 G
RT Micro Soldering tip Gull Wing Ø 1.2 x 2.0 mm
Show article
New
RTM 036 S
RT Micro Soldering tip chisel Ø 3.6 x 0.9 mm
Show article
New
RTM 004 S
RT Micro Soldering tip, chisel Ø 0,4 x 0,15 mm
Show article
New
RTM 001 C NW
RT Micro Soldering tip conical chromed Ø 0,1 mm, chrome, not wettable for 0201 / 0204 components
Show article
New
RTM 003 S NW
RT Micro Soldering tip chisel chromed Ø 0,3 x 0,1 mm, not wettable for 0201 / 0204 components
Show article
New
RTM 002 C L
RT Micro Soldering Tip, Conical, Long Ø 0.2 mm
Show article
New

Supply Unit

WX1
1-Channel Power Unit, 200 W
Show article
New

Accessory

WX Connecting Cable
WX Connecting cable, 2 m
Show article
New
Zero Smog 6V 100-120 Volt
Fume extraction Zero Smog 6V
Show article
New
WXSB 200 Soldering Bath
Soldering bath 200 W, 24 V
Show article
New
Zero Smog 4V
Fume extraction unit Zero Smog 4V
Show article
New
WX Adapter PC
WX Adapter for PC
Show article
New
WX HUB
WX HUB
Show article
New
WHP1000
Preheating plate 1000 W
Show article
New
WHP3000
Infrared preheating plate 600 W with Easy Fix board holder
Show article
New
WXHP 120
Preheating plate 120 W
Show article
New

Irons/Tweezers

WXMP Set
Micro soldering iron WXMP with safety rest
Show article
New
WXMP MS Set
Micro soldering iron WXMP MS with safety rest
Show article
New
WXP80 Set
Soldering iron 80 W, 24 V with Silver-Line Heating Technology
Show article
New
WXP90 Set
Hybrid soldering iron WXP 90 with safety rest
Show article
New
WXP120 Set
Soldering iron Set WXP 120 with safety rest
Show article
New
WXP 200 Set
Soldering iron WXP 200 with safety rest
Show article
New
WXMT Set
Micro desoldering tweezers WXMT with safety rest
Show article
New
WXPP MS Set
WXPP MS Soldering Iron Set for soldering tasks under the microscope
Show article
New
WXMP MS Set
WXMP MS Soldering Iron Set for high precision standard and micro soldering applications
Show article
New
WXUP MS Set
WXUP MS Soldering Iron Set for heavy duty soldering applications and largest components
Show article
New

Items in the Box

WDH 51
Safety rest with dry cleaner for WXMP Micro soldering iron
Show article
New
WX1
1-Channel Power Unit, 200 W
Show article
New

Stations/Systems

WX1
1-Channel Power Unit, 200 W
Show article
New
WX2
2-Channel Power Unit, 200 W (255 W)
Show article
New
WX2022 Pico MS
2-Channel Soldering Station, 200 W (255 W)
Show article
New
WX2023 Micro MS
2-Channel Soldering Station, 200 W (255 W)
Show article
New
WX2024 Ultra MS
2-Channel Soldering Station, 200 W (255 W)
Show article
New
