Weller Tools GmbH

WX1012

WX1012

Item No.: WX1012N

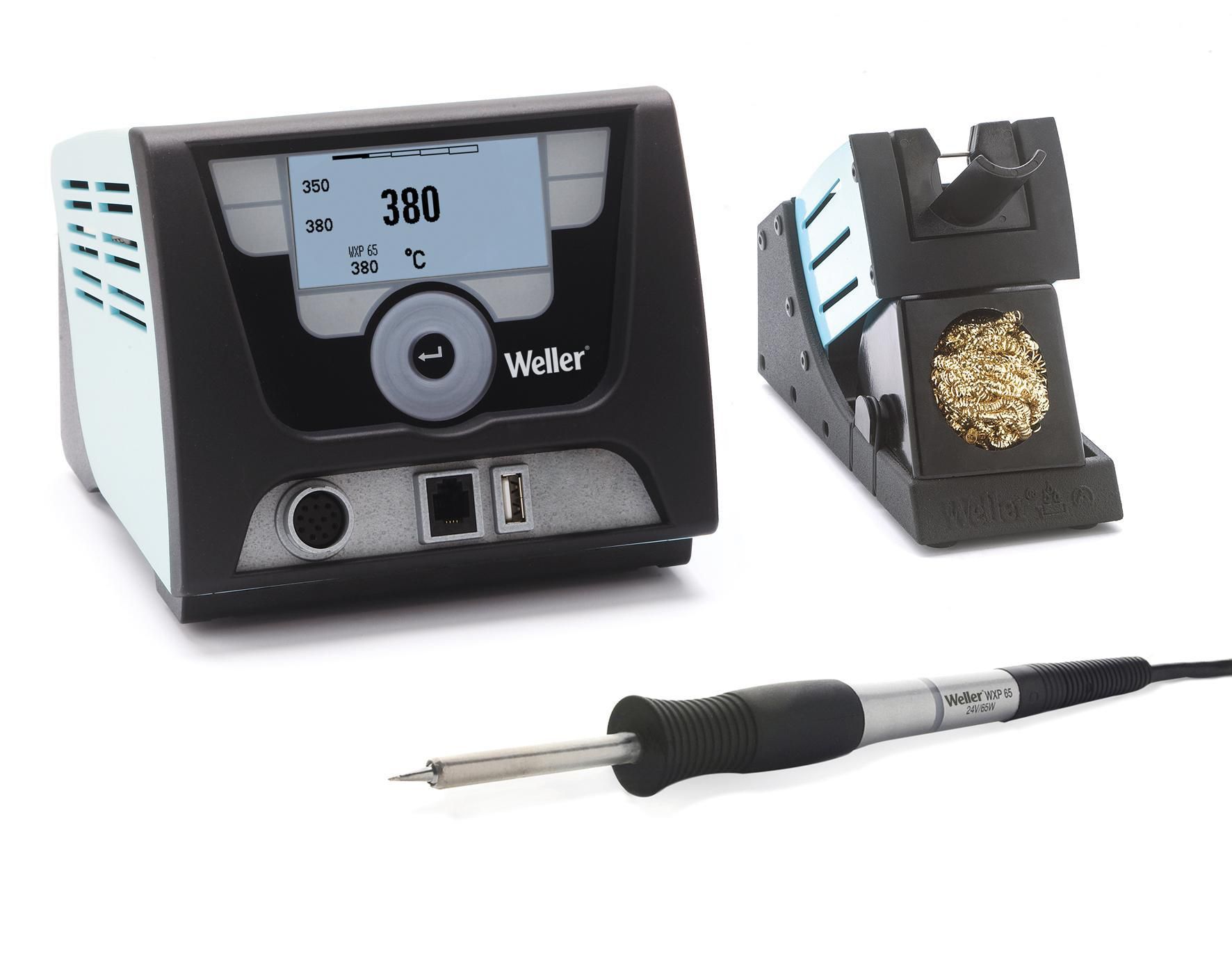

1-Channel Soldering Station, 200 W
$ 770.00
Ex tax.
Book a demo
Product features
  • High Powered Digital Soldering Stations WX 1

  • Capacitive glass touch screen is chemical and temperature resistant

  • Turn and click wheel with enter key and finger guide is intuitive to use

  • Multi-language menu , ready for automation using RS232 Serial I/O commands

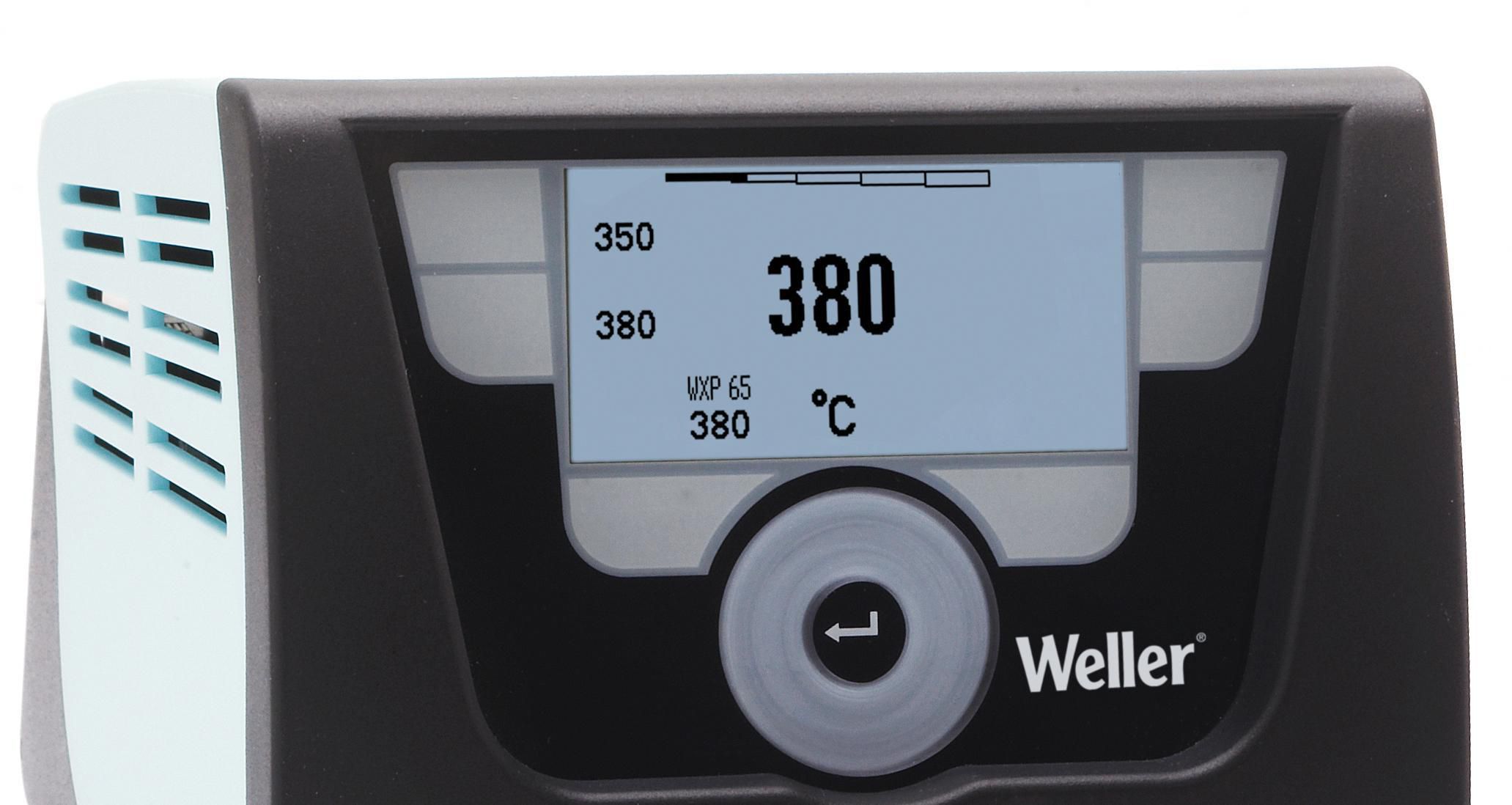

  • Large graphic LCD display can be viewed from all angles

  • Acts as a benchtop controller for the WHP1000 / WHP3000 hot plates

  • Acts as a benchtop controller for the Zero Smog 4V / 6V Filtration units

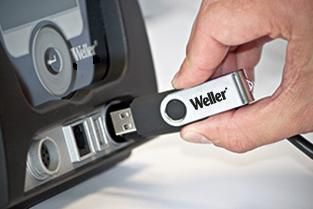

  • Multi-purpose USB port for parameter configuration and DATA LOGGING

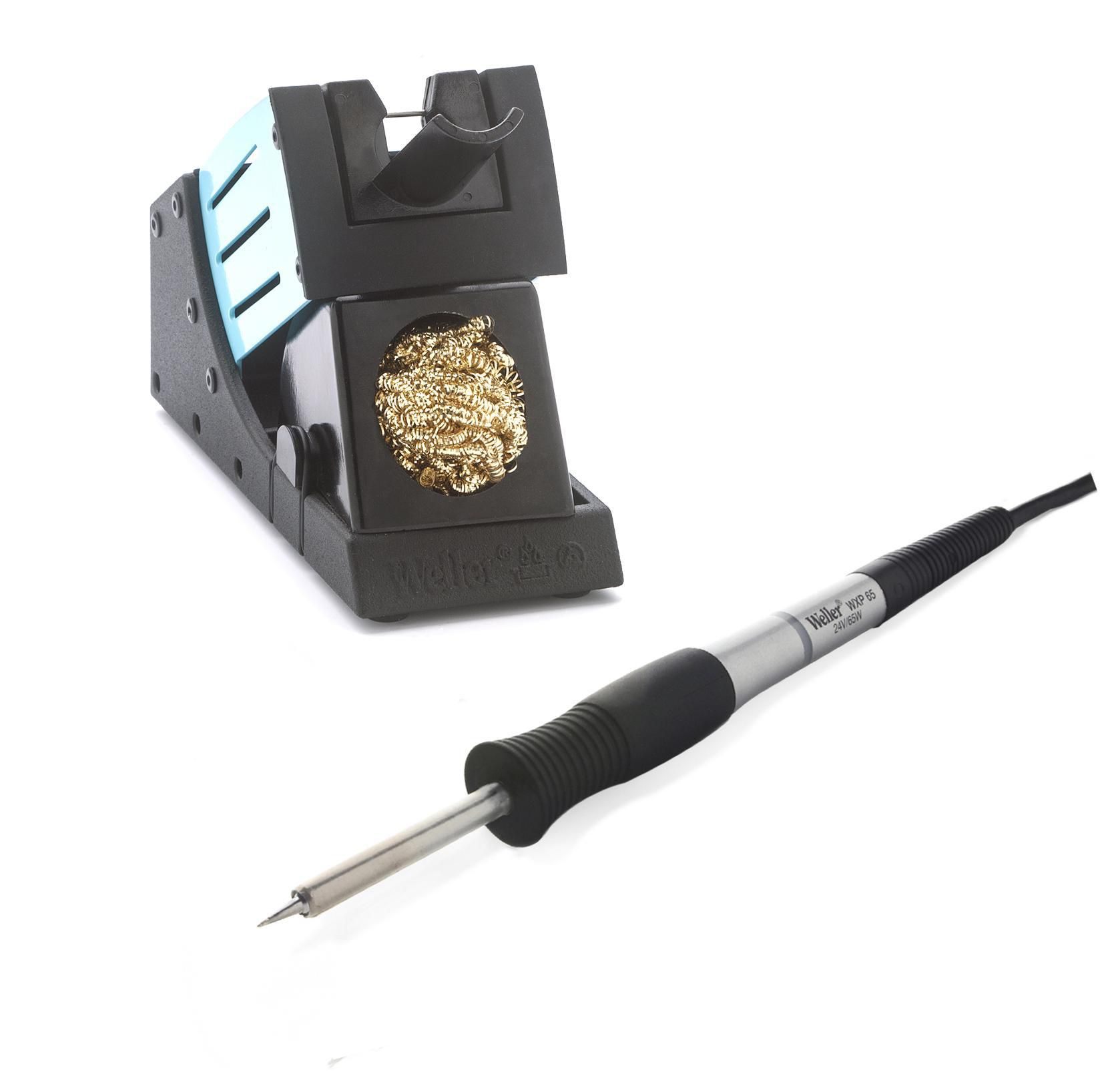

  • Compatible with all WX series soldering pencils

Downloads

Scope of delivery

Technical data
Dimensions L x W x H 170.0 x 151.0 x 130.0mm
Automatic Tool Identification Yes
Benchtop Controller Yes
Equipotential Bonding Socket Via 3.5mm Pawl Socket on Back of Device
ESD Safe Yes

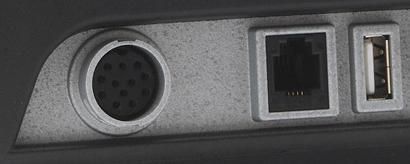

Interface 1x USB, 2x RS232, 1x Switching Output
Multilingual Display Yes
Number of Channels 1
Power 200 W
Temperature Accuracy °C ± 9 °C
Temperature Accuracy °F ±9 °C
Temperature Range (Depends on Tool) 199 - 998°F
Temperature Range °C 93 - 537 °C
Temperature Range °F 199 - 998 °F
Temperature Stability °C ±2 °C
Temperature Stability °F ±2 °C
Tip Type WX XTNA
Traceability Yes
UPC 037103305077
USB USB interface of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types

Accessory

Irons/Tweezers

Stations/Systems
