WXA2
WXA2
Item No.:
WXA2N

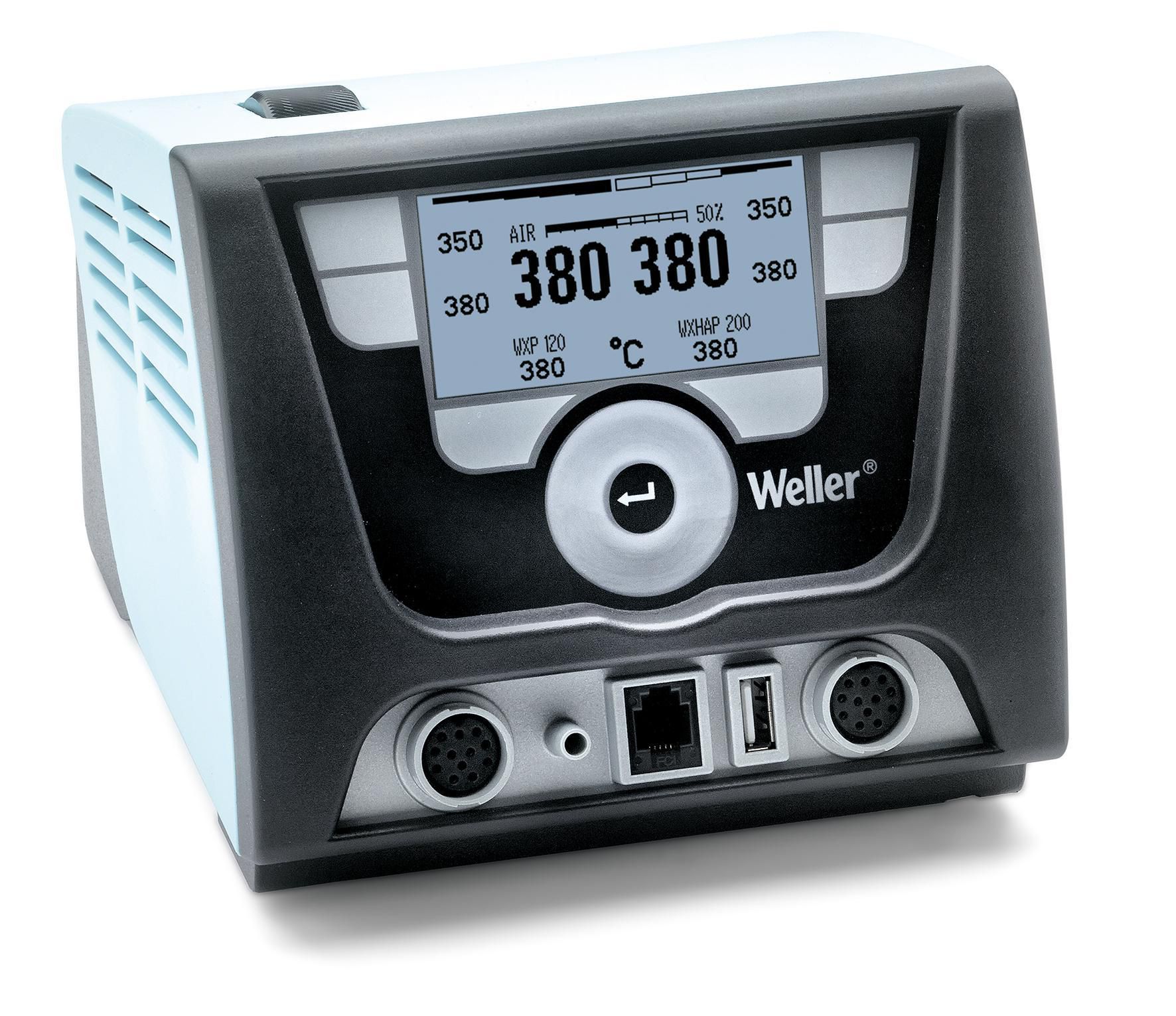

2-Channel Power Unit, 200 W (255 W)
Product features
-
For operation with external compressed air
-
Compatible with all WX series tools
-
When using WXHAP200 hot air pen, only WXMP-MS or WXMP series tools can be used at the same time
-
Benchtop controller for WHP1000/WHP3000 heating plates
-
Benchtop controller for use as Zero Smog 4V/6V filter unit
-

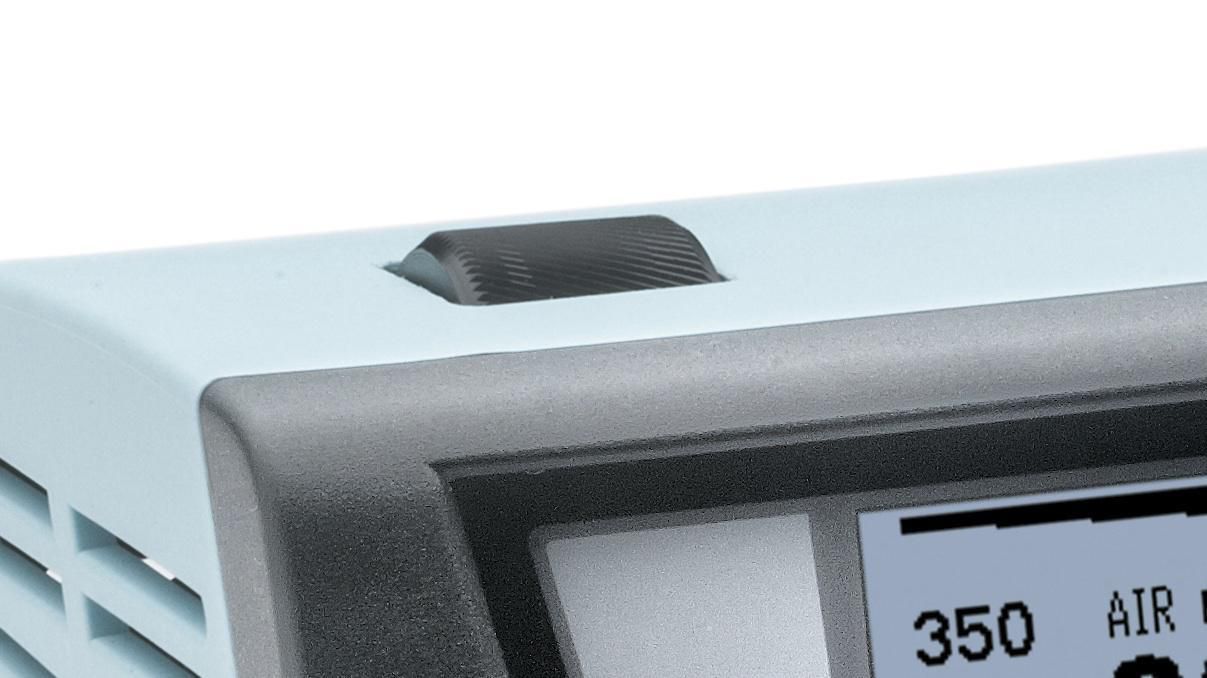

Air flow: 0 - 20 l/min
-
Required compressed air supply: 400 - 600 kPA (58 - 87 psi); oil-free, dry compressed air
Technical data
Dimensions L x W x H | 174.0 x 154.0 x 135.0mm |
Air Consumption | 20 l/min |
Automatic Tool Identification | Yes |
Benchtop Controller | Yes |
Capacity (l/min) | 20 l/min |
Compressed Air Connection (Outer Diameter) | 0.23 in |
Compressed Air Connection Accessory | Oil free, dry compressed air |
Equipotential Bonding | Yes |
Equipotential Bonding Socket | Via 3.5mm Pawl Socket on Back of Device |
ESD Safe | Yes |
Fuse | T2A |
Hot Air (picto) | Yes |

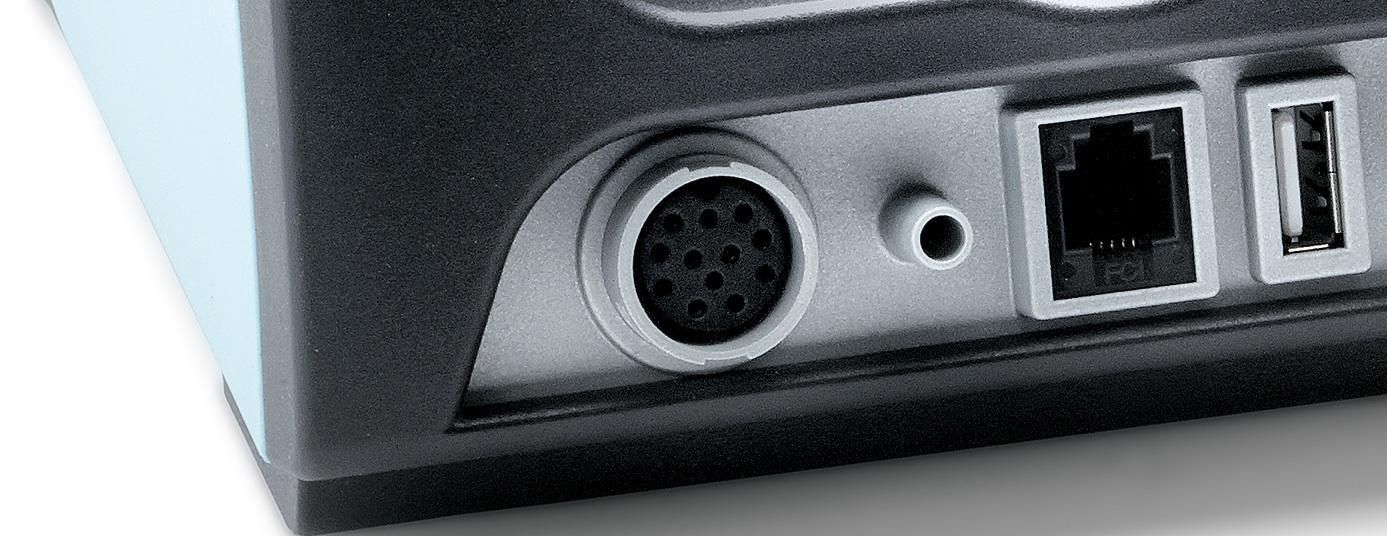

Interface | 1x USB, 2x RS232, 1x Switching Output |
Maximum Hot Air Flow Rate l/min (Depends on Tool) | 15 l/min |

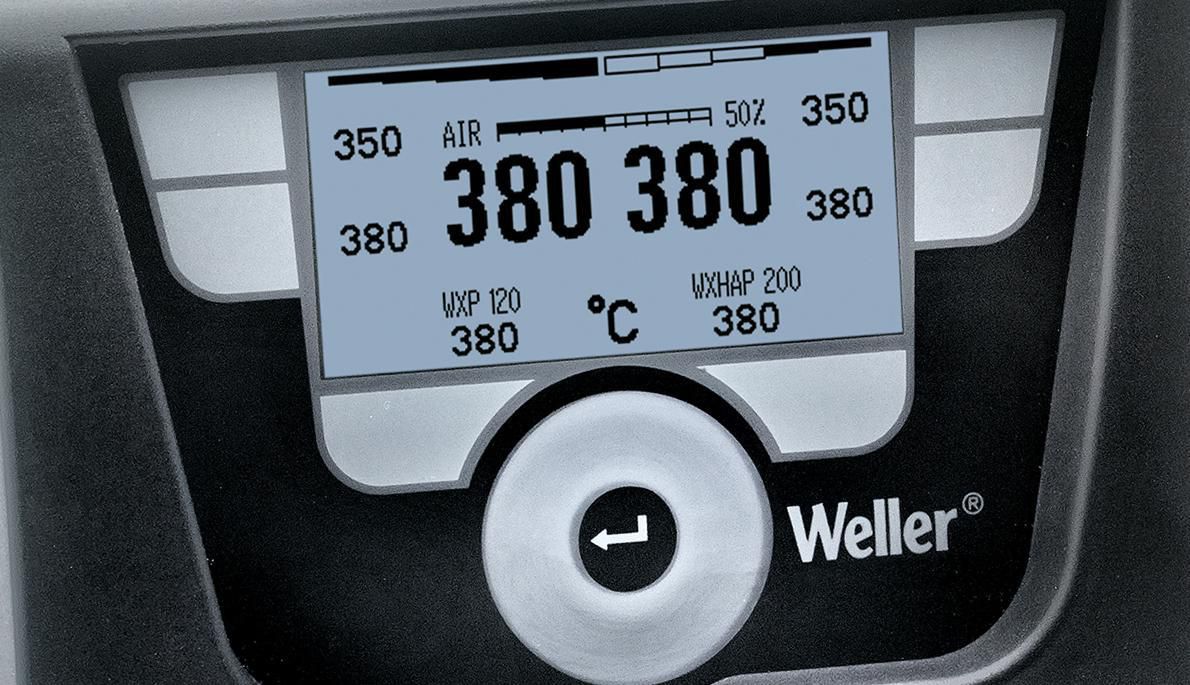

Multilingual Display | Yes |
Number of Channels | 2 |
Operating Pressure | 4 - 6 bar 54 - 87 psi |
Power | 200 W (255 W) |
Temperature Accuracy °C | ± 9 °C |
Temperature Accuracy °F | ±9 °C |
Temperature Accuracy for Hot Air | ±30 °C |
Temperature Range °C | 100 - 550 °C |
Temperature Range °F | 200 - 999 °F |
Temperature Stability °C | ±2 °C |
Temperature Stability °F | ±2 °C |
Tip Type | WX |
Traceability | Yes |
UPC | 037103312389 |
USB | USB interface of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types |
Vacuum | 0.6 bar (60 kPA) (8.7 psi) |
Voltage | 120 V |
