Weller Tools

WXA2010

WXA2010

Item No.: WXA2010N

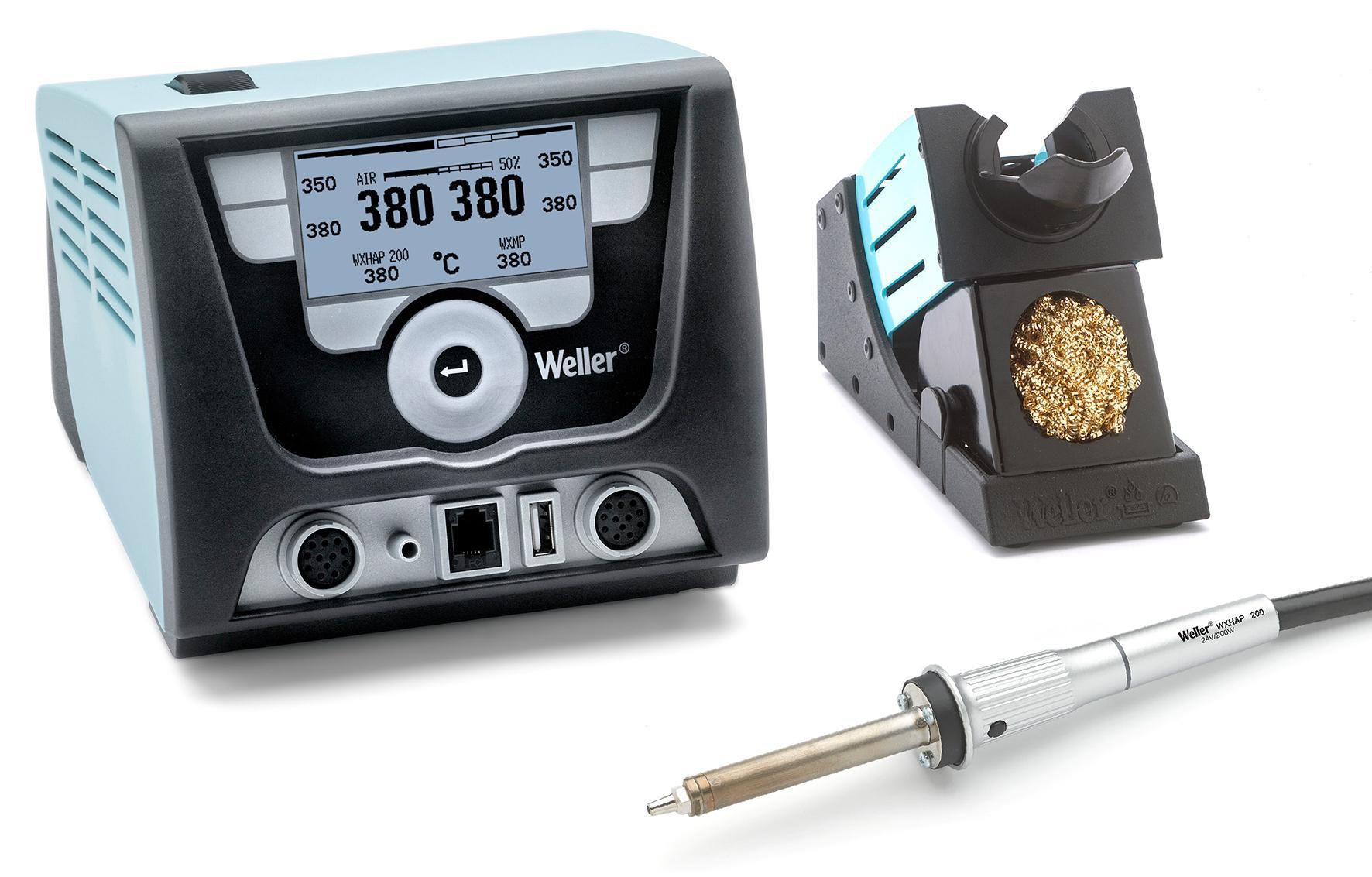

2-Channel Hot-Air Station, 200 W (255 W)
$ 1,690.00
Ex tax.
Book a demo
Product features
  • Power unit, 2 channels with hot air iron WXHAP 200

  • Best set for hot air tasks

  • Simultaneous operation of 2 soldering tools

  • For operation with external compressed air

Downloads
Technical data
Dimensions L x W x H 6.6 x 5.9 x 5.1 in
Air Consumption 20 l/min
Capacity (l/min) 20 l/min
Compressed Air Connection (Outer Diameter) 0.23 in
Compressed Air Connection Accessory Oil free, dry compressed air
Equipotential Bonding Socket Via 3.5mm Pawl Socket on Back of Device
ESD Safe Yes
Fuse T2A
Hot Air (picto) Yes
Interface 1x USB, 2x RS232, 1x Switching Output
Maximum Hot Air Flow Rate l/min (Depends on Tool) 15 l/min
Number of Channels 2
Operating Pressure 4 - 6 bar 54 - 87 psi
Power 200 W (255 W)
Temperature Accuracy °C ± 9 °C
Temperature Accuracy °F ± 17 °F
Temperature Accuracy for Hot Air ± 54 °F
Temperature Range °C 93 - 537 °C
Temperature Range °F 199 - 998 °F
Temperature Stability °C ±2 °C
Temperature Stability °F ±4 °F
Tip Type WX
UPC 037103304247
USB USB interface of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types
Voltage 110 V
