Weller Tools GmbH

WT 1012

Downloads
Datasheet
pdf
Manuals

WT 1012

Item No.: T0053440699N

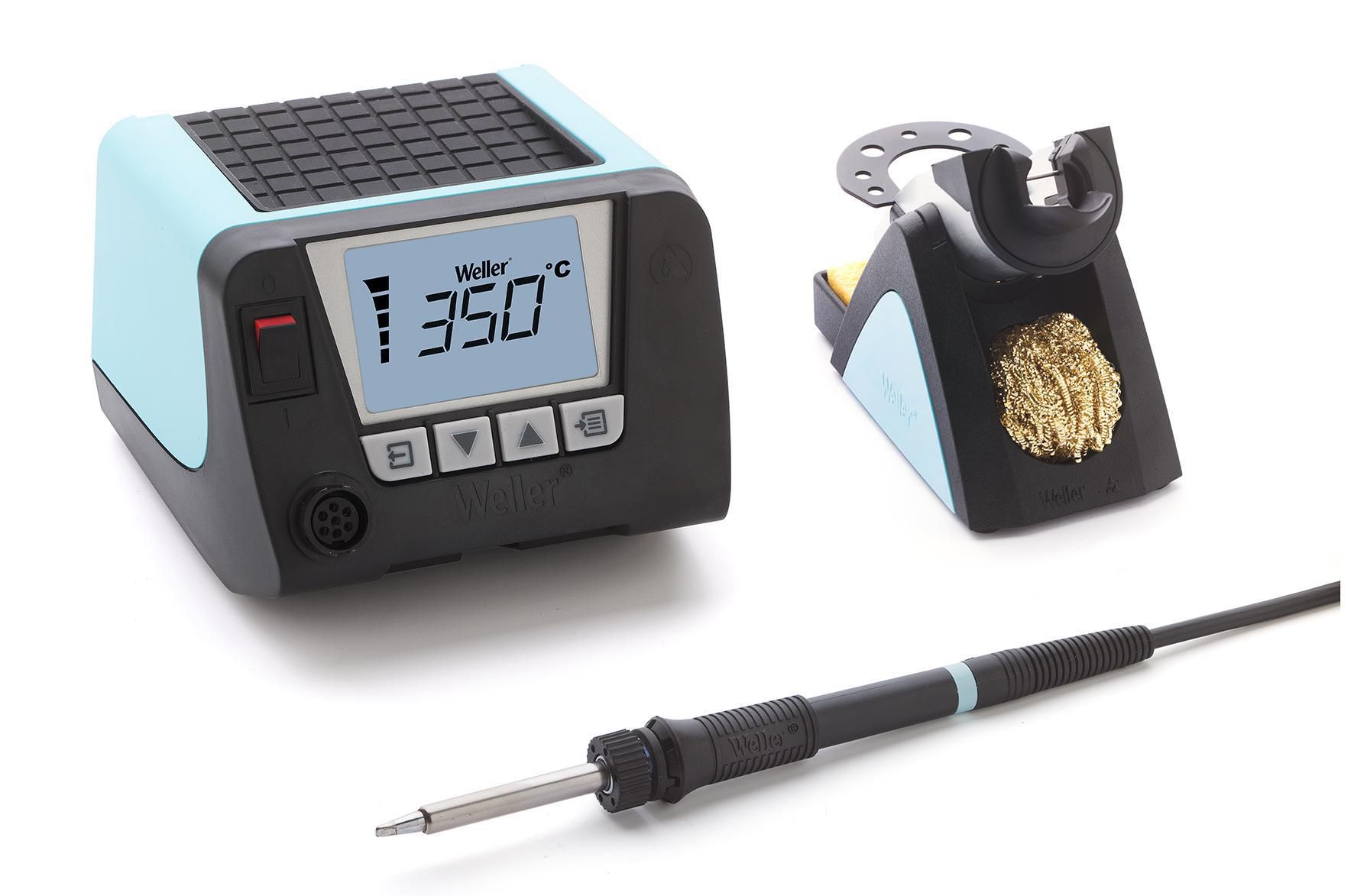

1-Channel Soldering Station Set, digital 95 W with soldering iron WSP 80
read more
read less
€ 420.00
Ex tax.
Dealer Locater
Add to wishlist
Product features

  • Power unit WT 1, 1 channel with soldering iron WSP 80 and safety rest WSR 201

  • WSP 80 soldering iron (80 W) with Silver-Line tips for all standard soldering applications. Tip family: LT

  • High productivity (Power unit with 1 channel, 95 W)

  • Intuitive use thanks to clear menu structure

  • Reduced footprint thanks to stackability

  • Graphical backlit LC-Display

  • High performance and functionality - many connectable tools

  • Automatic standby of tool thanks to integrated acceleration sensor in the tool

  • Housing cover useable as storage

  • OFF time, Process window, Lock function, Offset

Show more product features
Downloads
Datasheet
pdf
Manuals

Scope of delivery

WSR 201
Show article
New
WSP 80
Show article
New
WT 1
Show article
New
WSP80
Show article
New
Technical data
Width 138.0 mm
Height 101.0 mm
Length 149.0 mm
Dimensions L x W x H 149.0 x 138.0 x 101.0mm
Equipotential Bonding Yes
Equipotential Bonding Socket Via 3.5mm Pawl Socket on Front of Device
ESD Safe Yes
Fuse 0,5A
Interface One Switching Output
Number of Channels 1
Power 95 W
Temperature Accuracy °C ± 9 °C
Temperature Accuracy °F ±17 °F
Temperature Range (Depends on Tool) Adjustable from 50°C - 450°C (150°F - 850°F) Adjustable temperature range varies among tools
Temperature Range °C 50 - 450 °C
Temperature Range °F 150 - 850 °F
Temperature Stability °C ±2 °C
Temperature Stability °F ±4 °F
Tip Type WT
UPC 4003019438419
Voltage 230 V, 50/60 Hz

Accessory

Zero Smog TL 230V F/G
Fume extraction unit Zero Smog TL
Show article
New
WSB 80 Soldering Bath
Soldering bath 80 W, 24 V
Show article
New
Zero Smog TL Kit 2 SN
Fume extraction unit with 2 flexible extraction arms, 2 fixing clamps for the arms, a remote switch and 2 sloped nozzles
Show article
New
Zero Smog TL Kit 2 FN
Fume extraction unit with 2 flexible extraction arms, 2 fixing clamps for the arms, a remote switch and 2 funnel nozzles
Show article
New
WHP 80
Preheating plate 80 W, 24 V, 80 x 50 mm
Show article
New
Zero Smog TL Kit 1 FN
Fume extraction unit with flexible extraction arm, extraction hose, stop valve with bench mounting brackets, remote switch and funnel nozzle
Show article
New
WT Hub
Show article
New

Tips/Nozzles

SMTA
SMT Adapter for LR 21
Show article
New
LT AS
Soldering tip, round, Ø 1,6 mm
Show article
New
LT B
Soldering tip, chisel, Ø 2,4 x 0,8 mm
Show article
New
LT S
Soldering Tip, conical long, Ø 0,4 mm
Show article
New
LT C
Soldering tip, chisel, Ø 3,2 mm
Show article
New
LT 22CP
Soldering tip, round tip sloped 45°, Ø 2,0 mm
Show article
New
LT 33CP
Soldering tip, round sloped 45°, Ø 3 mm
Show article
New
LT F
Soldering tip, round tip sloped 45°, Ø 1,2 mm
Show article
New
LT D
Soldering tip, chisel, Ø 4,6 mm
Show article
New
LT GW1
Soldering tip, gull wing 45°, 1,4 mm
Show article
New
LT CS
Soldering tip, round, Ø 3,2 mm
Show article
New
LT L
Soldering tip, chisel tip long, Ø 2,0 mm
Show article
New
LT M
Soldering tip, chisel tip long, Ø 3,2 mm
Show article
New
LT Measuring Tip
Measuring tip for thermoelement Ø 0,5 mm
Show article
New
LT HX
Soldering tip, chisel bent 30°, Ø 0,8 mm
Show article
New
LT 1L
Soldering Tip, conical long, Ø 0,2 mm
Show article
New
LT 1LX
Soldering Tip, Conical long bent 35°, Ø 0,2 mm
Show article
New
LT 1X 30°
Soldering tip, round bent 30°, Ø 0,4 mm
Show article
New
LT 1SLX 30°
Soldering tip Ø, round tip slim bent 30, Ø 0,4 mm
Show article
New
LT AX
Soldering tip, chisel form bent 30°, Ø 1,6 mm
Show article
New
LT 4X
Soldering tip, chisel bent 30°, Ø 1,2 mm
Show article
New
LT H HPB
Soldering tip chisel Ø 4,6 mm
Show article
New
LT A HPB
Soldering tip, chisel Ø 4,6 mm Do not use for leadfree soldering!!
Show article
New
LT B HPB
Soldering tip, chisel Ø 4,6 mm
Show article
New
LT 1
Soldering tip, round slim, Ø 0,25 mm
Show article
New
LT 1S
Soldering tip, round slim, Ø 0,2 mm
Show article
New
LT H
Soldering tip, chisel, Ø 0,8 mm
Show article
New
LT K
Soldering tip, chisel tip long, Ø 1,2 mm
Show article
New
LT 4
Soldering tip, round tip sloped 45°, slim, Ø 1,2 mm
Show article
New
LT A
Soldering tip, chisel, Ø 1,6 mm
Show article
New
LTR A
Soldering tip, Chisel
Show article
New
LT BX
Soldering tip, chisel bent 30°, Ø 2,4 mm
Show article
New
LT ALX
Soldering tip, chisel bent 30°, Ø 1,6 mm
Show article
New
LT BB 60
Soldering tip, round sloped 60°, Ø 2,4 mm
Show article
New
LT CC 60
Soldering tip, round sloped 60°, long, Ø 3,2 mm
Show article
New
LT DLL
Soldering tip, chisel, Ø 4,6 mm
Show article
New
LT Screw-in Tip
LT Screw in tip with M4 outside thread
Show article
New
SMT
Soldering tip for PAD-Cleaning
Show article
New
LT MX
Soldering tip, chisel bent 30°, Ø 3,2 mm
Show article
New
LT DD 45
Soldering tip, round sloped 45°, long, Ø 4,0 mm
Show article
New
LT KN
Soldering tip, knife, Ø 2,0 mm
Show article
New
LT O
Soldering Tip, conical long, Ø 0,8 mm
Show article
New
LT T
Soldering Tip, conical long, Ø 0,6 mm
Show article
New
LT D HPB
Soldering tip, chisel Ø 4,6 mm
Show article
New
LT BB 45
Soldering tip, round sloped 45°, Ø 2,4 mm
Show article
New
LT DD 45
Soldering tip, round sloped 45°, long, Ø 4,6 mm
Show article
New
LT AA 60°
Soldering tip, round sloped 60°, Ø 1,6 mm
Show article
New
LT 1SA
Soldering tip, round slim, Ø 0,5 mm
Show article
New
LT 1A
Soldering tip, round, Ø 0,5 mm
Show article
New
LT 1SC
Soldering tip, chisel, Ø 0,4 mm
Show article
New
LT 1SNW
Soldering tip, round tip slim, chrome, non-wettable, Ø 0,1 mm
Show article
New
LT 1SCNW
Soldering tip, chisel, chromed, Ø 0,3 mm
Show article
New
LT 1LNW
Soldering Tip, conical long, chromed, none wettable, Ø 0, 1 mm
Show article
New
LT BS
Soldering tip, round, Ø 2,0 mm
Show article
New
SMT01
Soldering tip for PAD-Cleaning
Show article
New
SMT02
Soldering Tip for PAD-Cleaning
Show article
New
SMT03
Soldering Tip for PAD-Cleaning
Show article
New
SMT04
Soldering Tip for Chip
Show article
New
LT GW2
Soldering tip, gull wing 45°, Ø 3,5 mm
Show article
New
LT MX2
Soldering tip, chisel bent 30°, Ø 3, 0 mm
Show article
New
LT ASL
Soldering tip, chisel flat, Ø 1,6 mm
Show article
New
LT BSL
Soldering tip, flat chisel, Ø 2,4 mm
Show article
New
LT KNSL 45°
Soldering tip, knife 45°, Ø 2, 0 mm
Show article
New
LT DSL, 4.6X0.45MM
Show article
New
LT CSL, 3.2X0.45MM
Show article
New

Irons/Tweezers

FE 75 Set
Soldering iron FE 75 with safety rest
Show article
New
WSP80 Set
Soldering iron WSP 80 with safety rest
Show article
New
WP80 Set
Soldering iron WP 80 with safety rest
Show article
New
LR 21 Set
Soldering iron LR 21 with safety rest
Show article
New
