WFE
Item No.:
T0053640299N

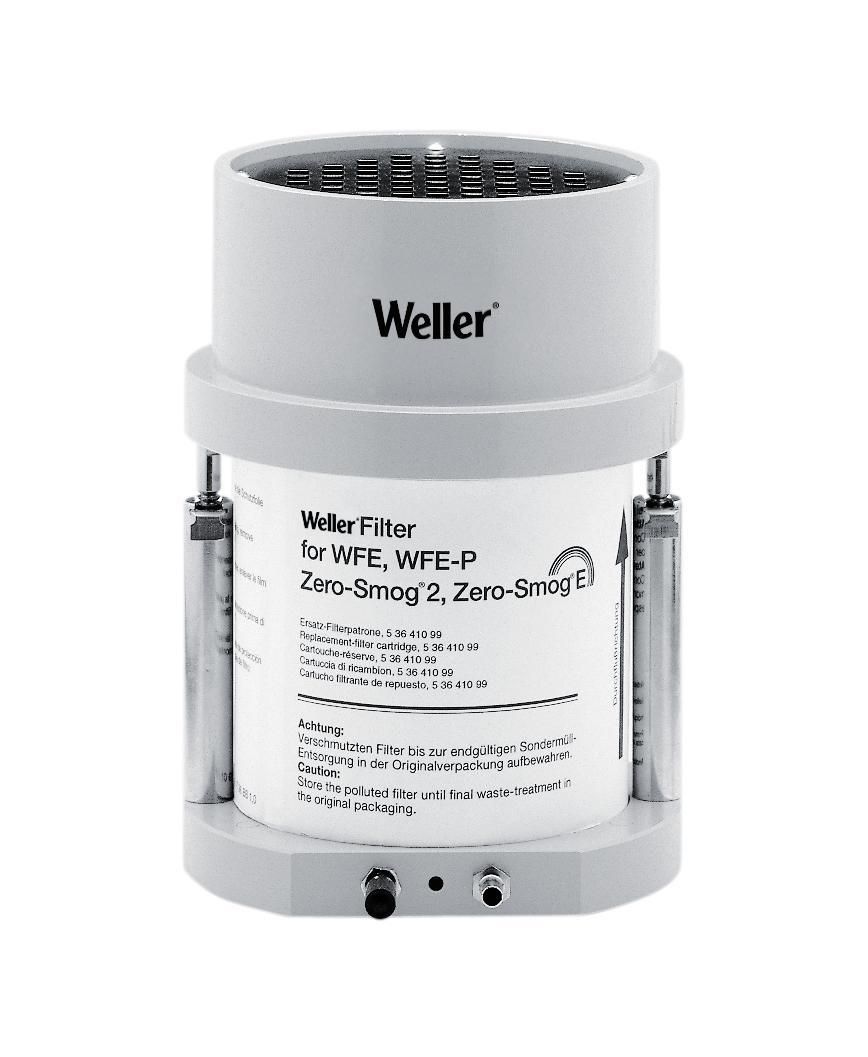

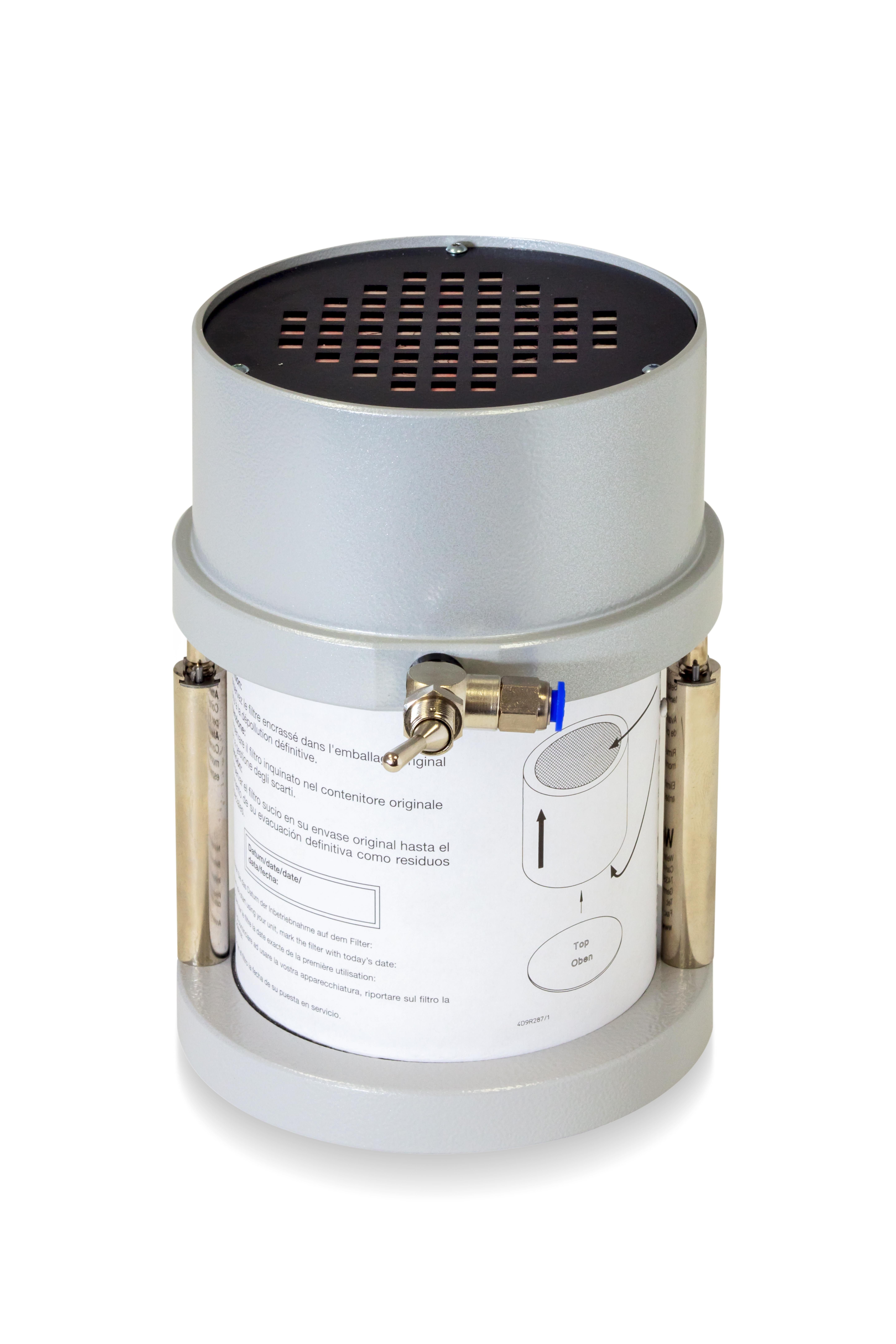

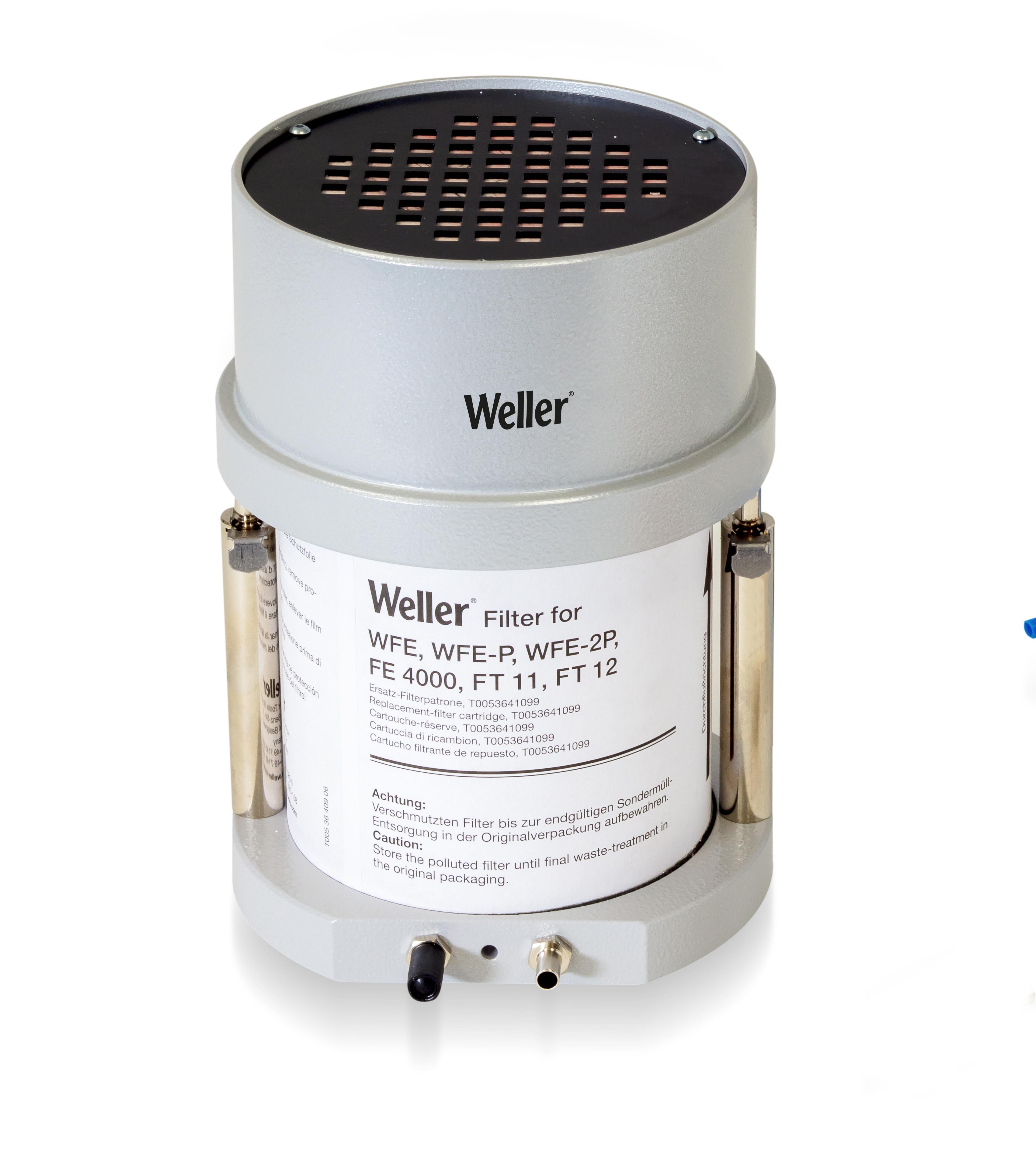

WFE fume extraction unit
Product features
-
Maintenance free compressed air converter
-
For industrial long term use
-

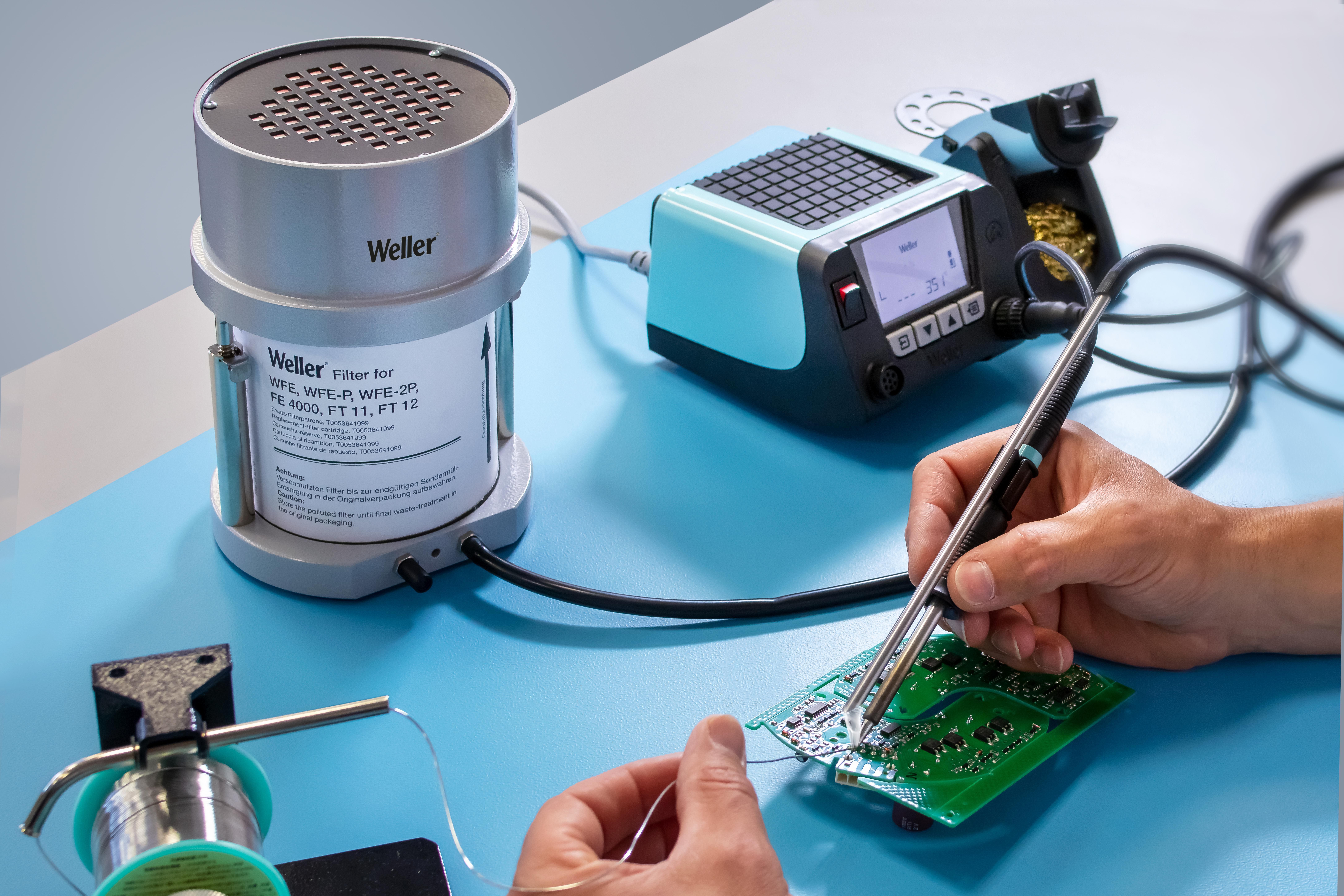

Up to 2 FE soldering irons can be connected
-
High stability against overturning
-
A compressed air cleaning filter removes additional odors caused by the compressed air.
-
For industrial long term use
Downloads
pdf
pdf
(8.32 MB)
Technical data
| Dimensions L x W x H | 140.0 x 140.0 x 200.0mm |
| Air Consumption | 30 l/min |
| Capacity (m³/h) | 30 m³/h |
| Compact Filter | Particle filter H13, broadband gas filter (50% activated carbon + 50% Chemisorb) |
| ESD Safe | Yes |
| Maximum Blower Vacuum (Pa) | 20,000 Pa |
| Maximum Capacity | 2 Workstations |
| Power | 6 Bar |
| UPC | 037103258267 |
| Weight (Catalog) | 2.70 kg |
