Zero Smog TLN

Item No.: ZEROSMOGTLN

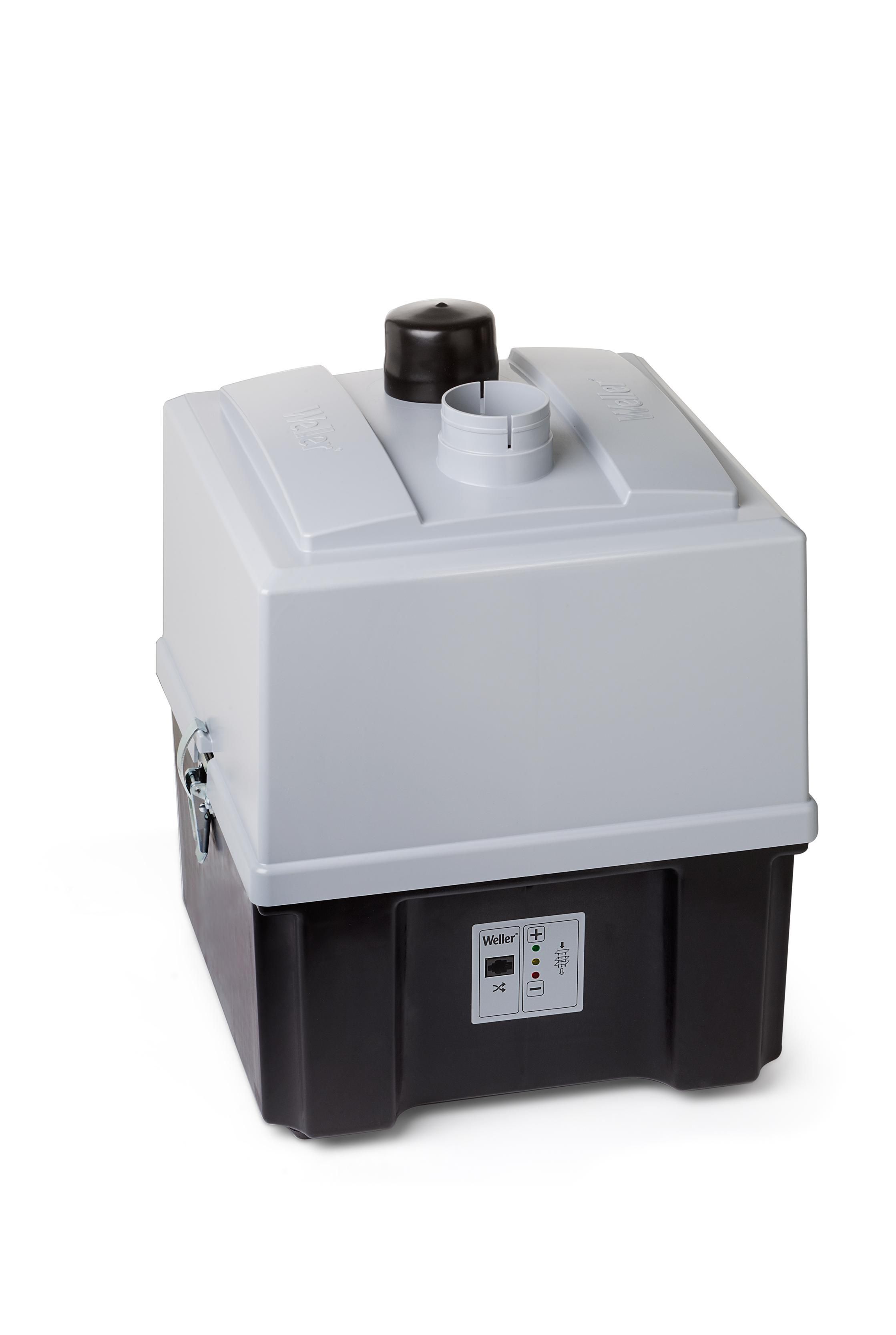

Fume extraction unit Zero Smog TL

Breathe clean air without dangerous fumes and particles. Weller filtration systems are specially designed for continuous use in industrial work environments. The high quality HEPA H13 filters clean the air from hazardous vapors, particles and viruses. Therefore, recirculating the clean air back into the workplace ensuring a safe work environment. The small footprint design fits under the bench to free up the operator workspace.

Breathe clean air without dangerous fumes and particles. Weller filtration systems are specially designed for continuous use in industrial work environments. The high quality HEPA H13 filters clean the air from hazardous vapors, particles and viruses. Therefore, recirculating the clean air back into the workplace ensuring a safe work environment. The small footprint design fits under the bench to free up the operator workspace.

$ 1,050.00

Ex tax.

Dealer Locator

Add to wishlist

Product features

Fume extraction system purifies air up to 2 workplaces, included funnel nozzle for applications where a larger area needs to be covered and the funnel nozzle can be placed directly on the work bench
Equipped with a F7 fine dust pre-filter and a main filter consisting of: HEPA H13 Particle filter and wide band gas filter
(1,8kg granular activated carbon media)
Visual and audible filter-full alarm
1.8kg of granular activated carbon filter media, for effective gas filtration
Quiet operation
Easily operated and easy filter replacement
Variable speed setting
For connection to a WX / WT station a T0058768767 WT Hub is needed
Exceptionally long service life due to maintenance free brushless EC turbine

Show more product features

Downloads

Datasheet

pdf

WEL_ZeroSmog_TL_1T0055710314_web

pdf

(6.02 MB)

Technical data

Dimensions L x W x H	335.0 x 330.0 x 445.0mm
Compact Filter	H13 particulate filter and active carbon particulate filter
Compatible Nozzle	WX WT
Fuse	T1.25A
Maximum Blower Vacuum (Pa)	3,000 Pa
Maximum Capacity	1–2 Workstations
Power	120 W
UPC	037103310408
Weight (Catalog)	9.00 kg
