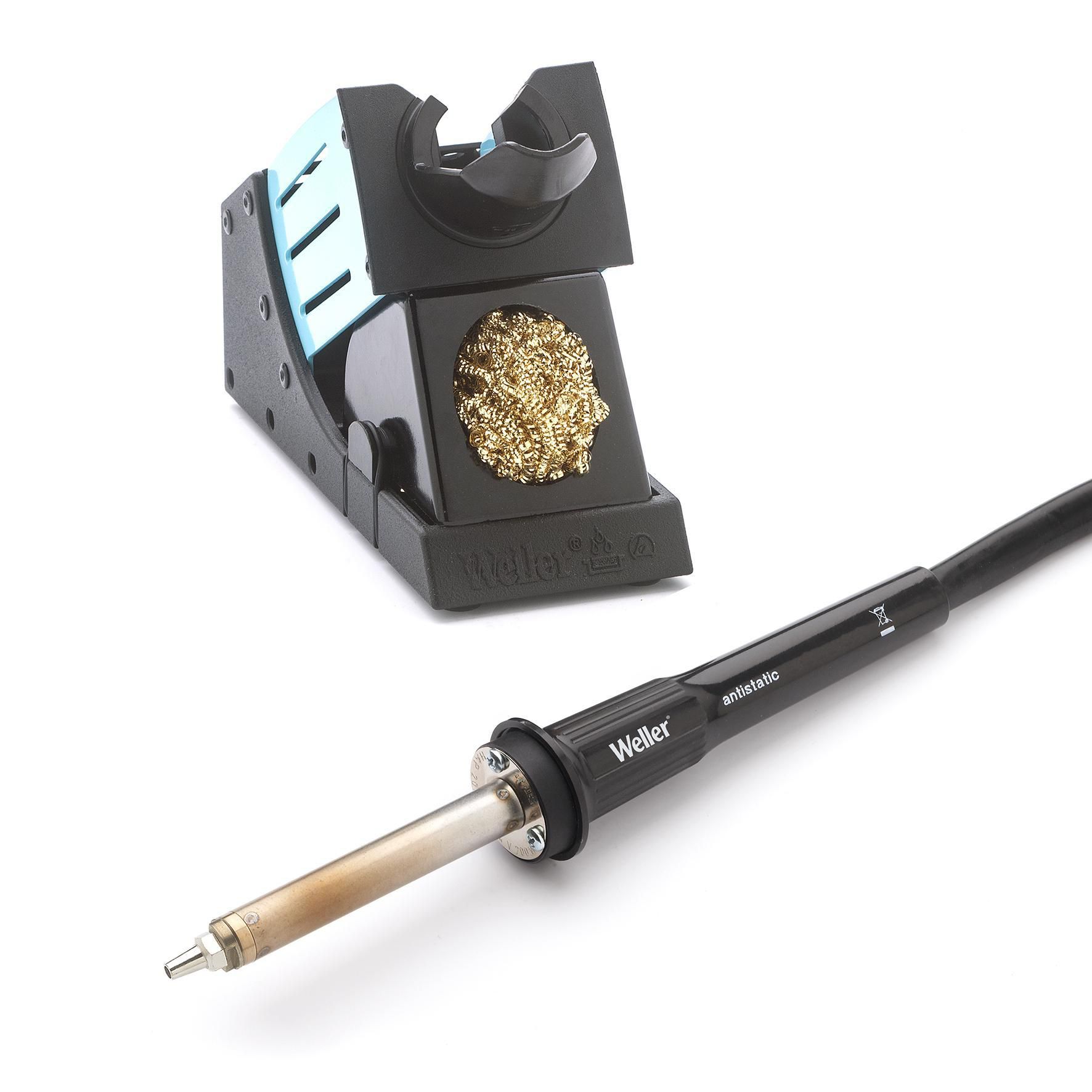

HAP 200 Set

Downloads

Datasheet

pdf

Manuals

HAP 200 Set

Item No.: T0052711799N

Hot air iron set with safety rest

$ 490.00

Ex tax.

Dealer Locater Book a demo

Add to wishlist

Product features

200 W, 24 V
Temperature range from 50 °C - 550 °C
Activated by finger switch
Cannot be used with the WR2 rework systems

Show more product features

Downloads

Datasheet

pdf

Manuals

Technical data

ESD Safe	Yes
Hot Air (picto)	Yes
Maximum Hot Air Flow Rate l/min (Depends on Tool)	15 l/min
Power	200 W
Silver Line Heating Element Technology	Yes
Supply Unit	WR3M WR3ME
Temperature Accuracy °C	± 26 °C
Temperature Accuracy °F	±26.66 °C
Temperature Range (Depends on Tool)	199 - 998°F
Temperature Range °C	93 - 537 °C
Temperature Range °F	199 - 998 °F
Tip Range	F R D Q
Tip Type	F R D & Q Series
UPC	037103304605

Items in the Box

HAP 200

Hot air iron 200 W, 24 V with hot air nozzle R 04 round Ø 1,2 mm

New

R04

R 04 Hot Air Nozzle Round, Ø 1,2 mm, for HAP 1 and HAP 200

New

R06

R06 Round Nozzle for HAP 1 and HAP 200, Ø 3.0 mm

New

Stations/Systems

WR 3M

3-Channel Power Unit, 360 W (400 W)

New

WR3000M

3-Channel Rework Station Set, 360 W (400 W) for horizontal applications

New

Tips/Nozzles

F06

F06 Flat Nozzle for HAP 1 and HAP 200

New

F04

F04 Flat Nozzle for HAP 1 and HAP 200

New

F02

Flat Nozzle

New

FD4

Dual Nozzle, Diameter ø 1, 5 mm, Length C: 10 mm

New

Q02

Hot Air Nozzle, 4 sides heated, Length X:6,0 mm, Width Y:6,5 mm

New

D04

Hot Air Nozzle, Two Sides Heated, with Hot Plate for HAP 1 and HAP 200 Length X:10,5 mm Width Y:10,5 mm

New

Q06

Hot Air Nozzle, Four Sides Heated, with Hot Plate, Length X:15,0 mm, Width Y:10,0 mm

New

D08

D08 Hot Air Nozzle, Two Sides Heated, with Hot Plate for HAP 1 and HAP 200, Length X:15,0 mm, Width Y:10,0 mm

New

D06

D06 Hot Air Nozzle, Two Sides Heated, with Hot Plate for HAP 1 and HAP 200, Length X:13,0 mm, Width Y:10,0 mm

New

Q08

Hot Air Nozzle, Four Sides Heated, with Hot Pate, Length X:12,5 mm, Width Y:15,0 mm

New

D10

D10 Hot Air Nozzle, Two Sides Heated, with Hot Plate, Length X:18,0 mm, Width Y:10,0 mm

New

Q10

Q10 Hot Air Nozzle, Four Sides Heated, with Hot Plate for HAP 1 and HAP 200, Length X:18,0 mm, Width Y:18,0 mm

New

R08

Round Nozzle Long, Bent, Diameter ø 2, 0 mm, Length C:50 mm

New

R10

Round nozzle long, Diameter ø 2, 0 mm, Length C:50 mm

New

R04

R 04 Hot Air Nozzle Round, Ø 1,2 mm, for HAP 1 and HAP 200

New

R06

R06 Round Nozzle for HAP 1 and HAP 200, Ø 3.0 mm

New

R02

Round Nozzle ø 0,8 mm

New

FD2

Dual Nozzle, Diameter ø 1,5 mm, Length C: 8 mm

New
