WR3M
Item No.:
WR3MN

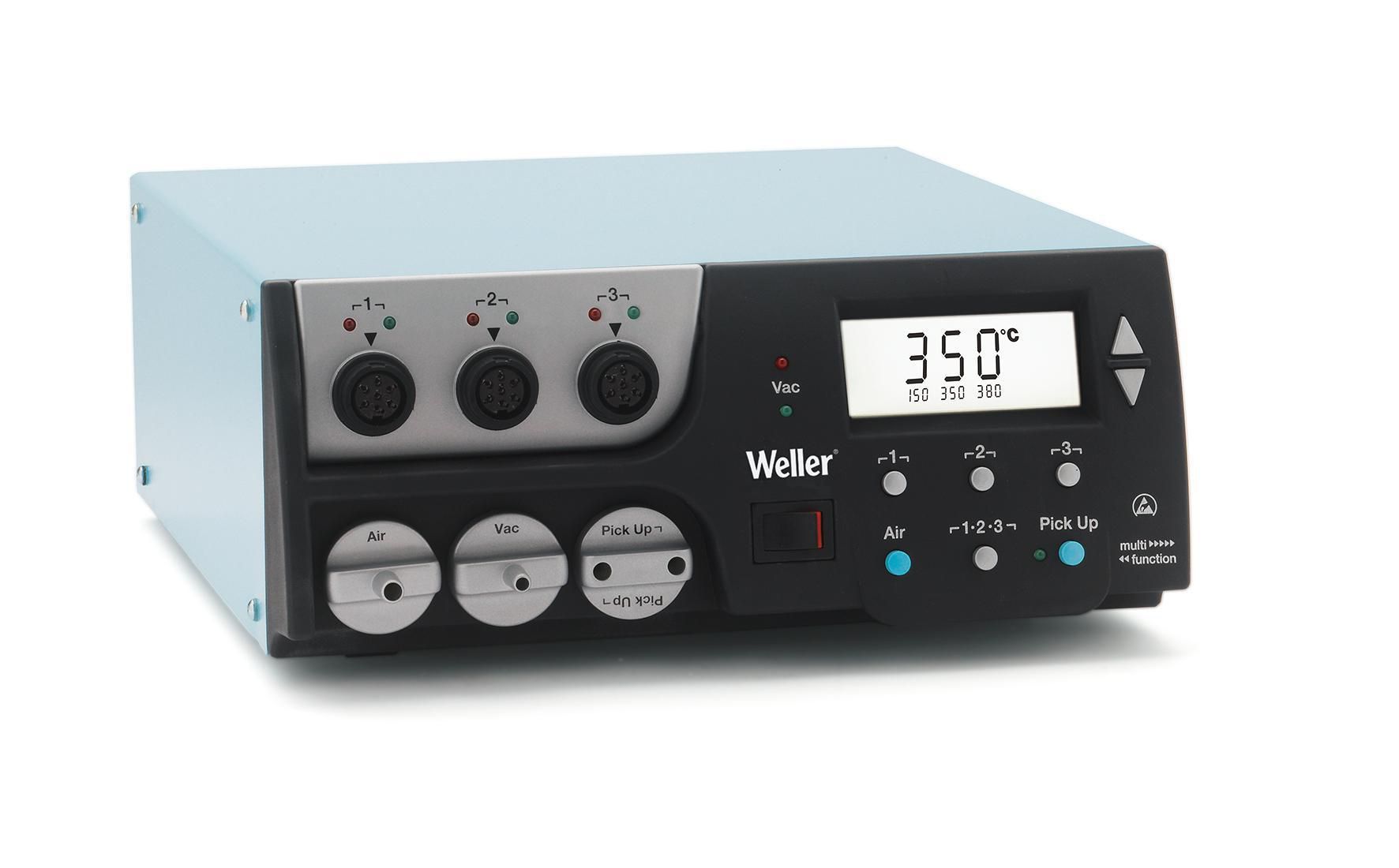

3-Channel Power Unit, 360 W (400 W)
Product features
-
Simoultaneous operation of up to 3 soldering tools
Downloads
pdf
Technical data
Dimensions L x W x H | 280.0 x 240.0 x 103.0mm |
Automatic Tool Identification | Yes |
Capacity (l/min) | 18 l/min |
Desoldering | Yes |
Equipotential Bonding | Yes |
Equipotential Bonding Socket | Via 3.5mm Pawl Socket on Back of Device (Hard-Grounded) |
ESD Safe | Yes |
Hot Air (picto) | Yes |
Interface | USB |
IPC Compliant | (Tip to Ground) Corresponds to IPC-J-001 |
Maximum Hot Air Flow Rate l/min (Depends on Tool) | 15 l/min |
Noise level (distance 1 m) dB(A) | 0.7 bar |
Number of Channels | 3 |
Overcurrent Release | 2.0 A |
Power | 360 W (400 W) |
Temperature Accuracy °C | ± 9 °C |
Temperature Accuracy °F | ±17 °F |
Temperature Range (Depends on Tool) | 93 - 454°C (200 - 850 °F) |
Temperature Range °C | 93 - 454 °C |
Temperature Range °F | 200 - 850 °F |
Temperature Stability °C | ±2 °C |
Temperature Stability °F | ±4 °F |
Tip Type | WT |
UPC | 037103303943 |
Vacuum | 0.7 bar (79 kPA) (8 psi) |
Voltage | 120 V |
Weight (Catalog) | 7.30 kg |
