WR3M 120V
Downloads
pdf
WR3M 120V
Item No.:
WR3MN

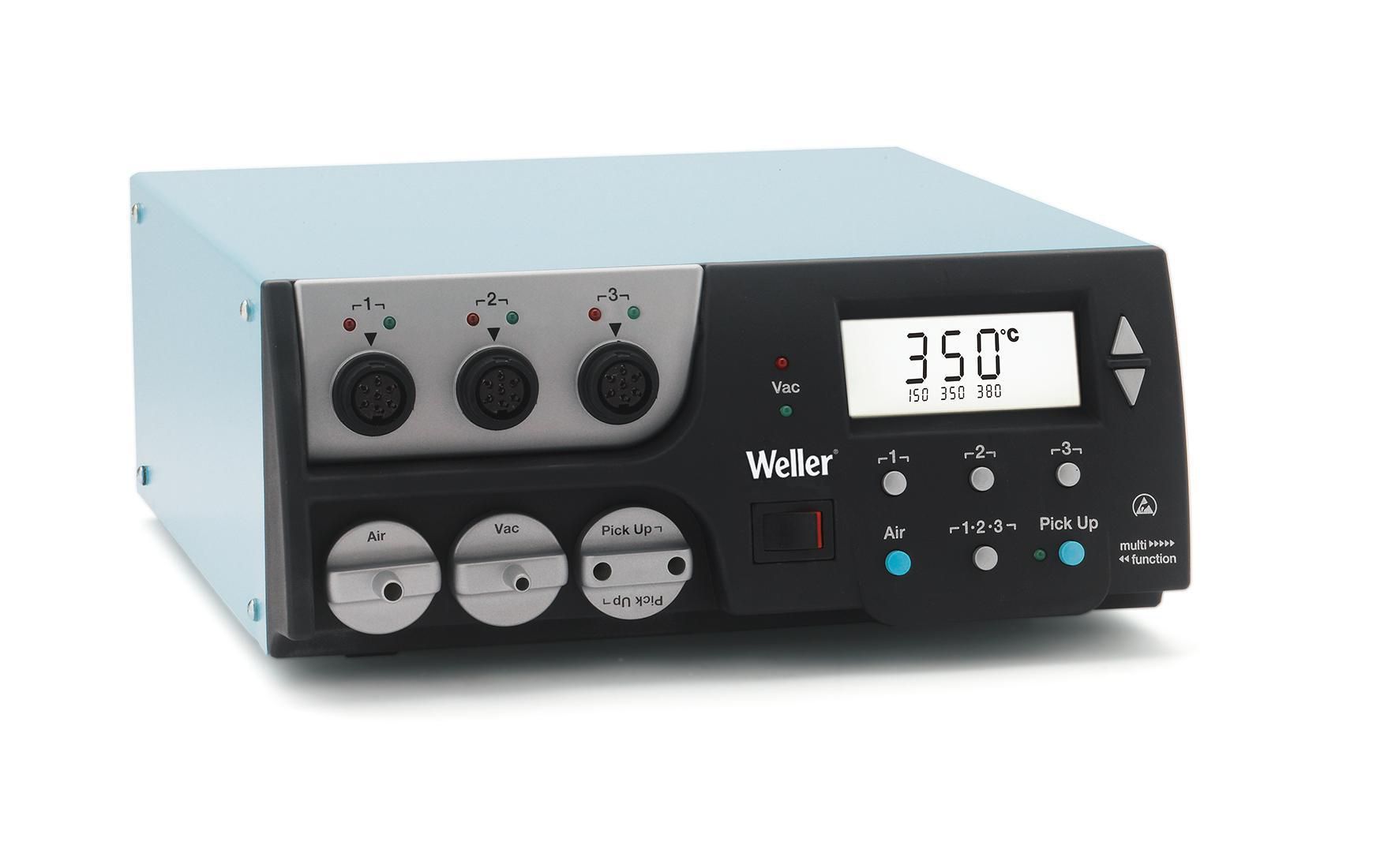

3-Channel Power Unit, 360 W (400 W)
Product features
-
Simoultaneous operation of up to 3 soldering tools
Downloads
pdf
Technical data
| Length | 11 in |
| Dimensions L x W x H | 280.0 x 240.0 x 103.0mm |
| Automatic Tool Identification | Yes |
| Capacity (l/min) | 18 l/min |
| Desoldering | Yes |
| Equipotential Bonding | Yes |
| Equipotential Bonding Socket | Via 3.5mm pawl socket on back of device (hard-grounded) |
| ESD Safe | Yes |
| Hot Air (picto) | Yes |
| Interface | USB |
| IPC Compliant | (Tip to Ground) Corresponds to IPC-J-001 |
| Maximum Hot Air Flow Rate l/min (Depends on Tool) | 15 l/min |
| Noise level (distance 1 m) dB(A) | 0.7 bar |
| Number of Channels | 3 |
| Overcurrent Release | 2.0 A |
| Power | 360 W (400 W) |
| Temperature Accuracy °C | ± 9°C |
| Temperature Accuracy °F | ± 17°F |
| Temperature Range (Depends on Tool) | 93 - 454°C (200 - 850 °F) |
| Temperature Range °C | 93 - 454 °C |
| Temperature Range °F | 200 - 850 °F |
| Temperature Stability °C | ± 2°C |
| Temperature Stability °F | ± 4°F |
| Tip Type | WT |
| UPC | 037103303943 |
| Vacuum | 0.7 bar (79 kPA) (8 psi) |
| Voltage | 120V |
| Weight (Catalog) | 7.30 kg |
| Product Family | Rework, Hot Air, Desoldering Stations |
