WXA2

Name: WXA2
Brand: Weller Tools
SKU: WXA2
Price: 1400 USD

Downloads

Datasheet

pdf

Manuals

Item No.: WXA2

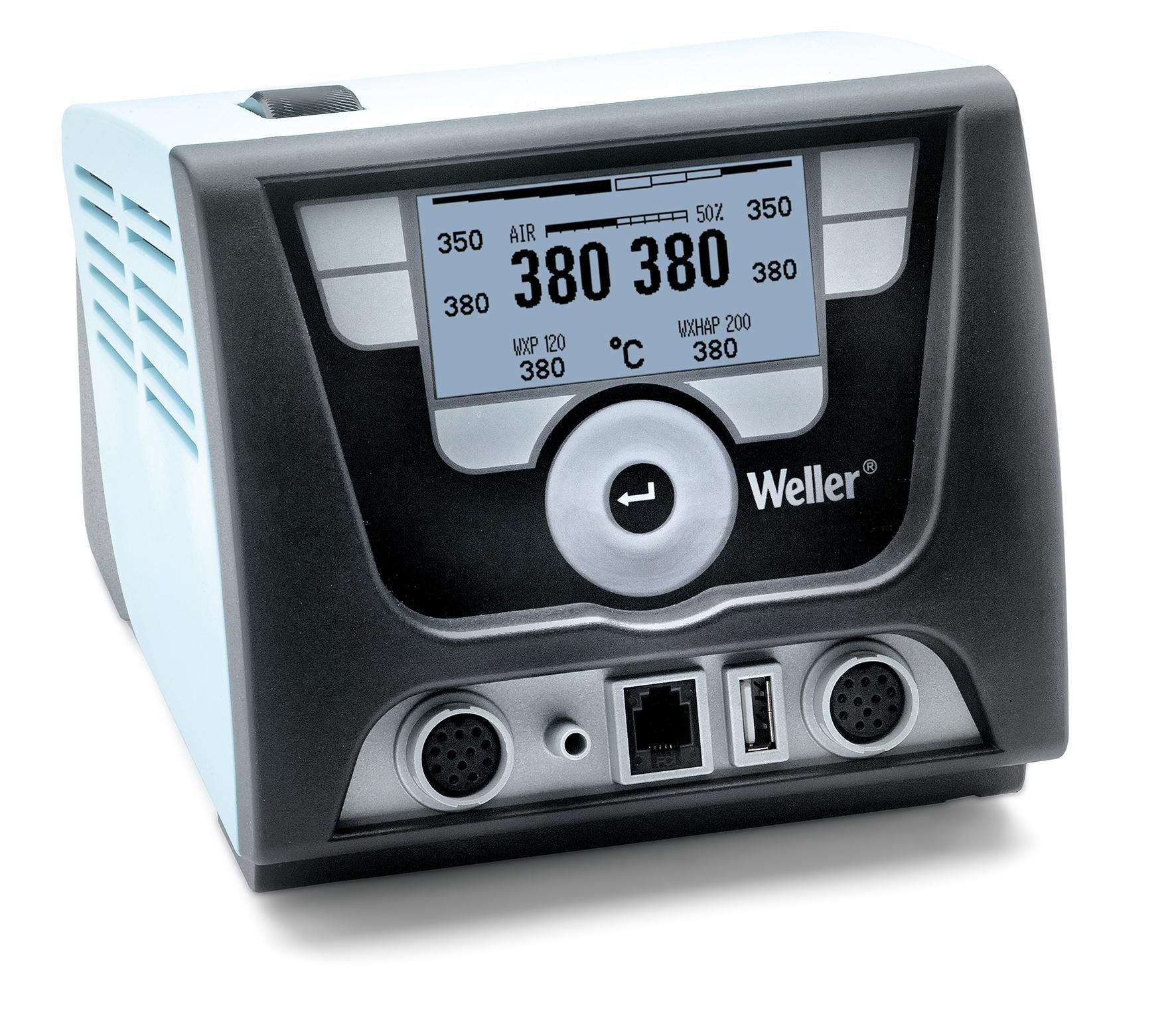

2-Channel Power Unit, 200 W (255 W)

$ 1,400.00

Ex tax.

Dealer Locator

Product features

For operation with external compressed air
Compatible with all WX series tools
When using WXHAP200 hot air pen, only WXMP-MS or WXMP series tools can be used at the same time
Benchtop controller for WHP1000/WHP3000 heating plates
Benchtop controller for use as Zero Smog 4V/6V filter unit
Air flow: 0 - 20 l/min
Required compressed air supply: 400 - 600 kPA (58 - 87 psi); oil-free, dry compressed air

Downloads

Datasheet

pdf

Manuals

Technical data

Dimensions L x W x H	174.0 x 154.0 x 135.0mm
Air Consumption	20 l/min
Automatic Tool Identification	Yes
Benchtop Controller	Yes
Capacity (l/min)	20 l/min
Compressed Air Connection (Outer Diameter)	6.0mm
Compressed Air Connection Accessory	Oil free, dry compressed air
Equipotential Bonding	Yes
Equipotential Bonding Socket	Via 3.5mm Pawl Socket on Back of Device
ESD Safe	Yes
Fuse	T2A
Hot Air (picto)	Yes
Interface	1x USB, 2x RS232, 1x Switching Output
Maximum Hot Air Flow Rate l/min (Depends on Tool)	15 l/min
Multilingual Display	Yes
Number of Channels	2
Operating Pressure	4 - 6 bar 54 - 87 psi
Power	200 W (255 W)
Temperature Accuracy °C	± 9 °C
Temperature Accuracy °F	± 17 °F
Temperature Accuracy for Hot Air	± 30 °C
Temperature Range (Depends on Tool)	Adjustable from 100°C - 550°C (200°F - 999°F) Adjustable temperature range varies among tools
Temperature Range °C	93 - 537 °C
Temperature Range °F	199 - 998 °F
Temperature Stability °C	±2 °C
Temperature Stability °F	±4 °F
Tip Type	WX

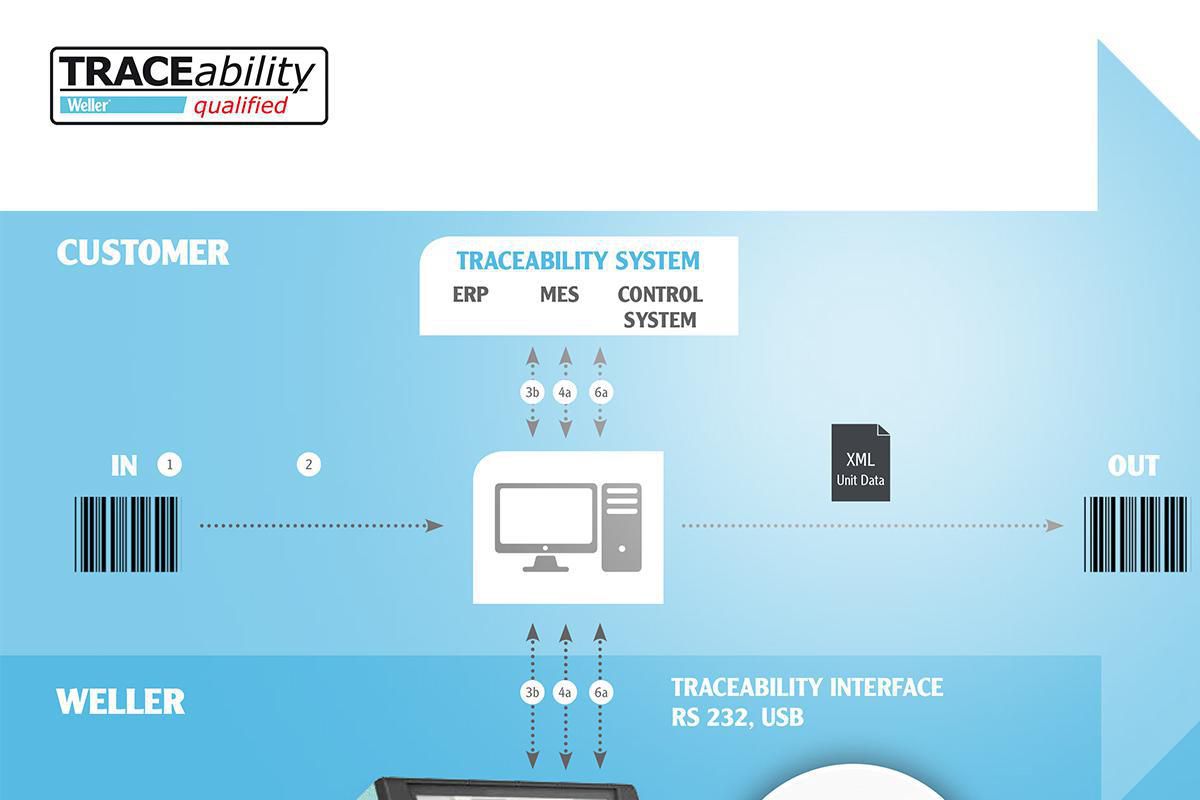

Traceability	Yes
UPC	037103312389
USB	USB interface of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types
Vacuum	0.6 bar (60 kPA) (8.7 psi)
Voltage	120 V
Weight (Catalog)	8.81 lb
