Zero Smog EL 120V

Downloads

Datasheet

pdf

WEL_ZeroSmog_EL_T0055740802_web

pdf

(3.69 MB)

Zero Smog EL 120V

Item No.: ZEROSMOGELN

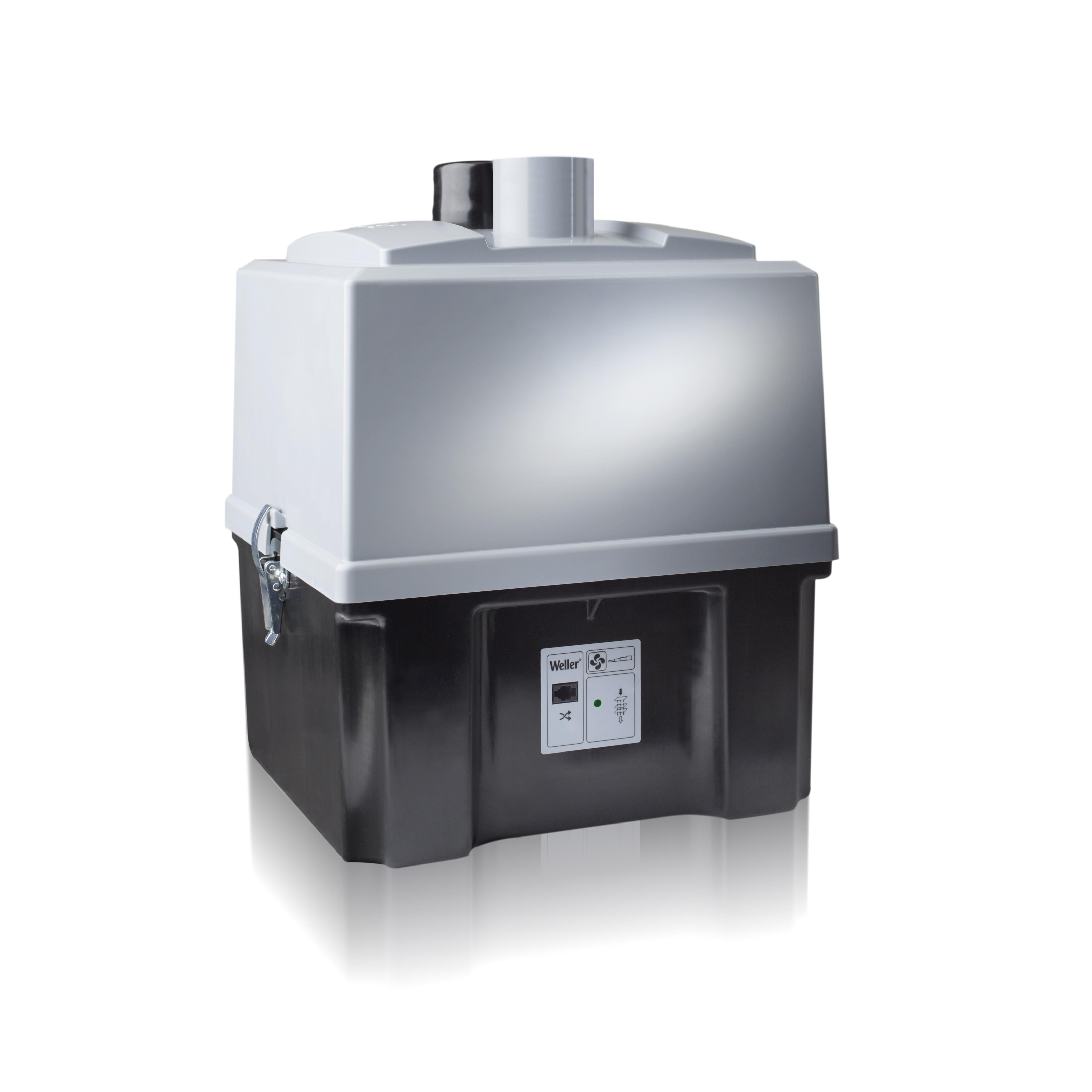

Zero Smog EL fume extraction unit

Breathe clean air without dangerous fumes and particles. Weller filtration systems are specially designed for continuous use in industrial work environments. The high quality HEPA H13 filters clean the air from hazardous vapors, particles and viruses. Therefore, recirculating the clean air back into the workplace ensuring a safe work environment. The small footprint design fits under the bench to free up the operator workspace. At only 53db or below, Weller Zero Smog filtration units keep the workplace quiet.

Breathe clean air without dangerous fumes and particles. Weller filtration systems are specially designed for continuous use in industrial work environments. The high quality HEPA H13 filters clean the air from hazardous vapors, particles and viruses. Therefore, recirculating the clean air back into the workplace ensuring a safe work environment. The small footprint design fits under the bench to free up the operator workspace. At only 53db or below, Weller Zero Smog filtration units keep the workplace quiet.

$ 745.00

Ex tax.

Dealer Locater Book a demo

Add to wishlist

Product features

Economical Fume extraction unit for 1 to 2 workplaces
Equipped with a F7 fine dust pre-filter and a main filter consisting of: HEPA H13 Particle filter and wide band gas filter
(1,8kg granular activated carbon media)
Visual and audible filter-full alarm
1.8kg of granular activated carbon filter media, for effective gas filtration
Quiet operation
Easily operated and easy filter replacement
4-speed setting and power regulation
Portable fume extraction unit, for placement under or next to the bench
Exceptionally long service life due to maintenance free brushless EC turbine

Show more product features

Downloads

Datasheet

pdf

WEL_ZeroSmog_EL_T0055740802_web

pdf

(3.69 MB)

Technical data

Dimensions L x W x H	335.0 x 360.0 x 445.0mm
Compact Filter	Particulate filter H13 and granular activated carbon filter
Fuse	1.25A
Maximum Blower Vacuum (Pa)	2,500 Pa
Maximum Capacity	1–2 Workstations
Power	120 VA 110W
UPC	037103310989

Supply Unit

Kit 1 EA FN

KIT 1 Extraction arm (Ø 60 mm, length 1,5 m) with an ALFA funnel nozzle and a fixing clamp

New

Zero SmogELKIT1

Fume extraction system with flexible arm and funnel nozzle

New

Accessory

Easy-Click 60 Suction Hose 3m

Easy-Click 60 Extraction hose Ø 60 mm, length: 3 meter

New

Easy Click 60 WFV Shut-off Valve

Easy-Click 60 Stop valve for table connection of and flex arm and extraction hose including air flow valve and 2 bench mounting brackets.

New

WF 32 Extraction Arm

WF 32 ESD microscope extraction arm

New

Beveled Jet for 32.0mm Flex-Arm

Metal sloped nozzle for 32 mm flexible arms

New

ALFA Funnel Jet

Easy-Click 60 Funnel nozzle

New

FT-NL Oblique Jet

Easy-Click 60 metal nozzle Ø 60 mm, length 130 mm.

New

Easy-Click 60 Extraction Arm Ø 60.0mm Length 0.7m

Easy-Click 60 flexible Extraction arm, Ø 60 mm for sloped and funnel nozzles, length 0,7 m, with connectors.

New

Easy-Click 60 2 Joint Extraction Arm

Easy-Click 60 2 joint aluminum extraction arm with valve and ball joint bracket

New

1 Joint Extraction Arm

Easy-Click 60 1 joint aluminum extraction arm with valve and bench mounting brackets

New

Mounting Clamp

Fixing clamp Ø 63 mm, 1 piece, for fixing Easy-Click 60, 60 mm extraction arms

New

Tripod-Extension

Easy-Click 60 1 joint extraction tripod

New

Extraction Arm with Bullet Joint

Easy-Click 60 ball joint aluminum extraction arm with valve and ball joint bracket

New

1 Joint Double-Extraction Arm

Easy-Click 60 1 joint double aluminum extraction arm with valve and bench mounting brackets

New

Rotatable Extensions Joint

Easy-Click 60 extension joint rotating

New

Rotatable Extension Joint with P-Jet

Easy-Click 60 extension rotating joint

New

1 Joint Extraction Arm to the Wall Mount

Easy-Click 60 1 joint aluminum extraction arm with valve

New

Easy-Click 60, More Flexible Extraction Arm 32.0mm Length 0.5m

Easy-Click 60 Flexible Extraction Arm, Ø 32 mm, length 0,5 m

New

Easy-Click 60 More Flexible Extraction Arm Ø 32.0mm Length 0.7m

Easy-Click 60 Flexible Extraction Arm, Ø 32 mm, length 0,7 Meter

New

Easy Click 60 More Flexible Extraction Arm 32.0mm Length 1.5m

Easy- Click 60 Flexible Extraction Arm, Ø 32 mm, length 1,5 m

New

Easy-Click 60 Extraction Arm Ø 60.0mm Length 0.5m

Easy-Click 60 Flexible Extraction arm, Ø 60 mm for sloped and funnel nozzles, length 0,5 m, with connectors.

New

Easy-Click 60 Extraction Arm Ø 60.0mm Length 1.0m

Easy-Click 60 flexible Extraction arm, Ø 60 mm for sloped and funnel nozzles, length 1 m

New

Easy-Click 60 Extraction Arm Ø 60.0mm Length 1.5m

Extraction arm, flexible, Ø 60 mm for sloped and funnel nozzles, length 1,5 m

New

ALFA-T Funnel Jet, Transparent

Easy-Click 60 Funnel nozzle transparent

New

FT-NS Oblique Jet

Easy-Click 60 sloped metal nozzle for with grid Ø 50 mm, length 130 mm.

New

P-Oblique Jet

Metal tube nozzle sloped for aluminum arms, Ø 50 mm

New

FT-U Jet

Easy-Click 60 Funnel nozzle, for flexible and stativ extraction arms

New

Exhaust Hood

Exhaust hood, metal

New

Easy-Click 60 Intake Manifold Straight

Easy-Click 60 Hose connector, straight for WFE 2S / WFE 4S, Zero Smog 4V / Zero Smog 6V and pre filter box

New

Easy-Click 60 Intake Manifold 90°

Easy-Click 60 Hose connector, angle 90° for WFE 2S / WFE 4S, Zero Smog 4V / Zero Smog 6V and pre filter box

New

Easy-Click 60 Suction Hose 1m

Easy-Click 60 Extraction hose Ø 60 mm length: 1 meter

New

Easy-Click 60 Suction Hose 2m

Easy-Click 60 Extraction hose Ø 60 mm, length: 2 meter

New

Easy-Click 60 Suction Hose 5m

Easy-Click 60 Extraction hose Ø 60 mm length: 5 meter

New

Easy-Click 60 Double Plug Connection (Male)

Easy-Click 60 Male adapter for hose extension, Ø 60 mm

New

Easy Click 60 Adapter

Easy-Click 60 Female adapter for installation of e.g. stop valves on fume extraction units

New

Suction Hose 60, Sold by the Meter

Extension hose, heavy construction, sold by meter (max. length 15 m)

New

Hose Connection 60.0mm

Hose connection female 60 mm for flexible hose T005 87 620 36

New

Easy Click 60 End Cap

Easy Click 60 End Cap, 60 mm connection

New

Adapter 40/60

40/60 Adapter for Easy-Click 60 Extraction arms on Ø 50 mm WFEMP50 power socket.

New

50/60 Adapter with Silicone O-Ring

Hose adapter with Silicon Ring Ø 50 mm for Zero Smog 4V, Zero Smog 6V, Zero Smog EL, Zero Smog TL, WFE 2ES, WFE 2CS, WFE 2S, WFE 2S, MG or MP fume extraction units, for connection of Easy-Click 60 mm extraction hose.

New

Items in the Box

Fine Dust Filter M5 WFE 2ES/CS, Zero Smog 2

Fine dust filter M5 for WFE 2ES/CS, Zero Smog 2, Zero Smog EL

New

Compact Filter Particle Filter H13 and Activated Carbon Granules-Filter with 10 Pre-Filter M5 for Zero Smog 2, Zero Smog EL, WFE 2ES / CS

Compact filter: particle filter H13 and granular activated carbon filter with 10 pre-filters M5 for Zero Smog 2, Zero Smog EL, WFE 2ES / CS

New

ZSRS

ZSRS Zero Smog Remote Switch

New

Kit 1 EA FN

KIT 1 Extraction arm (Ø 60 mm, length 1,5 m) with an ALFA funnel nozzle and a fixing clamp

New
