WE1010 Education Kit 120V
Item No.:
WE1010EDU
WE 1010 Education Kit, 120 V
Product features
-

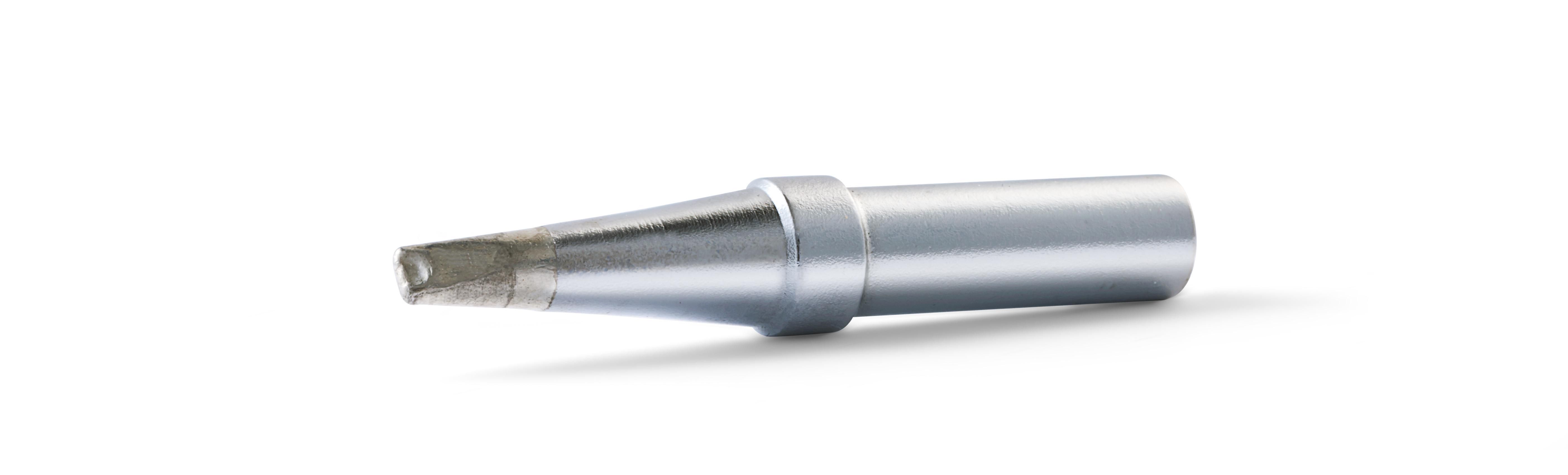

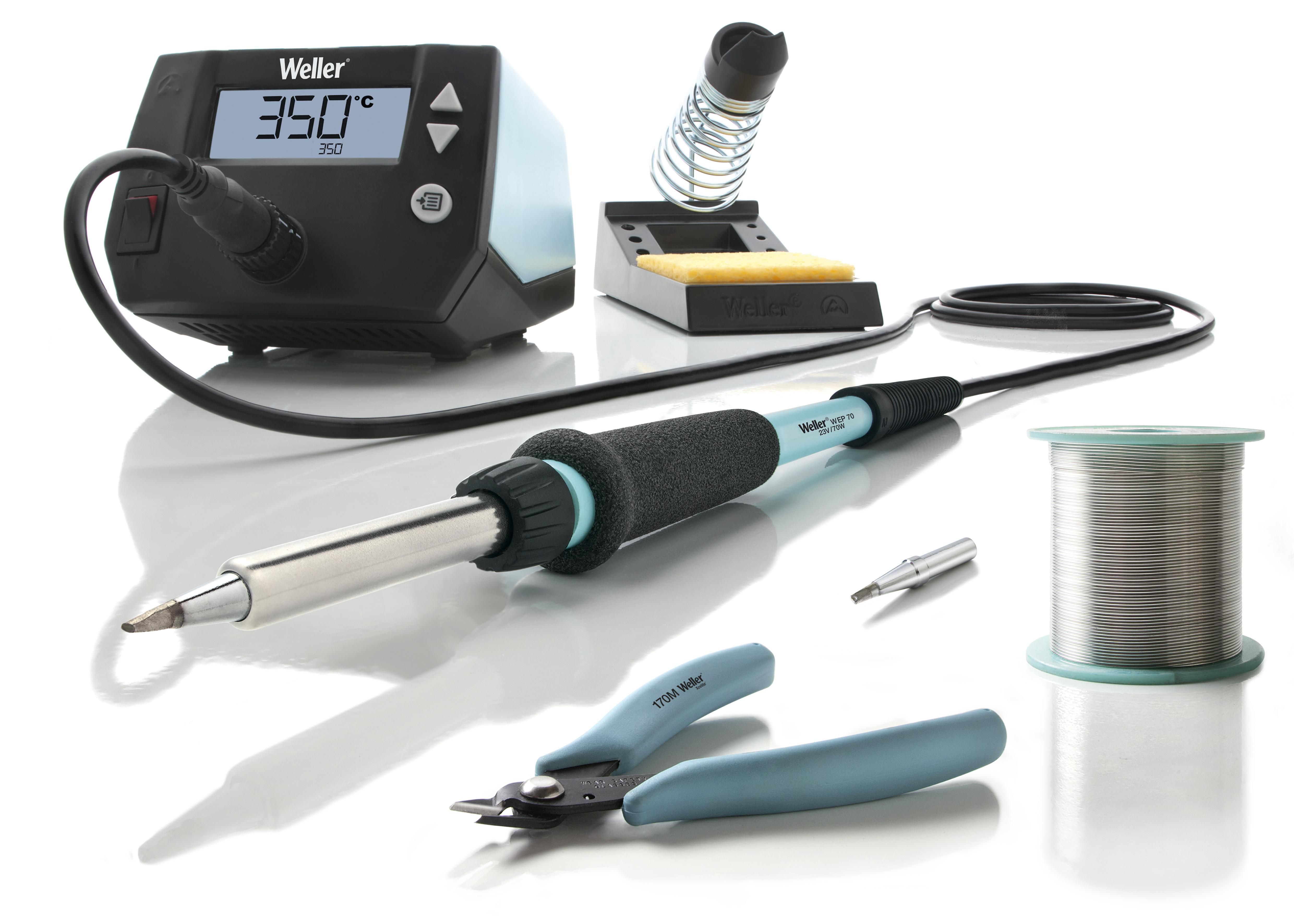

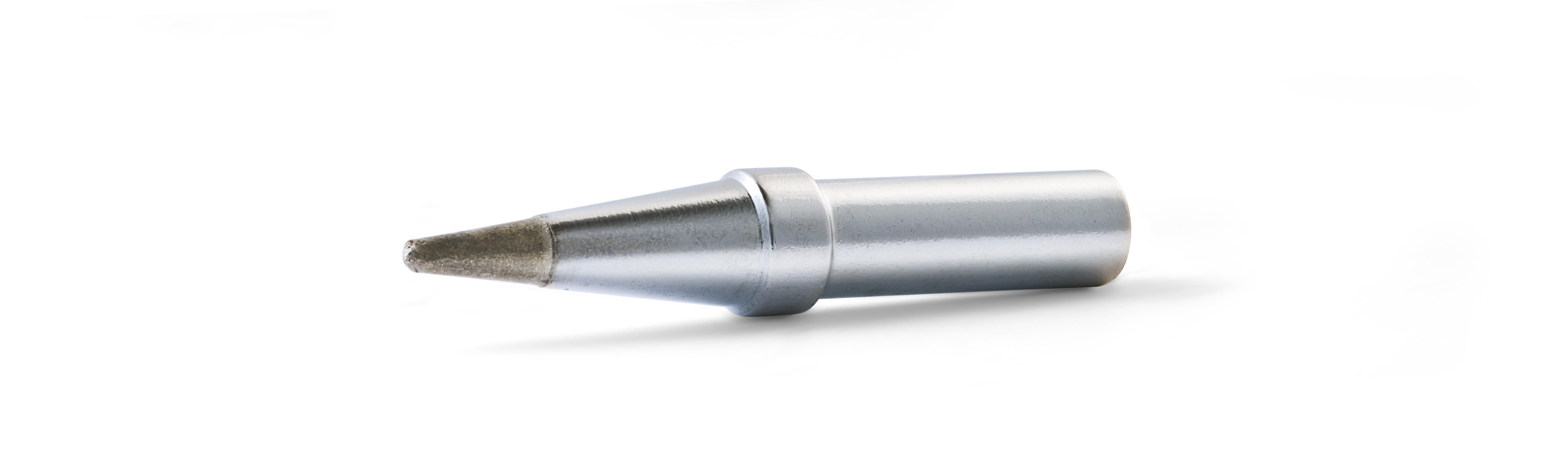

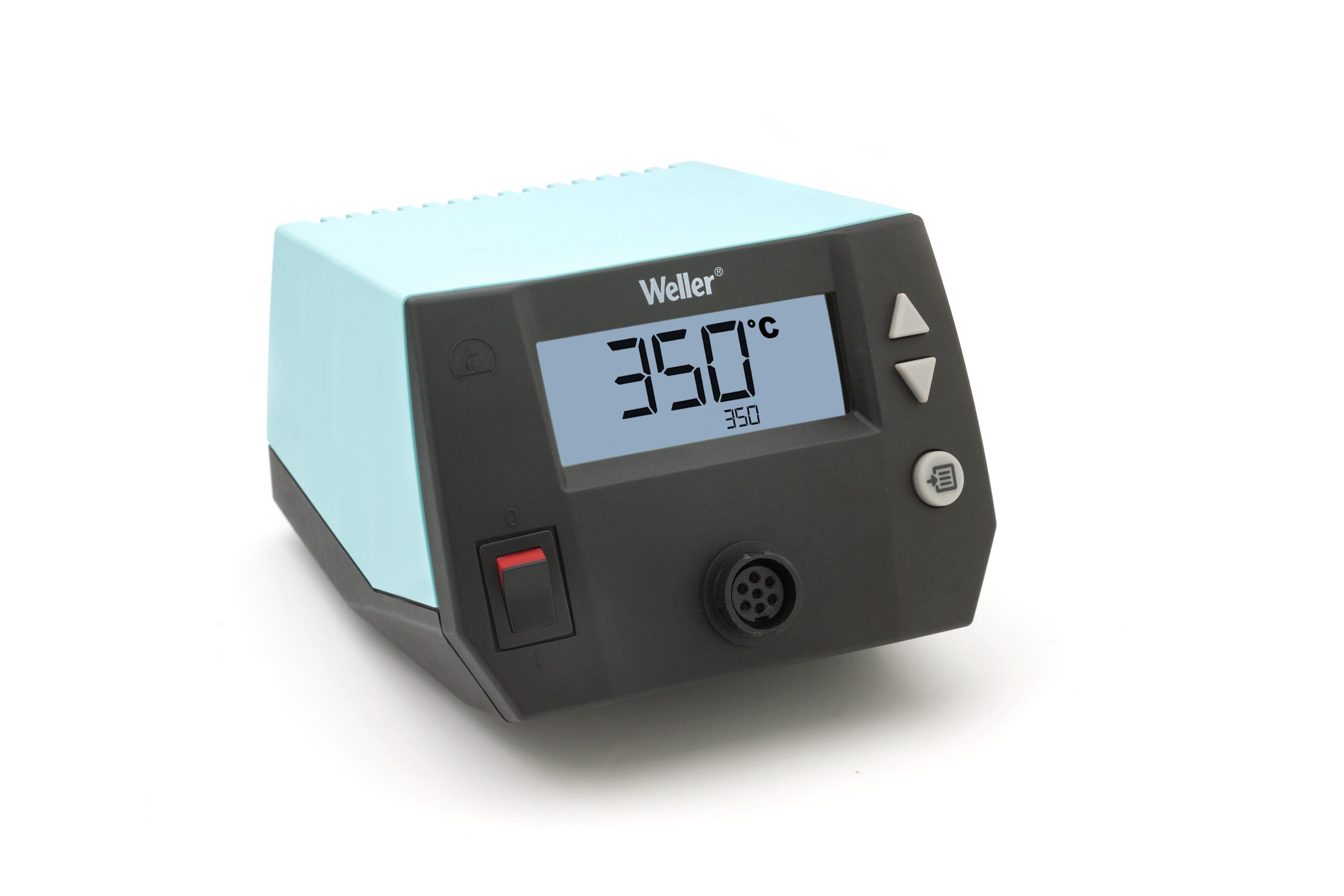

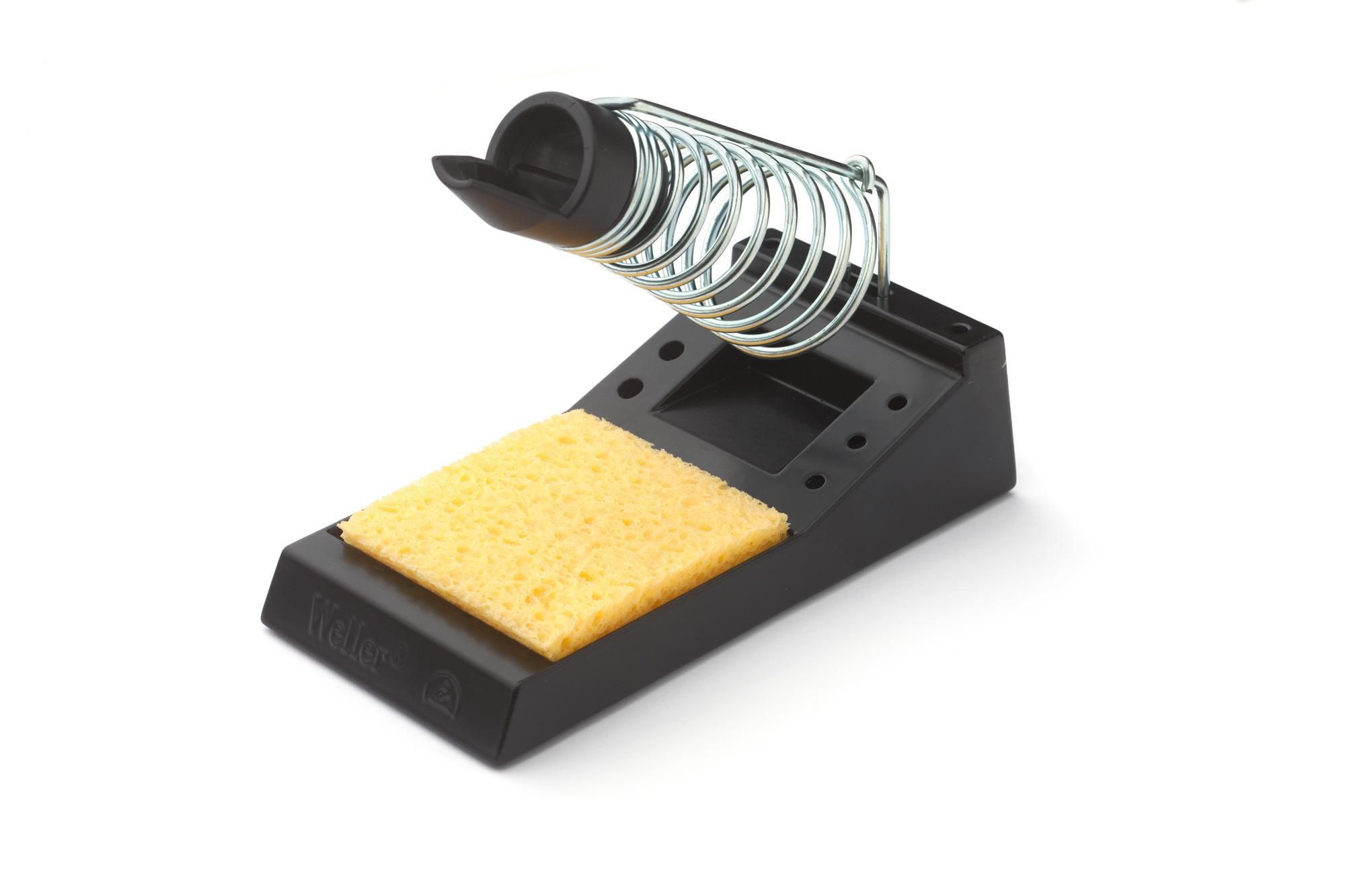

Power unit, 1 channel 70 W with soldering iron WEP 70 and safety rest PH 70; Shearcutter 170mn; WSW SCN M1 Solder Wire 100 g; Soldering Tips ETA 1.6 mm; ETB 2.4 mm
-
70W solder iron with ergonomic handle and providing toolless tip change
-
ESD safe station, iron and heat-resistant silicon cable for safe handling
-
Using ET soldering tips
-
Standby mode and auto setback conserves energy, protects equipment
-
Password-protected to preserve settings
-
170MN general purpose shearcutter, diagonal, flush. Greatly reduced mechanical shock delivered to the component, ESD safe
-

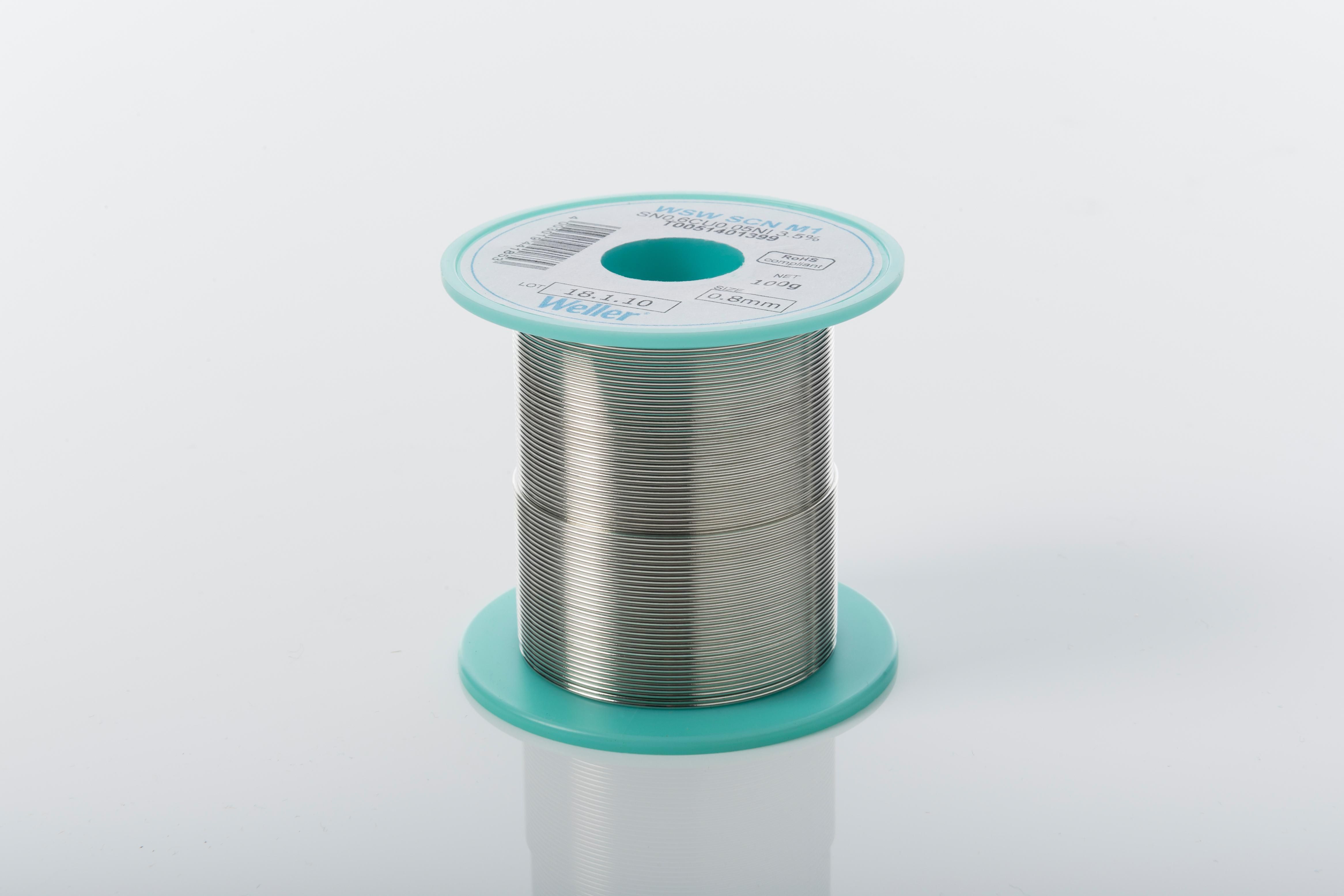

WSW solder wire; all purpose solder wire with excellent wetting properties
Downloads
pdf
pdf
(6.22 MB)
Technical data
Dimensions L x W x H | 150.0 x 120.0 x 98.0mm |
Approximate Heating Time (50–350 °C/120–660 °F) | 28 sec |
Number of Channels | 1 |
Power | 85 W |
Temperature Accuracy °C | ± 5 °C |
Temperature Accuracy °F | ±9 °F |
Temperature Range °C | 100 - 450 °C |
Temperature Range °F | 200 - 850 °F |
Temperature Stability °C | ±6 °C |
Temperature Stability °F | ±10 °F |
Tip Type | ET |
UPC | 037103328748 |
Weight (Catalog) | 1.40 kg |
