WX2021
WX2021
Item No.:
WX2021N
2-Channel Soldering Station, 200 W (255 W)
Product features
-
High Powered Digital Soldering Stations WX 2
-
Capacitive glass touch screen is chemical and temperature resistant
-
Turn and click wheel with enter key and finger guide is intuitive to use
-
Multi-language menu navigation
-
Large graphic LCD display can be viewed from all angles
-
Acts as a benchtop controller for the WHP1000 / WHP3000 hot plates
-
Acts as a benchtop controller for the Zero Smog 4V / 6V Filtration units
-
Multi-purpose USB port for parameter configuration and data logging
-
Compatible with all WX series soldering pencils
Technical data
Dimensions L x W x H | 174.0 x 154.0 x 135.0mm |
Automatic Tool Identification | Yes |
Benchtop Controller | Yes |
Equipotential Bonding Socket | Via 3.5mm Pawl Socket on Back of Device |
ESD Safe | Yes |
Fuse | T2A |
Interface | 1x USB, 2x RS232, 1x Switching Output |
Multilingual Display | Yes |
Number of Channels | 2 |
Power | 200 W (255 W) |
Temperature Accuracy °C | ± 9 °C |
Temperature Accuracy °F | ±9 °C |
Temperature Range (Depends on Tool) | 199 - 998°F |
Temperature Range °C | 93 - 537 °C |
Temperature Range °F | 199 - 998 °F |
Temperature Stability °C | ±2 °C |
Temperature Stability °F | ±2 °C |
Tip Type | RT3MS WX |

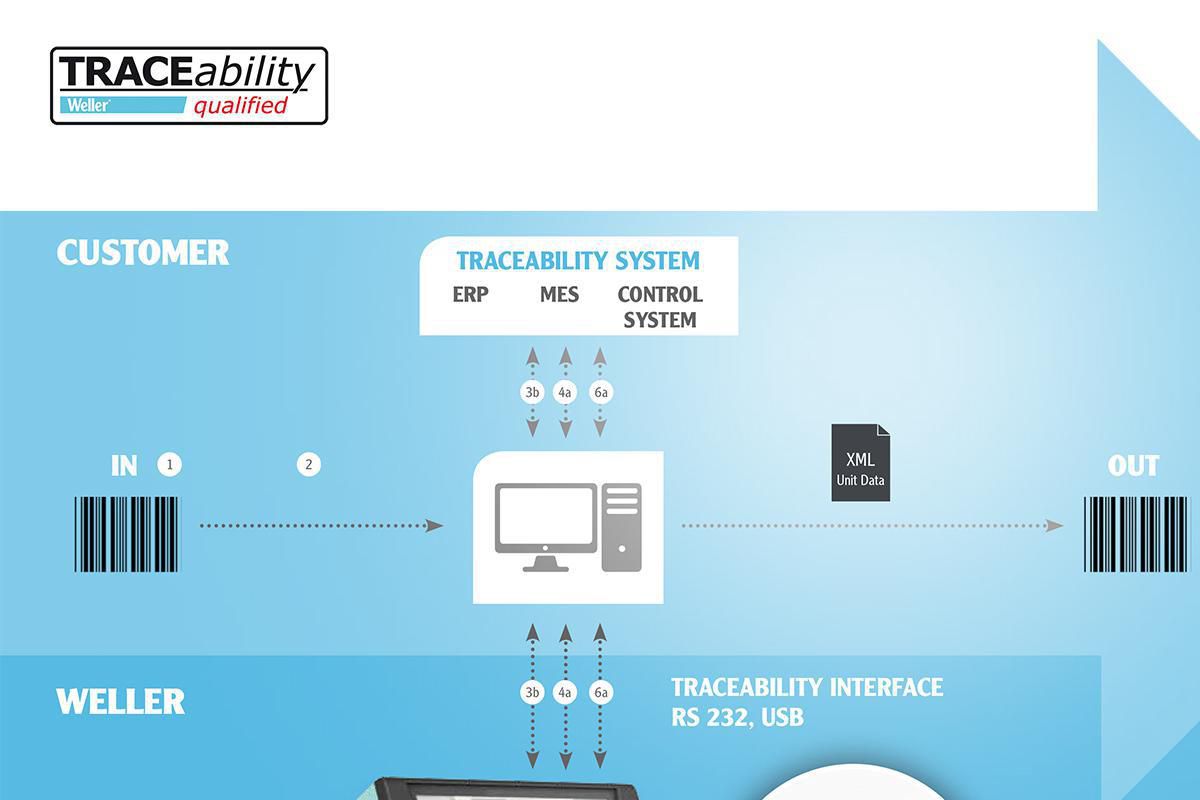

Traceability | Yes |
UPC | 037103304810 |
USB | USB interface of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types |
Voltage | 120 V |
Downloads
-
Download jpg jpg (134.03 KB) jpg (134.03 KB)Download jpg jpg (273.31 KB) jpg (273.31 KB)Download jpg jpg (457.8 KB) jpg (457.8 KB)Download jpg jpg (378.12 KB) jpg (378.12 KB)Download jpg jpg (41.41 KB) jpg (41.41 KB)Download jpg jpg (12.86 KB) jpg (12.86 KB)Download jpg jpg (14.21 KB) jpg (14.21 KB)
-
WX_Line_MatrixDownload pdf pdf (1.12 MB) pdf (1.12 MB)WE_WX_Units_Manual_EN_FR_ES_T0055746801Download pdf pdf (4.06 MB) pdf (4.06 MB)WEL_WX_Sales_Guide_FLYDownload pdf pdf (2.04 MB) pdf (2.04 MB)
-
