WX2024 Ultra MS
WX2024 Ultra MS

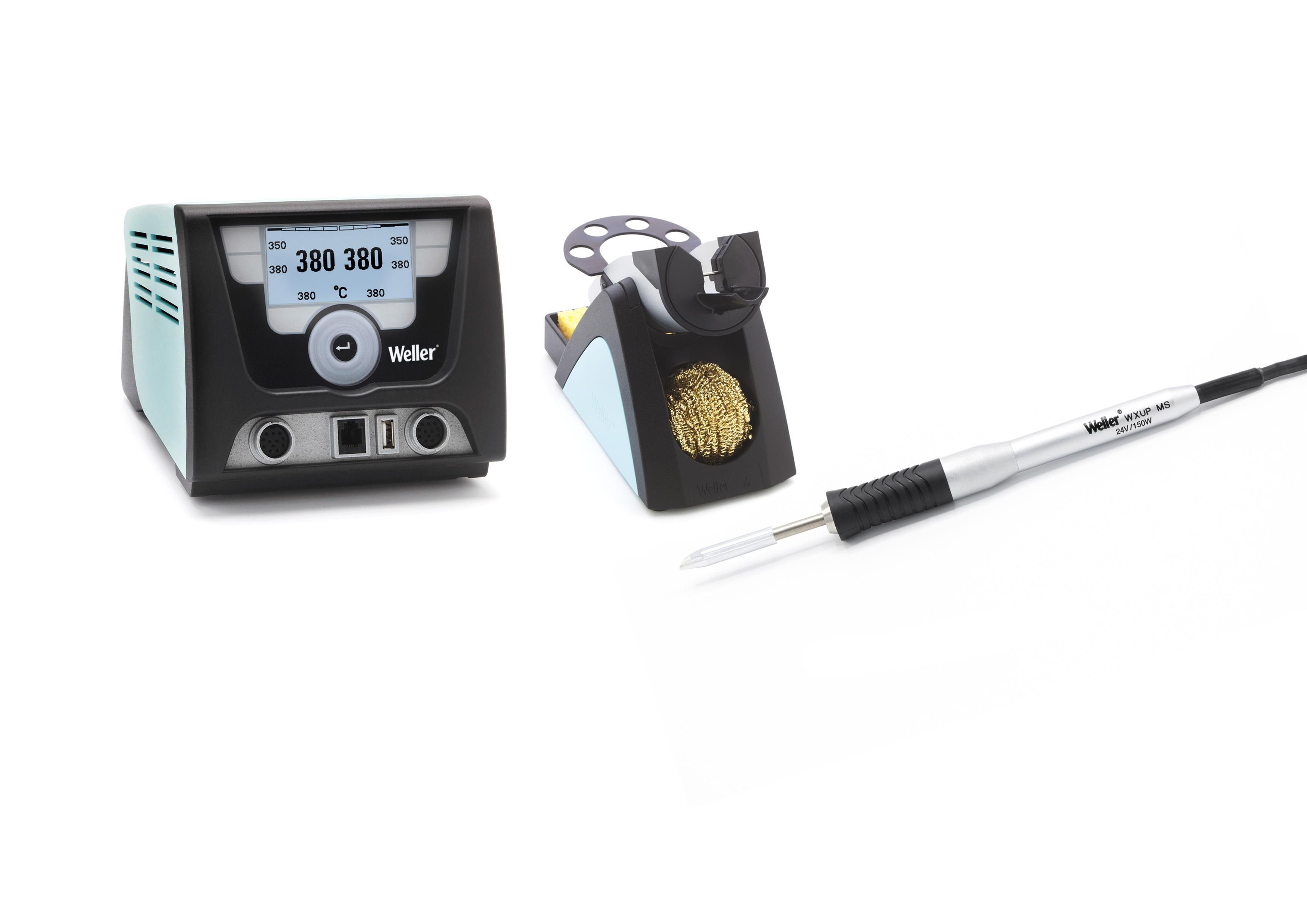

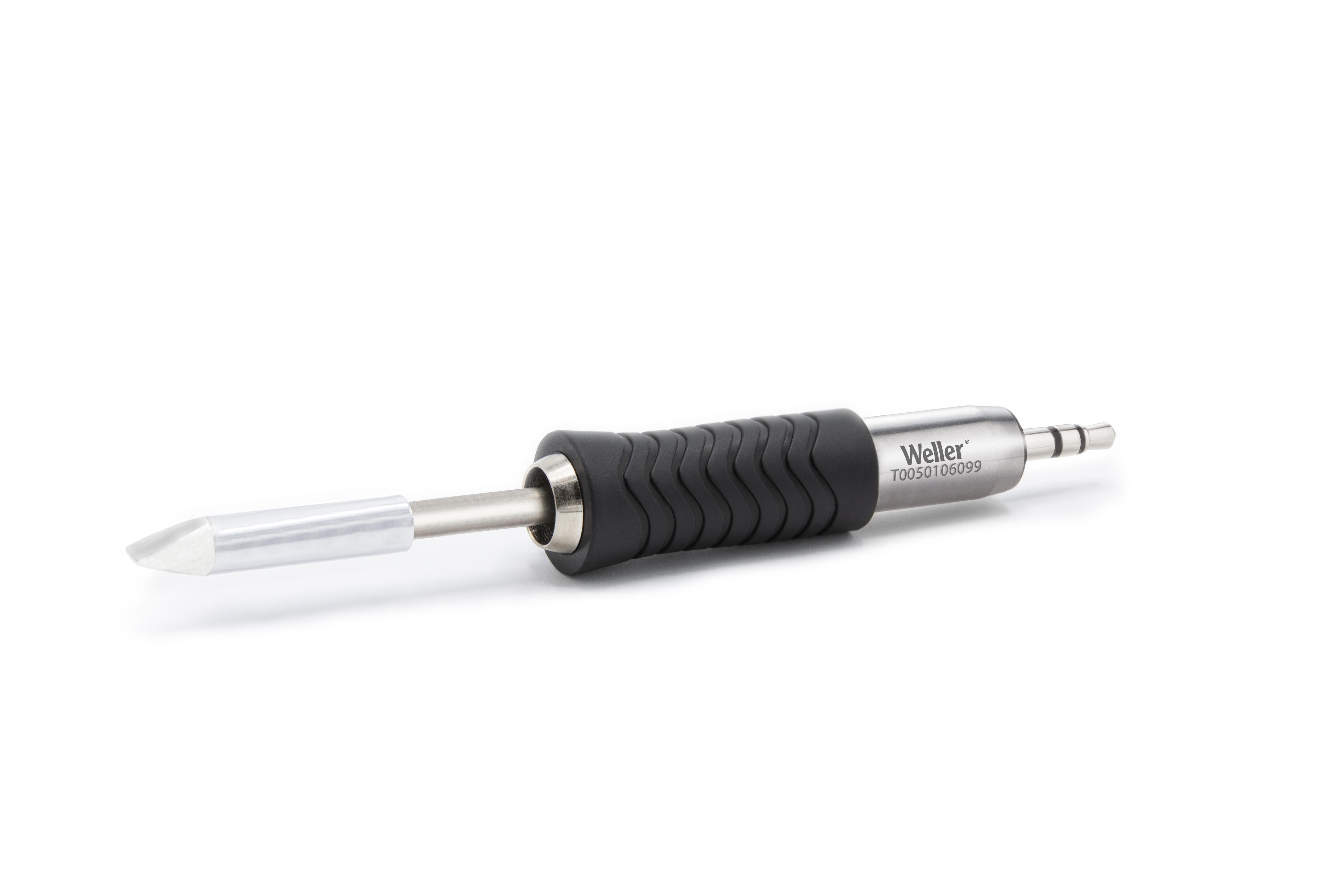

Weller WX stations make the manual soldering process safer, a crucial factor in the automotive, aerospace and medical industries. This station is especially designed to meet MIL-SPEC/IPC standards to save sensitive components from electrical overstress by using Weller RT MS soldering tips. Weller offers a wide range of RT MS tips to solder components with the size from XL to XXL. A safe soldering process is guaranteed by many features of the WX station like temperature and tool locking, and tool-specific temperature settings. Integrated USB ports provide the WX bench top control units with a connection to and control over soldering fume extractors, pre-heat plates and programmable logic controllers. Firmware updates and registration are quick and easy by using USB sticks. Parameters such as standby temperatures and automatic switch-off time can easily be stored in the soldering iron. Parameters only need to be stored once the MS soldering iron can then use them with any WX station.
-
For high precision heavy duty soldering applications. Component size XL to XXL
-
Station works as a benchtop controller to control tips, tools, fume extraction and peripheric tools
-
2 channels for simultaneous work of 2 tools with intelligent tool detection
-
Extremely fast heat-up time: 7 Sec.
-
Triple awarded active tip technology are fully compliant with MIL-SPEC / IPC Standard
-
Intelligent iron with motion sensor and integrated data storage
-

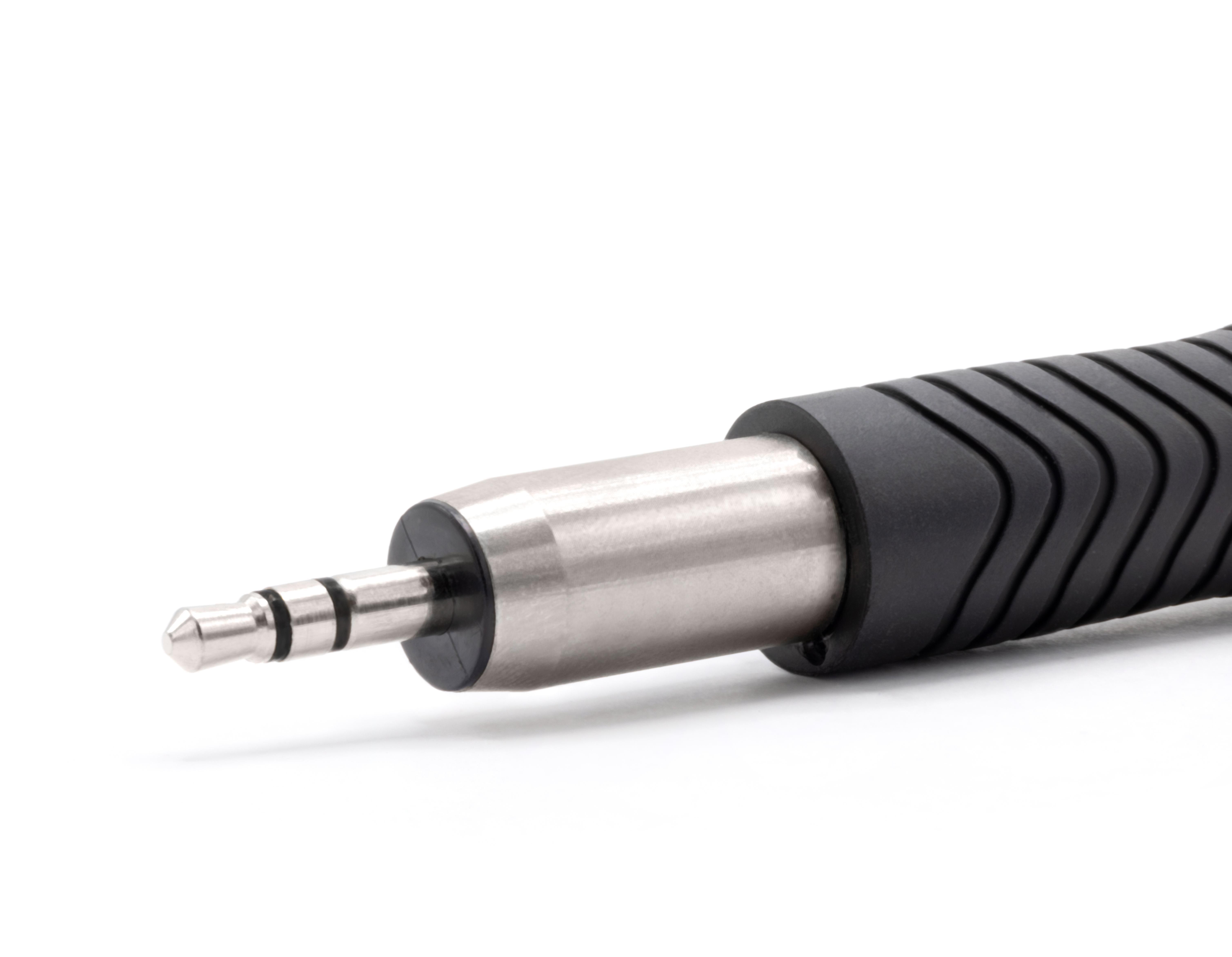

Toolless tip change
-
Traceability ready
-
2-in-1
Dimensions L x W x H | 174.0 x 154.0 x 135.0mm |
Automatic Tool Identification | Yes |
Benchtop Controller | Yes |
Equipotential Bonding | Yes |
ESD Safe | Yes |
Fuse | T2A |
Interface | 1x USB, 2x RS232, 1x Switching Output |
Multilingual Display | Yes |
Number of Channels | 2 |
Power | 200 W (255 W) |
Quantity Per Package | 1 |
Safety Rest | T0051517499N |
Temperature Accuracy °C | ± 9 °C |
Temperature Accuracy °F | ±17 °f |
Temperature Range °C | 100 - 550 °C |
Temperature Range °F | 210 - 999 °F |
Temperature Stability °C | ±2 °C |
Temperature Stability °F | ±4 °F |
Tip Type | WX |
Traceability | Yes |
UPC | 037103344229 |
USB | Yes |
Voltage | 120 V |
Works With | WXMP WXMP-MS WXPP WXPP-MS WXUP-MS |
Weight (Catalog) | 3.45 kg |
-
