WSW SAC L0 0,8mm, 250g, SN3,0AG0,5CU3,5%
Downloads
pdf
WSW SAC L0 0,8mm, 250g, SN3,0AG0,5CU3,5%
Item No.:
T0051388799

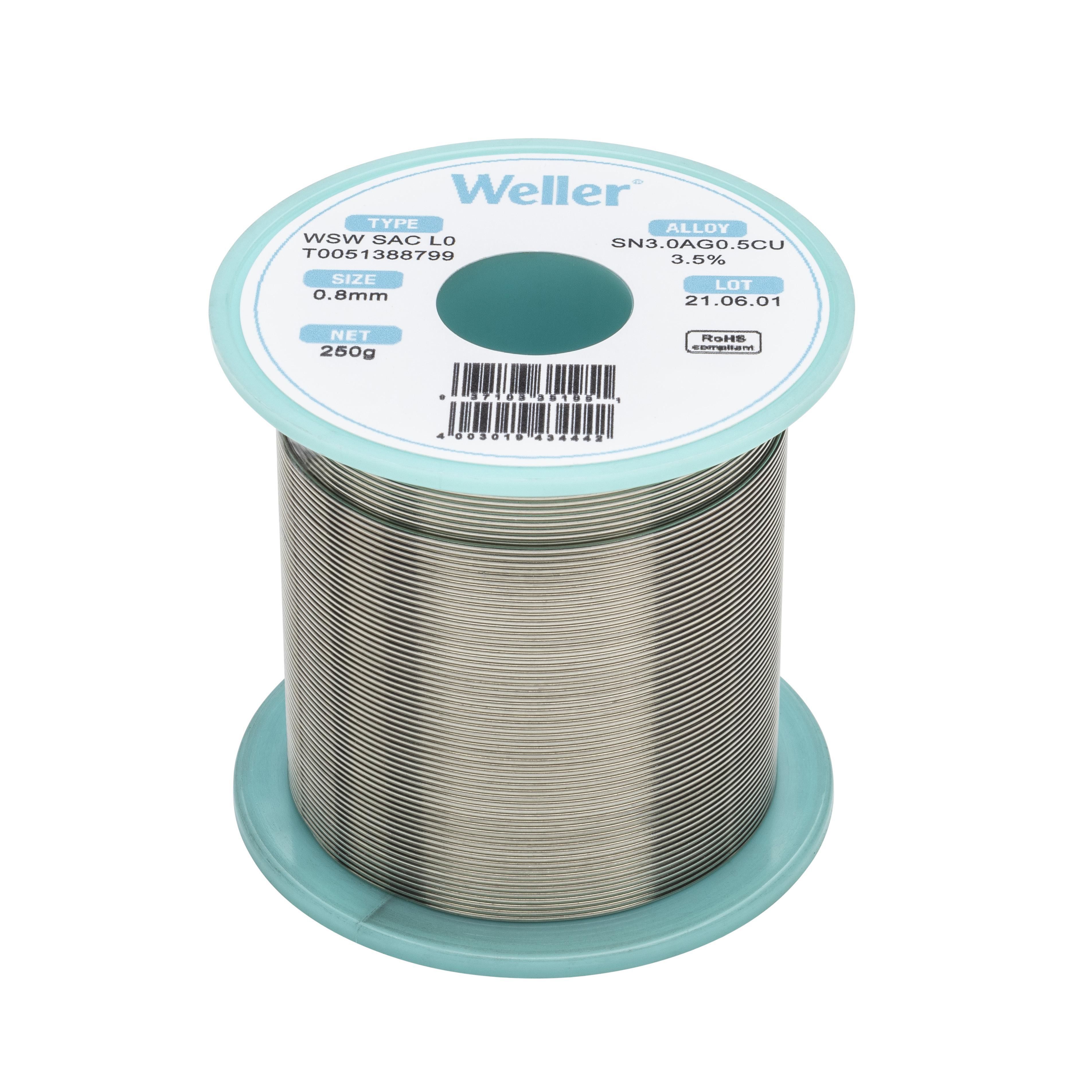

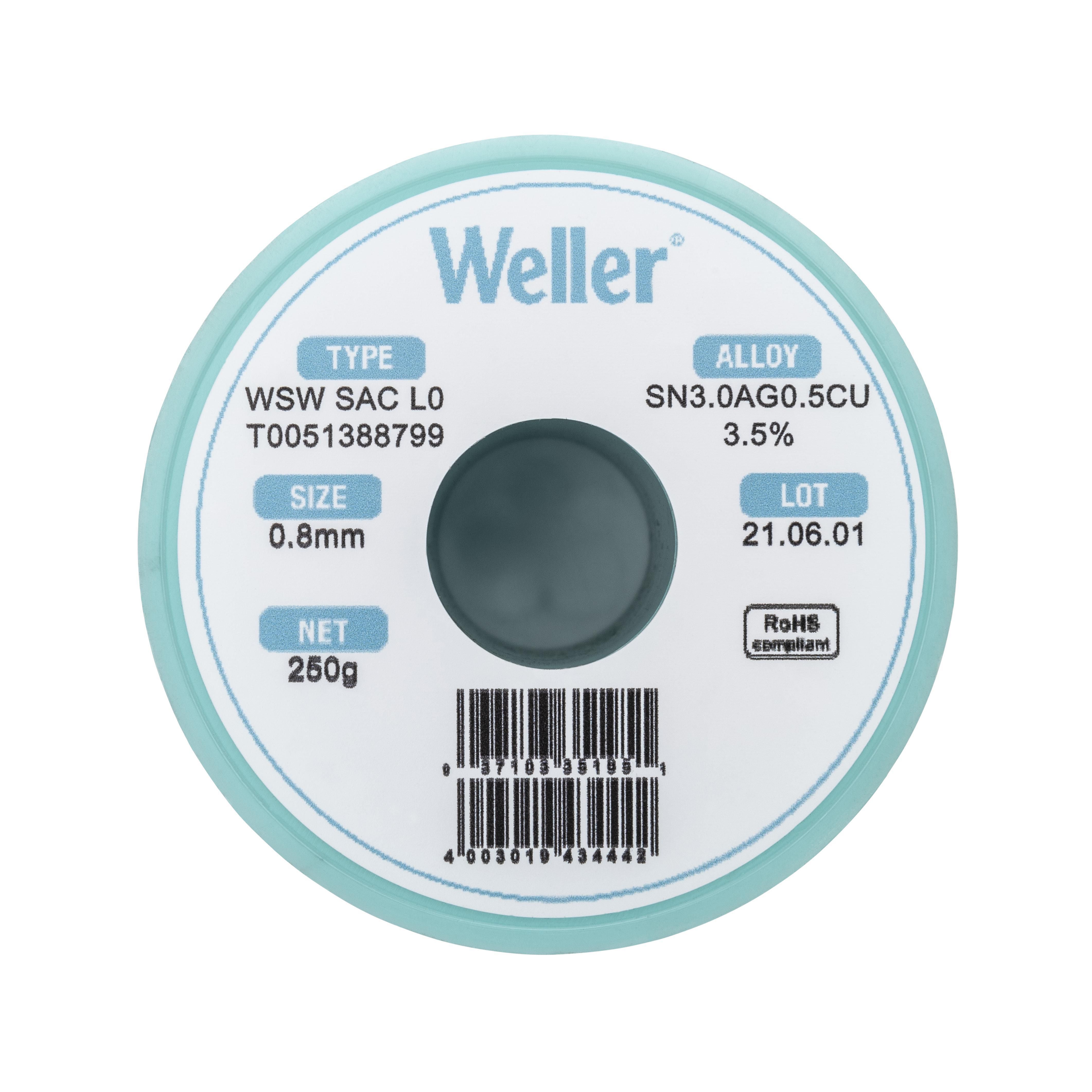

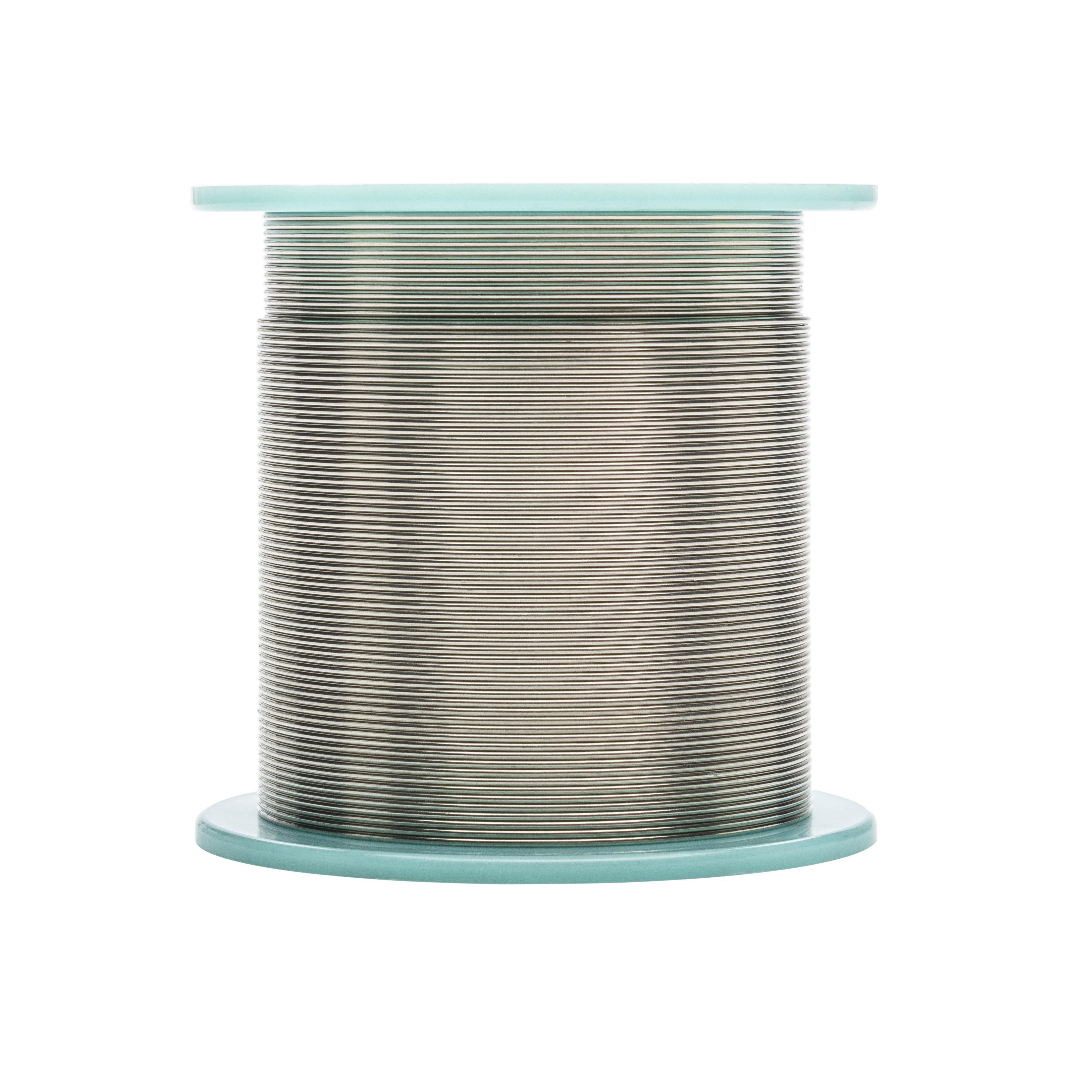

SAC L0 Solder Wire, Ø 0,8mm, 250g
The Perfect Solder Joint
The Perfect Solder Joint
Product features
-
Diameter: 0.8 mm / 0.039 inch, Weight: 250 g / 8.818 oz
-
Alloy Sn96.5Ag3.0Cu0.5, Flux content 3.5%
-
Guaranteed 100% continuous flux core
-
100% halogen free wire
-
Lead-free industry standard with 3% silver content
-
Reduced Fe leaching to increase tip life time and reduce tip consumption by up to 70%.
-
High soldering temperatures possible
-
Good wetting characteristics
-
Reduced splash of flux & No-Clean flux
Downloads
pdf
Technical data
| Dimensions L x W x H | 63.0 x 65.0mm |
| RoHS Compliant | Yes |
| Solder Wire Ø | 0.8mm |
| Temperature Range (Depends on Tool) | 217 - 221°C |
| Temperature Range °C | 217-221 °C |
| Temperature Range °F | 422.6-429.8 °F |
| UPC | 037103351951 |
| Weight (Catalog) | 0.25 kg |
